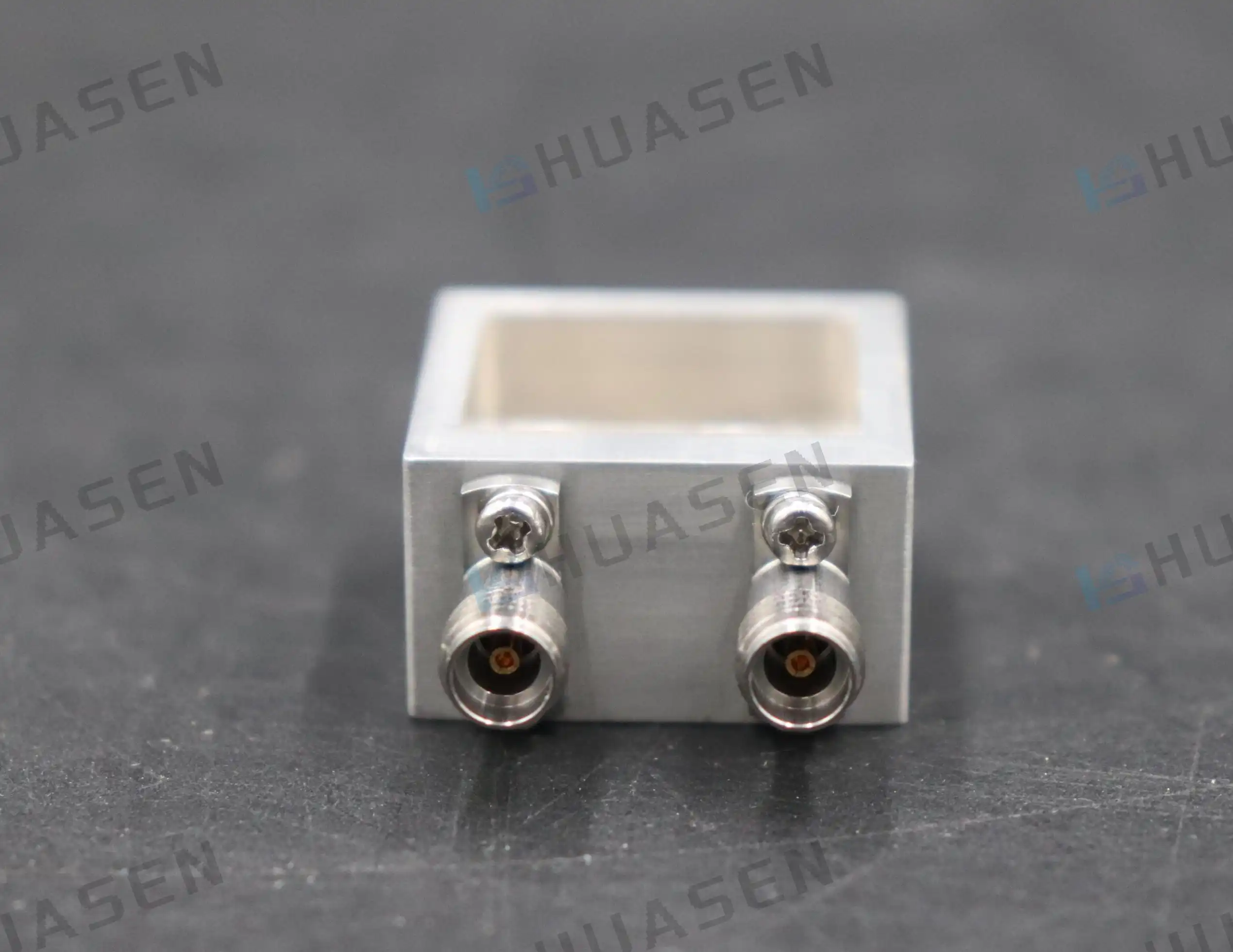

How Does a Coplanar WG Perform in High-Speed Signal Transmission?
2018-11-09 10:30:50
In the domain of high-speed flag transmission, Coplanar WG (waveguide) innovation has risen as a capable arrangement, advertising extraordinary execution and flexibility. Coplanar waveguides exceed expectations in high-frequency applications due to their interesting structure, which permits productive flag engendering with negligible loss and scattering. By situating both the flag conductor and ground planes on the same surface, coplanar waveguides encourage simpler integration and fabrication forms compared to conventional waveguide plans. This arrangement empowers prevalent mode control, diminished crosstalk, and advanced electromagnetic compatibility, making coplanar WG a perfect choice for cutting-edge communication frameworks, radar applications, and progressed electronic gadgets. The capacity of coplanar waveguides to maintain flag keenness over a wide frequency range, coupled with their compact frame calculate, has made them progressively prevalent in businesses requiring high-performance microwave and millimeter-wave solutions.
What is a coplanar waveguide (CPW) and how does it differ from standard WG?

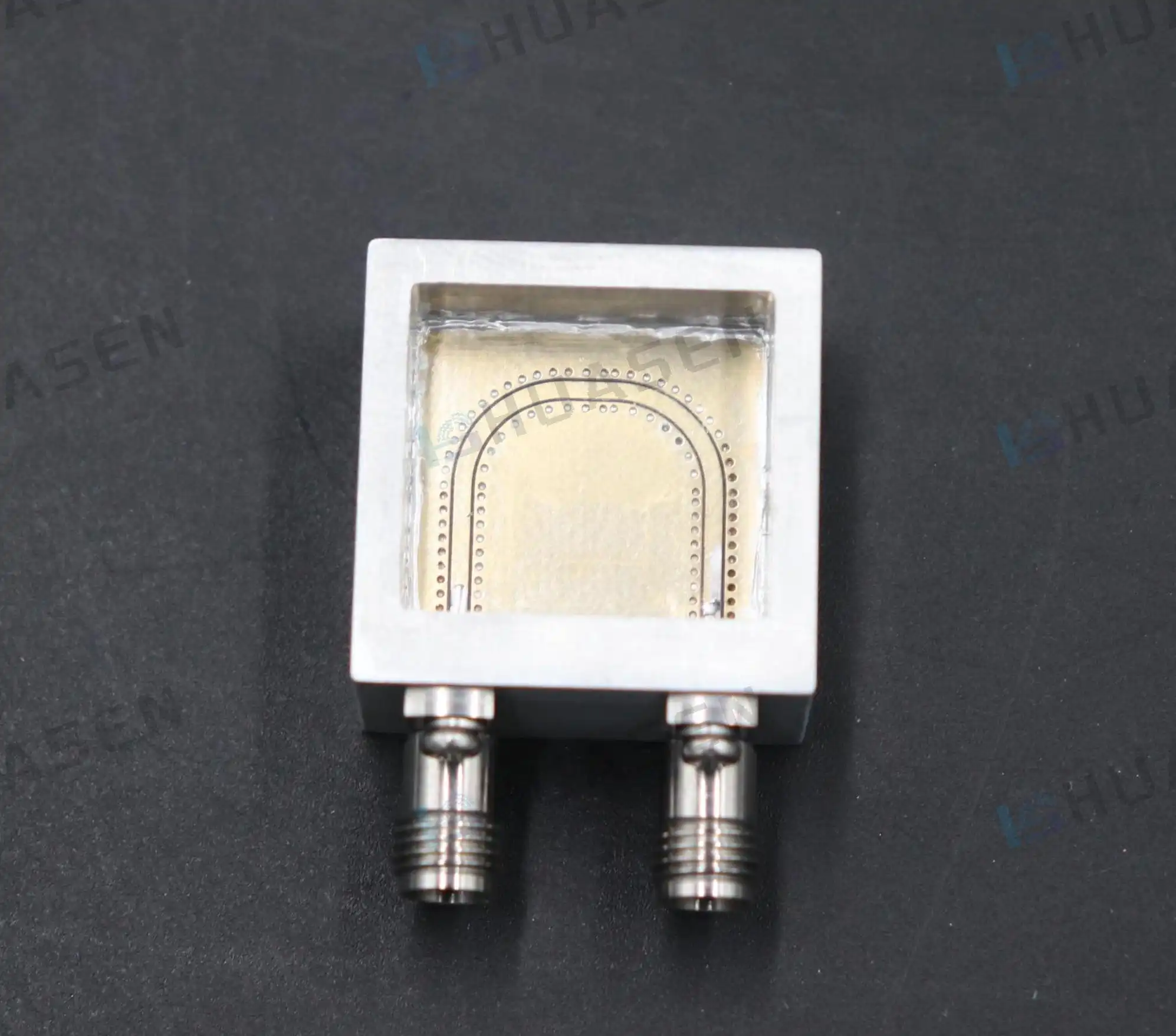

A coplanar waveguide (CPW) is a type of planar transmission line used for guiding electromagnetic waves, particularly in the microwave and millimeter-wave frequency ranges. The term "coplanar" refers to the unique configuration where both the center conductor and ground planes are positioned on the same side of the substrate. This arrangement distinguishes CPW from standard waveguides and offers several advantages in high-frequency applications.
Key features of coplanar waveguides:
- Planar structure: All conductive elements are on the same plane, simplifying fabrication and integration.
- Ground-signal-ground configuration: The center conductor is flanked by two ground planes, creating a well-defined electromagnetic field distribution.
- Substrate independence: CPW performance is less affected by substrate thickness compared to microstrip lines.
- Flexible characteristic impedance: Easily adjustable by varying the ratio of center conductor width to gap width.
In contrast, standard waveguides typically consist of hollow metal tubes or parallel plate structures. While these traditional designs offer excellent performance in certain applications, they often present challenges in terms of integration, size, and manufacturing complexity.
Advantages of CPW over standard waveguides:
- Easier integration with active and passive components
- Reduced parasitic effects due to ground plane proximity
- Lower dispersion, enabling wider bandwidth operation
- Simplified transitions to other transmission line types
- Compact form factor suitable for miniaturized designs
The unique structure of coplanar WG makes it particularly well-suited for high-speed signal transmission in modern electronic systems. Its ability to maintain signal integrity while offering design flexibility has led to widespread adoption in various industries, from telecommunications to aerospace.

Signal integrity and dispersion in coplanar WG at high frequencies
As frequencies increase, maintaining signal integrity becomes increasingly challenging. Coplanar waveguides offer several advantages in this regard, particularly when it comes to minimizing dispersion and preserving signal quality across a wide bandwidth.
Factors influencing signal integrity in CPW:
- Conductor losses: Resistive losses in the metal conductors increase with frequency
- Dielectric losses: Energy dissipation in the substrate material
- Radiation losses: Unintended electromagnetic emission from the transmission line
- Mode conversion: Excitation of unwanted propagation modes at discontinuities
Coplanar waveguides excel in managing these factors, particularly at high frequencies. The proximity of the ground planes to the signal conductor helps to confine the electromagnetic field, reducing radiation losses and improving overall signal integrity. Additionally, the planar structure of CPW allows for more precise control over impedance matching, further enhancing performance.
Dispersion characteristics of coplanar WG:
Dispersion, the phenomenon where different frequency components of a signal travel at different velocities, can lead to signal distortion in high-speed systems. Coplanar waveguides exhibit relatively low dispersion compared to many other transmission line types, making them ideal for broadband applications.
The dispersion characteristics of CPW are influenced by several factors:
- Geometry: The ratio of center conductor width to gap width affects dispersion
- Substrate properties: Dielectric constant and thickness impact wave propagation
- Conductor thickness: Can influence effective permittivity and dispersion
- Frequency: Higher frequencies generally lead to increased dispersion effects
By carefully optimizing these parameters, engineers can design coplanar WG structures with minimal dispersion over the desired frequency range. This capability is crucial for maintaining signal fidelity in high-speed digital and analog systems, where even small amounts of distortion can lead to significant performance degradation.

Crosstalk, mode confinement, and electromagnetic leakage in coplanar WG
In high-density circuit layouts, managing electromagnetic interactions between adjacent transmission lines is crucial. Coplanar waveguides offer distinct advantages in this regard, particularly in terms of crosstalk reduction, mode confinement, and control of electromagnetic leakage.
Crosstalk mitigation in CPW designs:
Crosstalk, the undesired coupling of signals between adjacent transmission lines, can be a significant challenge in high-speed systems. Coplanar waveguides inherently provide better isolation compared to many other planar transmission line types due to their unique field distribution.
- Ground plane shielding: The presence of ground planes between signal conductors reduces coupling
- Field confinement: The majority of the electromagnetic field is concentrated near the substrate surface
- Adjustable spacing: The gap between CPW lines can be optimized to minimize crosstalk
These characteristics make coplanar WG an excellent choice for densely packed circuit designs where signal integrity is paramount.
Mode confinement and electromagnetic leakage:
Effective mode confinement is essential for maintaining signal purity and minimizing unwanted radiation. Coplanar waveguides excel in this aspect due to their unique geometry:
- Quasi-TEM mode: The dominant mode in CPW closely approximates a transverse electromagnetic (TEM) wave
- Surface wave suppression: Proper design can minimize the excitation of substrate modes
- Controllable field distribution: The ratio of center conductor width to gap width influences field confinement
While coplanar waveguides generally offer good electromagnetic confinement, care must be taken to prevent leakage at discontinuities or bends. Techniques such as air bridges or underpasses can be employed to maintain mode purity and minimize radiation losses.
Advanced techniques for optimizing CPW performance:
- Conductor backing: Adding a metal layer beneath the substrate can improve isolation and reduce losses
- Periodic structures: Incorporating patterned ground planes or defected ground structures can enhance performance
- Multilayer designs: Utilizing multiple substrate layers allows for more complex and efficient CPW configurations
By leveraging these advanced techniques, engineers can push the boundaries of coplanar WG performance, enabling even higher frequencies and data rates in next-generation communication systems and electronic devices.
Conclusion
Coplanar waveguides have been demonstrated to be an irreplaceable innovation in the domain of high-speed flag transmission. Their special structure offers a compelling combination of execution, adaptability, and manufacturability that makes them perfect for a wide range of applications in the microwave and millimeter-wave spaces. As the request for higher information rates and more compact electronic frameworks proceeds to develop, the points of interest of coplanar WG in terms of flag keenness, scattering control, and electromagnetic compatibility will become progressively valuable.
For businesses looking for cutting-edge RF and microwave arrangements, Huasen Microwave Technology Co., Ltd. stands prepared to meet your needs. With decades of skill in high-frequency component planning and fabrication, we offer a comprehensive extend of coplanar waveguide items custom-made to the requesting requirements of broadcast communications, radar, aviation, and defense applications. As a trusted Coplanar WG supplier, we are committed to conveying high-performance, reliable, and precision-engineered solutions that meet the highest industry standards. Our commitment to development and quality guarantees that you'll get high-performance, solid arrangements that drive your ventures forward.
To explore how our coplanar waveguide technology can enhance your high-speed signal transmission applications, please don't hesitate to reach out to our expert team. Contact us at sales@huasenmicrowave.com to discuss your specific requirements and discover the Huasen Microwave advantage.
