What customized products can we provide?

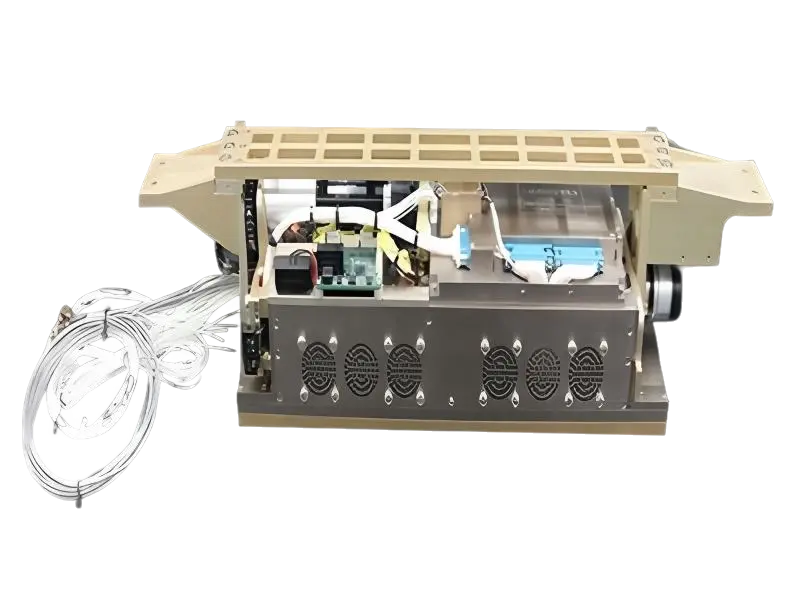

UAV - Mounted Radar Servo SubsystemUAV - Mounted Radar Servo Subsystem

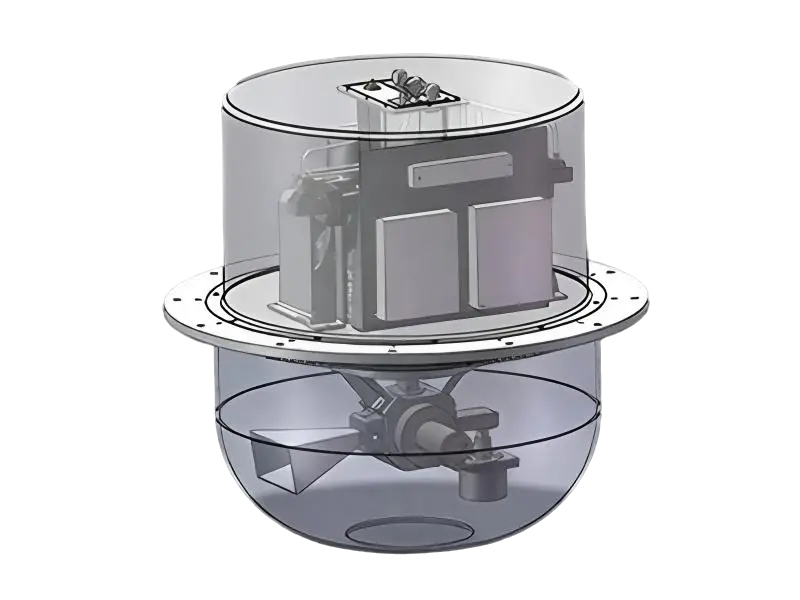

X-Band Array Antenna-Feed-Servo SystX-Band Array Antenna-Feed-Servo Syst

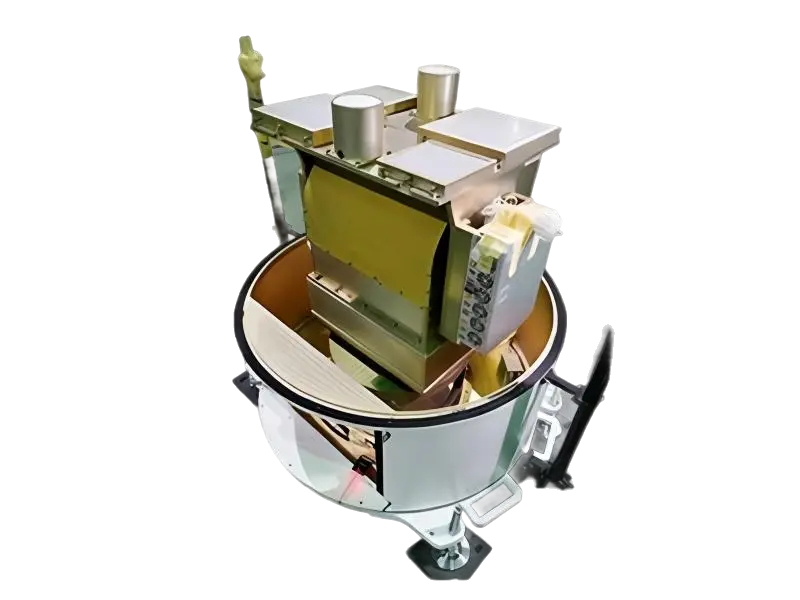

Airborne Antenna - Feed - Servo SystemAirborne Antenna - Feed - Servo System

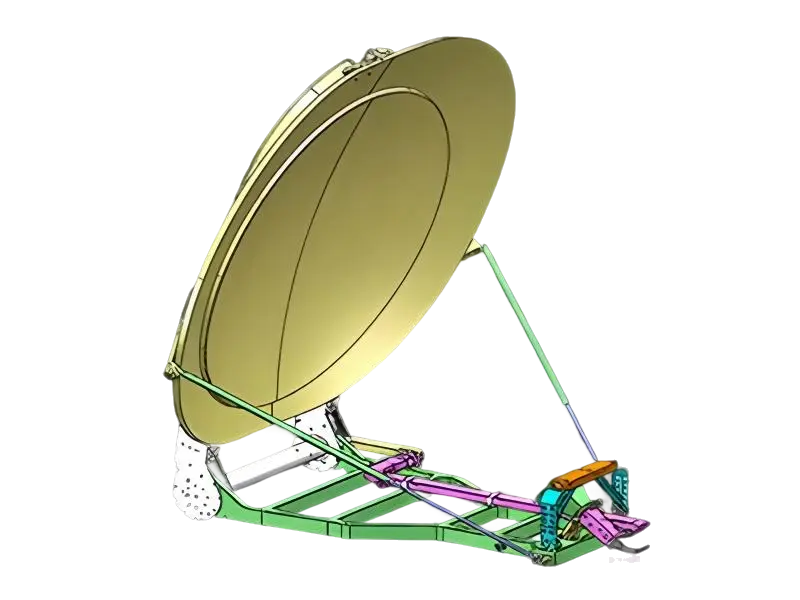

Multimode Reflector Antenna    Multimode Reflector Antenna
​2D Antenna-Feed-Servo Equipment for 3mm Waveband

2D Antenna-Feed-Servo Equipment for 3mm Waveband

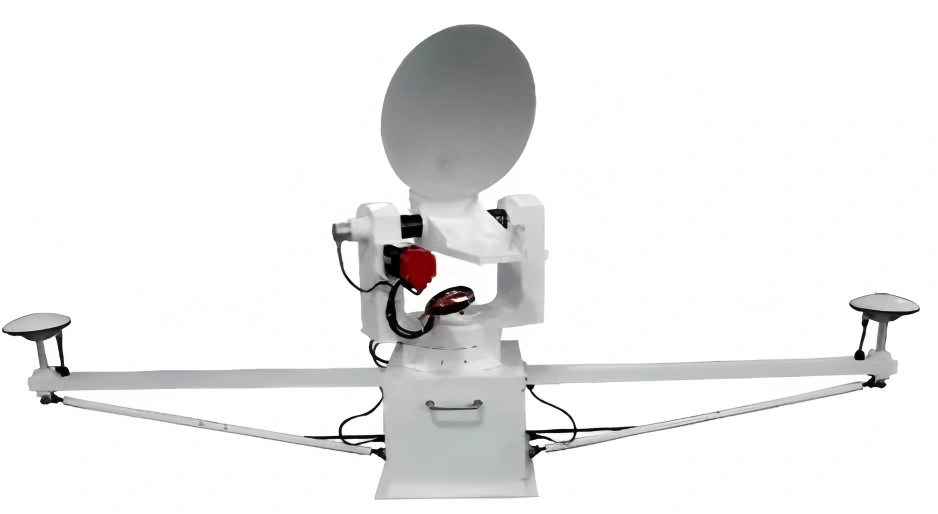

The 3mm waveband 2D antenna-feed-servo equipment developed by Huasen Microwave offers flexible direction adjustment capabilities: it supports azimuth rotation from 0° to 360° and elevation angle variation from -30° to 90°. Equipped with motion control functionality, it features an angular velocity ranging from 0 to 60° per second (with 30° per second as the default) and a fine stepping of 0.1°, enabling stable and continuous movement.
In terms of precision, the equipment achieves a positioning accuracy of 0.05°, a north alignment/level adjustment accuracy of ≤0.1°, and a synchronization accuracy of ≤0.05°. These performance metrics fully meet the requirements for precise target acquisition and collaborative operation of multiple devices.

Ka-Band Automatic Tracking System

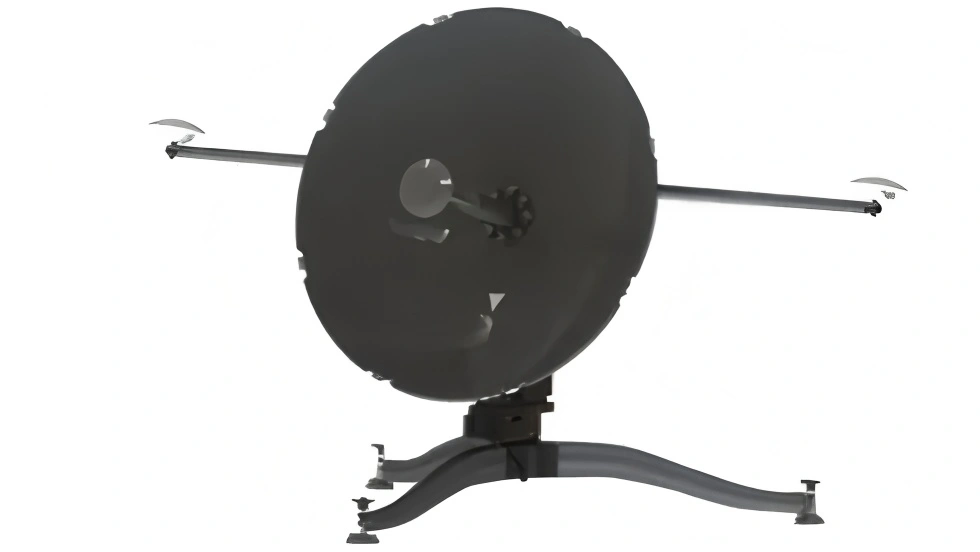

The Ka - band automatic tracking system developed by Huasen Microwave has an antenna aperture of ≤ 1.2 meters. It adopts a monopulse tracking system, enabling precise angle measurement and target tracking. For the satellite acquisition function, it supports both manual and automatic satellite - pointing modes to meet different operational requirements. The power supply complies with the AC220V electrical standard.

Ka-Band Automatic Tracking System​​​​​​​​​​​​​​​
​​​​​​​​​​​Ultra-wideband Monitoring Antenna-Feed System
Ultra-wideband Monitoring Antenna-Feed System

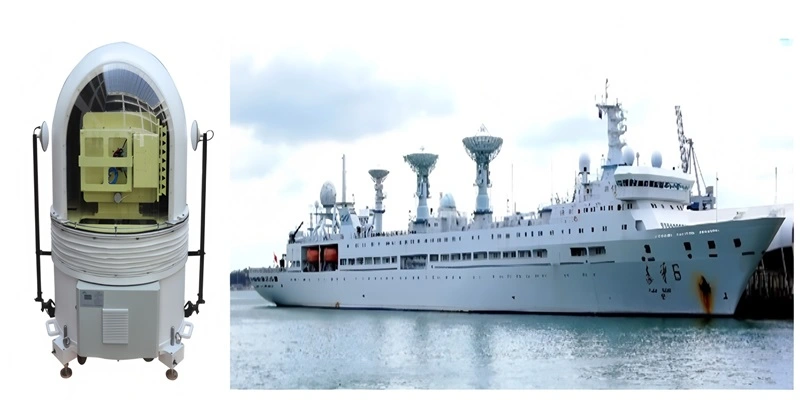

Our developed ultra-wideband monitoring antenna-feed system receives signals in the surrounding electromagnetic environment. It consists of an omnidirectional whip antenna, a composite antenna, a servo & turntable, and a receiving system.​

The composite antenna includes an adjustable horizontal/pitch servo mechanism and a radome. The whip and composite antennas receive signals; the servo & turntable controls the composite antenna's azimuth and pitch to capture signals from all directions, then sends them to the receiving system for processing and signal characteristic analysis.

X-band dual-polarized slotted antenna

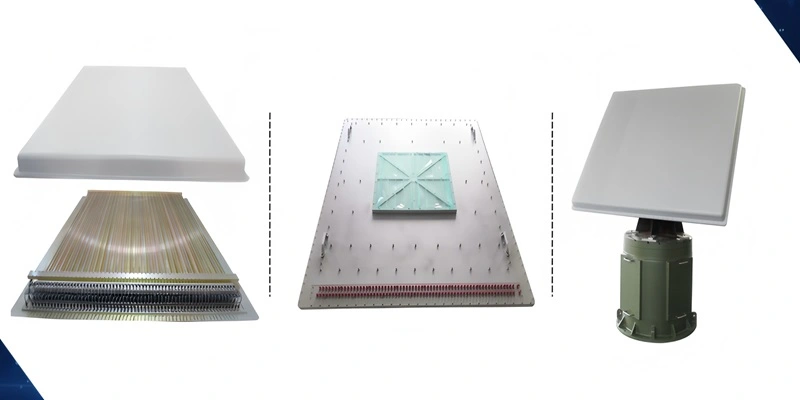

The X-band dual-polarized slotted antenna designed and produced by our company is applied in phased array weather radar systems. It can achieve ±45° scanning, with a sidelobe level lower than 27dB, featuring fast scanning speed and strong tracking capability. The slotted antenna array is in a flat panel form, with a lower profile than traditional antennas. Dual polarization is realized through slotting on the narrow side of the rectangular waveguide and the wide side of the ridged waveguide, and the pointing error of the dual-polarized beam is within 0.1°, ensuring good resolution. Meanwhile, it has the capabilities of moisture resistance, salt spray corrosion resistance and mildew resistance, with strong environmental adaptability.

​​​​​​​X-band dual-polarized slotted antenna​​​​​​​​​​​​
Rectangular Waveguide Tubing Information

Model No

EIA WG

Designation

IEC WG

Designation

Freq Range

(GHz)

Inside width

(mm)

Inside Height

(mm)

Std Tol ±Inside

Dim(mm)

Outside width (mm)

Outside Height

(mm)

Std Tol ±Outside

Dim(mm)

Nom Wall

Thickness (mm)

HS3

WR2300

R3

0.32~0.49

584.2

292.1







6

HS4

WR2100

R4

0.35~0.53

533.4

266.7







5

HS5

WR1800

R5

0.41~0.62

457.2

228.6

0.51





5

HS6

WR1500

R6

0.49~0.75

381

190.5

0.38





3.18

HS8

WR1150

R8

0.64~0.98

292.1

146.05

0.38





3.18

HS9

WR975

R9

0.76~1.15

247.65

123.82







3.18

HS12

WR770

R12

0.96~1.46

195.58

97.79







3.18

HS14

WR650

R14

1.13~1.73

165.1

82.55

0.33

169.16

86.61

0.2

2.03

HS18

WR510

R18

1.45~2.20

129.54

64.77

0.26

133.6

68.83

0.2

2.03

HS22

WR430

R22

1.72~2.61

109.22

54.61

0.22

113.28

58.67

0.2

2.03

HS 26

WR340

R26

2.17~3.30

86.36

43.18

0.17

90.42

47.24

0.17

2.03

HS32

WR284

R32

2.60~3.95

72.14

34.04

0.14

76.2

38.1

0.14

2.03

HS40

WR229

R40

3.22~4.90

58.17

29.08

0.12

61.42

32.33

0.12

1.625

HS48

WR187

R48

3.94~5.99

47.549

22.149

0.095

50.8

25.4

0.1

1.625

HS58

WR159

R58

4.64~7.05

40.386

20.193

0.081

43.64

23.44

0.08

1.625

HS70

WR137

R70

5.38~8.17

34.849

15.799

0.07

38.1

19.05

0.08

1.625

HS84

WR112

R84

6.57~9.99

28.499

12.624

0.057

31.75

15.88

0.05

1.625

HS100

WR90

R100

8.20~12.5

22.86

10.16

0.046

25.4

12.7

0.05

1.27

HS120

WR75

R120

9.84~15.0

19.05

9.525

0.038

21.59

12.06

0.05

1.27

HS140

WR62

R140

11.9~18.0

15.799

7.899

0.031

17.83

9.93

0.05

1.015

HS180

WR51

R180

14.5~22.0

12.954

6.477

0.026

14.99

8.51

0.05

1.015

HS220

WR42

R220

17.6~26.7

10.668

4.318

0.021

12.7

6.35

0.05

1.015

HS260

WR34

R260

21.7~33.0

8.636

4.318

0.02

10.67

6.35

0.05

1.015

HS320

WR28

R320

26.3~40.0

7.112

3.556

0.02

9.14

5.59

0.05

1.015

HS400

WR22

R400

32.9~50.1

5.69

2.845

0.02

7.72

4.88

0.05

1.015

HS500

WR19

R500

39.2~59.6

4.775

2.388

0.02

6.81

4.42

0.05

1.015

HS620

WR15

R620

49.8~75.8

3.759

1.88

0.02

5.79

3.91

0.05

1.015

HS740

WR12

R740

60.5~91.9

3.0988

1.5494

0.0127

5.13

3.58

0.05

1.015

HS900

WR10

R900

73.8~112

2.54

1.27

0.0127

4.57

3.3

0.05

1.015
