High Power RF Combiner
Advantages and Features:
- Isolation between balanced arms ≥17 dB
- Power distribution ratio,3 ± 0.25 dB
- Operating bandwidth ≤20%, covering 0.32–112 GHz
- Low VSWR,H-port ≤1.2, balanced port ≤1.5
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted High Power RF Combiner Solution
As a leading manufacturer of high-frequency microwave and millimeter-wave components, Huasen Microwave Technology Co., Ltd. proudly offers our cutting-edge High Power RF Combiner. With over 30 years of expertise, we deliver superior performance and reliability in RF infrastructure. Our product excels in efficient power combination and distribution, making it ideal for telecommunications, radar, aerospace, and defense applications.
Why Choose Our High Power RF Combiner?
- Unmatched Performance: Achieve precise power distribution with a 3 ± 0.25 dB ratio and exceptional isolation ≥ 17 dB between balanced arms.
- Versatile Frequency Range: Operating bandwidth ≤ 20%, covering 0.32–112 GHz to meet diverse project needs.
- Superior Stability: Low standing wave ratios (H-port ≤ 1.2, balanced port ≤ 1.5) ensure consistent signal quality.
- Customizable Solutions: Tailor our product to your specific requirements, from power handling to environmental durability.
- Cost-Effective: Optimized design for large-scale deployments without compromising on quality.
Product Type
|
Type Code |
IType |
UType |
XType |
YType |
YUType |
|||||
|
WSWC |
WTWC |
WSWUC |
WTWUC |
WSWXC |
WTWXC |
WSWYC |
WTWYC |
WSWYUC |
WTWYUC |
|
|
Meaning |
Narrow side coupling |
Broadside coupling |
Narrow side coupling |
Broadside coupling |
Narrow side coupling |
Broadside coupling |
Narrow side coupling |
Broadside coupling |
Narrow side coupling |
Broadside coupling |
|

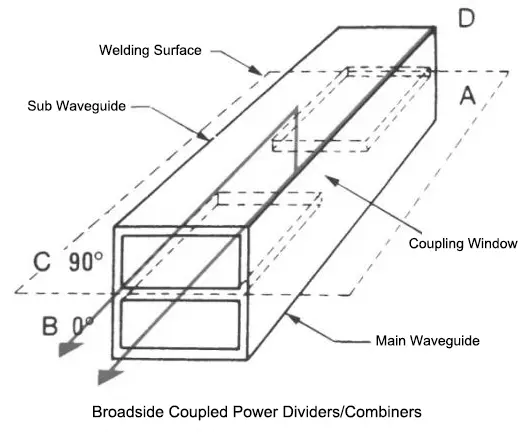

Structure diagram |
|
|
|
|
|
|||||
Product Features & Process
- E-arm Integrated Load: Ensures efficient power handling and thermal management.
- Precision Machining: Copper and aluminum construction for optimal RF performance.
- Advanced Plating: Enhances durability and reduces signal loss.
- Rigorous Testing: Each unit undergoes extensive performance validation.
Applications
Our High Power RF Combiner excels in:
- 5G/6G Base Stations
- Satellite Communication Systems
- Military Radar Arrays
- IoT Gateway Networks
- Smart City Infrastructure
Installation & Compatibility
- Plug-and-Play Design: Easy integration with standard waveguide systems.
- Flexible Mounting Options: Suitable for rack, pole, or wall installation.
- Multi-vendor Compatibility: Designed to work seamlessly with major RF equipment brands.
Quality Control & After-Sales
- ISO9001 Certified Manufacturing
- RoHS and REACH Compliant
- Comprehensive 1-Year Warranty
- Expert Technical Support
Packaging and Shipping
- Custom-designed protective packaging
- Shock-resistant foam inserts
- Available in single units or bulk quantities
- Global shipping with tracking
FAQ
Q1: What is the maximum power handling capacity?
A1: Our standard product handles up to 100W, with custom solutions available for higher power needs.
Q2: Are your combiners suitable for outdoor use?
A2: Yes, we offer weatherproof options designed to withstand extreme temperatures and humidity.
Q3: Can you provide combiners for specific frequency bands?
A3: Absolutely! We can customize our combiners for any frequency within our 0.32–112 GHz range.
Q4: How does your combiner compare to competitors in terms of insertion loss?
A4: Our advanced design achieves industry-leading low insertion loss, typically <0.3 dB.
Q5: Do you offer multi-band combiners?
A5: Yes, we can design multi-band combiners, perfect for IoT and smart city applications.
Contact Us
Ready to elevate your RF infrastructure? Contact our expert team at sales@huasenmicrowave.com for quotes, custom designs, or technical support. Trust Huasen Microwave for your High Power RF Combiner needs and experience the difference in quality and performance.
Send Inquiry
