How Lens Horn Antenna Design Reduces Phase Error and Sidelobes?

In high-frequency microwave and millimeter-wave applications, engineers face a persistent challenge: achieving high gain while maintaining low sidelobe levels and minimal phase distortion. Traditional horn antennas suffer from non-uniform aperture field distributions that generate phase errors reaching up to 180 degrees across the aperture, resulting in sidelobe levels as high as negative 11 to negative 17 decibels. The Lens Horn Antenna addresses these critical issues through integrated dielectric lens structures that simultaneously correct phase distribution and control amplitude taper across the antenna aperture. This innovative design enables sidelobe suppression below negative 25 decibels in both E-plane and H-plane patterns while maintaining compact dimensions and high directivity, making it indispensable for telecommunications, radar systems, and aerospace applications where signal integrity cannot be compromised.

Understanding Phase Error Challenges in Horn Antenna Systems

Phase error represents one of the most significant performance limitations in conventional horn antenna designs, directly impacting beam quality and radiation efficiency. When electromagnetic waves propagate through a horn antenna, the aperture field experiences non-uniform phase distribution due to the spherical wavefront emanating from the throat section. This phase variation across the aperture plane creates constructive and destructive interference patterns that manifest as elevated sidelobe levels and reduced gain. In standard pyramidal and conical horn configurations, the phase difference between the center and edge of the aperture can exceed 90 degrees at the design frequency, causing the first sidelobe level to rise above negative 15 decibels, which is unacceptable for many precision applications.

The Lens Horn Antenna architecture solves this fundamental issue by incorporating a gradient-index dielectric lens that acts as a phase compensation element. The lens material, typically fabricated from low-loss dielectrics such as Rexolite or Teflon-based composites with precisely controlled dielectric constants, transforms the curved wavefront into a planar phase distribution. This phase correction mechanism operates across the entire operating bandwidth, ensuring that electromagnetic energy arrives at the aperture plane with uniform phase alignment. Advanced metamaterial lens designs can achieve phase uniformity within plus or minus 10 degrees across the entire aperture, dramatically improving the antenna's far-field radiation characteristics.

Dielectric Lens Integration for Phase Correction

The integration of dielectric lenses into horn antenna structures requires careful consideration of material properties, lens geometry, and impedance matching. High-performance Lens Horn Antenna systems employ graduated refractive index profiles that smoothly transition from the waveguide mode to free-space propagation. The lens thickness and curvature are optimized through electromagnetic simulation to minimize reflection losses while maximizing phase correction efficiency. Conical Horn Lens and Pyramidal Horn Lens configurations benefit from axisymmetric and planar lens geometries respectively, each tailored to address the specific modal field distributions within the horn structure.

Modern fabrication techniques enable the production of complex lens profiles with surface accuracies better than 0.05 millimeters, ensuring consistent performance across the 2 to 40 gigahertz frequency range. The lens positioning within the horn flare is critical—placement too close to the throat results in insufficient phase error accumulation to correct, while positioning too near the aperture provides inadequate correction length. Optimal lens location typically occurs at approximately 60 to 75 percent of the total horn length, where the phase error profile is well-developed but sufficient propagation distance remains for complete wavefront transformation.

Metamaterial Lens Technology for Enhanced Performance

Advanced Lens Horn Antenna designs incorporate metamaterial lens structures composed of subwavelength periodic elements that provide unprecedented control over electromagnetic wave propagation. These engineered materials exhibit effective refractive indices that can be tailored locally to achieve specific phase transformation requirements. Metamaterial lenses enable compact antenna designs with superior phase correction capabilities compared to conventional dielectric lenses, while maintaining minimal insertion loss and broad bandwidth operation. The unit cell design of metamaterial lenses allows independent control of electric and magnetic responses, enabling simultaneous optimization of phase correction and impedance matching.

Recent developments in metamaterial Lens Horn Antenna systems have demonstrated sidelobe level reductions exceeding 10 decibels compared to standard horn antennas, with measured E-plane sidelobe levels reaching negative 27 decibels. The metamaterial approach also facilitates the realization of Feed-Illuminated Lens configurations where the lens structure is integrated directly into the feed system, minimizing overall antenna dimensions while enhancing radiation performance. These advanced lens designs maintain stable performance across temperature variations ranging from negative 40 to positive 85 degrees Celsius, making them suitable for demanding aerospace and defense applications.

Sidelobe Suppression Through Aperture Field Control

Sidelobe radiation degrades antenna system performance by reducing directivity, increasing interference susceptibility, and compromising signal security. In Lens Horn Antenna designs, sidelobe suppression is achieved through precise control of both amplitude and phase distributions across the antenna aperture. The lens structure modifies the field distribution to create a tapered amplitude profile that smoothly decreases from the aperture center toward the edges, following distributions such as Taylor or Chebyshev amplitude tapers. This controlled amplitude variation minimizes abrupt field discontinuities at the aperture boundaries, which are the primary source of high-angle sidelobe radiation.

The effectiveness of lens-based sidelobe control is evident in measured radiation patterns, where properly designed Lens Horn Antenna systems exhibit E-plane sidelobe levels below negative 15 decibels and H-plane sidelobe levels below negative 26 decibels. Point-Focus Lens antenna configurations achieve even more impressive performance, with first sidelobe levels suppressed to negative 30 decibels or lower. This level of sidelobe suppression is critical for applications including satellite communications, where adjacent channel interference must be minimized, and radar systems, where low sidelobes reduce clutter reception and improve target detection capability.

Amplitude Taper Optimization Techniques

Achieving optimal amplitude taper in Lens Horn Antenna systems requires balancing competing performance objectives including sidelobe level, beamwidth, and aperture efficiency. The lens refractive index distribution is designed to concentrate electromagnetic energy toward the aperture center while gradually reducing field intensity at the edges. This amplitude shaping is accomplished without the gain reduction typically associated with lossy attenuators or resistive cards used in conventional low-sidelobe horn designs. The gradient-index profile of the lens naturally creates the desired amplitude taper through controlled refraction of the propagating waves.

Sophisticated optimization algorithms employing genetic algorithms or particle swarm optimization techniques are utilized to determine ideal lens parameters that satisfy multiple performance criteria simultaneously. These computational methods explore the multi-dimensional design space defined by lens thickness, curvature, material properties, and position within the horn structure. The resulting optimized Lens Horn Antenna designs deliver sidelobe suppression exceeding 20 decibels while maintaining aperture efficiencies above 75 percent and beamwidths appropriate for the intended application. Customization of focal length, aperture diameter, and beamwidth enables tailored solutions for specific system requirements.

Dual-Plane Sidelobe Control

A unique advantage of Lens Horn Antenna technology is the ability to independently control sidelobe levels in both E-plane and H-plane radiation patterns. Conventional horn antennas exhibit significantly different sidelobe characteristics in orthogonal planes due to the asymmetric field distributions inherent in pyramidal horn structures. The lens element in advanced designs incorporates anisotropic refractive index profiles or spatially varying lens geometries that address E-plane and H-plane phase errors independently. This dual-plane control capability ensures symmetric radiation patterns with uniformly low sidelobe levels across all angular directions.

Practical implementations of dual-plane sidelobe suppression in Lens Horn Antenna systems have achieved measured sidelobe levels below negative 25 decibels in both principal planes across operating bandwidths exceeding 30 percent. The Conical Horn Lens architecture inherently provides symmetric patterns due to its axially symmetric geometry, while Pyramidal Horn Lens designs require more sophisticated lens profiling to equalize E-plane and H-plane performance. These capabilities are essential for applications such as precision test and measurement systems, antenna pattern analysis facilities, and communication links requiring stringent interference rejection specifications.

Advanced Lens Horn Antenna Configurations

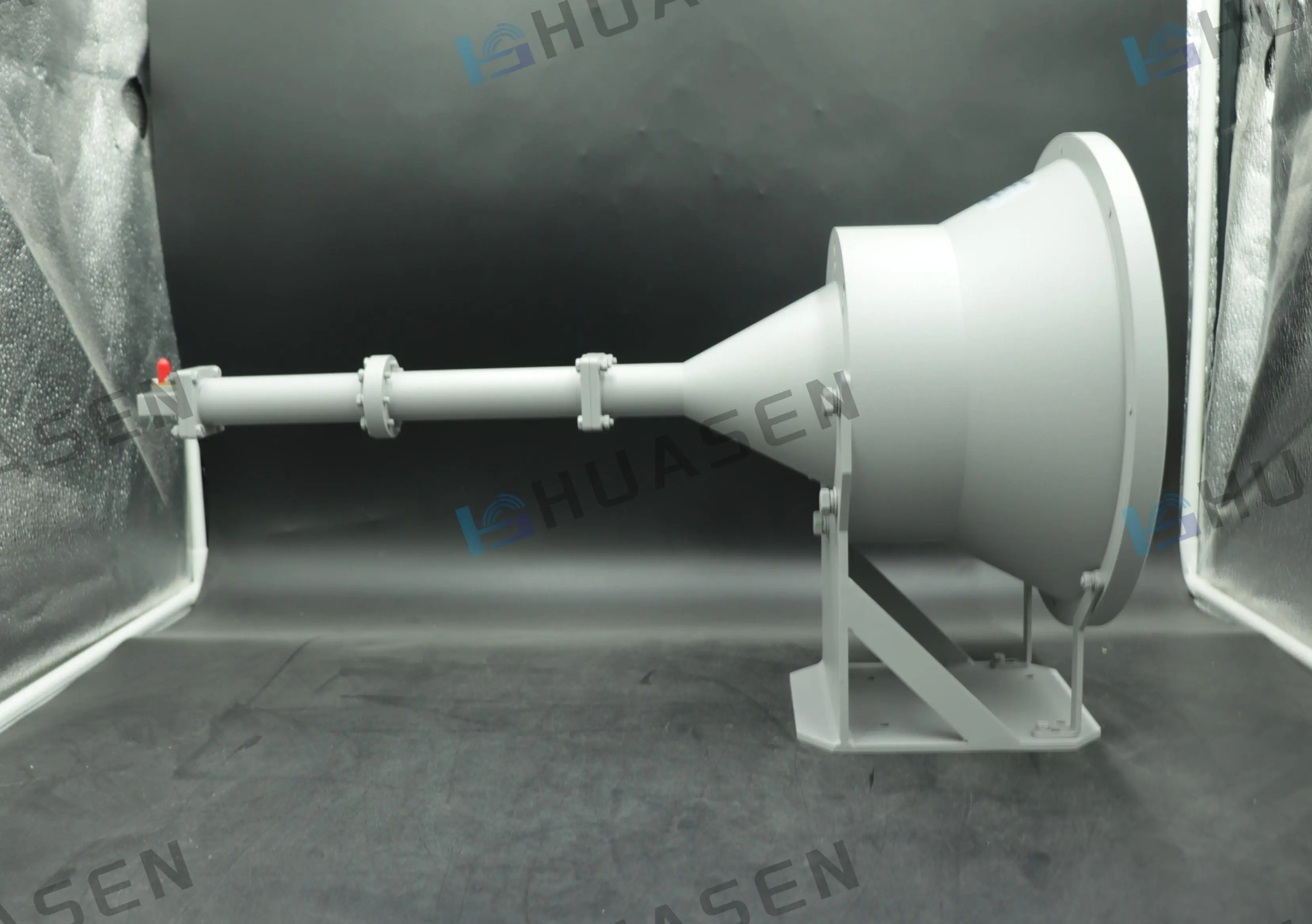

The versatility of lens-based phase correction and sidelobe control has enabled the development of diverse Lens Horn Antenna configurations optimized for specific application requirements. Conical Horn Lens designs provide circularly symmetric radiation patterns ideal for satellite communication feeds and radar systems requiring azimuthally uniform coverage. The axisymmetric lens geometry simplifies fabrication and ensures consistent performance independent of polarization orientation. These antennas typically operate across frequency ranges from 8 to 110 gigahertz, with gain values reaching 33 decibels and fractional bandwidths exceeding 20 percent.

Pyramidal Horn Lens configurations offer rectangular aperture geometries suitable for linearly polarized applications and integration with waveguide transmission systems. The rectangular aperture enables efficient utilization of available mounting space in array environments and facilitates beam shaping in asymmetric angular sectors. Feed-Illuminated Lens architectures position the lens element at the horn throat, creating extremely compact antenna structures with axial dimensions reduced by up to 44 percent compared to conventional horns achieving equivalent directivity. Point-Focus Lens designs employ spherical or elliptical lens surfaces that transform the diverging feed radiation into highly collimated beams with exceptional directivity and minimal sidelobe contamination.

Wideband Performance Characteristics

Lens Horn Antenna systems demonstrate remarkable bandwidth performance due to the inherently achromatic nature of properly designed dielectric lens structures. Unlike resonant antenna elements that exhibit narrowband characteristics, the gradual refractive index transitions in lens designs maintain phase correction effectiveness across broad frequency ranges. Measured performance data from production Lens Horn Antenna units covering 2 to 40 gigahertz shows sidelobe levels remaining below negative 20 decibels across the entire operational bandwidth, with gain variation less than 1.5 decibels and voltage standing wave ratio below 1.5 to 1.

The wideband capability of Lens Horn Antenna technology proves especially valuable in modern communication systems employing frequency-agile or multi-band operation. Software-defined radio platforms, electronic warfare systems, and spectrum monitoring applications benefit from the consistent radiation characteristics maintained across wide tuning ranges. Advanced material selection including low-dispersion dielectrics with stable permittivity across temperature and frequency variations ensures reliable performance in demanding operational environments. The 71 to 86 gigahertz millimeter-wave bands utilized for automotive radar and wireless backhaul applications are particularly well-served by Lens Horn Antenna designs offering simultaneous high gain and low sidelobes.

Polarization Versatility

Standard Lens Horn Antenna configurations support linear polarization with excellent cross-polarization discrimination, typically achieving cross-polarization levels below negative 30 decibels within the main beam. The inherent symmetry of conical and pyramidal horn structures combined with carefully designed lens elements preserves polarization purity throughout the antenna system. For applications requiring circular polarization, Lens Horn Antenna designs can be enhanced through the integration of circular waveguide polarizers positioned between the feed waveguide and the horn section. These polarizers convert linearly polarized input signals into circularly polarized radiation with axial ratios better than 1.5 decibels across the operating bandwidth.

The circular polarization capability extends the utility of Lens Horn Antenna technology to satellite communications, GPS systems, and radar applications where polarization diversity or mitigation of Faraday rotation effects is required. The addition of polarization conversion elements adds minimal complexity while preserving the low sidelobe and phase correction benefits of the lens-based design. Dual-polarized Lens Horn Antenna configurations supporting simultaneous orthogonal linear or circular polarizations enable polarimetric radar measurements and capacity-doubled communication links with port-to-port isolation exceeding 30 decibels.

Manufacturing Excellence and Quality Assurance

The production of high-performance Lens Horn Antenna systems demands precision manufacturing capabilities and rigorous quality control processes. Huasen Microwave Technology operates state-of-the-art machining facilities equipped with computer numerical control lathes and milling machines capable of achieving dimensional tolerances within 0.01 millimeters. The horn body fabrication involves precision machining of aluminum or brass stock materials, with internal surface finishes maintained below 0.8 micrometers root mean square to minimize conductor losses. Specialized waveguide processing techniques developed over three decades ensure optimal electrical performance and mechanical stability.

Dielectric lens fabrication requires controlled material preparation and precise forming processes to achieve the required refractive index profiles and surface accuracies. Advanced composite materials incorporating ceramic fillers or metamaterial inclusions are formulated to exact specifications, with dielectric constant tolerances maintained within 2 percent of nominal values. Computer-controlled diamond turning and precision molding techniques produce lens surfaces with figure accuracies better than 0.03 millimeters, ensuring minimal phase aberrations and consistent antenna performance. Over 40 specialized waveguide fitters with extensive experience in brazing, welding, and assembly operations maintain the exacting standards required for Lens Horn Antenna production.

Comprehensive Testing and Validation

Every Lens Horn Antenna undergoes thorough electrical and environmental testing to verify compliance with specifications before delivery. Huasen Microwave maintains three calibrated microwave anechoic chambers with dimensions of 21 meters, 9 meters, and 5 meters, providing far-field measurement capabilities from 0.5 to 220 gigahertz. The planar near-field measurement system with 9 meter by 6 meter scanning aperture enables detailed characterization of amplitude and phase distributions across the antenna aperture. Vector network analyzers, spectrum analyzers, and signal generators totaling over 60 instruments support comprehensive electrical characterization including reflection coefficient, gain, radiation patterns, and polarization properties.

Environmental qualification testing validates Lens Horn Antenna performance across operational temperature ranges, humidity conditions, and vibration profiles representative of field deployment scenarios. Temperature shock testing verifies stable electrical characteristics from negative 40 to positive 85 degrees Celsius, while vibration testing to MIL-STD-810 specifications confirms structural integrity under transportation and operational stress. Coordinate measuring machines and image measuring instruments provide dimensional verification of critical antenna features, ensuring manufacturing consistency and traceability. The rigorous quality control processes result in Lens Horn Antenna products with demonstrated reliability exceeding 100,000 hours mean time between failures.

Customization and Application Engineering

Recognizing that antenna requirements vary widely across applications, Huasen Microwave provides extensive customization capabilities for Lens Horn Antenna designs. Engineering teams collaborate with customers to define optimal antenna parameters including operating frequency, gain, beamwidth, sidelobe levels, and physical constraints. The ability to tailor focal length, aperture dimensions, and lens profiles enables solutions precisely matched to system requirements, whether for compact millimeter-wave sensors, high-gain communication links, or precision measurement standards. Advanced electromagnetic simulation tools and decades of design experience ensure rapid development of custom Lens Horn Antenna solutions.

Application-specific modifications include specialized mounting interfaces, environmental sealing for outdoor deployment, radome integration for aerodynamic fairings, and waveguide polarizer integration for circular polarization. The design flexibility extends to frequency coverage, with capabilities spanning L-band through W-band applications from 1 to 110 gigahertz. Material selection can be optimized for weight-critical aerospace applications, cost-sensitive commercial systems, or extreme-environment military platforms. Technical support throughout the design, prototyping, and production phases ensures successful integration of Lens Horn Antenna technology into customer systems.



Conclusion

Lens Horn Antenna design effectively addresses phase error and sidelobe challenges through integrated dielectric lens structures that provide simultaneous phase correction and amplitude taper control. This technology delivers sidelobe suppression below negative 25 decibels while maintaining compact form factors and high gain performance essential for modern microwave and millimeter-wave systems across telecommunications, radar, and aerospace applications.

Cooperate with Huasen Microwave Technology Co., Ltd.

Founded in 1993, Huasen Microwave Technology Co., Ltd. stands as a premier China Lens Horn Antenna manufacturer with over 30 years of specialized expertise in high-frequency microwave and millimeter-wave component development. As a leading China Lens Horn Antenna supplier, we operate a 3,000-square-meter advanced production facility housing four large-scale workshops and comprehensive testing infrastructure including calibrated anechoic chambers operating from 0.5 to 220 gigahertz. Our China Lens Horn Antenna factory delivers High Quality Lens Horn Antenna solutions with sidelobe levels below negative 26 decibels, customizable focal lengths and apertures, and competitive Lens Horn Antenna price structures for both prototype and volume production requirements. As a trusted China Lens Horn Antenna wholesale partner, we maintain ISO9001 certification and provide one-year warranties on all Lens Horn Antenna for sale products. Our National High-Tech Enterprise status and extensive qualifications including Equipment Manufacturer credentials demonstrate our commitment to excellence. Contact our engineering team at sales@huasenmicrowave.com today to discuss your specific Lens Horn Antenna requirements and discover how our customizable solutions can enhance your system performance. Whether you need standard catalog items or fully customized designs, Huasen Microwave delivers the precision, reliability, and technical support your application demands. Request your detailed specification sheet and quotation now.

References

1. Ma, H. F., Chen, X., Xu, H. S., Yang, X. M., Jiang, W. X., and Cui, T. J. "Experiments on High-Performance Beam-Scanning Antennas Made of Gradient-Index Metamaterials." Applied Physics Letters, Volume 95, 2009.

2. Chen, X., Ma, H. F., Zou, X. Y., Jiang, W. X., and Cui, T. J. "Three-Dimensional Broadband and High-Directivity Lens Antenna Made of Metamaterials." Journal of Applied Physics, Volume 110, 2011.

3. Xu, H. X., Wang, G. M., Qi, M. Q., Liang, J. G., Gong, J. Q., and Xu, Z. Q. "Analysis and Design of Two-Dimensional Resonant-Type Composite Right/Left-Handed Transmission Lines with Compact Gain-Enhanced Resonant Antennas." IEEE Transactions on Antennas and Propagation, Volume 61, Issue 2, February 2013.

4. Lier, Erik, Werner, Douglas H., Scarborough, Charles P., Wu, Qi, and Bossard, Jeremy A. "An Octave-Bandwidth Negligible-Loss Radiofrequency Metamaterial." Nature Materials, Volume 10, 2011.

5. Tang, W. X., Zhao, H., Zhou, X., Chin, J. Y., and Cui, T. J. "Negative Index of Refraction in an Isotropic Metamaterial." Physical Review B, Volume 82, 2010.
