Lens Horn Antenna
- Conical Horn Lens (LHA)
- Pyramidal Horn Lens
- Feed-Illuminated Lens
- Point-Focus Lens (PLHA)
Main Advantages:
- Short axial dimensions
- Low sidelobe level: E-plane ≤-15dB, H-plane ≤-26dB (typical performance)
- Polarization: The basic model supports linear polarization, and circular polarization can be achieved by adding a circular waveguide phase shifter.
- Focal length, aperture, and beamwidth can be customized.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Source for High-Performance Lens Horn Antenna
As a leading manufacturer of RF and microwave components, Huasen Microwave Technology Co., Ltd. specializes in cutting-edge Lens Horn Antenna. With over 25 years of industry expertise, we deliver superior performance and reliability for demanding applications in telecommunications, radar, and aerospace. Our products offer unparalleled precision, compact design, and customizable features to meet your specific needs.
|
Freq Range (GHz) |
Focal Length Range (mm) |
Antenna Diameter Range(mm) |
|
2-6 |
80-900 |
300-500 |
|
6-10 |
80-900 |
150-500 |
|
10-18 |
80-700 |
100-400 |
|
18-40 |
50-500 |
50-300 |

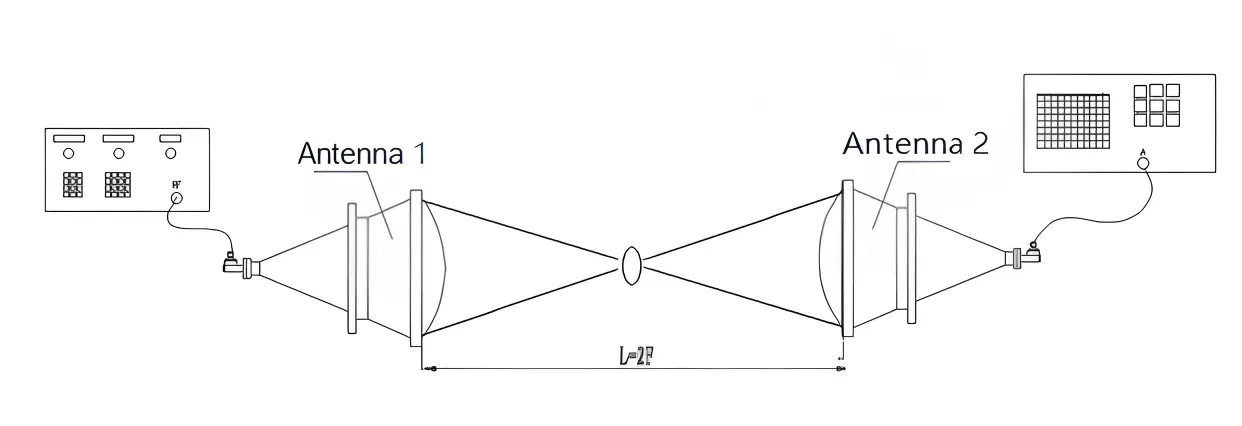

Why Choose Our Lens Horn Antenna?
- Exceptional Performance: Our antennas boast high gain (up to 33dB) and low sidelobes for precise beamforming in mmWave applications.
- Versatile Design: Available in various configurations, including conical, angular, and spot-focus models, to suit diverse requirements.
- Customization Options: Tailor focal length, aperture, and beamwidth to your exact specifications.
- Lightweight Construction: Ideal for space-constrained IoT systems and portable devices.
- Wide Frequency Range: Covers 2-40GHz, making them suitable for multiple applications.
Standard Product Data Sheet
| Point Focusing Lens Horn Antenna | |||||||
|
Part No |
WG Type EIA |
Freq Range (GHz) |
Antenna Diameter (mm) |
Focal Length (mm) |
Focus Diameter (mm) |
VSWR |
Interface |
|
HS32PLHA300F500 |
WR284 |
2.6-4 |
300 |
500 |
≤200 |
≤2.5 |
FDP-32 |
|
HS40PLHA300F500 |
WR229 |
3.3-4.9 |
300 |
500 |
≤200 |
≤2.5 |
FDP-40 |
|
HS48PLHA300F500 |
WR187 |
4-6 |
300 |
500 |
≤120 |
≤2.5 |
FDP-48 |
|
HS58PLHA250F500 |
WR159 |
4.9-7.0 |
250 |
500 |
≤80 |
≤2.5 |
FDP-58 |
|
HS70PLHA250F500 |
WR137 |
5.38-8.17 |
250 |
500 |
≤80 |
≤2.5 |
FDP-70 |
|
HS84PLHA250F500 |
WR112 |
6.57-9.99 |
250 |
500 |
≤60 |
≤2.5 |
FBP-84 |
|
HS100PLHA200F300 |
WR90 |
8.2-12.4 |
200 |
300 |
≤60 |
≤2.5 |
FBP-100 |
|
HS120PLHA200F300 |
WR75 |
9.84-15.0 |
200 |
300 |
≤60 |
≤2.5 |
FBP-120 |
|
HS140PLHA200F300 |
WR62 |
11.9-18.0 |
200 |
300 |
≤50 |
≤2.5 |
FBP-140 |
|
HS180PLHA100F200 |
WR51 |
14.5-22.0 |
100 |
200 |
≤40 |
≤2.5 |
FBP-180 |
|
HS220PLHA100F200 |
WR42 |
17.6-26.7 |
100 |
200 |
≤35 |
≤2.5 |
FBP-220 |
|
HS260PLHA100F100 |
WR34 |
21.7-33.0 |
100 |
100 |
≤30 |
≤2.5 |
FBP-260 |
|
HS320PLHA100F100 |
WR28 |
26.5-40.0 |
100 |
100 |
≤25 |
≤2.5 |
FBP-320 |
Product Features & Process
Our products are engineered with precision and care:
- Advanced lens materials with stable dielectric constants and low loss
- Rigorous quality control throughout the manufacturing process
- Optimized for axial shortness and lightweight design
- Available in conical, angular, feed horn, and spot-focus configurations
- Metamaterial lens options for cutting-edge performance
Applications
Huasen Microwave's Lens Horn Antenna excels in various industries:
- 5G/6G Infrastructure: High-gain antennas for mmWave backhaul solutions
- IoT Connectivity: Compact designs for smart city and industrial IoT applications
- Aerospace & Defense: Reliable performance for radar and communication systems
- Research & Development: Precision antennas for scientific and academic studies
Installation & Compatibility
Our antennas are designed for easy integration:
- Compatible with standard waveguide and coaxial interfaces
- Mounting options available for various deployment scenarios
- Technical support provided for seamless installation and setup
Quality Control & After-Sales
We stand behind our products:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliant for global markets
- Comprehensive 1-year warranty on all products
- Dedicated after-sales support team
Packaging and Shipping
Your antenna arrives safely:
- Custom-designed protective packaging
- Global shipping options available
- Expedited delivery for urgent requirements
FAQ
Q1: Do your products support both linear and circular polarization?
A1: Yes, our recieving wires are accessible with straight or circular polarization to coordinate assorted framework requirements.
Q2: Are your antennas suitable for outdoor use?
A2: Yes, we offer weatherproof options with IP67 ratings for outdoor deployments.
Q3: Can you provide radiation pattern measurements?
A3: Completely. We give point by point test reports, counting radiation designs, for all our antennas.
Q4: Do you offer simulation services for antenna integration?
A4: Yes, we can assist with electromagnetic simulations to optimize antenna placement and performance.
Q5: What's the difference between spot-focus and standard lens antennas?
A5: Spot-focus focal points offer a more concentrated pillar, perfect for applications requiring pinpoint exactness.
