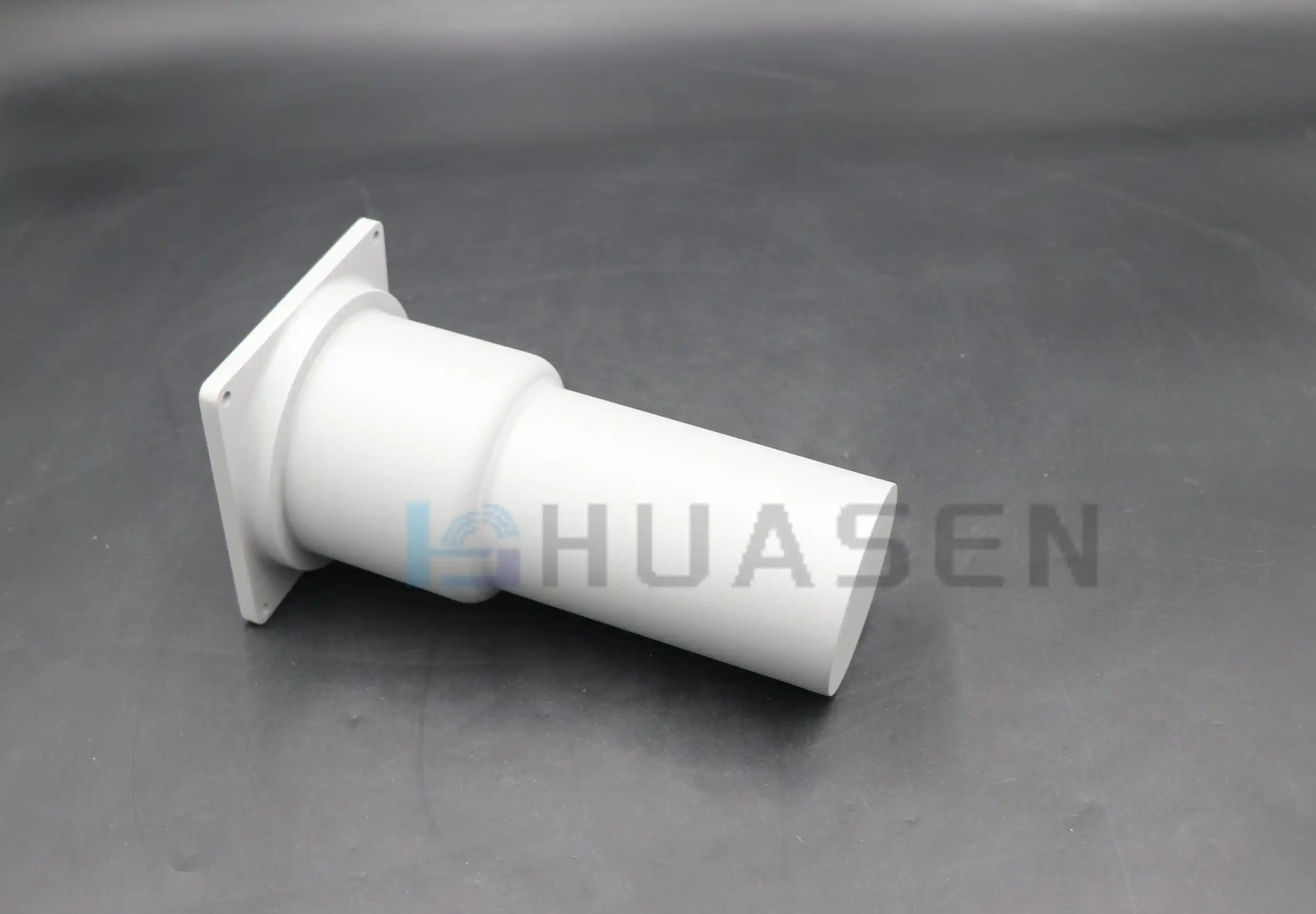

How to test the performance of an ultra-wideband omnidirectional antenna?

What measurement methods are used for UWB omnidirectional antennas?

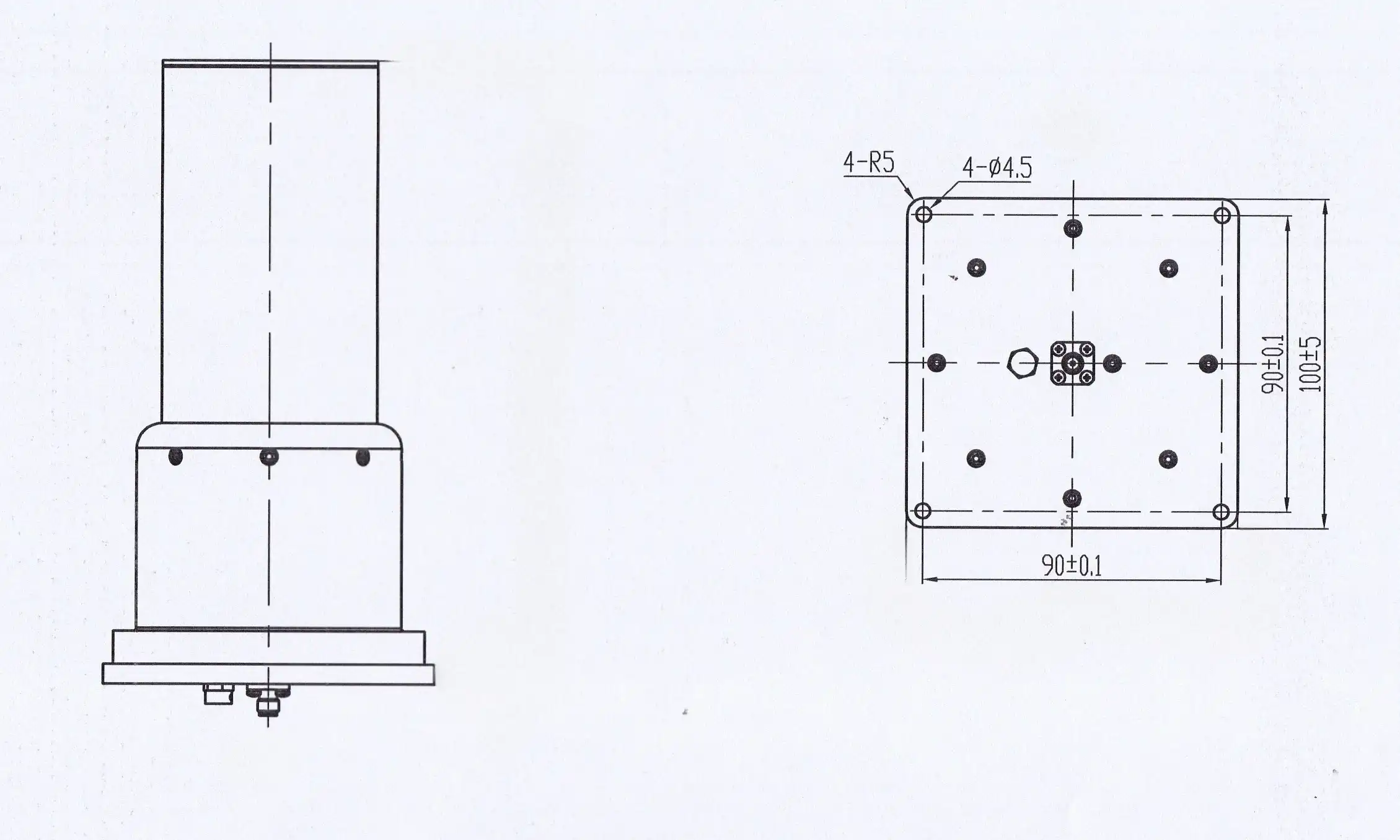

When it comes to evaluating UWB omnidirectional antennas, several measurement methods are employed to ensure comprehensive performance analysis. These techniques are designed to capture the unique characteristics of wideband antennas across their entire operational spectrum.

Vector Network Analyzer (VNA) Measurements

One of the primary tools used in UWB antenna testing is the Vector Network Analyzer. VNA measurements provide crucial information about the antenna's S-parameters, including:

• Return Loss (S11): Indicates how much power is reflected back to the source
• Insertion Loss (S21): Measures the power transmitted through the antenna
• VSWR: Quantifies the impedance mismatch between the antenna and the transmission line

These measurements are essential for determining the antenna's efficiency and bandwidth capabilities across the ultra-wide frequency range.

Time Domain Reflectometry (TDR)

TDR is particularly valuable for UWB antennas due to their wide bandwidth. This technique involves sending a short pulse through the antenna and analyzing the reflected signal. TDR can reveal:

• Impedance discontinuities along the antenna structure
• Phase center variations across the frequency range
• Group delay characteristics

Understanding these aspects is crucial for optimizing the antenna's performance in pulse-based UWB systems.

Near-Field Scanning

Near-field measurements are instrumental in characterizing the radiation properties of UWB omnidirectional antennas. This method involves:

• Scanning the antenna's near-field region using a probe
• Collecting amplitude and phase data across a defined surface
• Applying mathematical transformations to obtain far-field patterns

Near-field scanning is particularly advantageous for Ultra Wideband Omnidirectional Antennas as it allows for rapid measurements across multiple frequencies without the need for large anechoic chambers.

Key performance metrics for ultra-wideband omni antennas

Evaluating the performance of ultra-wideband omnidirectional antennas requires a focus on several critical metrics that define their capabilities and suitability for various applications.

Bandwidth and Frequency Response

The cornerstone of UWB antenna performance is its bandwidth. Key aspects include:

• Fractional Bandwidth: Typically exceeding 20% of the center frequency
• Frequency Range: Often spanning several GHz
• Flatness of Response: Minimal variations in gain across the operational band

A well-designed UWB omnidirectional antenna should maintain consistent performance across its entire frequency range, ensuring reliable communication in diverse scenarios.

Radiation Pattern and Gain

The radiation characteristics of UWB omni antennas are critical for their functionality:

• Omnidirectionality: Uniform radiation in the azimuth plane
• Gain Stability: Consistent gain across the frequency range
• Polarization Purity: Minimal cross-polarization components

These factors contribute to the antenna's ability to transmit and receive signals effectively in all directions, a crucial aspect for many UWB applications.

Impulse Response and Fidelity

For time-domain applications, the antenna's response to short pulses is paramount:

• Pulse Fidelity: Minimal distortion of transmitted/received pulses
• Group Delay: Consistent across the frequency band to prevent signal dispersion
• Ringing: Minimal oscillations following the main pulse

These characteristics ensure that the Ultra Wideband Omnidirectional Antenna can accurately transmit and receive the short pulses typical in UWB communications and radar systems.

Setting up anechoic chamber tests for wideband omnidirectional patterns

Anechoic chamber testing is a critical step in validating the performance of ultra-wideband omnidirectional antennas. The controlled environment of an anechoic chamber allows for precise measurements free from external interference.

Chamber Configuration

Proper setup of the anechoic chamber is essential for accurate measurements:

• RF Absorbers: High-quality, broadband absorbers to minimize reflections
• Positioning System: Precision turntable for antenna rotation
• Reference Antennas: Calibrated antennas covering the UWB frequency range

The chamber should be large enough to accommodate the far-field requirements across the entire frequency band of interest.

Measurement Equipment

Specialized equipment is necessary for comprehensive UWB antenna characterization:

• Wideband Signal Generator: Capable of covering the entire UWB spectrum
• High-Speed Oscilloscope: For time-domain measurements
• Spectrum Analyzer: To evaluate frequency-domain characteristics

Integration of these instruments with automated measurement software enhances efficiency and repeatability of the testing process.

Test Procedures

A systematic approach to testing ensures comprehensive evaluation:

• Frequency Sweep: Measurements at discrete intervals across the UWB range
• Azimuthal Rotation: 360-degree patterns at multiple elevation angles
• Polarization Measurements: Both co-polar and cross-polar patterns

For omnidirectional antennas, particular attention is paid to pattern symmetry and consistency across all angles and frequencies.

Data Analysis and Interpretation

Post-measurement analysis is crucial for extracting meaningful insights:

• 3D Pattern Visualization: Comprehensive view of radiation characteristics
• Gain Normalization: Accounting for reference antenna and cable losses
• Statistical Analysis: Evaluating pattern stability and omnidirectionality

Advanced software tools aid in processing the large datasets generated during Ultra Wideband Omnidirectional Antenna testing, allowing for detailed performance evaluation and optimization.

Conclusion

Testing the performance of an Ultra Wideband Omnidirectional Antenna is a multifaceted process that requires specialized equipment, precise measurement techniques, and careful analysis. By employing a combination of VNA measurements, time-domain analysis, and anechoic chamber testing, engineers can comprehensively evaluate key metrics such as bandwidth, radiation pattern, gain stability, and impulse response. These rigorous testing procedures ensure that UWB omnidirectional antennas meet the demanding requirements of modern wireless communication systems, radar applications, and emerging technologies in the field of RF and microwave engineering.

FAQ

1. What is the typical frequency range for ultra-wideband omnidirectional antennas?

Ultra-wideband omnidirectional antennas typically operate across a frequency range spanning several GHz, often from 3.1 GHz to 10.6 GHz or broader, depending on the specific application requirements.

2. How does antenna gain vary across the bandwidth of a UWB omnidirectional antenna?

In well-designed UWB omnidirectional antennas, the gain should remain relatively stable across the operational bandwidth, with variations typically less than 3 dB to ensure consistent performance.

3. What are the challenges in maintaining omnidirectionality across a wide frequency range?

Maintaining omnidirectionality across a wide frequency range can be challenging due to variations in the antenna's electrical size relative to wavelength, requiring careful design considerations and optimization techniques.

4. How does pulse fidelity impact the performance of UWB systems?

Pulse fidelity is crucial in UWB systems as it affects the accuracy of timing-based applications and the overall system's ability to transmit and receive short pulses without distortion, impacting data rates and positioning accuracy.
