This is a detailed guide to help B2B procurement managers and engineers make decisions. When picking parts for RF and microwave transmission systems, the long-term dependability of the system is often based on whether a waveguide window or a pressure barrier is used. People sometimes use these terms to refer to the same thing, but they actually refer to different design methods with different engineering goals. A waveguide window usually focuses on electromagnetic transparency, which means lowering insertion loss and VSWR while keeping the surroundings sealed. On the other hand, pressure barriers put mechanical strength and airtight integrity ahead of RF performance when the difference in pressures is very high. Your choice will depend on whether the most important thing to you is keeping the signal transfer clean or withstanding hard mechanical and environmental stresses. When procurement managers and RF engineers understand these basic differences, they can choose components that meet the needs of mission-critical applications. This keeps systems from breaking down or costing a lot to fix.

Introduction

In RF and microwave systems, pressure barriers and waveguide windows play a crucial role as closing elements, shielding delicate internal components from wetness, dirt, and pressure changes while allowing electromagnetic energy to pass through freely. When used in 5G base stations, satellite ground terminals, aircraft radar, and industrial particle accelerators, the stability of these sealing elements has a direct effect on how well the system works, how long it lasts, and how safe it is to use.

Finding the right answer means finding a balance between electromagnetic performance and material strength. If you don't choose the right part, the signal might get worse, the cost of upkeep might go up, or the whole thing could fail in extreme conditions like high power or pressure cycles. Because telecommunications infrastructure, aerospace radar, and research labs all have different needs, procurement teams need clear technical advice to make sure that the specs of parts fit the needs of real-world operations. This guide gives you an organized way to make decisions based on best practices in the industry and design principles that have been tested in the field to make sure your investment is reliable, efficient, and meets strict performance standards.

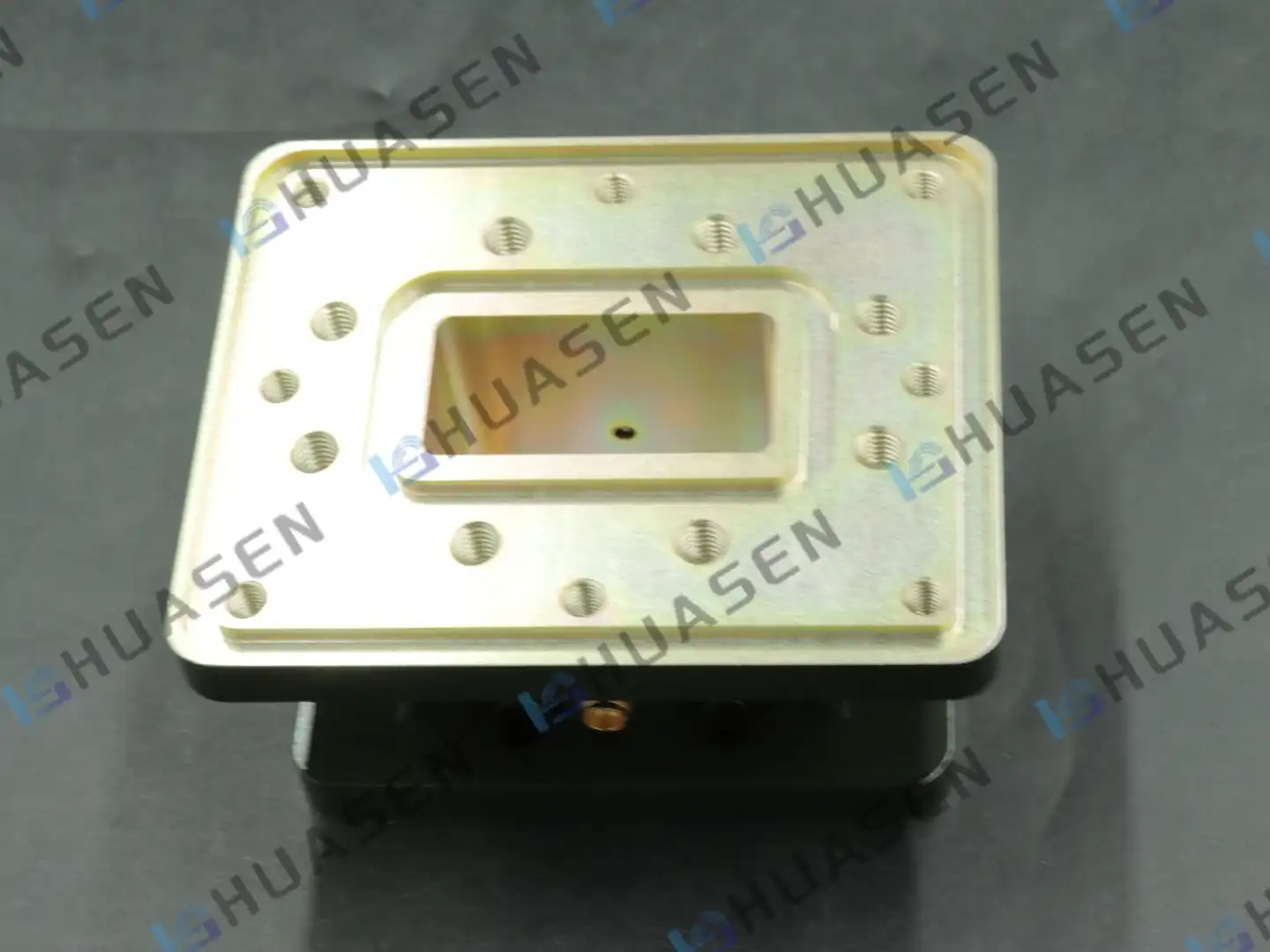

Waveguide Seal Window-k1

Understanding Waveguide Windows and Pressure Barriers

Defining Waveguide Windows

A waveguide window is a dielectric barrier that is electromagnetically clear and is put into a waveguide transmission line. It separates natural zones without stopping the flow of RF signals. For example, it can separate pressurized dry nitrogen inside a waveguide from wet air outside. The dielectric element is usually made of borosilicate glass, PTFE, quartz, alumina ceramic, or alumina ceramic. It is carefully measured and placed inside a flanged metal frame to keep the structure strong while giving the wave as little impedance irregularity as possible. Good designs have VSWR below 1.10:1 and insertion loss below 0.05 dB across certain frequency bands, so they don't have much of an effect on how well the system works.

Defining Pressure Barriers

Pressure barriers are made to survive large differences in pressure, from 30 PSI on Earth to vacuum levels of $1 \times 10^{-8}$ Torr in space-rated systems. They focus on hermetic closing and mechanical strength. They use dielectric materials for RF transfer, but their design puts structural strength first, so they often use stronger dielectric layers, strengthened flanges, and special gasket systems. By keeping the pressure inside at sea level, these barriers stop dielectric breakdown (arcing) in high-altitude radar and keep sensitive amplifiers safe from the corrosive marine climate in onboard communication systems.

Material Selection and Design Principles

How much power is being used, and the surroundings, affect the choice of material. PTFE is a cost-effective material that works well in most situations and can handle temperatures from -55°C to +85°C. Quartz and alumina ceramics are needed for high-power systems with more than a few kilowatts of average power because they conduct heat better and have less dielectric loss tangent. Mismatches in thermal expansion between the dielectric and metal plates must be taken into account in the mechanical design to avoid stress-induced cracking during temperature cycles. Following the rules for MIL-DTL-3922 flange connections ensures that it works with the current waveguide infrastructure. RoHS and ISO certifications make sure that the materials are safe and that the manufacturing is consistent.

Decision Criteria When Choosing Between Waveguide Windows and Pressure Barriers

Operational Environment Analysis

The first step in your choice is to describe the working setting. The frequency range determines the dielectric thickness and material permittivity. For example, X-band systems (8–12 GHz) can use different waveguide window designs than Ka-band systems (26.5–40 GHz), where size tolerances become much tighter. Different types of installations have different pressure difference needs. For example, ground-based SATCOM uplinks may only need a 15 PSI rating, but flying radar at 40,000 feet needs parts with a 30+ PSI rating to stop arc discharge. Environmental factors, such as salt fog exposure in marine sites, UV rays in outdoor antenna farms, and vibration in robotic aerial vehicles, affect the choice of coating and the tools needed to place it.

Performance Metrics Evaluation

Link budget and system gain are directly affected by how well the transmission works. Engineers should say the highest insertion loss (usually between 0.0 and 0.10 dB, based on the number of components that are cascaded) and VSWR limits that are allowed. Peak and average power handling must match the output of the transmitter. For example, ceramic windows rated for constant high-power operation are needed for a 10 kW magnetron radar, but PTFE can be used for a milliwatt-level test setting. Different industries have different standards for durability. For example, defense companies often need 100,000+ pressure cycle rates with no hermeticity degradation, while lab users value ease of reconfiguration over extreme durability.

Commercial Considerations

Budget limits affect the choice of materials and the level of personalization. Standard catalog items with PTFE dielectrics have the fastest lead times (two to four weeks) and lowest unit costs, making them perfect for base station operations with a lot of units. Custom quartz windows with inductive tuning for ultra-low VSWR make delivery take 8–12 weeks longer, but they work better, so the higher price is worth it in scientific research uses. When evaluating a supplier, you should look at their certificates (ISO 9001, AS9100 for aerospace), how quickly they respond to technical support requests, and how willing they are to provide pre-production samples with standardized test data. This is important for making sure that the parts will work together before you make big purchases.

Comparative Analysis: Waveguide Window vs. Pressure Barrier

RF Signal Transmission Performance

Through careful dielectric dimensioning and inductive iris tuning, waveguide windows designed for electromagnetic performance can achieve insertion loss as low as 0.02 dB. It is important for wideband radar pulse accuracy and high-order modulation methods in 5G backhaul that these systems keep phase linearity and group delay consistency. When pressure barriers are made to be strong, they may have a little more loss (0.05 to 0.08 dB) because they need thicker dielectric sections to fight pressure. However, modern designs reduce this trade-off by choosing the right materials and using computer optimization.

Mechanical Robustness and Installation

Pressure barriers work great in harsh settings because they have a thick wall, two O-ring seals, and strain-relief features that can handle changes in installation torque and temperature cycles without affecting their sealability. Their strong flange designs make fitting easier in outdoor base station cabinets and shelters on ships. Standard waveguide windows are smaller and lighter, so they work well in labs and on airplanes where room is limited, and weight reduction is very important. Standard waveguide flange forms (UG-series, CPR-series) can be used with both types, so they can be mechanically swapped between makers.

Maintenance Requirements and Longevity

High-quality sealing parts usually work as "install-and-forget" parts that don't need much attention. Most systems only need to be visually checked once a year for carbon tracking (a darkening of the surface that means arcing is starting) and tested for leaks to make sure the pressure stays the same. Ceramic and quartz dielectrics are better at resisting damage from the environment than PTFE, which can break down after being exposed to UV light for a long time. Conformal coats on the outside of metal parts help systems work in harsh naval or industrial environments last longer than 20 years without losing their ability to keep out leaks or changing how well they transmit radio waves.

Cost Impact Analysis

The cost of the initial component is only a small part of the total cost of ownership. A regular PTFE waveguide window could cost between $200 and $500, but a special ultra-high vacuum ceramic pressure barrier can cost more than $2,000. But when you add in the cost of installation work, system downtime for replacing parts, and the damage that could happen if a seal fails, the economics change. When it comes to aerospace and defense, mission-critical applications need high-quality parts that have been proven to work, but business telecommunications projects need to focus on volume prices and standard specs to keep capital costs low.

Industry Applications and Case Studies

Aerospace and Defense Radar Systems

Airborne fire-control radar needs Waveguide Windows that work well from sea level up to 50,000 feet and can handle atmospheric energy at Mach 2+. Ceramic pressure windows let air into the waveguide, which keeps the voltage from dropping like it would in thin air at high altitude. A major defense contractor recently asked for special Ka-band alumina waveguide pressure windows for an advanced fighter radar. These windows had to have an insertion loss of 0.03 dB and a pressure value of 60 PSI, which was not possible with standard catalog items. Because the windows had a low thermal expansion rate, the seals didn't break when the altitude changed quickly. Over 10,000 flight hours, there were no field problems.

SATCOM Ground Station Uplinks

Commercial satellite users use pressurized waveguide runs that span 20 to 50 meters to connect indoor high-power amps that put out 500W to 2kW to outdoor parabolic dishes. The climate-controlled inner setting is protected from outdoor humidity and temperature extremes by a waveguide window placed at the building entry point. A big phone company used WR-75 band pressure barriers with nitrogen cleaning, which cut the number of moisture-related arc problems by 95% compared to systems that weren't under pressure. With an internal pressure of 15 PSI, 40% more power could be handled. This meant that higher transfer data rates could be achieved without upgrading the amplifiers, which saved money and increased capacity.

Scientific Research and Particle Accelerators

Ultra-high vacuum (UHV) separation is needed between RF power sources and particle cells that have been emptied. Custom quartz pressure windows with a vacuum rating of $1 \times 10^{-9}$ Torr on one side and normal air pressure on the other allow safe and dependable operation. A national laboratory worked with specialized makers to create X-band windows that can handle 1 MW of peak power and are cooled by water. These windows send precise 10-nanosecond pulses with less than 2% phase error. Due to their low outgassing, the windows kept the vacuum purity over a period of several years of constant operation, which prevented expensive beamline contamination.

Mobile Communications Infrastructure

5G millimeter-wave base stations have waveguide seals at the outdoor radio units to keep the surroundings out of the beamforming transceivers. Demand for safe, cost-effective sealing systems is driven by the mass production of tens of thousands of units. A major infrastructure provider chose PTFE waveguide windows with silicone seals because they were the best balance of performance (0.05 dB loss at 28 GHz) and cost (less than $50 per unit). Field data from a variety of conditions showed that IP67 protection against the environment and a five-year service life without degradation were true. This met the reliability standards of the carrier while keeping rollout costs low.

Making the Final Choice: Our Recommendations

Aligning Component Selection with Application Demands

Your decision process should take into account both the need for RF performance and the severity of the surroundings. For laboratory test systems that focus on electromagnetic accuracy and reconfigurability, standard waveguide windows with low pressure values are the best choice. Mobile systems and outdoor phone networks need pressure shields that seal well against the environment, even if it means a little more insertion loss. Because of the need for mission-critical reliability, high-power radar and scientific uses need custom-engineered systems that balance both performance aspects.

Supplier Selection and Risk Mitigation

Baseline quality assurance is provided by working with makers who have the right industry certifications, such as AS9100 for aircraft and ISO 9001 for general manufacturing. Ask for specific test results, such as readings of S-parameters, results of pressure cycles, and a description of the thermal performance. Suppliers who offer design help, pre-production models, and quick technical support lower the risk of integration and speed up the time it takes to launch. Check how stable the supply chain is and how long the lead time is, especially for custom orders that need unique materials or production methods. Established makers with decades of experience, like those that have been working in the defense and telecoms sectors since the 1990s, bring a wealth of knowledge that helps solve unexpected technical problems.

Future-Proofing Your Investment

As 5G/6G communications and next-generation radar technology improve, frequency bands and power levels get bigger. Choose parts with extra bandwidth that go beyond what you need right now, such as a waveguide pressure window. For example, choosing WR-28 band windows for 26.5-40 GHz lets you make changes to the system in the future without having to buy new hardware. Keep an eye on how industry standards change, especially when it comes to MIL-STD-810 testing for outdoor compatibility and electromagnetic compatibility. When performance needs change, modular flange designs let you make changes to the field or swap out parts without having to rethink the whole waveguide system. This protects your initial investment.

Conclusion

When deciding between waveguide windows and pressure barriers, you need to find the right balance between electromagnetic transparency and mechanical strength. This can be done by looking at the surroundings and performance needs of the application. Waveguide Windows are best when RF performance and small size are important, while pressure barriers are best when hermetic closing is needed in harsh situations. A good buying process combines technical requirements with the supplier's abilities to make sure that parts meet certification standards and work reliably for a long time. Engineers and procurement managers can safely choose sealing solutions that improve system reliability while keeping the total cost of ownership low by using the choice factors listed here, which include analyzing the operational environment, evaluating performance metrics, and taking cost into account.

FAQ

1. How do I choose between PTFE, quartz, and ceramic dielectrics?

If you want to save money and keep the average power below 100W, PTFE is the best choice for normal power uses. For high average power usage of more than a few hundred watts, choose quartz or alumina ceramic. Their better thermal conductivity keeps the insulator from getting too hot. Ceramic materials are also good for high-vacuum uses that need very little outgassing. This is especially important in space systems and particle reactors, where contamination must be avoided.

2. What causes a waveguide pressure window to fail?

Most failures are caused by too much pressure above the design limits, incorrect flange torqueing that bends the frame and stretches the dielectric, or RF arcing caused by dust or moisture on the dielectric's surface. Mismatches in the dielectric and metal plates during thermal cycling can cause cracks. Most failure modes can be avoided by installing the waveguide correctly, following the manufacturer's torque recommendations, and keeping the insides clean and dry.

3. Does the window affect the VSWR of my system?

VSWR is affected by any break in a waveguide transmission line, but good pressure windows are inductively set to reduce echoes. Components that are well-designed add less than 0.05 to the system's VSWR, which is not important for most uses. Check the S-parameter data that the manufacturer gives you across your working frequency range to make sure it works with your link budget and that the window doesn't add too much to the total system reflection losses.
