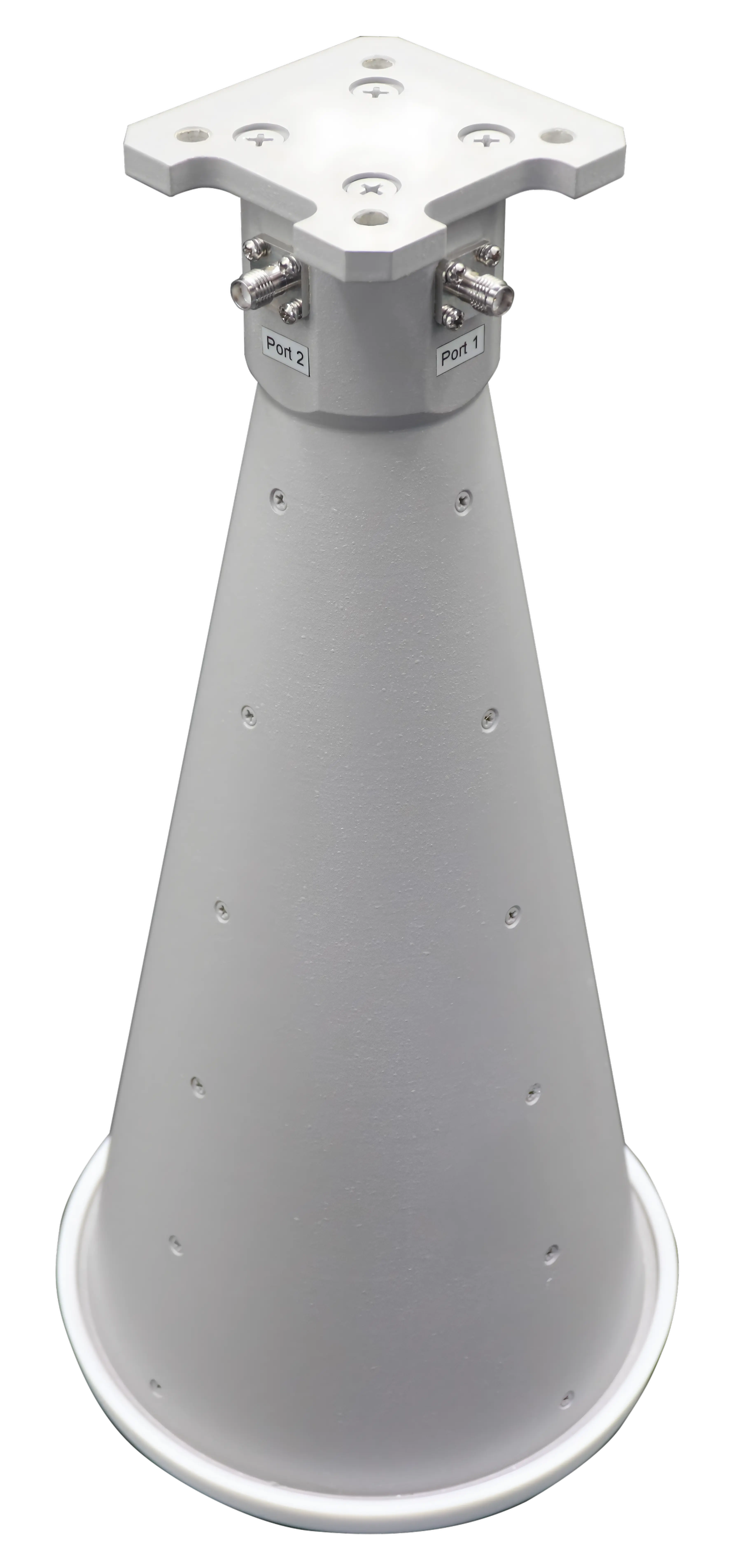

Quadridged Horn Antenna
- Ultra-Wideband Dual-Polarized Quadridged Horn Antenna Series (DPHA)
- Boundary Open Dual-Polarized Quadridged Horn Antenna (DPOBHA)
Frequency Range: 0.1–40 GHz, covering multiple decades of bandwidth
Features:
- Supports horizontal/vertical dual polarization (ISO >20dB)
- Enables dual circular polarization with broadband power bridge (for EMC/EMI testing)
- Gain: 5-19 dB
- Six degrees of freedom adjustment for precise X/Y/Z displacement and angle control
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Quadridged Horn Antenna: Unmatched Performance for RF and Microwave Applications
Huasen Microwave Technology Co., Ltd., a leading manufacturer of high-frequency microwave and millimeter-wave components, proudly presents our cutting-edge Quadridged Horn Antenna. With over three decades of expertise, we deliver superior RF and microwave solutions that drive innovation across telecommunications, radar, aerospace, and defense sectors. Our product combines precision engineering with advanced technology to meet the most demanding requirements in EMC testing and antenna measurements.
★[Star Products]
| HS20180DPHA6ST4 | ||
|
Freq Range |
2-18GHz |
|
|
VSWR |
≤2 |
|
|
Polarization |
Horizontal and vertical dual polarization |
|
|
Port Isolation (S21) |
>25dB |
|
|
Cross-polarization Isolation (normal) |
＜-20dB |
|
|
Pattern |
The main lobe is not split or concave |
|
|
Power handling |
>5W |
|
|
Connector |
SMA-50K |
|
|
Material |
Aluminum |
|
Why Choose Our Quadridged Horn Antenna?
- Unparalleled Broadband Performance
Our product offers exceptional wideband coverage from 0.1GHz to 40GHz, making it ideal for diverse IoT and industrial protocols. Its octave bandwidth capability ensures versatility across multiple applications. - Superior Polarization Isolation
With polarization isolation exceeding 20dB across all models, our antenna excels in high-interference environments, providing crystal-clear signal reception in dense urban and industrial settings. - Customizable Solutions
We understand that one size doesn't fit all. Our team of experts can tailor the antenna's specifications to meet your unique project requirements, ensuring seamless integration with existing infrastructure. - Precision-Engineered for Reliability
Crafted from high-quality copper and aluminum, our product delivers consistent performance in harsh conditions, backed by rigorous quality control and a 1-year warranty.
Standard Product Data Sheet
|
Part No |
Operating Frequency (GHz) |
Gain (dB) |
VSWR |
Polarization Isolation (dB) |
Dimensions (mm) |
Connector |
||
|
W |
H |
L |
||||||
|
HS0110DPHA4N |
0.1-1 |
5-19 |
≤3 |
≥20 |
1651 |
1651 |
2220 |
N-K |
|
HS0840DPHA6N |
0.8-4 |
6-10 |
≤2.5 |
≥20 |
250 |
250 |
400 |
N-K |
|
HS1040DPHAXN |
1-4 |
6-10 |
≤2.5 |
≥20 |
280 |
280 |
420 |
N-K |
|
HS20180DPHA6S |
2-18 |
6-16 |
≤2.5 |
≥20 |
120 |
120 |
169 |
SMA-K |
|
HS80400DPHA |
8-40 |
6-13 |
≤3 |
≥20 |
54 |
54 |
70 |
2.92-K |
|
HS180400DPHA16K |
18-40 |
14-17 |
≤2.5 |
≥20 |
Φ63x146 |
2.92-K |
||
|
HS260400DPHA18K |
26-40 |
18-20 |
≤2.5 |
≥20 |
Φ46.5x135 |
2.92-K |
||
Product Features & Process
- Dual circular polarization functionality
- Supports horizontal and vertical dual polarization
- High-precision manufacturing for phase stability
- Ruggedized design for outdoor and industrial use
- Corrosion-resistant materials for longevity
Applications
Our Quadridged Horn Antenna excels in:
- EMC and EMI testing
- Antenna measurements
- Electronic surveillance
- 5G and mmWave communications
- Industrial automation
- Smart city infrastructure
- IoT sensor networks
Installation & Compatibility
The antenna features a versatile six-degree-of-freedom adjustment mechanism, allowing for precise X/Y/Z axis positioning. This flexibility ensures compatibility with a wide range of mounting systems and easy integration into existing setups.
Quality Control & After-Sales
At Huasen Microwave, quality is paramount. Our product undergoes rigorous testing to meet ISO9001, RoHS, and REACH standards. We offer a comprehensive 1-year warranty and dedicated technical support to ensure your satisfaction.
Packaging and Shipping
Each antenna is carefully packaged in protective materials to prevent damage during transit. We offer worldwide shipping choices to meet your conveyance necessities, guaranteeing your hardware arrives securely and on time.
FAQ
Q1: What makes the product suitable for EMC testing?
A1: Its wide recurrence run and tall polarization separation make it perfect for precise EMC estimations over different frequencies.
Q2: Can the antenna be used in outdoor environments?
A2: Yes, our ruggedized design and corrosion-resistant materials make it suitable for harsh outdoor conditions.
Q3: Is the antenna compatible with standard RF connectors?
A3: Absolutely. We offer various connector options to ensure compatibility with your existing equipment.
Q4: How does the gain range benefit signal reception?
A4: The 5-19dB pick up run improves affectability, permitting for moved forward flag location in challenging environments.
Q5: Can the antenna be customized for specific frequency bands?
A5: Yes, we offer customization administrations to tailor the radio wire to your particular recurrence necessities.
