Corrugated Conical Horn Antenna
VSWR: <1.30 (Full bandwidth); <1.06 (Narrowband)
Radiation Characteristics:
- Achieves E-H plane beam equalization through the HE11 hybrid mode (-15dB beam equalization error <±5°).
- Suitable for high-performance broadband feed-forward / offset feed antenna systems.
Structural Design: Large-angle horn + precision corrugated slot structure.
Interface Compatibility: Standard circular waveguide interface (Φ2.388mm to Φ114.58mm).
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Corrugated Conical Horn Antenna Manufacturer
As a leading manufacturer of high-frequency microwave and millimeter-wave components, Huasen Microwave Technology Co., Ltd. proudly offers cutting-edge Corrugated Conical Horn Antenna. Our expertise in RF and microwave solutions ensures superior performance and reliability for your most demanding applications.

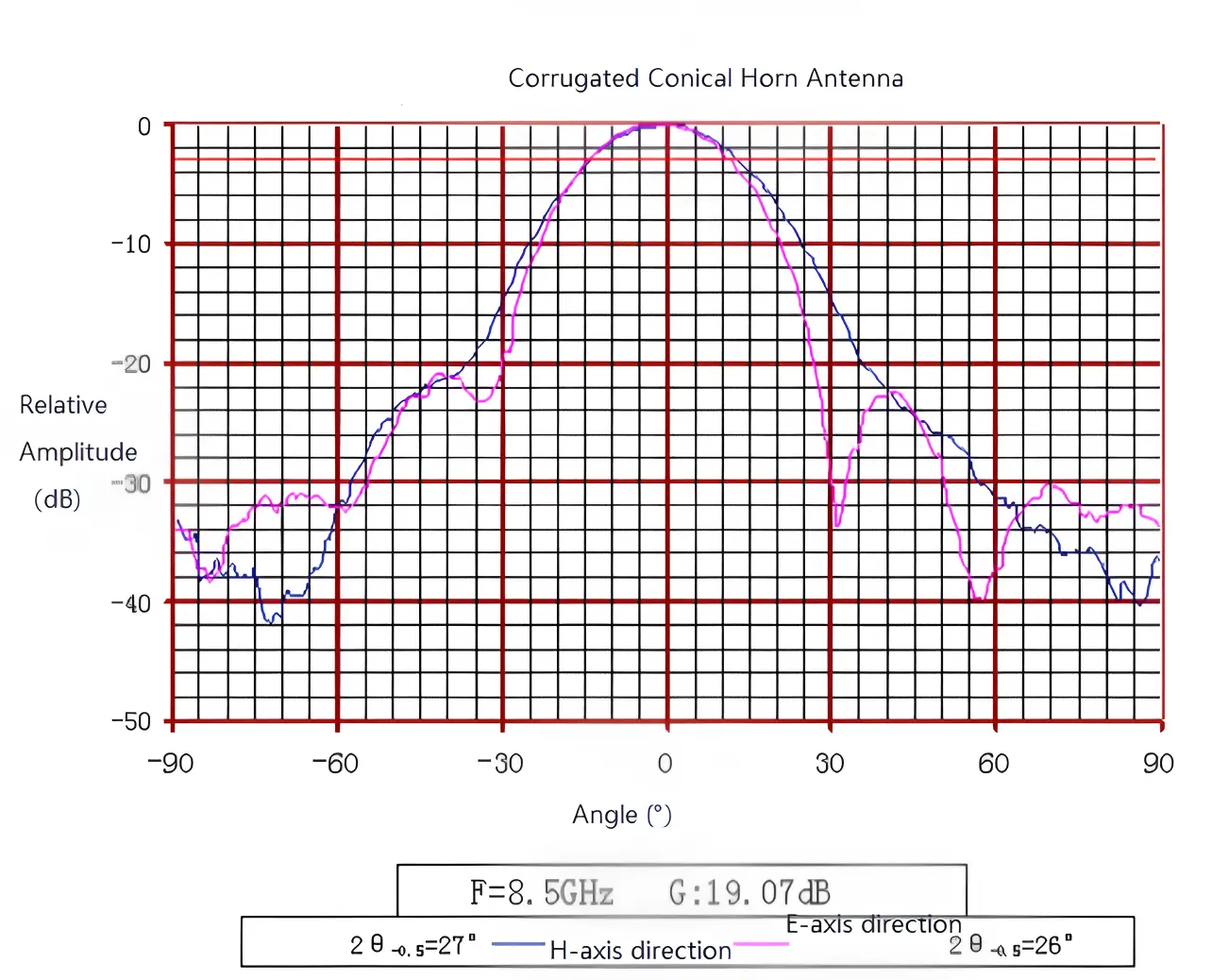

Measured Direction Pattern
Why Choose Our Corrugated Conical Horn Antenna?
Our products stand out with their wide-angle design and innovative broadband technology, ensuring reliable performance in demanding environments. Featuring variable groove depth and width, these antennas deliver exceptional voltage standing wave ratio (VSWR) and radiation characteristics across an octave-bandwidth range, making them highly versatile for diverse RF applications.
Standard Product Data Sheet
|
Part No |
Freq Range (GHz) |
Antenna Diameter (mm) |
Gain |
VSWR |
Input Interface (mm) |
|
HS114.58CHA10 |
1.76-2.42 |
Φ245 |
10 |
≤1.5 |
Φ114.58 |
|
HS97.87CHA10 |
2.1-2.8 |
Φ205 |
10 |
≤1.5 |
Φ97.87 |
|
HS83.62CHA10 |
2.45-3.3 |
Φ176 |
10 |
≤1.5 |
Φ83.62 |
|
HS71.42CHA10 |
2.83-3.88 |
Φ154 |
10 |
≤1.5 |
Φ71.42 |
|
HS51.99CHA10 |
3.9-5.3 |
Φ110 |
10 |
≤1.5 |
Φ51.99 |
|
HS44.45CHA10 |
4.55-6.23 |
Φ96 |
10 |
≤1.5 |
Φ44.45 |
|
HS38.1CHA10 |
5.3-7.3 |
Φ84 |
10 |
≤1.5 |
Φ38.1 |
|
HS32.537CHA10 |
6.3-8.5 |
Φ70 |
10 |
≤1.5 |
Φ32.537 |
|
HS27.788CHA10 |
7.3-9.5 |
Φ62 |
10 |
≤1.5 |
Φ27.788 |
|
HS23.825CHA10 |
8.5-11.5 |
Φ54 |
10 |
≤1.5 |
Φ23.825 |
|
HS17.415CHA10 |
11.6-15.9 |
Φ42 |
10 |
≤1.5 |
Φ17.415 |
|
HS15.088CHA10 |
13.4-18.4 |
Φ35 |
10 |
≤1.5 |
Φ15.088 |
|
HS12.7CHA10 |
15.9-21.8 |
Φ30 |
10 |
≤1.5 |
Φ12.7 |
|
HS9.525CHA10 |
21.2-29.1 |
Φ24 |
10 |
≤1.5 |
Φ9.525 |
|
HS8.331CHA10 |
24.3-33.2 |
Φ20 |
10 |
≤1.5 |
Φ8.331 |
|
HS7.137CHA10 |
28.3-38.8 |
Φ18 |
10 |
≤1.5 |
Φ7.137 |
|
HS5.563CHA10 |
36.4-49.8 |
Φ15 |
10 |
≤1.5 |
Φ5.563 |
|
HS4.369CHA10 |
46.3-63.5 |
Φ12 |
10 |
≤1.5 |
Φ4.369 |
|
HS3.581CHA10 |
56.6-77.5 |
Φ10 |
10 |
≤1.5 |
Φ3.581 |
|
HS3.175CHA10 |
63.5-87.2 |
Φ9 |
10 |
≤1.5 |
Φ3.17 |
|
HS2.388CHA10 |
84.8-116 |
Φ7.5 |
10 |
≤1.5 |
Φ2.388 |
Product Features & Process
- Precision-machined corrugations for optimal impedance matching
- Durable materials suitable for harsh environments
- Wide operational bandwidth with stable radiation patterns
- Customizable designs to meet specific research requirements
Applications
Our Corrugated Conical Horn Antenna excels in various industries:
- Telecommunications
- Radar systems
- Aerospace technology
- Defense applications
- Radio astronomy
- 5G/6G research
- Satellite testing
Installation & Compatibility
Designed for seamless integration, our antennas feature circular waveguide inputs compatible with a wide range of system configurations. The modular design allows for easy installation and upgrades to existing setups.
Quality Control & After-Sales
We prioritize quality and customer satisfaction:
- ISO9001, RoHS, and REACH certified
- Rigorous testing and quality assurance processes
- 1-year warranty on all products
- Comprehensive technical support and documentation
Packaging and Shipping
Our antennas are carefully packaged to ensure safe transit:
- Custom-fitted foam inserts
- Sturdy outer packaging for protection
- Global shipping options available
FAQ
Q1: Can you customize the frequency range for specific research needs?
A1: Absolutely! We offer tailored solutions to meet your unique requirements.
Q2: How does the corrugated design improve antenna performance?
A2: Corrugations enhance bandwidth and reduce sidelobes for superior radiation patterns.
Q3: Are your antennas suitable for outdoor use?
A3: Yes, we offer ruggedized designs with corrosion-resistant coatings for harsh environments.
Q4: Do you provide simulation data or test reports?
A4: We offer detailed EM simulation reports and custom test data upon request.
Q5: Can these antennas be used in student labs?
A5: We have entry-level models perfect for educational settings and advanced research.
