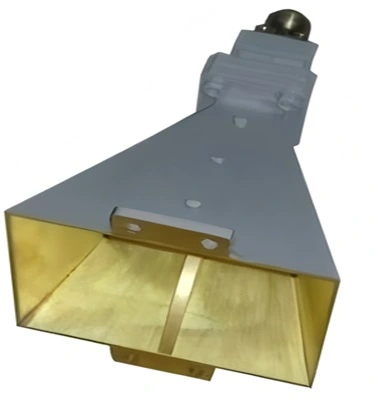

Broadband Double Ridged Horn Antenna
Product Types:
- Frequency doubling type
- Ultra-wideband type
- Miniature type
Frequency Coverage: 0.1-40GHz, supports octave-bandwidth
High Gain Design: 3~20dB
Adjustable Beam Width: E-plane: 15°-80°;H-plane: 11°-62°
Size:Miniature type
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Broadband Double Ridged Horn Antenna Supplier
Huasen Microwave Technology Co., Ltd. is a leading manufacturer of high-performance Broadband Double Ridged Horn Antenna. With over 30 years of expertise, we deliver superior RF and microwave solutions. Our antennas offer unparalleled bandwidth, gain, and polarization purity, making us the go-to choice for EMC testing and electronic surveillance professionals worldwide.
Product Type
|
Type |
Double Ridge Waveguide Input |
Coaxial Integrated Input |
With Coaxial Adapter Input |
|
Part No |
DRHAX |
DRHAX... |
DRHAX+... |
|
Outline Drawings |
|
|
|
Why Choose Our Broadband Double Ridged Horn Antenna?
Our products are engineered to meet the most demanding requirements in EMI/RFI testing and electronic surveillance. Here's why industry leaders trust Huasen:
- Ultra-Wide Bandwidth: Seamless coverage from 700 MHz to 40 GHz
- Exceptional Polarization Purity: >25 dB isolation between H/V planes
- Stable Gain: ±1.5 dB variation across the entire frequency range
- Customizable Solutions: Tailored to your specific frequency and size needs
- Durability: Anodized aluminum construction with IP67 rating
Standard Product Data Sheet
| Part No |
WG Type EIA |
Freq Range (GHz) |
Gain (dB) |
Beam Width | VSWR | Connector | Material |
| HS84DRHA10N | WRD84 | 0.84-2.0 | 5-12 | 30°-70° | ≤2 | N-K | Al |
|
HS150DRHA10N |
WRD1500 |
1.5-3.6 |
8-12 |
30°-60° |
≤2 |
N-K |
Al |
|
HS200DRHA10N |
WRD20 |
2.0-4.8 |
8-12 |
30°-60° |
≤2 |
N-K |
Al |
|
HS250DRHA10N |
WRD250 |
2.6-7.8 |
8-12 |
30°-60° |
≤2 |
N-K |
Al |
|
HS350DRHA10N |
WRD350 |
3.5-8.2 |
8-12 |
30°-60° |
≤2 |
N-K |
Al |
|
HS475DRHA10N |
WRD475 |
4.75-11.0 |
8-12 |
30°-60° |
≤2 |
N-K |
Al |
|
HS500DRHA10S |
WRD500 |
5.0-18.0 |
8-12 |
30°-60° |
≤2 |
SMA-K |
Al |
|
HS580DRHA10S |
WRD580 |
5.8-16.0 |
8-12 |
30°-60° |
≤2 |
SMA-K |
Al |
|
HS650DRHA10S |
WRD650 |
6.5-18.0 |
8-12 |
30°-60° |
≤2 |
SMA-K |
Al |
|
HS750DRHA10S |
WRD750 |
7.5-18.0 |
8-12 |
30°-60° |
≤2 |
SMA-K |
Al |
|
HS700DRHA10S |
WRD700 |
7.0-18.5 |
8-12 |
30°-60° |
≤2 |
SMA-K |
Al |
|
HS1100DRHA10S |
WRD110 |
11.0-26.5 |
8-12 |
30°-60° |
≤2 |
SMA-K |
Copper |
|
HS1800DRHA10K |
WRD180 |
18.0-40.0 |
8-12 |
30°-60° |
≤2.5 |
2.92-K |
Copper |
Product Features & Process
Our products are meticulously crafted using:
- Precision CNC machining for exact dimensional control
- Advanced electroforming techniques for seamless waveguide transitions
- High-quality copper and aluminum materials for optimal performance
- Rigorous quality control at every production stage
Applications
Huasen's antennas excel in various RF and microwave applications:
- EMC testing laboratories
- Wireless communication research
- Radar system development
- Aerospace and defense industries
- 5G and mmWave technology testing
Installation & Compatibility
Our antennas are designed for easy integration:
- Standard flange interfaces for quick mounting
- Compatible with major test equipment brands
- Optional adapters for various connector types
- Lightweight design for portable test setups
Quality Control & After-Sales
We ensure top-notch quality and support:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliant materials
- Comprehensive 1-year warranty
- NIST-traceable calibration certificates (±0.5 dB uncertainty)
- Dedicated technical support team
Packaging and Shipping
Your Broadband Double Ridged Horn Antenna arrives safely:
- Custom-molded foam inserts for protection
- Sturdy, reusable transit cases available
- Worldwide shipping with express options
- Full documentation and calibration data included
FAQ
Q1: How often should I recalibrate my antenna?
A1: We recommend annual recalibration for optimal performance and compliance with industry standards.
Q2: Can you provide antennas for specific frequency bands?
A2: Yes, we offer customized solutions for low-band (700 MHz–6 GHz), mid-band (6–18 GHz), and high-band (18–40 GHz) applications.
Q3: Are your antennas suitable for outdoor use?
A3: Absolutely. Our IP67-rated antennas are designed to withstand harsh environmental conditions.
Q4: Do you offer switchable polarization options?
A4: Yes, we provide both fixed dual-linear (H/V) and switchable polarization modules to suit your testing needs.
Q5: How do your antennas compare to competitors in terms of gain stability?
A5: Our antennas maintain a ±1.5 dB gain variation across the entire frequency range, outperforming many competitors in stability and reliability.
