Log Periodic Microstrip Antenna
Advantages and Features:
Gain: 5–9 dB
Adjustable beamwidth (35°–125°)
Compact structure: minimum size 75*118 mm
Standardized interfaces, compatible with mainstream devices, easy installation
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Log Periodic Microstrip Antenna Supplier
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of high-performance Log Periodic Microstrip Antenna. With over 25 a long time of skill in RF and microwave arrangements, we provide cutting-edge recieving wire innovation for defense, aviation, and broadcast communications applications. Our items combine ultra-wideband capabilities with lightweight plan, advertising unparalleled execution and reliability.
Why Choose Our Log Periodic Microstrip Antenna?
Our Log Periodic Microstrip Antenna (MLPA) is the ultimate solution for your broadband directional antenna needs. Covering an noteworthy recurrence extend from 400MHz to 18,000MHz, this flexible recieving wire is culminate for communication testing, flag checking, and radio wave location.
Key features that set our MLPA apart:
- Ultra-wideband performance (VHF to Ku-band)
- High gain (5-9dB) for enhanced signal strength
- Adjustable beamwidth (35°-125°) for flexible applications
- Lightweight, low-profile design for easy integration
- Customizable options to meet your specific requirements
We understand that every project is unique. That's why we offer customization services to tailor our products to your exact specifications, ensuring optimal performance for your specific application.

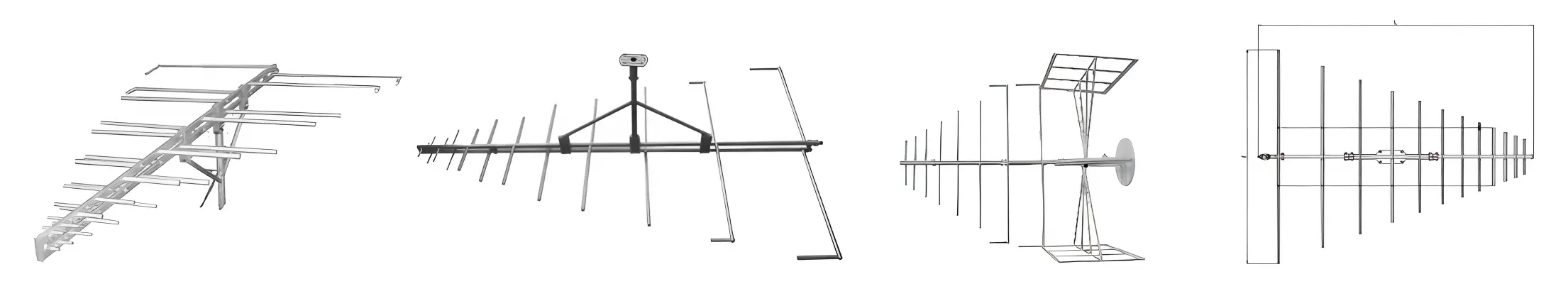

Standard Product Data Sheet
|
Part No |
Freq Range (MHz) |
VSWR |
Gain (dB) |
Beam Width |
Dimension (WXLmm) |
Connector Type |
|
HS00303LPA5N |
30-300 |
30-80MHz<8 80-300MHz<3.5 |
-12-5 |
40°-180° |
1350*1800 |
N-K |
|
HS0104LPA7N |
100-400 |
≤2.5 |
4-7 |
40°-115° |
1200*1300 |
N-K |
|
HS0110LPA7N |
100-1000 |
≤2.5 |
5-8 |
30°-110° |
1420*2350 |
N-K |
|
HS0120LPA7N |
100-2000 |
≤2.5 |
5-8 |
30°-110° |
1420*2500 |
N-K |
|
HS0206LPA5N |
200-600 |
≤2 |
5-8 |
50°-125° |
800*870 |
N-K |
|
HS0210LPA7N |
200-1000 |
≤2 |
6-8 |
50°-100° |
870*1400 |
N-K |
|
HS 0220LPA7N |
200-2000 |
≤2 |
6-9 |
40°-160° |
790*1100 |
N-K |
|
HS0310LPA7N |
300-1000 |
≤2 |
4.5-8 |
40°-160° |
640*870 |
N-K |
|
HS0320LPA10N |
300-2000 |
≤2 |
5-8 |
40°-180° |
606*864 |
N-K |
|
HS0410LPA4N |
400-1000 |
≤2 |
5-8 |
60°-130° |
375*515 |
N-K |
|
HS0420LPA8N |
400-2000 |
≤2 |
7-10 |
35°-90° |
445*935 |
N-K |
|
HS0530LPA7N |
500-3000 |
≤2 |
4-9 |
30°-105° |
351*626 |
N-K |
|
HS0610LPA10N |
600-1000 |
≤2.5 |
9-10 |
45°-65° |
277*1310 |
N-K |
|
HS1020LPA7N |
1000-2000 |
≤2.5 |
7-10 |
50°-100° |
185*500 |
N-K |

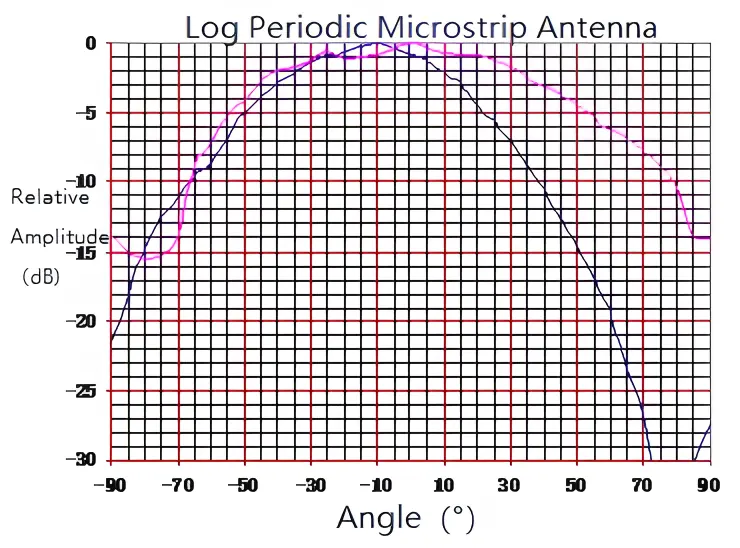

Test Curve
Product Features & Process
Our MLPAs are crafted using advanced manufacturing techniques:
- Precision etching for accurate element dimensions
- High-quality substrate materials for optimal performance
- Copper and aluminum construction for durability and weight reduction
- Gold-plated connectors for superior signal integrity
Applications
Huasen's products excel in various industries:
- Defense: Electronic warfare, radar systems, and military communications
- Aerospace: UAV/drone applications, satellite communications
- Telecommunications: Signal monitoring, spectrum analysis
- Research & Development: EMC testing, antenna prototyping
Installation & Compatibility
Our MLPAs feature standardized interfaces, ensuring seamless integration with your existing systems. The lightweight design allows for easy installation in space-constrained environments, making them ideal for portable devices and compact radar systems.
Quality Control & After-Sales
At Huasen, we're committed to delivering top-quality products:
- ISO9001 certified quality management system
- RoHS and REACH compliant for environmental safety
- Rigorous testing procedures to ensure performance and reliability
- 1-year warranty on Log Periodic Microstrip Antenna
- Dedicated after-sales support team
Packaging and Shipping
We take extra care to ensure your MLPA arrives in perfect condition:
- Custom foam inserts for shock absorption
- Moisture-resistant packaging for environmental protection
- Secure, discrete shipping options available for sensitive projects
FAQ
Q1: What is the maximum power handling of your product?
A1: Our standard MLPA can handle up to 50W CW power. Custom high-power versions are available upon request.
Q2: Can your antennas withstand extreme environmental conditions?
A2: Yes, our MLPAs are designed to operate in harsh environments. We offer ruggedized versions that meet MIL-STD-810 requirements.
Q3: Do you provide radiation pattern data for your antennas?
A3: Absolutely. We provide detailed radiation pattern measurements and gain plots for all our products.
Q4: Are your antennas suitable for EMC testing applications?
A4: Yes, our MLPAs are excellent choices for EMC testing due to their wide bandwidth and stable performance.
Q5: Can you provide custom connector options for your antennas?
A5: Certainly! We offer various connector options to suit your specific requirements, including SMA, N-type, and TNC.
Contact Us
Ready to elevate your RF performance with our Log Periodic Microstrip Antenna? Contact our expert team today for personalized assistance and quotes.
