Microstrip Conformal Array Antenna
- Microstrip Array Antenna: 18dB gain, 18°×18° beamwidth
- Circular Polarized Directed Array: 3-12dB gain range, 10% bandwidth
- Phased Array Antenna: 100μs beam switching, ±60° scanning range
Beam Control: Achievable specific directional patterns, polarization and bandwidth via adjusted element feeding and arrangement.
Scalability: Supports 1D/2D arrangements; elements can be added/removed as needed.
Multiple Types: Including end-fire, dipole array, microstrip array, slot array, etc.
Customization: Available for dual polarization, monopulse, or shaped beam.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Pioneering Microstrip Conformal Array Antenna Solutions
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of cutting-edge Microstrip Conformal Array Antenna solutions. With over two decades of expertise in RF and microwave technology, we excel in delivering high-performance, customizable antenna arrays. Our product designs offer unparalleled flexibility, durability, and integration capabilities for diverse applications in smart cities, industrial IoT, and maritime navigation.

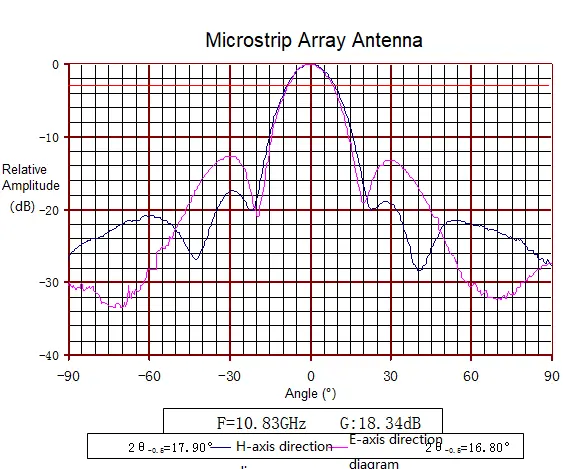

Tested VSWR Pattern
Why Choose Our Microstrip Conformal Array Antenna?
Our product stands out for its versatility and robust performance:
- Customizable Design: Available in various configurations (single patch, 2x2, 4x4, 6x8 arrays)
- Polarization Options: Single/dual linear or circular polarization to suit your needs
- Wide Frequency Range: 1GHz to 36GHz coverage for diverse applications
- Adjustable Gain: 5-22dB with flexible beamwidth for optimal signal strength
- Compact Form Factor: Ideal for conformal deployment on curved surfaces
- Adaptive Bandwidth: 3%-30% relative bandwidth for dynamic environments
Standard Product Data Sheet
|
Part No |
Center Frequency (GHz) |
Relative Bandwidth (%) |
Gain (dB) |
Axis Ratio(dB) |
Beam Width |
Dimensions |
Connector Type |
||||
|
3% |
6% |
L |
W |
H |
|||||||
|
HS24MAA18S |
2. 4 |
3-10 |
18 |
3 |
5 |
18°×18° |
390 |
390 |
30 |
SMA-K |
|
|
HS34MAA18S |
3.4 |
3-10 |
18 |
3 |
5 |
18°×18° |
260 |
260 |
25 |
SMA-K |
|
|
HS54MAA18S |
5.4 |
3-10 |
18 |
3 |
5 |
18°×18° |
180 |
180 |
25 |
SMA-K |
|
|
HS108MAA18S |
10.8 |
3-10 |
18 |
3 |
5 |
18°×18° |
100 |
100 |
20 |
SMA-K |
|
|
HS280MAA18K |
28 |
3-10 |
18 |
3 |
5 |
18°×18° |
50 |
50 |
15 |
2.92-K |
|
Product Features & Process
Our Microstrip Conformal Array Antenna is engineered for excellence:
- Lightweight, thin design for easy integration
- Ruggedized construction for harsh environments
- Advanced materials for optimal RF performance
- Precision manufacturing for consistent quality
- Customizable beam-shaping and monopulse options
Applications
- Smart City Infrastructure: 5G/mmWave networks, IoT sensor arrays
- Industrial IoT: Rugged wireless communication in factories and plants
- Maritime Navigation: GPS/GNSS systems for ships and offshore platforms
- Aerospace: Airborne communication and radar systems
- Defense: Tactical communication and electronic warfare
Installation & Compatibility
Our antennas are designed for seamless integration:
- Compatible with standard RF connectors (SMA, N-type)
- Mounting options for flat and curved surfaces
- Low-profile design for discreet installation
- Software tools available for performance optimization
Quality Control & After-Sales
We ensure top-notch quality and support:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliant materials
- Rigorous testing at each production stage
- 1-year warranty on all products
- Dedicated technical support team
Packaging and Shipping
- Custom protective packaging for safe transport
- Global shipping options available
- Expedited delivery for urgent requirements
