Selecting Waveguide Elevating Platform Capacity

To choose the right capacity for a Waveguide Elevating Platform, you need to carefully look at the load needs, operational factors, and environmental restrictions. For these specialised positioning systems to work at their best in high-frequency tasks like antenna testing and millimetre-wave studies, they need to match their capacity very precisely. In professional RF settings, knowing the specifications for capacity has a direct effect on the accuracy of measurements, the safety of the tools, and the long-term efficiency of operations.

Understanding Waveguide Elevating Platform Capacity

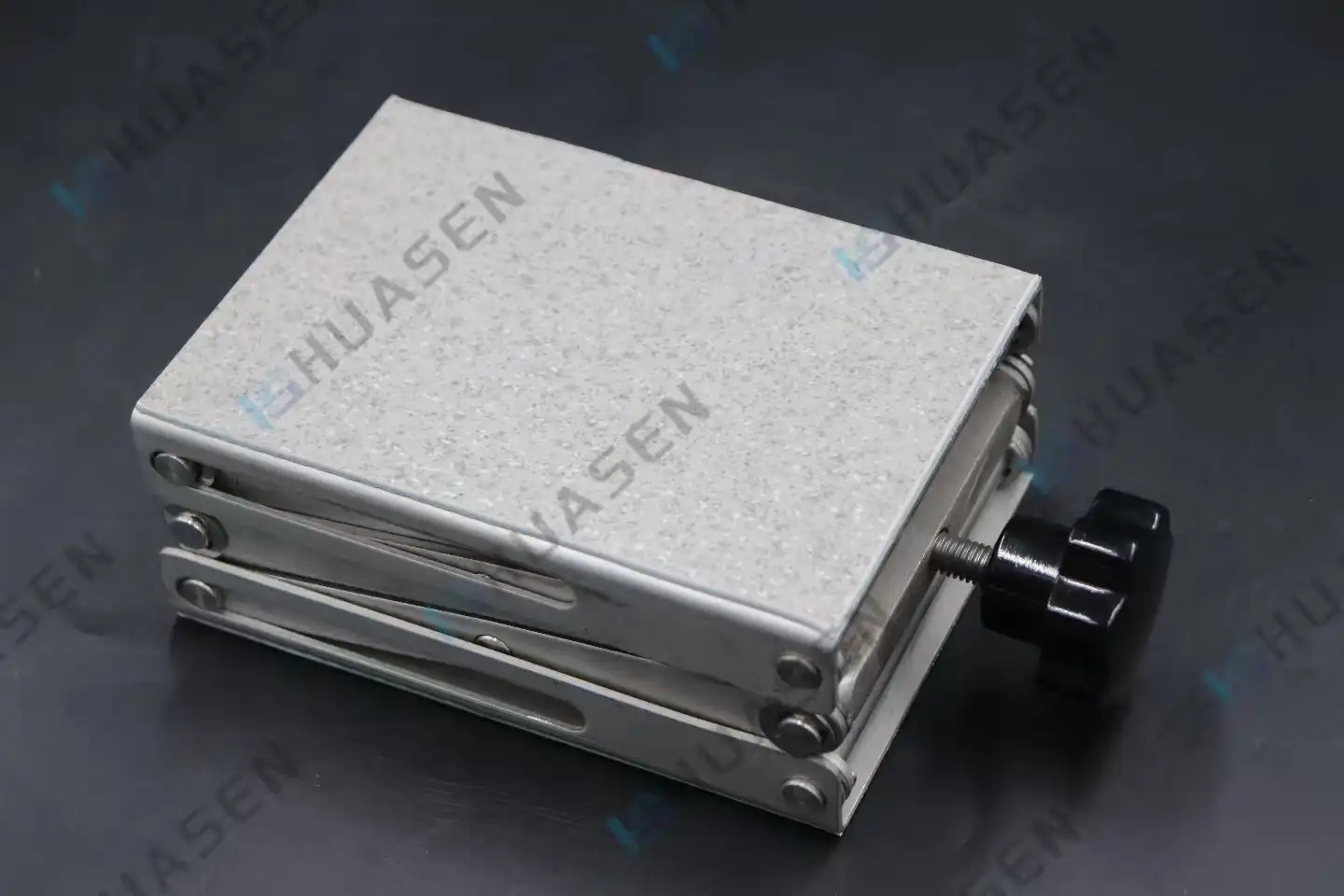

Specifically designed to move microwave transmission parts up and down, waveguide raising platforms are high-tech electromechanical positioning systems. In contrast to most industrial lifting equipment, these platforms keep strict RF phase stability while carrying heavy loads in controlled measurement environments. The process of choosing capacity is a key factor in determining business success in a wide range of situations.

Load Capacity Specifications and Technical Parameters

These days, waveguide elevating platforms can usually hold loads of 40 to 80 kilograms, which is enough to meet the weight needs of complicated RF systems. Heavy waveguide runs, high-power amplifiers, and test equipment that goes with them can all work in this capacity range without affecting the accuracy of pointing. The load-bearing capacity is directly related to the motor specs and the platform's structural integrity. Precision adjustment mechanisms allow elevation ranges of 36 mm to 260 mm, which is enough vertical movement for all kinds of measurement tasks. This range can handle different waveguide flange designs and test setup needs while keeping positioning accuracy below 1 millimetre. The technical accuracy makes sure that the system works the same way at all elevations.

Platform Size and Dimensional Considerations

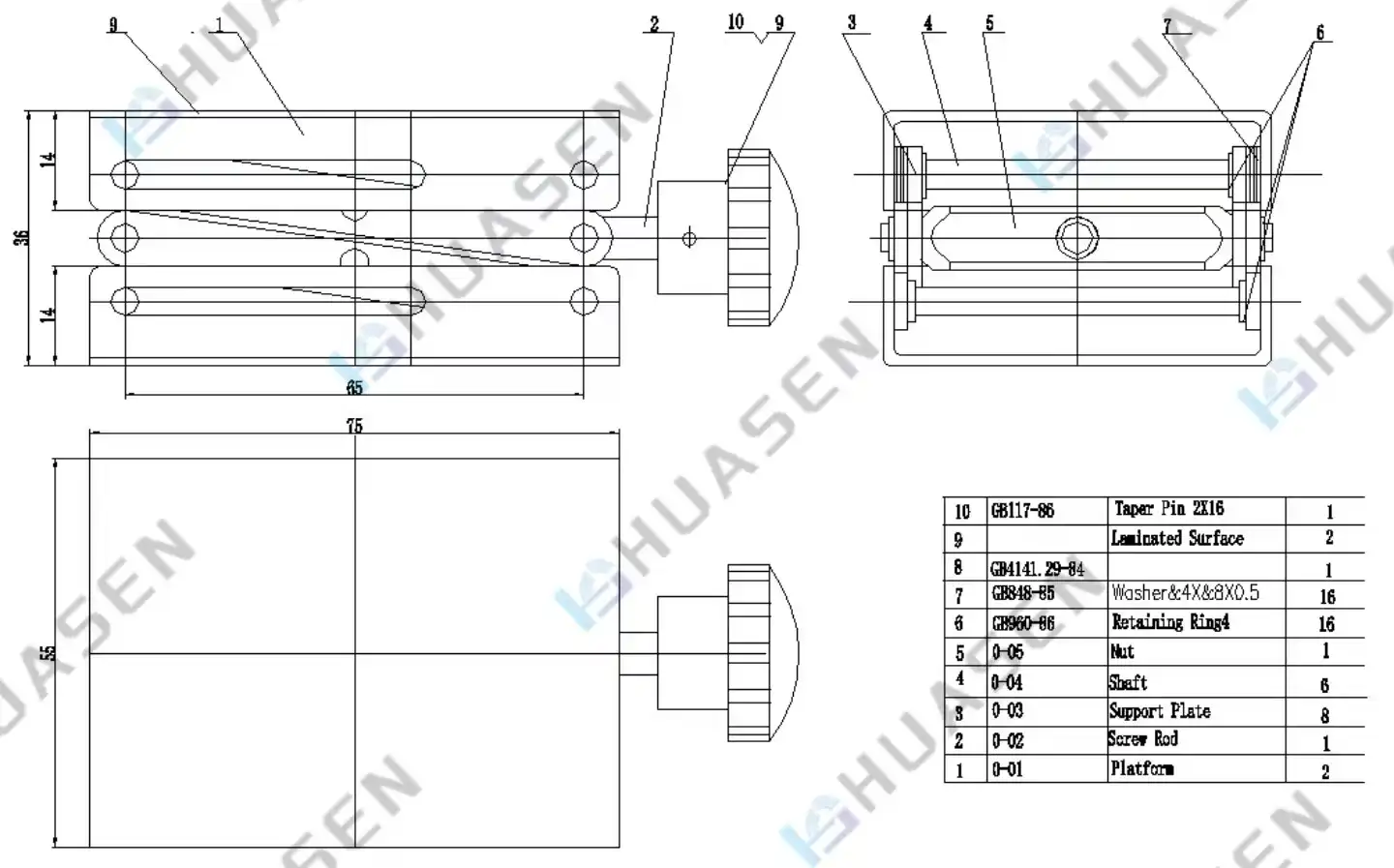

Waveguide elevating platforms' physical measurements have a big effect on how much capacity they can hold and how flexible they are for installation. Compact designs make the most of the room available while supporting heavy loads by distributing the weight in the best way possible. Full-metal structures used in military-grade construction ensure reliable performance in harsh operational circumstances. The way the weight is distributed affects how well the capacity is used in a variety of load situations. Centralised loading usually makes the best use of capacity, while spread loads need to be carefully looked at to make sure they don't cause too much mechanical stress. By understanding these factors, you can choose the best platform for your application needs.

Core Criteria for Selecting the Right Platform Capacity

Systematic capacity selection requires a comprehensive evaluation of operational parameters, environmental constraints, and performance requirements. This structured approach ensures optimal platform specification while avoiding costly over-specification or inadequate capacity selection.

Operational Load Assessment and Requirements Analysis

Begin capacity selection by conducting a thorough load analysis encompassing all equipment components requiring elevation. Include waveguide assemblies, test instrumentation, mounting hardware, Waveguide Elevating Platform and safety margins in weight calculations. Account for dynamic loading conditions during platform movement to ensure adequate capacity reserves. The frequency of use patterns significantly influences capacity requirements and mechanical wear characteristics. Continuous operation scenarios demand higher safety margins compared to intermittent usage applications. Consider peak loading conditions and potential future equipment additions when establishing capacity specifications. Environmental factors,s including temperature variations, vibration exposure, and electromagnetic interference levels, affect platform performance and capacity utilisation. Harsh environmental conditions may require capacity derating to maintain reliable operation. Evaluate these factors comprehensively during the selection process.

Safety Standards and Compliance Requirements

Compliance with relevant safety standards represents a critical consideration for American and European markets. Platforms must meet applicable mechanical safety requirements while maintaining electromagnetic compatibility in sensitive RF environments. Understanding regional compliance requirements prevents costly specification errors and operational delays. Load safety factors typically range from 150% to 200% of operational capacity, providing adequate margins for unexpected loading conditions. These factors account for dynamic loading, mechanical wear, and operational safety requirements. Verify manufacturer compliance with applicable safety standards during evaluation processes.

Comparing Waveguide Elevating Platforms With Alternative Lifts

Understanding the performance characteristics distinguishing waveguide elevating platforms from conventional lifting solutions enables informed procurement decisions. These specialised platforms offer unique advantages in precision, stability, and electromagnetic compatibility essential for RF applications.

Precision and Stability Comparison

Conventional scissor lifts and boom lifts prioritise heavy lifting capacity over positioning precision, making them unsuitable for sensitive RF measurement applications. Waveguide elevating platforms achieve positioning accuracy better than ±0.05mm with repeatability exceeding ±0.02mm, essential for maintaining antenna phase centres and measurement consistency. Vibration characteristics differ significantly between platform types, with waveguide elevating platforms incorporating vibration isolation features critical for sensitive measurement equipment. Standard industrial lifts generate mechanical vibrations incompatible with precision RF measurements, while specialised platforms minimise operational disturbances through optimised drive systems and structural design.

Electromagnetic Compatibility and RF Performance

Standard lifting equipment often generates electromagnetic interference incompatible with sensitive RF environments. Waveguide elevating platforms incorporate EMI shielding and low-RCS materials to minimise measurement interference. This electromagnetic compatibility represents a fundamental requirement for antenna testing and RF characterisation applications. Motor control systems in specialised platforms utilise filtered power supplies and shielded control cables to prevent interference with sensitive measurement instrumentation. These design features ensure reliable operation within anechoic chambers and other controlled electromagnetic environments where conventional lifts would compromise measurement integrity.

Cost-Performance Analysis and ROI Considerations

Initial procurement costs for specialised waveguide elevating platforms exceed conventional lifting solutions,yet long-term operational benefits justify the investment through improved measurement accuracy and reduced operational complexity. The elimination of flexible cable requirements and associated phase stability issues provides significant operational advantages. Maintenance requirements for precision platforms typically involve annual calibration verification, Waveguide Elevating Platform, and bearing inspection, contrasting with more frequent maintenance schedules for heavy-duty industrial lifts. This reduced maintenance burden contributes to lower total cost of ownership over extended operational periods.

Practical Guidance on Installation, Operation, and Maintenance Related to Platform Capacity

Proper installation, operation, and maintenance practices ensure optimal capacity utilisation while maximising platform service life. These procedures directly impact measurement reliability and operational safety in professional RF environments.

Installation Best Practices for Capacity Optimisation

Foundation requirements scale with platform capacity and operational requirements, with heavier capacity platforms demanding more substantial mounting surfaces. Ensure adequate structural support to prevent deflection under maximum load conditions. Proper installation alignment maintains positioning accuracy and prevents premature mechanical wear. Cable management systems must accommodate the elevation range while preventing stress on rigid waveguide connections. Articulating cable carriers or rotary joints enable smooth platform movement without imposing mechanical stress on RF assemblies. These systems preserve signal integrity while enabling full capacity utilisation.

Operational Procedures and Safety Protocols

Clear load limits and operational boundaries should be set out in standard operating procedures to keep people safe and avoid capacity overloading. Set up automatic safety systems that protect against overloading and have an emergency stop button. Regular methods for verifying loads keep operations in line with capacity requirements. Training must cover the right way to load, what to do in an emergency, and regular maintenance chores. To keep equipment from breaking and make sure measurements are correct, operators need to know how to limit its capacity and distribute weight correctly. Documenting operational processes helps make sure that all operators do the same thing.

Maintenance Strategies for Capacity Preservation

As part of regular inspection plans, the load capacity, positioning accuracy, and mechanical wear should all be checked. These checks find possible problems before they affect the ability to do work or the accuracy of measurements. Keep thorough service records to see how performance is changing over time and figure out when maintenance is due. Schedules for lubrication and replacing parts have a direct effect on how much capacity is retained over long periods of operation. To keep the best performance, use the lubricants and replacement parts that the maker recommends. Preventive maintenance plans keep long-term capacity standards and cut down on unexpected failures.

Procurement Insights for European and American B2B Clients

Successful procurement requires understanding market dynamics, supplier capabilities, and support infrastructure availability. These factors significantly influence long-term operational success and total cost of ownership for waveguide elevating platforms.

Supplier Evaluation and Selection Criteria

Look at a possible supplier's technical knowledge, ability to make things, and support infrastructure. Established manufacturers with a lot of experience in the RF business usually offer better customer service and the ability to customise their products. Check to see if the seller meets the necessary quality standards and certification requirements. Important criteria for judging are the technical support skills, such as design help, installation help, and maintenance services. Suppliers who offer full technical help lower the risks of implementation and make sure that the system works well together. Check how responsive the provider is and how technically skilled they are during the initial engagement processes.

Pricing and Contract Considerations

Ask for thorough quotes that include all system parts, installation services, and support packages. To get the most value, it's better to look at the total cost of ownership instead of the initial purchase price. For large-scale implementations, look for ways to buy in bulk and savings for buying more than one unit. The terms of warranties and service contracts have a big effect on running costs and risk reduction over the long term. Parts, labour, and performance guarantees for set operational times should all be covered by a full warranty. Check the supplier's financial stability to make sure they can provide long-term help.

Logistics and Delivery Planning

Make sure that delivery times work with installation needs and the availability of the building. For customised and quality-checked platforms that are unique, lead times may need to be longer. When making installation schedules, you should think about how to get to the building and any operational restrictions. American and European markets have different rules and standards for certification when it comes to imports, which could affect delivery times and the cost of compliance. Check that all regulatory standards have been met early on in the procurement process to avoid delays and extra costs.

Conclusion

To choose the right waveguide elevating platform capacity, you need to carefully look at your long-term goals, technical needs, Waveguide Elevating Platform and operating limitations. The range of 40–80 kg capacity and 36–260 mm elevation meets a wide range of RF application needs while keeping accuracy and dependability. Military-grade build means that it will work reliably in tough conditions, like when testing antennas or doing millimetre-wave experiments. When choosing capacity, it's important to find a balance between current business needs and future growth opportunities while keeping costs low. For American and European B2B clients looking for reliable waveguide positioning options, the best procurement results come from carefully evaluating suppliers' skills, support infrastructure, and compliance requirements.

FAQ

1. What factors determine the optimal capacity for my waveguide elevating platform?

Optimal capacity selection depends on total system weight, including waveguides, test equipment, and mounting hardware. Add 50-100% safety margin to calculated loads to accommodate dynamic forces and future equipment additions. Consider elevation requirements and operational frequency when evaluating capacity specifications.

2. How does platform capacity affect positioning accuracy and measurement performance?

Higher capacity platforms typically incorporate more robust mechanical systems that maintain superior positioning accuracy under varying load conditions. Proper capacity matching ensures consistent performance across the operational range while preventing mechanical deflection that could compromise measurement accuracy.

3. Can platform capacity be upgraded or modified after installation?

Most platforms feature fixed capacity specifications determined by motor, gearbox, and structural components. Capacity modifications typically require significant component replacement and may not be cost-effective compared to new platform procurement. Evaluate future requirements carefully during initial selection processes.

4. What maintenance requirements are associated with different capacity platforms?

Maintenance requirements scale with platform capacity and operational intensity. Higher capacity units typically require more frequent lubrication and mechanical inspection schedules. Implement preventive maintenance programs based on manufacturer recommendations and operational usage patterns.

5. How do environmental conditions affect platform capacity and performance?

Temperature extremes, vibration, and electromagnetic interference can reduce effective platform capacity and positioning accuracy. Harsh environments may require capacity derating to maintain reliable operation. Evaluate environmental factors comprehensively during platform specification and selection processes.
