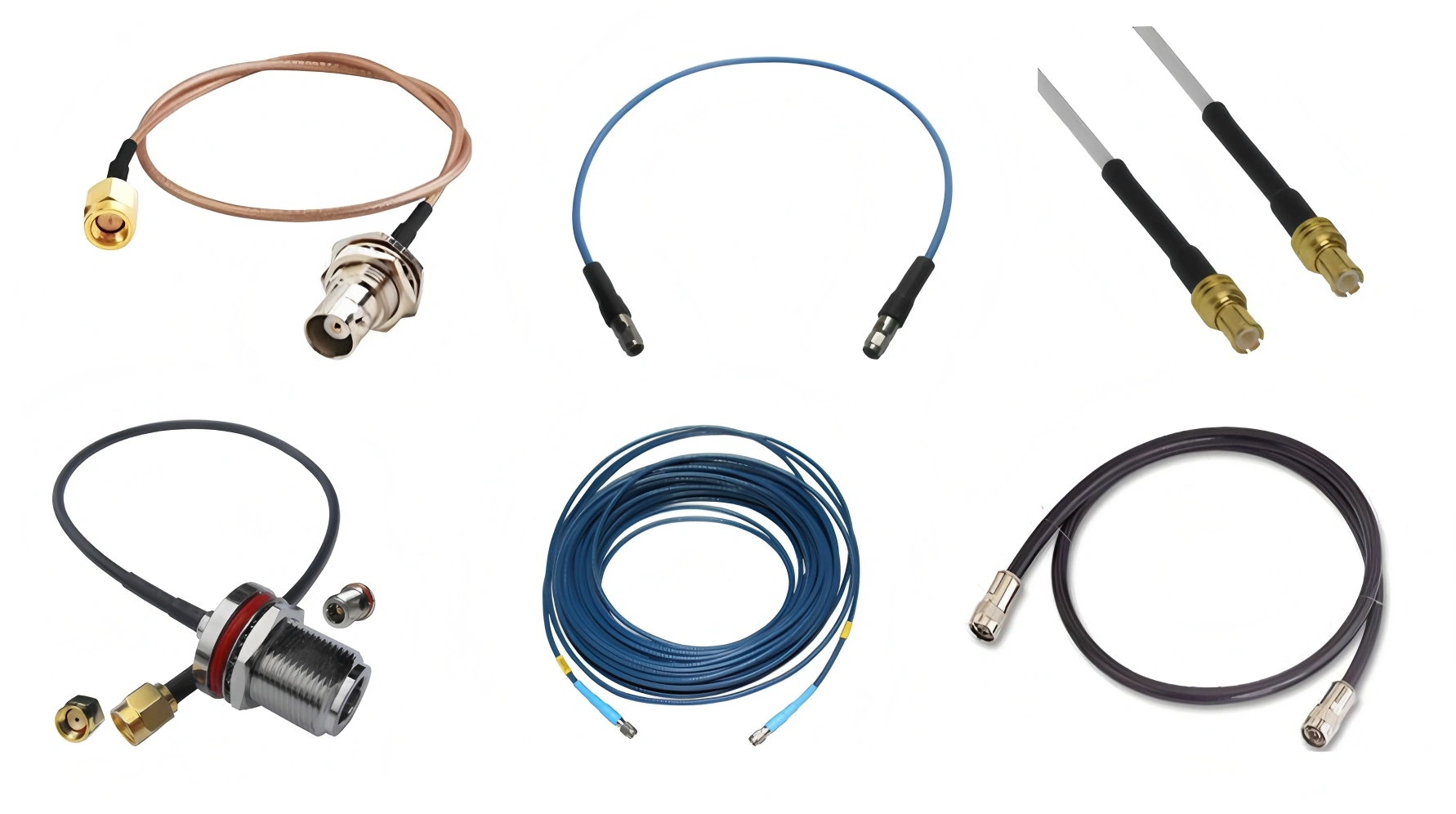

Custom Made Coax Cable Assemblies
Typical specifications:
- Insertion loss: ≤ 6.5dB (40GHz)
- VSWR: ≤ 1.5 (40GHz)
Connector types: 7 types including SMA, N, 2.92, etc.
Product series: Standard type, high-temperature torsion-resistant type, low-loss stable phase type, etc.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Custom Made Coax Cable Assemblies: High-Performance Solutions for RF and Microwave Applications
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Custom Made Coax Cable Assemblies. With over 30 a long time of skill in high-frequency microwave and millimeter-wave components, we provide prevalent quality arrangements custom-made to your particular needs. Our items offer extraordinary execution, unwavering quality, and flexibility for requesting broadcast communications, radar, aviation, and defense applications.
Why Choose Our Custom Made Coax Cable Assemblies?
At Huasen Microwave, we understand that every project has unique requirements. Our products are designed to meet your exact specifications, ensuring optimal performance in your systems. We offer:
- Tailored Solutions: Customize cable length, connectors, and shielding to fit your specific application.
- Wide Frequency Range: DC to 60GHz coverage for various microwave and millimeter-wave uses.
- Superior Performance: Low insertion loss and VSWR for stable, high-quality signal transmission.
- Durability: Optimized bending performance with an 18mm minimum radius for complex installations.
- Versatility: Multiple cable types and connector options for seamless system integration.
Core Performance Parameters
| Parameter | Performance |
|---|---|
| Frequency Range | DC - 60GHz |
| Insertion Loss | < 0.5 dB/m at 40+ GHz |
| VSWR | < 1.3:1 (typical) |
| Impedance | 50Ω or 75Ω (±2Ω) |
| Shielding Effectiveness | > 90 dB |
| Minimum Bend Radius | 18mm |
Product Features & Process
Our Custom Made Coax Cable Assemblies are engineered for excellence:
- Low-loss dielectric materials for superior signal integrity
- Precision-manufactured conductors for consistent impedance
- Advanced shielding techniques for maximum EMI/RFI protection
- Rigorous quality control throughout the manufacturing process
- Customizable jacket materials for environmental protection
Applications
Our coax cable assemblies excel in various RF and microwave applications:
- 5G and Telecommunications Infrastructure
- Satellite Communications Systems
- Radar and Defense Equipment
- Test and Measurement Instruments
- Broadband Networks
- Aerospace Communication Systems
Installation & Compatibility
Designed for ease of use, our assemblies feature:
- Flexible construction for simplified routing in tight spaces
- Compatible with standard industry connectors (SMA, N, BNC, 2.92mm, etc.)
- Clear installation guidelines provided with each assembly
- Technical support available for complex integration scenarios
Quality Control & After-Sales
We prioritize quality and customer satisfaction:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliant materials
- Rigorous testing at each production stage
- 1-year warranty on all assemblies
- Dedicated after-sales support team
Packaging and Shipping
Our products are carefully packaged to ensure they reach you in perfect condition:
- Individual protective wrapping for each assembly
- Sturdy boxes with shock-absorbing materials
- Custom packaging available for large orders
- Global shipping with tracking provided
FAQ
Q: What's the maximum frequency for your coax cable assemblies?
A: Our assemblies can support frequencies up to 60GHz, suitable for most microwave and millimeter-wave applications.
Q: Can you provide phase-matched cable assemblies?
A: Yes, we offer phase-matched assemblies for applications requiring precise timing and signal coherence.
Q: Are your cables suitable for outdoor use?
A: Absolutely. We offer assemblies with weather-resistant jackets and sealed connectors for outdoor installations.
Q: Do you provide samples for testing?
A: Yes, we can provide sample assemblies for evaluation. Please contact us with your specific requirements.
Q: How do I choose the right cable assembly for my application?
A: Our team of experts can guide you through the selection process based on your frequency, power, and environmental needs.
Contact Us
Ready to elevate your RF and microwave systems with our Custom Made Coax Cable Assemblies? Contact our sales team today for expert advice and quotes tailored to your project needs.
Email: sales@huasenmicrowave.com
Experience the Huasen Microwave difference – where precision meets performance in every custom coax cable assembly we create.
