Dual channel Coaxial Rotary Joint UI Type
Advantages & Features:
- Frequency: DC-16GHz
- Dual-channel independent transmission
- Low insertion loss, excellent VSWR, wide bandwidth
- Strictly tested with verified consistent performance
- Aluminum/copper construction for durability and heat dissipation
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Revolutionizing RF Solutions with Dual Channel Coaxial Rotary Joint UI Type
As a leading manufacturer of high-frequency microwave components, Huasen Microwave Technology Co., Ltd. proudly presents our cutting-edge Dual channel Coaxial Rotary Joint UI Type. With over three decades of expertise, we've engineered this product to meet the exacting demands of military and aerospace contractors. Our product stands out for its superior signal integrity, robust EMI shielding, and exceptional durability in high-stress environments.
Why Choose Our Dual Channel Coaxial Rotary Joint UI Type?
Our product is designed with your mission-critical applications in mind. Here's why it's the top choice for industry leaders:
- Unparalleled Performance: Engineered for signal loss <0.5 dB per channel at frequencies up to 18+ GHz.
- Military-Grade Durability: Exceeds MIL-STD-810/461 standards for environmental and EMI robustness.
- Longevity: Operational lifespan surpassing 10 million rotations, reducing maintenance costs.
- Customization: Tailored solutions to integrate seamlessly with your existing systems.
- Global Compliance: ITAR, ISO 9001, AS9100, and REACH/ROHS certified for worldwide deployment.
Standard Product Data Sheets
|
Part No |
Freq Range (GHz) |
VSWR |
Insertion Loss |
Connector Type |
Material |
|
HS0045CRJIISAT |
CH1: 0-4.5 |
1.2 |
0.25 |
SMA-F |
Aluminum |
|
CH2: 0-4.5 |
1.45 |
0.3 |
|||
|
HS12CRJUIS1 |
CH1: 0.95-1.45 |
1.25 |
0. 5 |
SMA-F |
Copper |
|
CH2: 0.95-1.45 |
1.5 |
0. 5 |
|||
|
HS4070CRJUIS |
CH1: 3.6-4.2 |
1.3 |
0.3 |
SMA-F |
Copper |
|
CH2: 5.85-6.45 |
1.3 |
0.3 |
|||
|
HS160110CRJIISA |
CH1: DC-16 |
1.5 |
0.5 |
SMA-F |
Aluminum |
|
CH2: DC-11 |
2.5 |
2 |
|||
|
HS94CRJUIS |
CH1: 9.4±0.25 |
1.3 |
0.4 |
SMA-F |
Copper |
|
CH1: 9.4±0.25 |
1.3 |
0.4 |
Product Features & Process
Our Dual channel Coaxial Rotary Joint UI Type is crafted using precision machining and advanced materials:
- Aluminum or copper construction for optimal heat dissipation
- Hermetic sealing (IP67+) for harsh environment protection
- Gold-plated contacts for enhanced conductivity
- Rigorous testing at each production stage ensures consistency

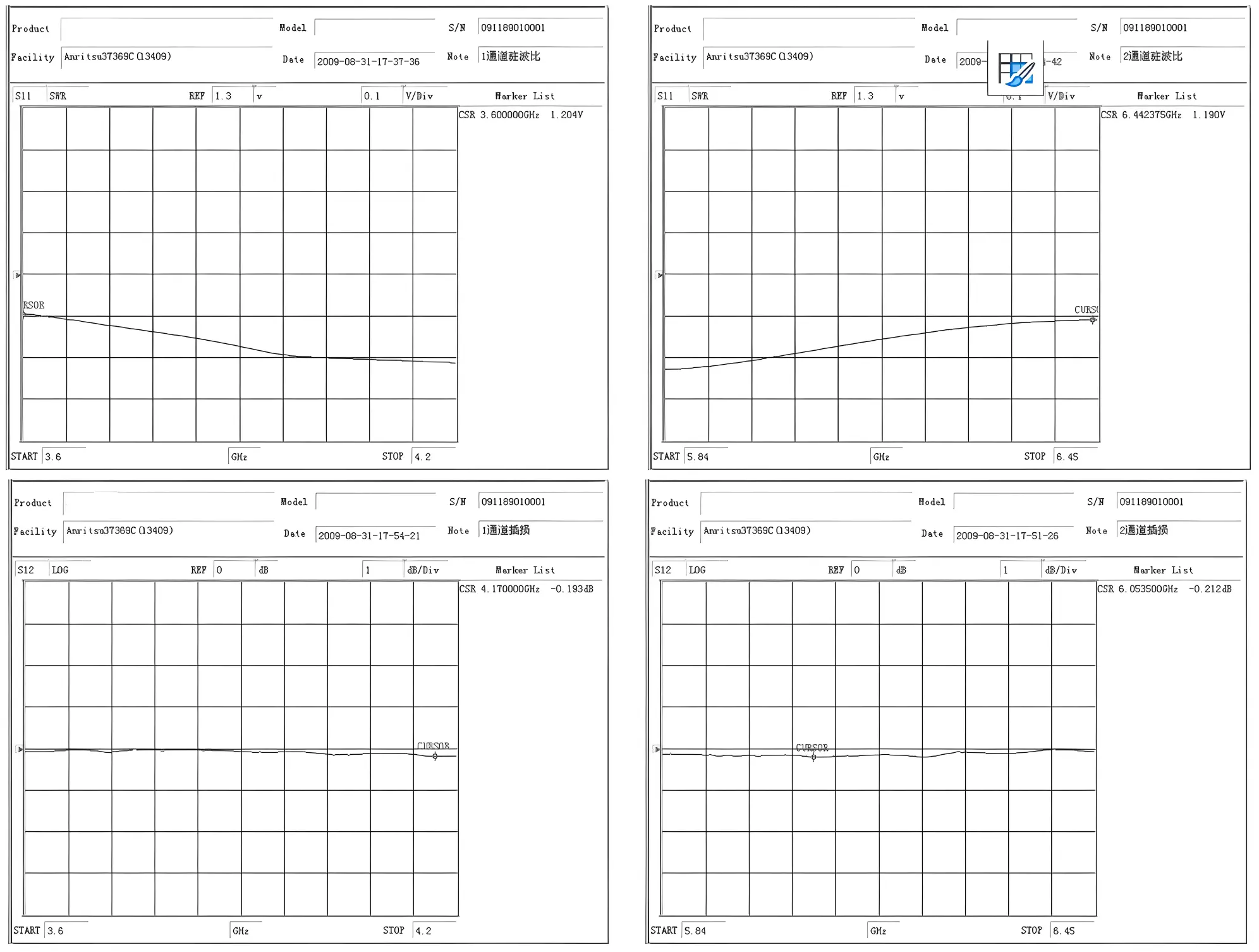

Test Curves
Applications
Ideal for:
- Advanced radar systems
- Satellite communications
- Electronic warfare equipment
- Airborne surveillance platforms
- Ground-based defense systems
Installation & Compatibility
The standardized SMA-K connectors ensure easy integration with a wide range of systems. Our modular design allows for:
- Plug-and-play installation
- Compatibility with standard RF/microwave equipment
- Minimal downtime during system upgrades
Quality Control & After-Sales
We stand behind our products with:
- 1-year warranty
- ISO9001, RoHS, and REACH certifications
- Comprehensive documentation and test reports
- Dedicated technical support team
Packaging and Shipping
Each product is:
- Individually packaged in anti-static bags
- Cushioned in custom-molded foam inserts
- Shipped in reinforced boxes for maximum protection
FAQ
Q1: Can this rotary joint operate reliably in outdoor environments?
A1: Yes, it highlights airtight fixing (IP67+) to guarantee reliable execution beneath cruel open air conditions.
Q2: Can the product be used in pressurized environments?
A2: Yes, our ruggedized variant is designed for extreme pressure conditions.
Q3: How does your product reduce EMI/RFI interference?
A3: Our progressed protecting procedures and materials give predominant segregation, surpassing 60 dB.
Q4: Is on-site technical support available for installation?
A4: Yes, we offer on-site bolster for complex integrative, guaranteeing ideal performance.
Q5: What makes your product more durable than competitors'?
A5: Our exclusive plan and materials choice result in a life expectancy surpassing 10 million rotations.
Contact Us
Ready to elevate your RF systems with our Dual channel Coaxial Rotary Joint UI Type? Contact our expert team at sales@huasenmicrowave.com for personalized solutions and quotes.
