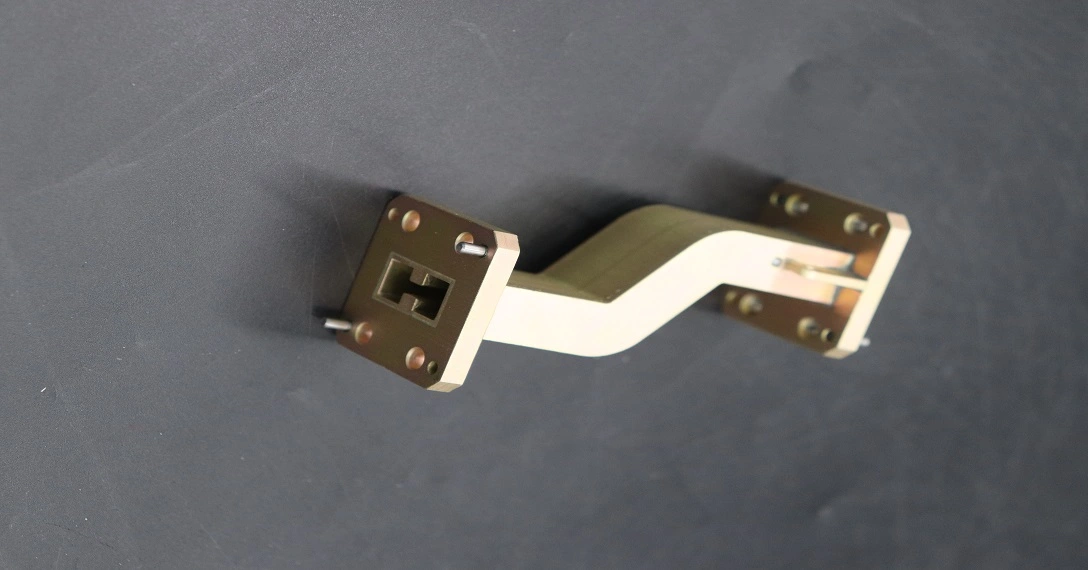

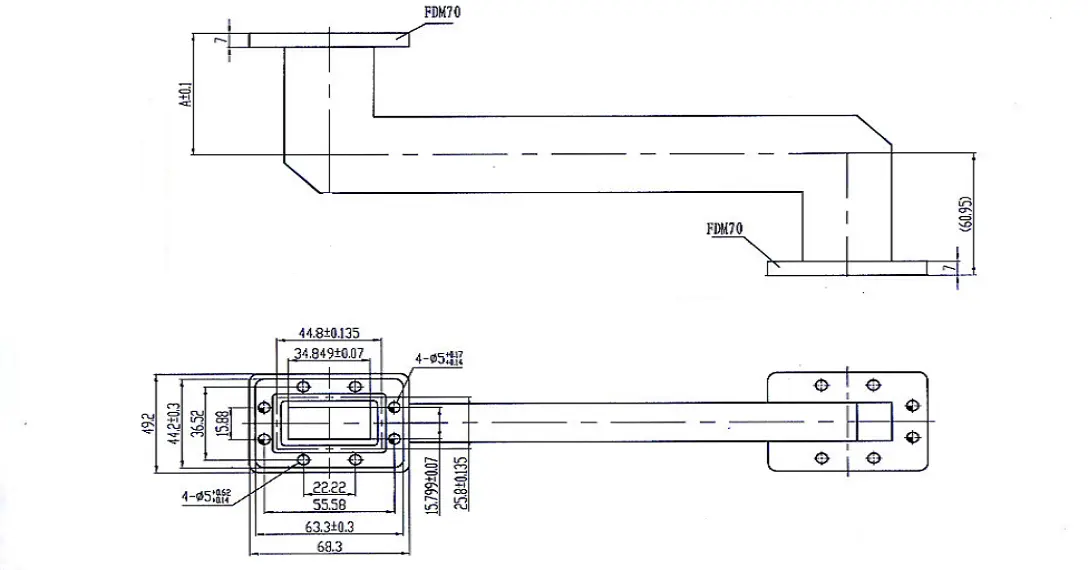

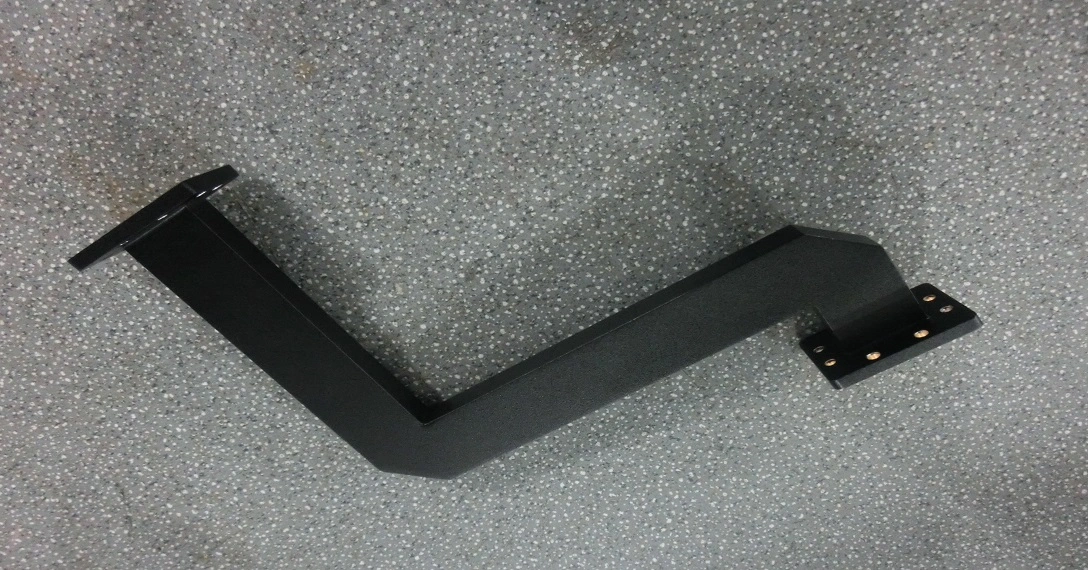

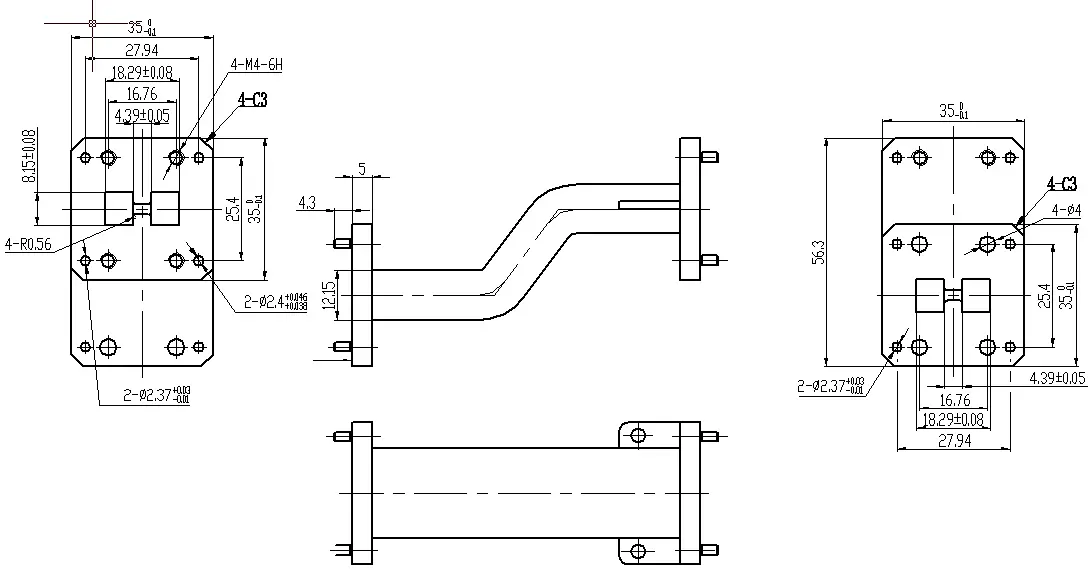

S Bend Waveguide
Advantages and Features:
- Customizable waveguide dimensions, bending radius, and length
- Flexible adjustment of interfaces and flange types according to requirements
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
S Bend Waveguide: Precision Microwave Transmission Solutions
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of high-quality S Bend Waveguide. With over 30 years of expertise in microwave and millimeter-wave components, we offer superior product solutions that excel in performance and reliability. Our products are designed to meet the exacting needs of research labs, universities, and high-tech industries.
Why Choose Our S Bend Waveguide?
Our products are engineered to provide smooth microwave transmission path adjustments, making them ideal for complex system configurations. We understand that every research project is unique, which is why we offer fully customizable solutions. From size and bending radius to length and interface flange type, we tailor our waveguides to your specific requirements.
Product Type
Product Features & Process
- Precision-engineered using advanced CNC machining
- High-grade materials: Copper and aluminum options available
- Electroformed for superior surface finish and electrical performance
- Rigorous testing at each production stage ensures consistency
Core Performance Parameters
| Frequency Range | 0.32-330 GHz |
| VSWR | 1.1:1 max |
| Power Handling | Up to 250W |
| Bending Angle | Customizable |
| Flange | FDP/FDM/FBP/FBM/FUGP/FAP/FAM |
| Material | Aluminum;Copper |
| Coating | Chromate conversion;Silver plating;Gold plating |
Applications
Our S Bend Waveguide finds applications in:
- Quantum computing research
- LiDAR systems development
- Aerospace and defense radar systems
- Telecommunications infrastructure
- High-energy physics experiments
Installation & Compatibility
Designed for seamless integration, our products are compatible with standard flanges and connectors. We provide detailed installation guides and can offer technical support to ensure proper setup in your research environment.
Quality Control & After-Sales
- ISO 9001 certified manufacturing process
- RoHS and REACH compliant
- Rigorous quality checks at every production stage
- 1-year warranty on all products
- Comprehensive technical support and documentation
Packaging and Shipping
Each product is individually packaged in anti-static materials and cushioned to prevent damage during transit. We offer expedited shipping options to meet urgent research timelines.
FAQ
Q: Can you produce products for frequencies above 300 GHz?
A: Yes, we can develop custom solutions for higher frequencies. Contact us for specifics.
Q: What materials are used in your products?
A: We primarily use high-grade copper and aluminum. The choice depends on your specific application requirements.
Q: Do you offer simulation data for your products?
A: Yes, we can provide S-parameter data and 3D models upon request.
Q: Can your products be used in cryogenic environments?
A: We offer uncommon models planned for cryogenic applications. If you don't mind indicate your temperature prerequisites when inquiring.
Q: Are your product suitable for space applications?
A: Yes, we have involvement in creating space-qualified components. Extra testing and documentation can be provided.
Contact Us
For inquiries or to discuss your custom S Bend Waveguide needs, please email us at sales@huasenmicrowave.com. Our gather of pros is arranged to back your explore and progression wanders with precision-engineered microwave courses of action.
