Single channel Coaxial Rotary Joint
Features and Advantages:
- Frequency range: DC-40GHz
- Power handle: Average 30W, peak 300W
- Stable and durable: Aluminum or copper casing with excellent heat dissipation and mechanical strength
- VSWR fluctuation ≤ 0.1, insertion loss fluctuation ≤ 0.05dB
- Rotation lifespan ≥ 5 million turns @ 30 RPM
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave's Single Channel Coaxial Rotary Joint: Precision in Motion
Huasen Microwave Technology Co., Ltd., a leading manufacturer of high-frequency microwave and millimeter-wave components, proudly presents our cutting-edge Single Channel Coaxial Rotary Joint. With over three decades of expertise, we deliver superior RF solutions for radar, telecommunications, and aerospace applications. Our product stands out for its wide frequency range, high power capacity, and exceptional rotational stability.
Why Choose Our Single Channel Coaxial Rotary Joint?
Our product is the go-to solution for demanding radar feeder systems. Here's why it's the preferred choice for industry leaders:
- Unmatched Performance: DC-40GHz frequency range with minimal signal loss
- Robust Design: Aluminum or copper housing for superior heat dissipation
- Rotational Excellence: VSWR fluctuation ≤ 0.1, ensuring consistent signal quality
- Customization Options: Tailored solutions to meet your specific requirements
- Reliability: Engineered for longevity in high-speed, high-stress environments
Standard Product Data Sheets
|
Part No |
Freq Range (GHz) |
VSWR |
VSWR WOW |
Insertion Loss (dB) |
Insertion Loss WOW (dB) |
Avg. Power (W) |
Peak Power (W) |
Connector Type |
|
|
Port 1 |
Port 2 |
||||||||
|
HS30CRJINJK |
DC-3 |
≤1.2 |
≤0.1 |
≤0.5 |
≤0.05 |
30 |
300 |
N-M |
N-F |
|
HS80CRJINJK |
DC-8 |
≤1.35 |
≤0.1 |
≤0.5 |
≤0.05 |
30 |
300 |
N-M |
N-F |
|
HS124CRJINJK |
DC-12.4 |
≤1.5 |
≤0.1 |
≤0.5 |
≤0.05 |
30 |
300 |
N-M |
N-F |
|
HS124CRJISJK |
DC-12.4 |
≤1.5 |
≤0.1 |
≤0.5 |
≤0.05 |
30 |
300 |
SMA-M |
SMA-F |
|

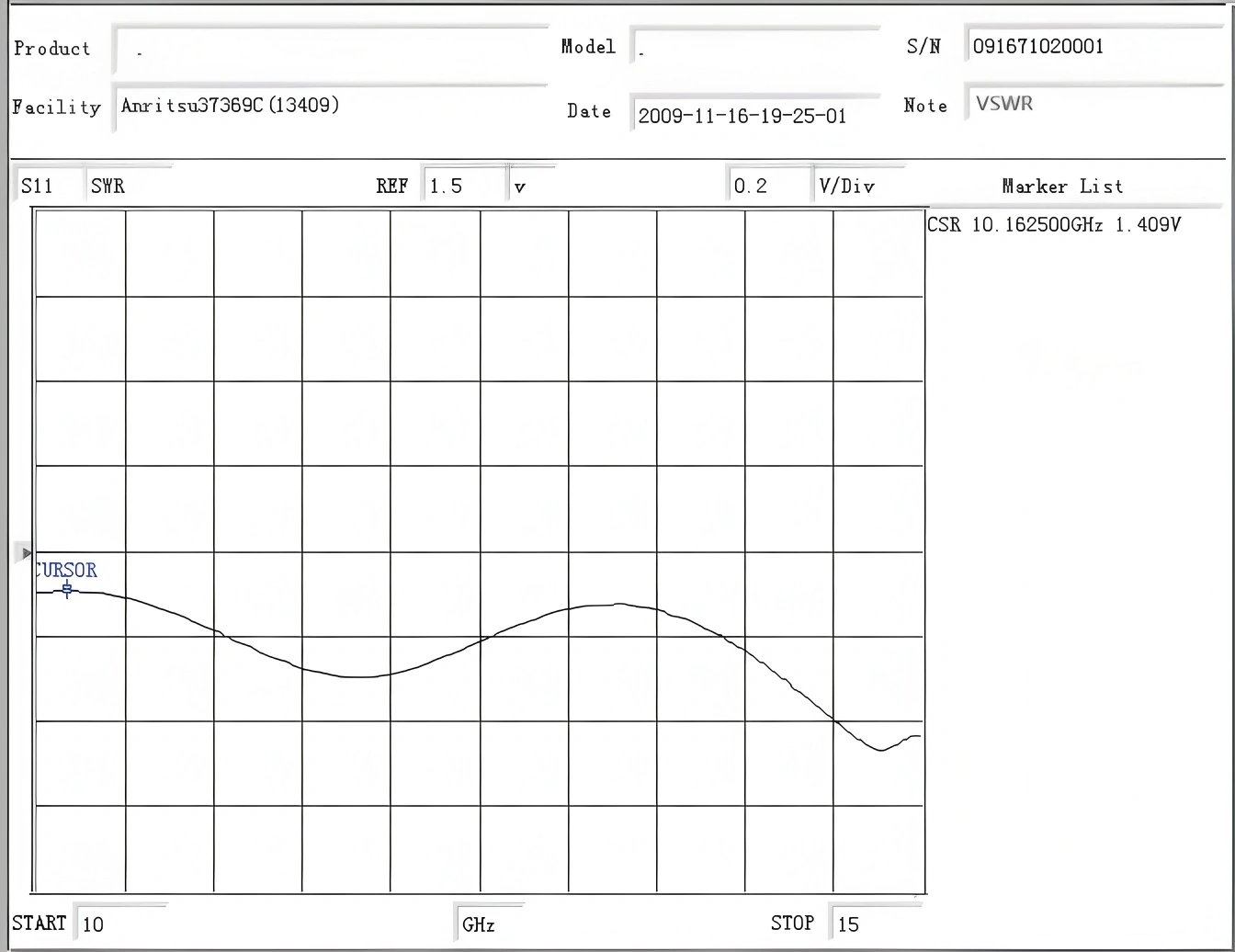

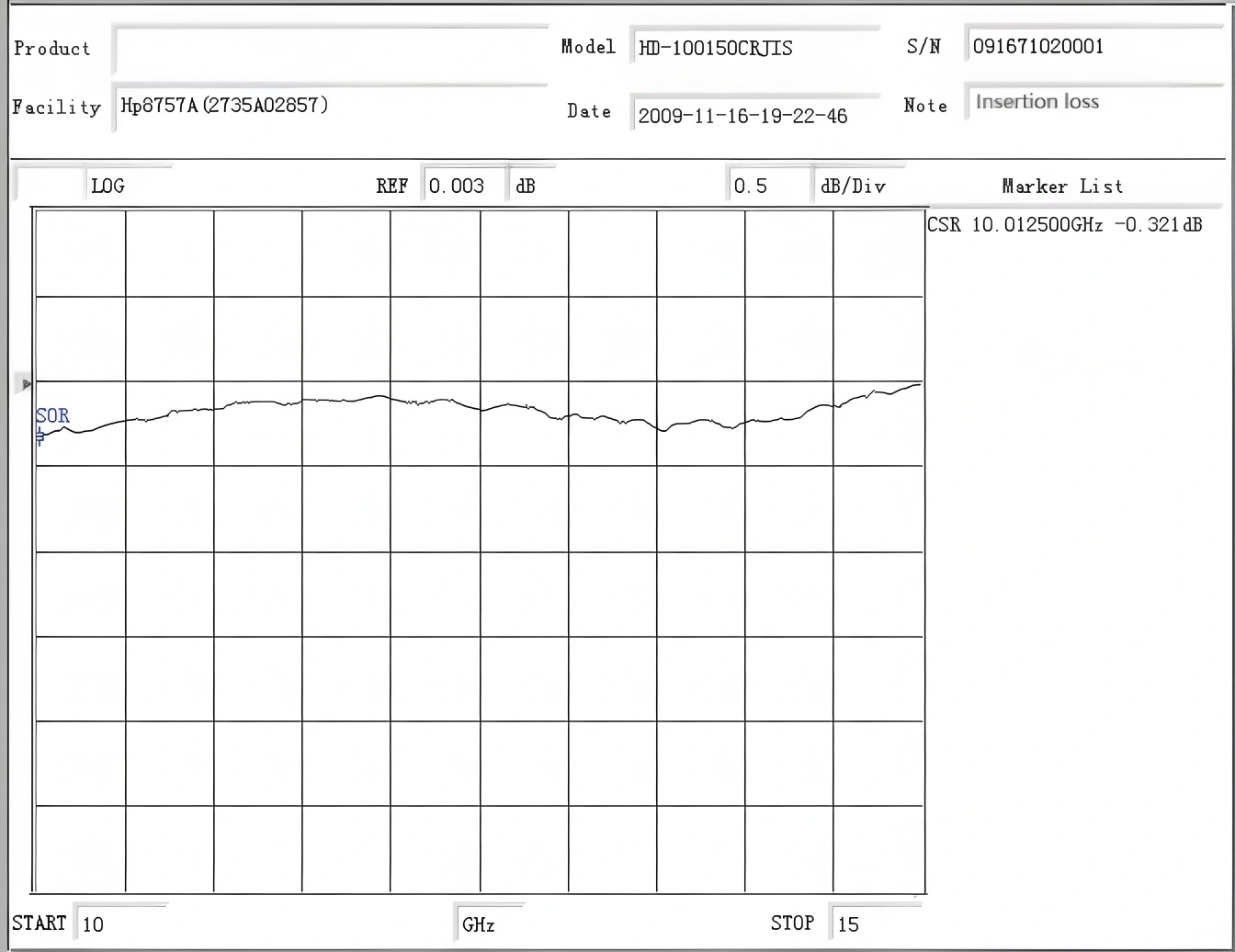

HS100150CRJISJK |
10-15 |
≤1.5 |
≤0.1 |
≤0.5 |
≤0.1 |
30 |
300 |
SMA-M |
SMA-F |
|
HS180CRJINJK |
DC-18 |
≤1.8 |
≤0.1 |
≤0.8 |
≤0.1 |
30 |
300 |
N-M |
N-F |
|
HS180CRJISJK |
DC-18 |
≤1.8 |
≤0.1 |
≤0.8 |
≤0.1 |
30 |
300 |
SMA-M |
SMA-F |
|
HS400CRJIV |
DC-40 |
≤1.8 |
≤0.1 |
≤0.8 |
≤0.1 |
30 |
300 |
2.4-F |
2.4-F |
Product Features & Process
Our product is crafted with precision:
- Advanced CNC machining for tight tolerances
- Gold-plated contacts for superior conductivity
- Rigorous quality control at every production stage
- Optimized for low torque and smooth rotation
- EMI/RFI shielding for interference-free operation
Applications
Ideal for various high-performance systems:
- Radar Systems: Maritime, weather, and military applications
- Satellite Communications: Ground stations and mobile platforms
- Test & Measurement: Antenna testing and RF labs
- Medical Imaging: CT scanners and advanced MRI systems
Installation & Compatibility
Our rotary joints are designed for seamless integration:
- Standard flange options for easy mounting
- Compatible with major OEM systems
- Compact design for space-constrained applications
- Detailed installation guides and technical support
Quality Control & After-Sales
We stand behind our products:
- ISO9001 certified manufacturing process
- RoHS and REACH compliant materials
- Rigorous testing: 100% performance verification
- 1-year warranty on Single Channel Coaxial Rotary Joint
- Expert technical support and consultation
Packaging and Shipping
Your product arrives ready for action:
- Individual anti-static packaging
- Foam-lined protective cases for bulk orders
- Shock indicators for transit monitoring
- Global shipping with tracked delivery options
FAQ
Q: What is the expected lifespan of your rotary joints?
A: Our rotary joints are engineered for durability, offering a service life of over 10 million rotations under normal operating conditions.
Q: Can these rotary joints be used outdoors?
A: Yes. With proper sealing, our joints are designed to perform reliably in a wide range of outdoor environments.
Q: Do you provide custom frequency ranges?
A: Absolutely. We can customize the frequency range to meet your specific application requirements.
Q: How can I ensure optimal performance of the rotary joint?
A: Regular maintenance and correct alignment are essential. We provide comprehensive care guidelines to help you maximize performance and lifespan.
Q: Are your rotary joints suitable for high-speed rotation?
A: Yes. Our rotary joints are optimized for high-speed applications and can support rotation speeds of up to 3000 RPM.
Contact Us
Ready to elevate your RF system with our Single Channel Coaxial Rotary Joint? Contact our expert team at sales@huasenmicrowave.com for quotes, custom solutions, or technical inquiries. Experience the Huasen difference – where precision meets innovation in every rotation.
