Power Amplifier Technologies Driving Next-Gen Communications

Power amplifier technologies form the backbone of contemporary wireless infrastructure, converting low-power RF signals into high-power transmissions capable of reaching distant receivers with clarity and precision. As 5G networks expand globally and 6G research accelerates, the demand for amplification devices that deliver exceptional linearity, thermal stability, and spectral efficiency has never been more critical. These sophisticated components enable base stations, satellite terminals, radar arrays, and avionics systems to maintain signal integrity across challenging environments while meeting stringent regulatory standards for emissions and power consumption.

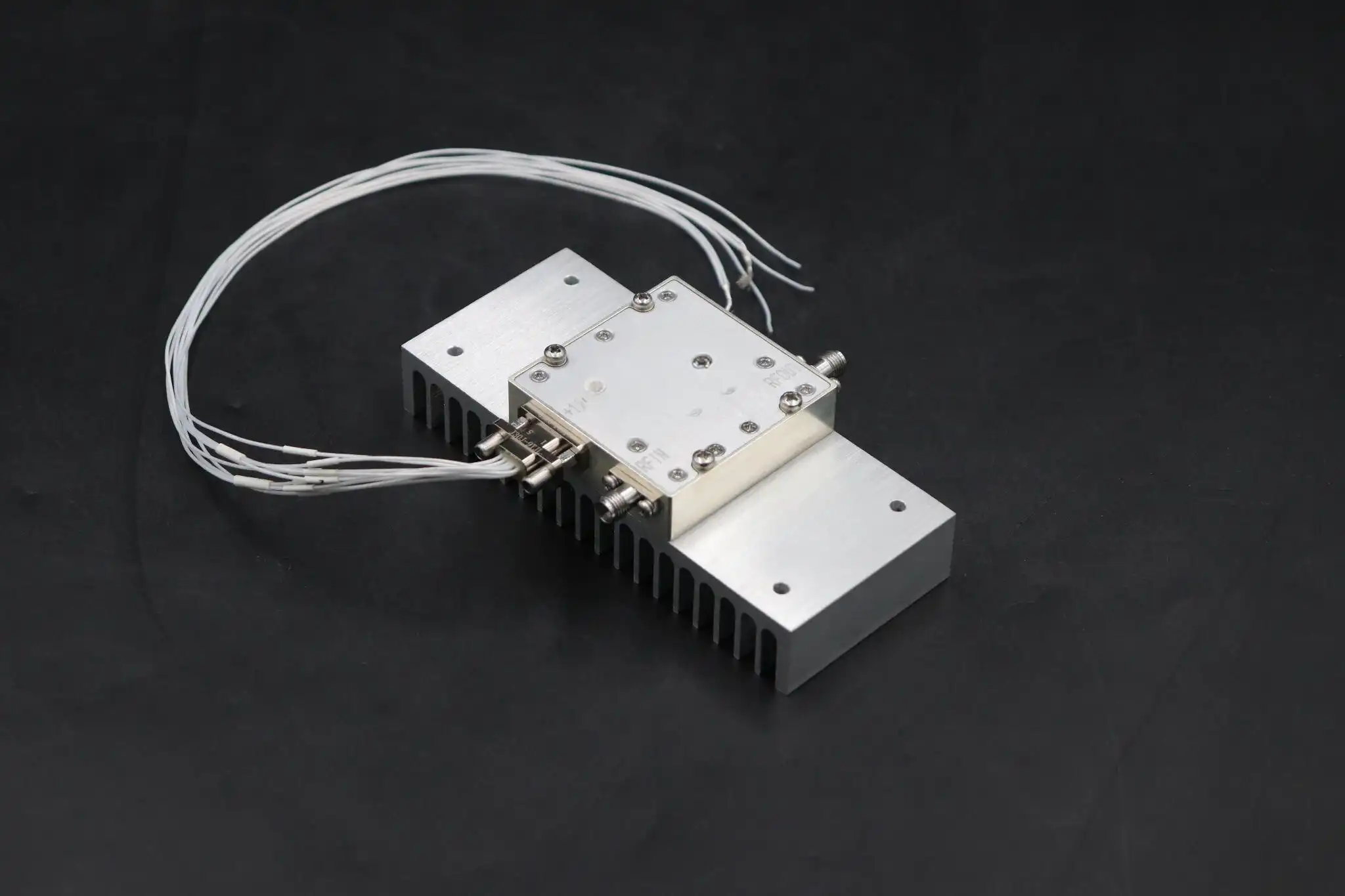

Understanding Power Amplifiers in Modern Communications

Core Working Principles and Signal Boosting Mechanisms

A power amplifier takes in a signal from electronics upstream, usually a modulator or signal generator, and boosts its amplitude to levels that can be used for antenna transmission or moving a load. This is made possible by carefully controlling the biasing of transistors in multiple gain stages. These stages have semiconductors that work in certain conduction modes to balance the output power with energy economy. The input stage matches the impedance and gives the signal its first gain. Later stages gradually boost the signal until it reaches the desired output level, which is usually measured in watts or kilowatts depending on the needs of the application.

Amplifier Classes and Their Operational Characteristics

In different communication situations, different amplifier topologies work best. Class A designs use transistors that conduct constantly throughout the whole signal cycle. This gives them great uniformity and very little harmonic distortion, but they only get about 25–30% efficiency. Class AB architectures are a good middle ground because they conduct for more than half of the cycle but less than the full cycle. They achieve 50–65% efficiency while keeping distortion levels low enough for most industrial wireless uses. Class D switching amplifiers use pulse-width modulation to achieve efficiencies of more than 85%. This makes them very useful for high-power radio transmitters and industrial heating uses, even though they do introduce higher noise floors. New hybrid designs use envelope tracking and Doherty structures to get the most out of different output power levels while maintaining efficiency. This is a key feature for 5G massive MIMO base stations that have to deal with changing traffic loads.

Distinguishing Power Amplifiers from Preamplifiers in Signal Chains

Preamplifiers deal with weak inbound signals close to receiver front-ends, giving priority to very low noise levels (often below 1 dB) to keep signal-to-noise ratios high before processing further down the line. Power amplifiers are at the other end of the transmission chain. Their job is to deliver large amounts of power, from milliwatts in handset modules to kilowatts in radar installations, while also controlling thermal dissipation and maintaining linearity under high-current conditions. Knowing this difference helps procurement teams choose the right parts: for example, choosing a 100W power amplifier with 0.5 dB insertion loss for base station transmission versus a low-noise amplifier with 15 dB gain for satellite ground station reception has a big impact on how well the system works and how much money is spent.

Key Technologies Powering Next-Gen Amplifier Solutions

Circuit Design Innovations and Material Advancements

Gallium nitride (GaN) and silicon carbide (SiC) semiconductors are used in modern amplification systems. These semiconductors have better electron mobility and breakdown voltage than silicon transistors. These wide-bandgap materials let power amplifiers handle higher power densities while working at high temperatures. This means that less cooling infrastructure is needed in installations with limited space, like radars on drones or communication terminals at sea. Advanced printed circuit board (PCB) substrates with low dielectric constants reduce parasitic capacitance. This lets designers increase operational bandwidth from a narrow single-band coverage to multi-octave performance. This is helpful when a single device needs to support both 3.5 GHz 5G and 28 GHz millimeter-wave frequencies without having to buy two sets of parts.

New developments in thermal management solve the long-standing problem of getting rid of heat from small amplifier units. Vapour chamber heat spreaders and micro-channel liquid cooling systems move heat away from joint areas that have thermal resistances of less than 0.1°C/W. This keeps performance from dropping when they are used at high power for a long time. Integrated temperature sensors send real-time data to adaptive bias circuits, which change the operating points of transistors to keep gain and efficiency constant even when the temperature outside changes from -40°C to +85°C. This is important for base stations outside and installations on airplanes.

Connectivity Features and System Integration Capabilities

More and more modern amplifier units have wireless control interfaces built in. This lets you watch and set them up from afar using Bluetooth, Zigbee, or custom mesh networks. Engineers can use smartphone apps to change gain settings, check VSWR, and get fault reports without having to physically handle equipment racks. This makes repair downtime for large-scale distributed antenna systems a lot shorter. This connectivity goes all the way to SCADA integration, where amplifiers send operational telemetry to central network management platforms. This lets these platforms make maintenance schedules based on signs of accumulated thermal stress or component aging.

The table below compares key performance metrics across amplifier classes relevant to communication system procurement:

Amplifier Class	Typical Efficiency	Linearity (IMD3)	Primary Application	Cooling Requirement
Class A	25-30%	-50 dBc	Laboratory instrumentation, low-distortion audio	Moderate heatsink
Class AB	50-65%	-40 dBc	Cellular base stations, satellite uplinks	Active forced air
Class D	85-90%	-25 dBc	FM broadcast, industrial RF heating	Minimal passive cooling
Doherty Hybrid	40-55% (average)	-35 dBc	5G massive MIMO, backhaul links	Advanced liquid cooling

Practical Selection Guidelines Based on Operational Parameters

It's important to match technical specs with load and surrounding factors when picking the right amplifier. For an 18 GHz point-to-point microwave backhaul link that spans 40 km, the amplifier needs to put out at least 10W of power and have a return loss of less than 15 dB in order to account for atmospheric attenuation and keep enough fade margin. For example, in a lab setting testing RF filter performance, an amplifier with a THD of less than 0.01% and an output power range of 1 mW to 10 W might be the best choice for accurate characterization across device compression points.

Matching the load resistance has a big effect on how stable and effective a power amplifier is. Inductive loads, like loop antennas or ferrite-core transformers, have reactive parts that move the operating points, which could cause oscillations or the protection circuit to go off. Buying amplifiers with VSWR safety and conjugate matching networks built in makes sure they work well even when the load changes by up to 3:1 VSWR. This protects both the amplifier and the equipment it is attached to from damage caused by reflected power.

Procurement Guide: How to Choose the Right Power Amplifier for Your Business?

Defining Application-Specific Requirements and User Profiles

A thorough needs assessment is the first step in B2B buying. When mobile network operators put up 5G small cells, they need small amplifiers that can deliver 5–20W and cover the n77 and n78 bands (3.3–4.2 GHz) with 100 MHz of instantaneous bandwidth to handle carrier aggregation scenarios. Ultra-wide bandwidth (6-18 GHz), high peak power handling (500 W pulsed), and MIL-STD-810 environmental approval for shock, vibration, and salt fog exposure are the most important things for defense companies making electronic warfare systems. When checking for electromagnetic compatibility, research groups look for amplifiers with accurate output calibration, USB/GPIB remote control, and full safety against accidental mistakes when describing unknown loads.

The criteria you use to choose a vendor depend on whether your company is an OEM integrator, a system operator, or a test laboratory. OEMs gain when suppliers offer bare-die transistors or module-level products that can be mechanically customized and come with different price levels based on volume. Operators put a high value on long-term uptime guarantees and regional service hubs that can quickly repair parts in the field. For simulation model validation, labs need full test data packages that include S-parameters for a wide range of temperatures, harmonic content tables, and AM-PM conversion characteristics.

Balancing Technical Metrics with Commercial Considerations

Aside from important specs like output power and frequency range, people who work in buying must also look at insertion loss, which has a direct effect on how well the whole system works. An amplifier with 3 dB insertion loss wastes half of the power it receives as heat, which means it needs power supplies and cooling systems that are too big. Choosing devices with insertion loss below 1 dB and power-added efficiency above 40% lowers operation costs by using less electricity, which is a big deal when running hundreds of base station amplifiers all the time.

Connector compatibility keeps expensive delays in change at bay. Huasen Microwave's RF coaxial adapters allow for smooth connection between N-type, SMA-type, and 2.92 mm connectors, so they can work with equipment from a variety of makers without affecting the signal integrity. These precise adapters keep the VSWR below 1.3:1 across DC-40 GHz, which means that there is very little reflection loss when adding a power amplifier to test labs or transmission networks that use a mix of connector standards.

The following table outlines Huasen Microwave RF coaxial adapter specifications addressing procurement connectivity challenges:

Adapter Type	Frequency Range	Insertion Loss	VSWR (max)	Connector Combinations
N-to-SMA	DC-18 GHz	0.15 dB @ 10 GHz	1.25:1	N(m)-SMA(f), N(f)-SMA(m)
SMA-to-2.92mm	DC-40 GHz	0.25 dB @ 30 GHz	1.30:1	SMA(m)-2.92(f), SMA(f)-2.92(m)
N-to-Type-F	DC-3 GHz	0.10 dB @ 1 GHz	1.15:1	N(m)-F(f), N(f)-F(m)
2.4mm-to-1.85mm	DC-65 GHz	0.35 dB @ 50 GHz	1.35:1	2.4mm(m)-1.85(f)

Addressing Global Procurement Challenges and Supply Chain Risks

When you source from other countries, it can be harder to implement warranties, get professional help, and make sure you're following the rules. Quality problems can be lessened by building ties with suppliers who keep their ISO 9001 certification and clear manufacturing methods. By asking for a certificate of conformance (CoC) for every shipment, you can be sure that the amplifiers you receive meet the required electrical and mechanical standards. This makes acceptance testing easier and cuts down on installation delays.

When projects have tight release dates, managing lead time becomes very important. Suppliers with consignment inventory programs or regional distribution warehouses can quickly fill urgent orders, and suppliers who let you know about shipments ahead of time and integrate tracking make the receiving and inspection processes easier. Framework deals with set prices and delivery dates for expected amounts to help secure capacity during market demand spikes, preventing allocation shortages that cause production schedules to be thrown off.

Conclusion

Next-generation communication systems, such as those used for defense weapons, terrestrial networks, and satellite groups, employ amplification technologies to work well and be reliable. When buying something, you have to balance technical specs like bandwidth, efficiency, and linearity with practical things like environmental qualification, supplier stability, and how well the connectors work with each other. These things have a direct effect on the costs and uptime of the system over its entire life. New developments in wide-bandgap semiconductors, digital predistortion, and clever tracking look like they will continue to improve performance while also solving long-standing problems with thermal management and spectral efficiency. Companies that buy power amplifiers that can be expanded and will work in the future will be able to take advantage of new wireless standards and keep their competitive edge as technologies change.

FAQ

1. What distinguishes RF power amplifiers from audio power amplifiers in procurement specifications?

RF power amplifiers work at frequencies from a few kilohertz to hundreds of gigahertz. They use transmission line theory and impedance matching networks to get the most power to the radio frequencies they need. Baseband sounds (20 Hz–20 kHz) are handled by audio amplifiers, which try to minimize harmonic distortion and make sure that the speaker load is compatible. When buying communication systems, people need to be clear about the frequency range and output-power amplifier load impedances (usually minimizing intermodulation performance). They shouldn't focus on audio-specific measures like THD+N and damping factor.

2. How do I determine adequate output power for a satellite communication uplink amplifier?

Link budget needs to be worked out by taking into account the receiver's sensitivity, weather attenuation, path loss (including rain fade margin), and transmission power. To get a good signal-to-noise ratio at the satellite transponder, a normal Ku-band VSAT terminal sending to geostationary orbit needs 40–60W of output power at the amplifier. This is after taking into account 200+ dB of path loss and 5 dB of rain fade buffer. By using link budget calculators and looking at regional rainfall data, you can make sure you get the right amount of power without buying too much.

3. What warranty and after-sales support factors should B2B buyers prioritize?

For equipment that is used in the field and is susceptible to lightning strikes and environmental stress, make sure that the guarantee covers failures that happen there as well as those that happen in the plant. Check the reaction times that suppliers say they will meet; premium sellers offer replacements for key infrastructure applications the next business day. Ask to speak with application engineers to get help with integration and to make sure that calibration data is correct during system commissioning. This will cut down on the time needed for troubleshooting, which can delay deployments that bring in money.

Partner with Huasen Microwave for Your Amplification Needs

Huasen Microwave Technology has been an engineering leader in high-frequency parts for 30 years, and they serve customers in the defense, aircraft, and telecoms industries around the world. Their customized solutions work perfectly with precision RF coaxial adapters that support N-type, SMA, and 2.92 mm connector standards. This lets you quickly set up your system without affecting the signal quality. If you need customized frequency coverage for 5G base station front-ends, ruggedized 2.92 mm modules that meet MIL-STD-810 for avionics, or laboratory-grade linearity for characterizing components, our technical team can help. They can do this by giving you application-specific advice based on a lot of test data and quick after-sales support. Get in touch with our experts at sales@huasenmicrowave.com to talk about your project needs with a reliable power amplifier supplier that will provide ruggedized performance, dependability, and value throughout the lifecycle of your product. To characterize detailed specifications, sample evaluation units, or quotes that are specifically made for your needs.
