Waveguide Loop Coupler
Advantages and features:
Bandwidth: ≤ 20%
VSWR: Main line ≤ 1.1, Sub-line ≤ 1.25
Coupling: Options of 20/25/30/35/40/45/50/60dB
Directionality: ≥ 15dB
Compatible waveguides: BJ9-BJ140
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Waveguide Loop Coupler Manufacturer
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of high-quality Waveguide Loop Coupler. With over 30 years of experience in the RF and microwave industry, we've perfected our product design to meet the demanding needs of global distributors and technical wholesalers. Our compact, efficient, and reliable couplers are the go-to choice for emerging markets in Asia, Africa, and South America.

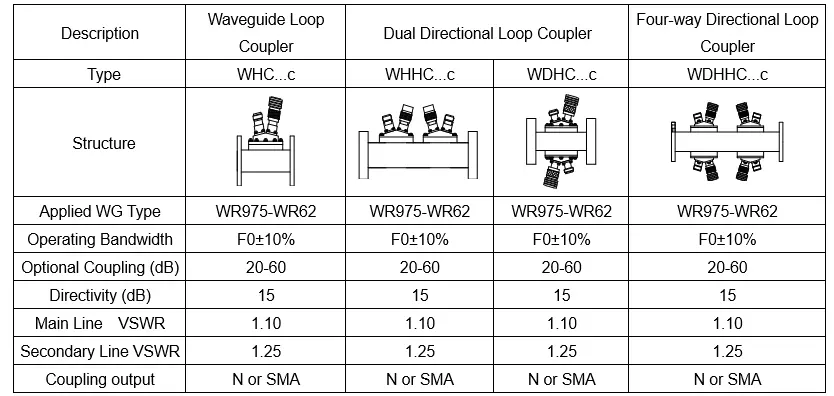

Product Type
Why Choose Our Waveguide Loop Coupler?
Our product stand out for their exceptional performance and versatility:
- High coupling efficiency (over 90%)
- Bi-directional operation with interchangeable ports
- Customizable coupling values (20-60 dB)
- Compact design for easy system integration
- Excellent sealing for harsh environments
- Corrosion-resistant materials (anodized aluminum or silver-plated copper)
We understand the unique challenges faced by our global partners. That's why we offer customizable solutions to meet your specific regional requirements, whether it's enhanced durability for African markets or cost-optimized designs for Asian rollouts.
WHC...c Series Standard Product Data Sheets
|
Part No |
WG Type EIA |
Freq Range (GHz) |
Operating Bandwidth |
Optional Coupling (dB) |
Directivity (dB) |
Main Line VSWR |
Secondary Line VSWR |
Flange |
Coupling Output Connector |
Length (mm) |
Material |
|
HS9WHC...N |
WR975 |
0.75-1.15 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
300 |
Aluminum |
|
HS12WHC...N |
WR770 |
0.96-1.46 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
200 |
Aluminum |
|
HS14WHC...N |
WR650 |
1.13-1.73 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
220 |
Aluminum |
|
HS18WHC...N |
WR510 |
1.45-2.20 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
210 |
Aluminum |
|
HS22WHC...N |
WR430 |
1.72-2.61 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
160 |
Aluminum |
|
HS26WHC...N |
WR340 |
2.17-3.30 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
160 |
Aluminum |
|
HS32WHC...N |
WR284 |
2.60-3.95 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
150 |
Aluminum |
|
HS40WHC...N |
WR229 |
3.22-4.90 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
130 |
Aluminum |
|
HS48WHC...N |
WR187 |
3.94-5.99 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
130 |
Aluminum |
|
HS58WHC...N |
WR159 |
4.64-7.05 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
130 |
Aluminum |
|
HS70WHC...N |
WR137 |
5.38-8.17 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FDP |
N-F |
130 |
Aluminum |
|
HS84WHC...N |
WR112 |
6.57-9.99 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FBP |
N-F |
130 |
Copper |
|
HS100WHC...N |
WR90 |
8.2-12.4 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FBP |
N-F |
100 |
Copper |
|
HS120WHC...N |
WR75 |
9.84-15 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FBP |
N-F |
90 |
Copper |
|
HS140WHC...N |
WR62 |
11.9-18 |
≤20% |
20-60 |
≥15 |
≤1.1 |
≤1.25 |
FBP |
N-F |
90 |
Copper |
Product Features & Process
Our products are engineered for excellence:
- Precision CNC machining for tight tolerances
- Advanced surface treatment for enhanced durability
- Rigorous testing at each production stage
- Customizable designs to meet unique project requirements
Applications
Huasen's products are ideal for:
- Telecommunications infrastructure
- Radar systems
- Aerospace communications
- Defense applications
- Test and measurement equipment
Installation & Compatibility
Our couplers are designed for easy integration:
- Standard flange configurations for quick installation
- Compatible with major waveguide systems
- Detailed installation guides in multiple languages
- Technical support for seamless integration
Quality Control & After-Sales
We're committed to your satisfaction:
- ISO 9001 certified manufacturing process
- RoHS and REACH compliant products
- 1-year warranty on Waveguide Loop Coupler
- Comprehensive after-sales support
Packaging and Shipping
Your products arrive safe and ready:
- Custom foam inserts for protection
- Vacuum-sealed packaging for moisture resistance
- Bulk packaging options for large orders
- Flexible shipping methods to meet your timeline
FAQ
Q: What's the maximum power handling of your products?
A: Our couplers can handle up to 500W CW, depending on the specific model and frequency range.
Q: Are your couplers suitable for outdoor installations?
A: Yes, our couplers feature excellent sealing and are designed to withstand harsh outdoor environments.
Q: Can you provide custom coupling values?
A: Absolutely! We can customize coupling values to meet your specific requirements.
Q: What's the typical lead time for custom orders?
A: Lead times vary based on specifications, but we strive to meet your project timelines.
Q: Do you offer technical support for installation and troubleshooting?
A: Yes, we provide comprehensive technical support, including on-site training if required.
