Crossguide Coupler
Advantages and features:
- Covers 20% of the waveguide bandwidth.
- Adjustable range: 20-60dB, frequency response accuracy: ±0.5~±1.0dB.
- Directionality of 15-20dB.
- High power tolerance, suitable for high-power microwave systems.
- Compact design, small footprint, high mechanical strength, and strong anti-interference capability.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave's Precision Crossguide Coupler: Advancing Microwave Technology
Huasen Microwave Technology Co., Ltd., a leading manufacturer of high-frequency microwave components, proudly presents our cutting-edge Crossguide Coupler. With over three decades of expertise, we deliver unparalleled performance in signal coupling and power distribution. Our product stands out for its exceptional precision, customizable options, and reliability in demanding research environments.

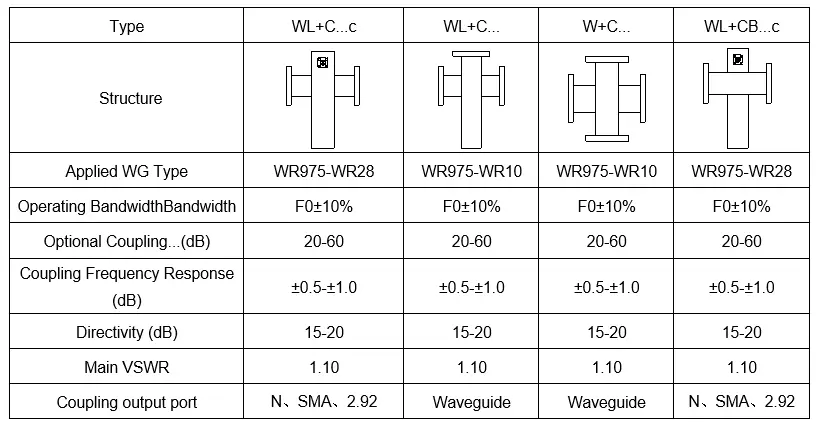

Product Type
Why Choose Our Crossguide Coupler?
Our product is the go-to solution for research institutions and laboratories pushing the boundaries of microwave engineering. Here's why:
- Unmatched Precision: Achieve coupling accuracy of ±0.5 to ±1.0 dB across a wide 20% bandwidth.
- Customizable Performance: Adjustable coupling ranges from 20-60 dB to suit your specific needs.
- Superior Isolation: 15-20 dB directionality effectively minimizes signal interference.
- Robust Design: Compact, space-efficient structure with high mechanical strength for stable operation in complex environments.
- Versatile Applications: Ideal for radar systems, communication equipment, and advanced physics research.
WL+C...c Series Standard Product Data Sheets
|
Part No |
WG Type EIA |
Freq Range (GHz) |
Operating Bandwidth |
Main Line VSWR |
Secondary Line VSWR |
Optional Coupling …(dB) |
Directivity (dB) |
Flange |
Coupling output Connector |
Dimensions (mm) LXL1XL2 |
Material |
|
HS12WL+C...N |
WR770 |
0.96-1.46 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
400x760x250 |
Aluminum |
|
HS14WL+C...N |
WR650 |
1.13-1.73 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
320x460x160 |
Aluminum |
|
HS18WL+C...N |
WR510 |
1.45-2.20 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
285x510x180 |
Aluminum |
|
HS22WL+C...N |
WR430 |
1.72-2.61 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
240x390x140 |
Aluminum |
|
HS26WL+C...N |
WR340 |
2.17-3.30 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
190x280x110 |
Aluminum |
|
HS32WL+C...N |
WR284 |
2.60-3.95 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
180x275x88 |
Aluminum |
|
HS40WL+C...N |
WR229 |
3.22-4.90 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
170x240x90 |
Aluminum |
|
HS48WL+C...N |
WR187 |
3.94-5.99 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
137x200x83 |
Aluminum |
|
HS58WL+C...N |
WR159 |
4.64-7.05 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
120x170x65 |
Aluminum |
|
HS70WL+C...N |
WR137 |
5.38-8.17 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FDP |
N-F |
90x150x60 |
Aluminum |
|
HS84WL+C...N |
WR112 |
6.57-9.99 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FBP |
N-F |
82x120x50 |
Copper |
|
HS100WL+C...N |
WR90 |
8.2-12.40 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FBP |
N-F |
70x85x40 |
Copper |
|
HS120WL+C...N |
WR75 |
9.84-15.0 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FBP |
N-F |
60x83x35 |
Copper |
|
HS140WL+C...S |
WR62 |
11.9-18.0 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FBP |
SMA-F |
60x65x30 |
Copper |
|
HS180WL+C...S |
WR51 |
14.5-22.0 |
≤20% |
≤1.1 |
≤1.25 |
20-60 |
≥15 |
FBP |
SMA-F |
60x70x30 |
Copper |
|
HS220WL+C...K |
WR42 |
17.6-26.7 |
≤20% |
≤1.1 |
≤1.5 |
20-60 |
≥15 |
FBP |
2.92-F |
65x54x30 |
Copper |
|
HS260WL+C...K |
WR34 |
21.7-33.0 |
≤20% |
≤1.1 |
≤1.5 |
20-60 |
≥15 |
FBP |
2.92-F |
60x50x25 |
Copper |
|
HS320WL+C...K |
WR28 |
26.5-40.0 |
≤20% |
≤1.1 |
≤1.5 |
20-60 |
≥15 |
FBP |
2.92-F |
42x50x20 |
Copper |
Product Features & Process
Our product is meticulously crafted using advanced manufacturing techniques:
- Precision CNC machining for tight tolerances
- High-quality copper and aluminum construction for optimal performance
- Rigorous testing at each production stage ensures consistency
- Customizable interfaces for seamless integration into your setup
Applications
The versatility of our Crossguide Coupler makes it ideal for:
- Advanced physics research
- Radio astronomy projects
- Radar system development
- 5G and beyond communication testbeds
- Aerospace and defense applications
Installation & Compatibility
Our product is designed for hassle-free integration:
- Standard waveguide flanges for easy connection
- Compatible with industry-standard test equipment
- Detailed installation guide and technical support provided
Quality Control & After-Sales
We stand behind our products with:
- Rigorous quality checks at every production stage
- ISO9001, RoHS, and REACH certifications
- Comprehensive 1-year warranty
- Dedicated technical support team
Packaging and Shipping
Your product will arrive safely:
- Custom-fitted foam inserts protect during transit
- Robust outer packaging withstands shipping rigors
- Traceable shipping options available
FAQ
Q: Can the coupling ratio be adjusted after installation?
A: Our design allows for fine-tuning within a specific range. Contact us for details.
Q: Is the product suitable for cryogenic applications?
A: We offer specialized cryogenic versions. Please inquire about our Cryogenic Series.
Q: What's the typical lead time for custom designs?
A: Lead times vary based on specifications. We prioritize rapid prototyping for research needs.
Q: Are calibration certificates provided?
A: Yes, we provide calibration data traceable to national standards upon request.
Q: Can the product handle pulsed high-power applications?
A: Absolutely. Our High-Power Series is designed for such demanding scenarios.
