Manual Waveguide Switch

Structure: E-plane (WES) and H-plane (WHS), supporting rectangular waveguide and dual-ridge waveguide types.
Multi-channel configuration: SPDT, DPDT, Three-channel six-port.
Isolation: ≥70dB
Insertion Loss: Low-frequency range ≤0.1dB, high-frequency range ≤0.5dB
Frequency range: 1.72GHz to 112GHz
Advantages: Simple operation, high cost-performance ratio, strong anti-electromagnetic interference capability.

Send Inquiry

Download

Free Samples
Quality Assurance
24/7 Customer Service

Product Introduction

Huasen Microwave: Your Trusted Manual Waveguide Switch Manufacturer

As a leading manufacturer of Manual Waveguide Switch, Huasen Microwave Technology Co., Ltd. brings over three decades of expertise to the RF and microwave industry. Our switches offer unparalleled reliability, precision, and performance for demanding applications in telecommunications, radar, aerospace, and defense sectors.

Manual Waveguide Switch-1

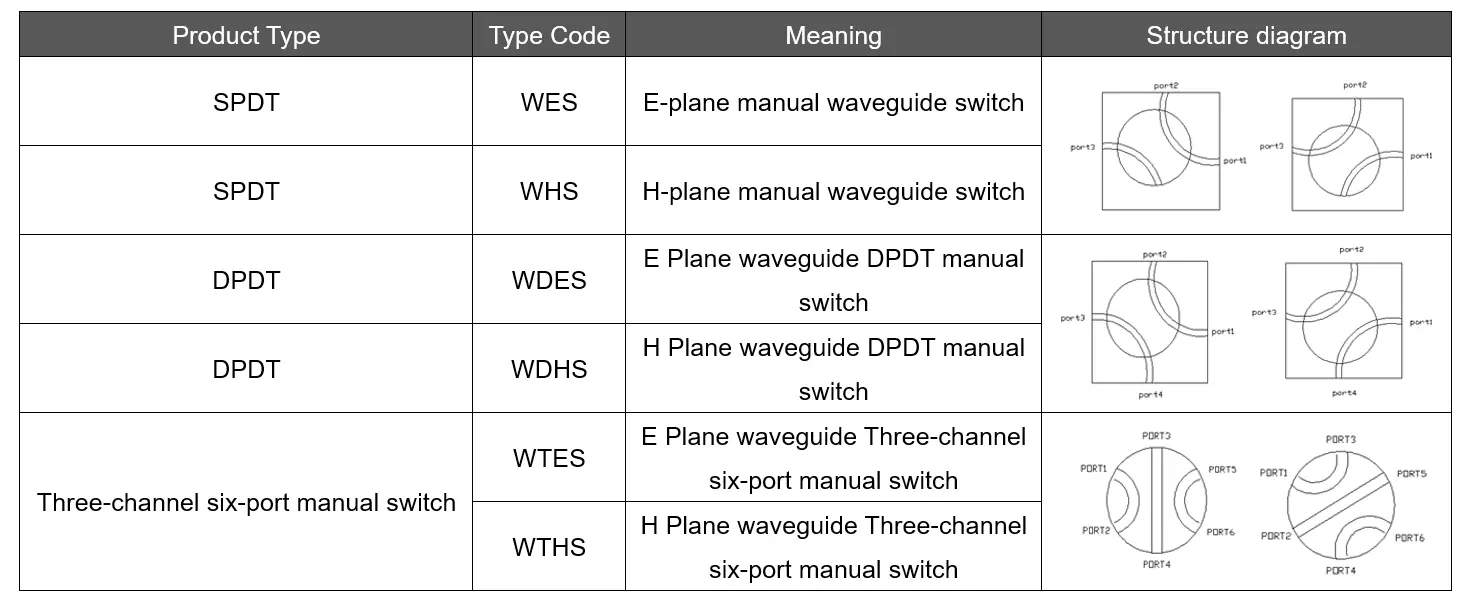

Product Type

Manual Waveguide Switch-2

Why Choose Our Manual Waveguide Switches?

Huasen's products are engineered for excellence, offering:

Exceptional Performance: Wide frequency range (2.60 GHz to 112 GHz) with minimal insertion loss and high isolation.
Durability: Designed for harsh environments, withstanding extreme temperatures and vibrations.
Versatility: Available in E-plane (WES) and H-plane (WHS) configurations for rectangular and double-ridge waveguides.
Customization: Tailored solutions to meet your specific requirements, including flange types and compact designs.
Cost-Effective: High-quality components with an excellent price-performance ratio.

SPDT Standard Product Data Sheets

Part No	WG Type EIA	Freq Range (GHz)	VSWR	Insertion Loss(dB)	Isolation (dB)	Flange	Material
HS32WES	WR284	2.60-3.95	≤1.1	≤0.1	≥70	FDP	Aluminum
HS32WHS	WR284	2.60-3.95	≤1.1	≤0.1	≥70	FDP	Aluminum
HS40WES	WR229	3.22-4.90	≤1.1	≤0.1	≥70	FDP	Aluminum
HS40WHS	WR229	3.22-4.90	≤1.1	≤0.1	≥70	FDP	Aluminum
HS48WES	WR187	3.94-5.99	≤1.1	≤0.1	≥70	FDP	Aluminum
HS48WHS	WR187	3.94-5.99	≤1.1	≤0.1	≥70	FDP	Aluminum
HS58WES	WR159	4.64-7.05	≤1.1	≤0.1	≥70	FDP	Aluminum
HS58WHS	WR159	4.64-7.05	≤1.1	≤0.1	≥70	FDP	Aluminum
HS70WES	WR137	5.38-8.17	≤1.1	≤0.1	≥70	FDP	Copper
HS70WHS	WR137	5.38-8.17	≤1.1	≤0.1	≥70	FDP	Copper
HS84WES	WR112	6.57-9.99	≤1.1	≤0.1	≥70	FBP	Copper
HS84WHS	WR112	6.57-9.99	≤1.1	≤0.1	≥70	FBP	Copper
HS100WES	WR90	8.20-12.4	≤1.1	≤0.1	≥70	FBP	Copper
HS100WHS	WR90	8.20-12.4	≤1.1	≤0.1	≥70	FBP	Copper
HS120WES	WR75	9.84-15.0	≤1.1	≤0.1	≥70	FBP	Copper
HS120WHS	WR75	9.84-15.0	≤1.1	≤0.1	≥70	FBP	Copper
HS140WES	WR62	11.9-18.0	≤1.15	≤0.15	≥70	FBP	Copper
HS140WHS	WR62	11.9-18.0	≤1.15	≤0.15	≥70	FBP	Copper
HS180WES	WR51	14.5-22.0	≤1.15	≤0.15	≥70	FBP	Copper
HS180WHS	WR51	14.5-22.0	≤1.15	≤0.15	≥70	FBP	Copper
HS220WES	WR42	17.6-26.7	≤1.15	≤0.15	≥70	FBP	Copper
HS220WHS	WR42	17.6-26.7	≤1.15	≤0.15	≥70	FBP	Copper
HS260WES	WR34	21.7-33.0	≤1.15	≤0.15	≥70	FBP	Copper
HS260WHS	WR34	21.7-33.0	≤1.15	≤0.15	≥70	FBP	Copper
HS320WES	WR28	26.5-40.0	≤1.15	≤0.15	≥70	FBP	Copper
HS320WHS	WR28	26.5-40.0	≤1.15	≤0.15	≥70	FBP	Copper
HS400WES	WR22	32.9-50.1	≤1.15	≤0.3	≥60	FUGP	Copper
HS400WHS	WR22	32.9-50.1	≤1.15	≤0.3	≥60	FUGP	Copper
HS500WES	WR19	39.2-59.6	≤1.2	≤0.5	≥60	FUGP	Copper
HS500WHS	WR19	39.2-59.6	≤1.2	≤0.5	≥60	FUGP	Copper
HS620WES	WR15	49.8-75.8	≤1.2	≤0.5	≥60	FUGP	Copper
HS620WHS	WR15	49.8-75.8	≤1.2	≤0.5	≥60	FUGP	Copper
HS740WES	WR12	60.5-91.9	≤1.2	≤0.5	≥60	FUGP	Copper
HS740WHS	WR12	60.5-91.9	≤1.2	≤0.5	≥60	FUGP	Copper
HS900WES	WR10	73.8-112	≤1.2	≤0.5	≥60	FUGP	Copper
HS900WHS	WR10	73.8-112	≤1.2	≤1	≥60	FUGP	Copper

Product Features & Process

Our Manual Waveguide Switch is meticulously crafted using:

Precision CNC machining for tight tolerances
High-grade materials (stainless steel, aluminum) for corrosion resistance
Advanced plating techniques for enhanced conductivity
Rigorous testing at each production stage

Applications

Huasen's switches excel in various RF and microwave applications:

Satellite communication systems
Radar installations
Electronic warfare equipment
Test and measurement setups
Aerospace communication platforms

Installation & Compatibility

Our switches are designed for seamless integration:

Compatible with standard waveguide flanges
Easy-to-follow installation guides provided
Optional custom mounting solutions available
Technical support for system integration

Quality Control & After-Sales

We ensure top-notch quality and support:

ISO9001, RoHS, and REACH certified
100% factory testing before shipment
1-year warranty on all products
Responsive after-sales support

Packaging and Shipping

Your products are protected during transit:

Custom foam-lined boxes for each switch
Moisture-barrier packaging for long-term storage
Shock indicators for quality assurance
Global shipping with tracking

FAQ

Q: What's the difference between E-plane and H-plane switches?
A: E-plane switches control signal flow in the electric field plane, while H-plane switches operate in the magnetic field plane.

Q: Can your switches handle high-power applications?
A: Yes, we offer high-power variants designed for applications up to several kilowatts.

Q: Are your switches suitable for space applications?
A: Absolutely. We provide space-grade switches that meet stringent outgassing and radiation requirements.

Q: Do you offer waveguide switch drivers?
A: While our focus is on manual switches, we can recommend compatible motorized drivers for automated operations.

Q: How many actuation cycles can your product endure?
A: Our switches are tested to exceed 10,000 reliable actuation cycles.

Contact Us

Ready to elevate your RF system with our premium Manual Waveguide Switch? Reach out to our expert team at sales@huasenmicrowave.com for personalized solutions and quotes.
