Electric Waveguide Switch
Multi-channel configuration: SPDT, DPDT, three-channel six-port.
High ISO: ISO(Typ) ≥ 70dB
Switching time: ≤ 300ms (ferrite switches can achieve ≤ 2μs).
Control method: Dual power supply.
Low loss: IL≤ 0.1dB, high-frequency ≤ 0.5dB.
Frequency coverage: 1.72GHz to 112GHz.
Materials options: Aluminum (oxidized) or copper (silver-plated/gold-plated).
Delivery time: In stock
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Electric Waveguide Switch: High-Performance Solutions for Industrial Automation
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Electric Waveguide Switch. With over two decades of expertise, we offer cutting-edge solutions that combine precision, durability, and versatility. Our products are designed to meet the demanding needs of industrial automation, telecommunications, and defense industries.

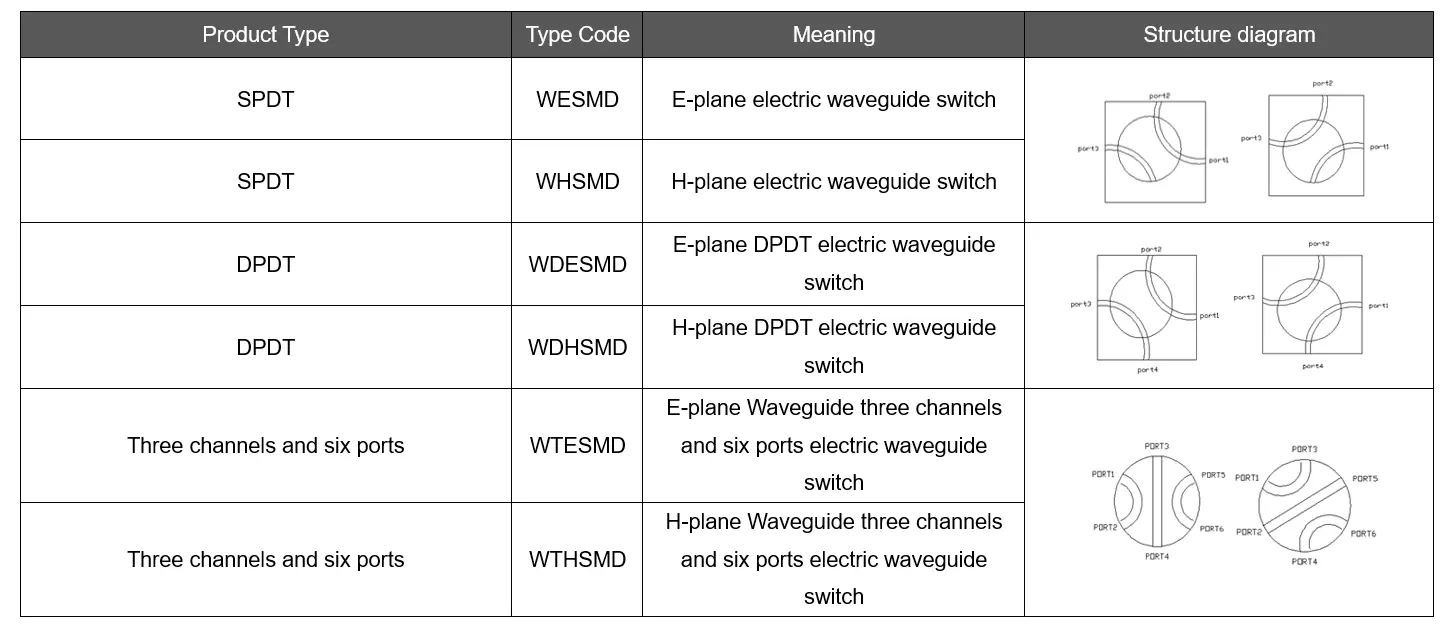

Product Type
Why Choose Our Electric Waveguide Switch?
At Huasen Microwave, we understand the unique challenges faced by industrial automation integrators. Our products are engineered to deliver:
- Exceptional reliability in high-temperature and high-power environments
- Seamless integration with Industry 4.0 protocols
- Extended operational lifespan, reducing maintenance costs
- Scalability for large sensor networks and distributed systems
We offer customizable solutions to meet your specific project requirements, ensuring optimal performance and compatibility.
DPDT Electric Waveguide Switch Standard Product Data Sheets
|
Part No |
WG Type EIA |
Freq Range (GHz) |
VSWR |
Insertion Loss (dB) |
Isolation (dB) |
Switch Time (ms) |
Flange |
Material |
|
HS22WDESMD |
WR430 |
1.72-2.61 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS32WDESMD |
WR284 |
2.60-3.95 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS32WDHSMD |
WR284 |
2.60-3.95 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS40WDESMD |
WR229 |
3.22-4.90 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS40WDHSMD |
WR229 |
3.22-4.90 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS48WDESMD |
WR187 |
3.94-5.99 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS48WDHSMD |
WR187 |
3.94-5.99 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS58WDESMD |
WR159 |
4.64-7.05 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS58WDHSMD |
WR159 |
4.64-7.05 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Aluminum |
|
HS70WDESMD |
WR137 |
5.38-8.17 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Copper |
|
HS70WDHSMD |
WR137 |
5.38-8.17 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FDP |
Copper |
|
HS84WDESMD |
WR112 |
6.57-9.99 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FBP |
Copper |
|
HS84WDHSMD |
WR112 |
6.57-9.99 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FBP |
Copper |
|
HS100WDESMD |
WR90 |
8.20-12.4 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FBP |
Copper |
|
HS100WDHSMD |
WR90 |
8.20-12.4 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FBP |
Copper |
|
HS120WDESMD |
WR75 |
9.84-15.0 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FBP |
Copper |
|
HS120WDHSMD |
WR75 |
9.84-15.0 |
≤1.1 |
≤0.1 |
≥70 |
≤300 |
FBP |
Copper |
|
HS140WDESMD |
WR62 |
11.9-18.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS140WDHSMD |
WR62 |
11.9-18.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS180WDESMD |
WR51 |
14.5-22.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS180WDHSMD |
WR51 |
14.5-22.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS220WDESMD |
WR42 |
17.6-26.7 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS220WDHSMD |
WR42 |
17.6-26.7 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS260WDESMD |
WR34 |
21.7-33.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS260WDHSMD |
WR34 |
21.7-33.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS320WDESMD |
WR28 |
26.5-40.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS320WDHSMD |
WR28 |
26.5-40.0 |
≤1.15 |
≤0.15 |
≥70 |
≤300 |
FBP |
Copper |
|
HS400WDESMD |
WR22 |
32.9-50.1 |
≤1.15 |
≤0.3 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS400WDHSMD |
WR22 |
32.9-50.1 |
≤1.15 |
≤0.3 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS500WDESMD |
WR19 |
39.2-59.6 |
≤1.2 |
≤0.5 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS500WDHSMD |
WR19 |
39.2-59.6 |
≤1.2 |
≤0.5 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS620WDESMD |
WR15 |
49.8-75.8 |
≤1.2 |
≤0.5 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS620WDHSMD |
WR15 |
49.8-75.8 |
≤1.2 |
≤0.5 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS740WDESMD |
WR12 |
60.5-91.9 |
≤1.2 |
≤0.8 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS740WDHSMD |
WR12 |
60.5-91.9 |
≤1.2 |
≤0.8 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS900WDESMD |
WR10 |
73.8-112 |
≤1.2 |
≤1 |
≥60 |
≤300 |
FUGP |
Copper |
|
HS900WDHSMD |
WR10 |
73.8-112 |
≤1.2 |
≤1 |
≥60 |
≤300 |
FUGP |
