Inflatable Straight Waveguide for Temporary Links

The choice of RF transmission infrastructure determines the success of a mission when setting up temporary communication links for satellite operations, defense installations, or emergency response situations. Inflatable straight waveguide systems are a big step forward in deployable electromagnetic technology. They give procurement teams a way to save weight, install quickly, and keep the signal strong. These special parts keep the shape of the waveguide by controlling the air pressure inside. They're easier to ship than traditional rigid metal structures and give the same RF performance. There has been a lot of adoption in tactical communication setups where deployment time has a direct effect on operational readiness.

Understanding Inflatable Straight Waveguides

What Makes Inflatable Waveguides Different？

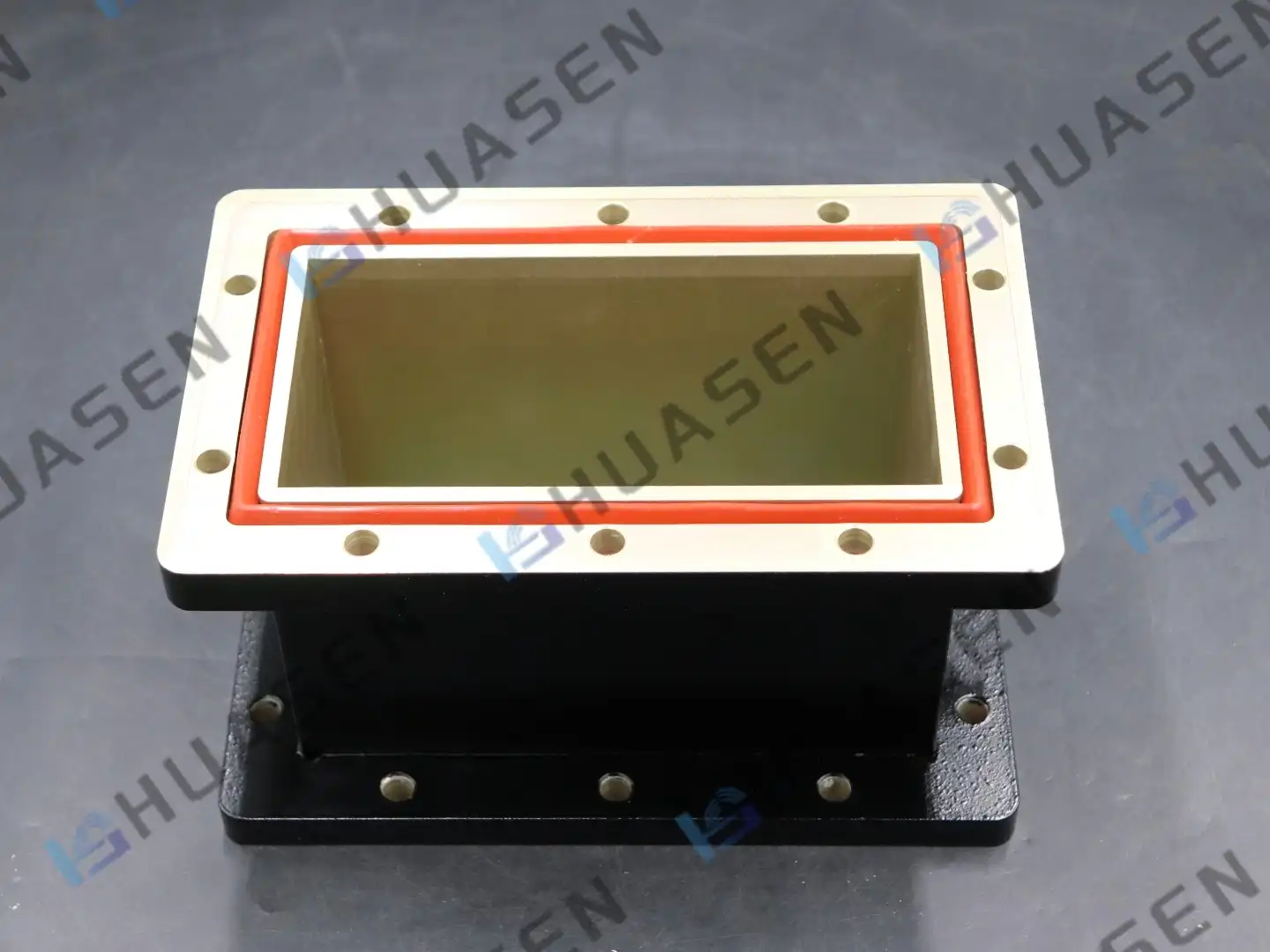

Inflatable waveguide systems don't use solid copper or aluminum construction. Instead, they use metallized flexible laminates that are reinforced with advanced polymers. This method is used by Huasen Microwave's QWAL series, which has air nozzles built right into the waveguide walls to keep the structure strong in high-pressure situations. This design actively stops moisture and dust from getting in, which is very important in field deployments where sealing against the environment determines how long equipment lasts.

The main idea behind how it works is to keep the cross-sectional geometry exact by controlling inflation. Since the air pressure inside the cavity keeps it stable, electromagnetic waves can travel through it with little distortion in frequency bands from the L-band to the Ku-band. This inflatable straight waveguide technology solves what engineers in the field call the "logistical-electromagnetic paradox"—the trade-off that has always been there between fast RF transmission and portable infrastructure. In traditional waveguide installations, heavy lifting equipment and permanent mounting structures are needed. Inflatable versions, on the other hand, can be rolled up into small transport cases that weigh up to 90% less than rigid versions.

Core Performance Characteristics

The Voltage Standing Wave Ratio (VSWR) is still the most important way to measure how well a transmission works. An Inflatable Straight Waveguide from Huasen Microwave has VSWR values of 1.05 or better across most frequency bands, and high-frequency models keep them at 1.1 or lower. These numbers directly relate to insertion loss performance; a 0.05 improvement in VSWR lowers signal degradation over longer transmission paths. These specifications depend on the material choice. For example, aluminum options have oxidized surfaces that protect against corrosion, and copper options have silver-plated finishes that improve conductivity.

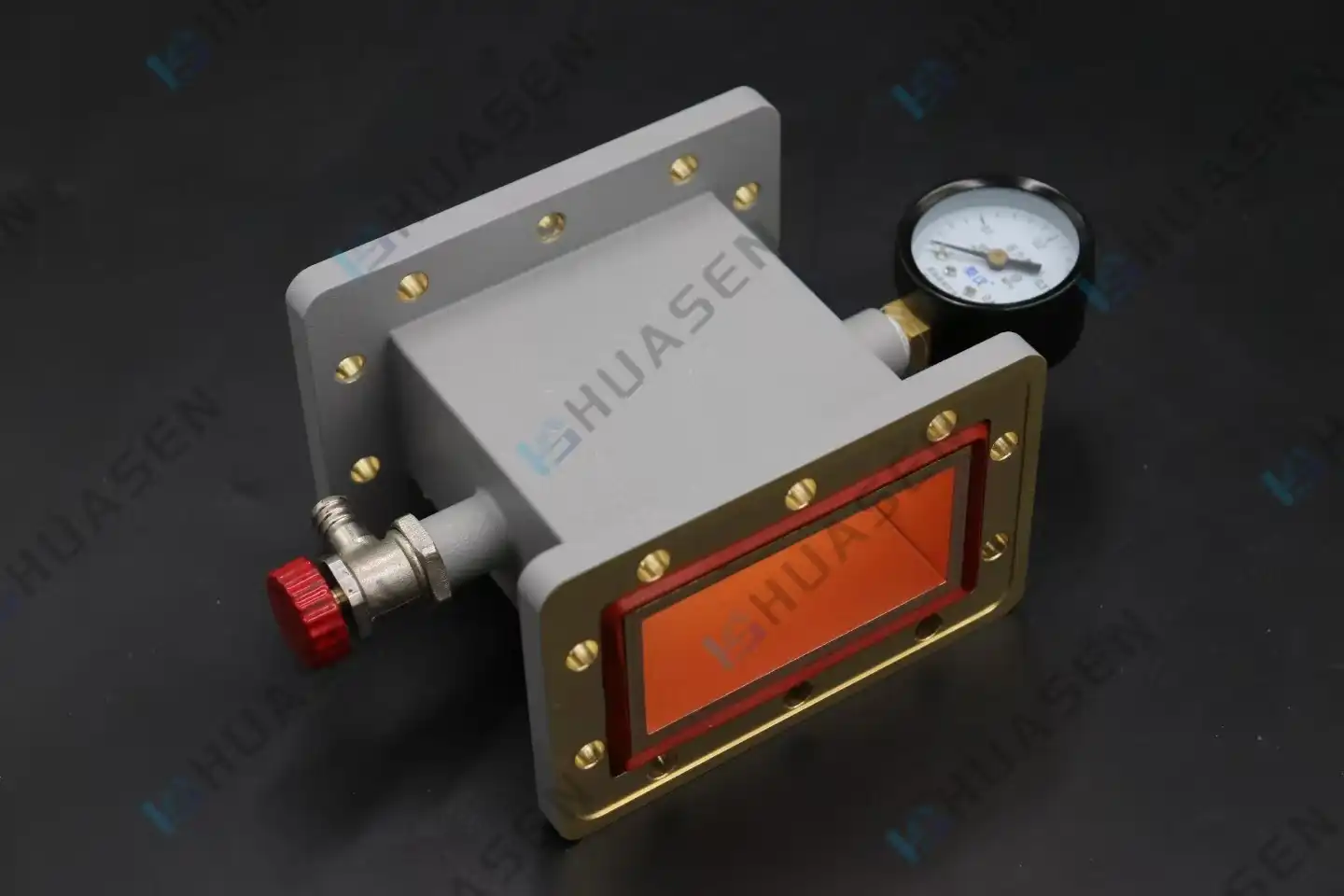

You can choose the material and even where the air nozzle goes, which lets it work with a variety of inflation systems and mounting styles. This adaptability is very important for waveguide installations that need to be changed to fit existing infrastructure or specific environmental protection needs. Engineers can choose where to put the nozzles so that they don't interfere with mechanical supports or so that they work with the standard pressure distribution systems that are common in military-grade deployable shelters.

Comparing Inflatable Solutions with Traditional RF Infrastructure

Performance Against Rigid Metal Waveguides

Direct comparisons show that inflatable straight waveguide structures that are properly inflated have insertion loss values that are within 0.3 dB of rigid copper waveguides of the same size and operating bandwidth. When connection losses are taken into account, the difference gets even smaller. In traditional installations, extra loss builds up at every bolted flange junction, but inflatable systems usually deploy in long, uninterrupted sections with fewer breaks. Maintenance needs change a lot for inflatable units because they only need to have their pressure checked every so often, while outdoor metal installations need to have their surfaces treated and inspected for corrosion.

During installation cycles, the benefits of handling become clear. Positioning a 10-meter rigid WR-137 waveguide section requires special lifting equipment and several people. An equivalent inflatable assembly, on the other hand, can be set up in less than twenty minutes by two-person crews using a single carry case. In disaster response situations, where every hour of communication downtime means that relief operations can't work together, this time compression is very important.

Advantages Over Flexible Cables and Coaxial Alternatives

Coaxial cable assemblies are flexible, but they can't handle as much power and have more loss per meter at microwave frequencies. The Inflatable Straight Waveguide keeps the low-loss features of traditional waveguide technology while being just as easy to set up as cable solutions. Cost analyses over three-year operational cycles show that inflatable waveguides lower total ownership costs by 40–60% compared to coaxial alternatives in temporary link applications. This is mostly because they last longer and need to be replaced less often.

Testing for weather resistance shows that metallized laminate construction can handle UV light, temperature changes from -40°C to +70°C, and sustained wind loads of more than 100 km/h when it is properly anchored. These environmental tolerances go beyond what is normally required for coaxial cables. This is especially true when it comes to long-term UV degradation, which means that cables in exposed installations need to be replaced more often. When it comes to storage, inflatable designs are also better because compact rolled configurations take up a tenth of the warehouse space of rigid waveguide inventory. This directly cuts down on logistics costs for organizations that keep emergency response stockpiles.

Technical Specifications and Design Considerations

Material Engineering and Construction Methods

Each Inflatable Straight Waveguide from Huasen Microwave is made of polyurethane-coated fabrics that are reinforced with high-tensile nylon threads. This makes a laminate structure that is flexible when it's being used but stable when it's under pressure. The metallization layer, which is usually vacuum-deposited aluminum or copper, gives the electromagnetic waves a way to travel while still being flexible enough to go through multiple inflation cycles without cracking or delaminating.

Both mechanical durability and electrical performance are directly affected by the thickness of a material. In rough environments, thicker laminates are less likely to get punctured, but they take up more space when folded and weigh more. Engineers find the best balance based on the type of use—for example, military field deployments value longer durability, while aerospace uses value lightweight. Surface treatments, such as oxidation for some types of aluminum, protect against galvanic corrosion in coastal or marine environments where the salty air speeds up the breakdown of materials.

Frequency Band Coverage and Dimensional Options

Waveguide sizes are based on standard names that correspond to frequency ranges used in operations. Different types of WR-137 cover frequencies between 5.85 and 8.20 GHz, which are often used for C-band satellite uplinks. WR-90 types, on the other hand, can handle X-band radar feeds that work between 8.20 and 12.40 GHz. Huasen Microwave makes the Inflatable Waveguide, including the Inflatable Straight Waveguide, in these standard sizes. They also offer custom cross-sections for unique frequency allocations or special uses that need impedance matching that isn't standard.

The high-frequency performance limits are set by the quality of the internal surface finish. Silver-plated copper surfaces have enough skin depth conductivity for Ka-band applications that get close to 40 GHz, but as the frequency goes up, surface roughness issues become more important. Manufacturers say the roughest part of the surface can be measured in microinches RMS. Values below 32 microinches are fine for most commercial satellite communication needs, while military-grade requirements say the surface must be 16 microinches or smoother for best millimeter-wave performance.

Customization Capabilities for OEM Integration

The customization options offered by Huasen Microwave are useful for procurement teams working on large-scale deployments or OEM integration projects. Engineers can choose where to put the air nozzle so that it works with existing pressure management systems. They can also choose connector flanges that meet standard interfaces (UG-style, CPR-style, or proprietary patterns), and they can ask for custom inflatable straight waveguide lengths that get rid of the need for field splicing. These changes make installation easier while still making sure that it works with existing system architectures.

Different industries have different certification needs. For example, RoHS compliance and ISO quality management verification are needed for telecommunications infrastructure, while MIL-STD environmental testing and NATO supply chain qualification are needed for defense applications. Maintaining certifications across these regulatory frameworks is something that Huasen Microwave does. This provides proof that speeds up the approval process for purchases and meets the needs of quality-conscious organizations that need to do audits. The testing data packages include VSWR measurements across the operational bandwidth, confirmation of power handling to certain peak levels, and results from environmental stress screening that show how well the device works in extremes of temperature, vibration, and humidity.

Real-World Applications and Deployment Scenarios

Tactical Military Communications

In defense operations, line-of-sight microwave backhaul links are set up between forward operating bases and main communication hubs using the inflatable straight waveguide. Signal battalions can set up communication infrastructure again within hours of arriving at new locations, whereas it would normally take days for traditional waveguide installation. Because it is so light, complete communication packages can be flown by helicopter to remote mountain installations that can't be reached by ground vehicles.

Some military benefits include lower radar cross-section compared to metal waveguide towers, easier concealment thanks to collapsible designs, and compatibility with expeditionary shelter systems that have built-in pressure management. These waveguides are used by mobile command posts to connect external antennas to internal equipment while keeping the electromagnetic shielding intact. The air nozzle design lets the pressure inside the shelter equalize with the pressure inside the waveguide cavity without compromising RF containment.

Emergency Disaster Response Networks

Ground-based communication infrastructure is destroyed by hurricanes, earthquakes, and floods, which creates an urgent need for temporary satellite uplink capacity. The Inflatable Waveguide is used by relief groups to connect portable satellite terminals to antennas that are higher up. This sets up voice and data links within the first 48 hours, which are very important because working together saves lives. The systems are especially useful when the ground conditions don't allow for the installation of support towers. Inflatable structures can be attached to rubble piles or damaged buildings with very little mounting hardware.

Recently, during operations to recover from typhoons in the Pacific islands, full 15-meter waveguide runs connecting ground equipment to antennas on roofs were set up in less than 30 minutes. This quick response directly made it possible for international relief teams to work together on things like medical evacuation plans and the logistics of distributing supplies during the very important first phase of the response, when communication networks on land were down.

Commercial Broadcast and Event Coverage

Inflatable straight waveguide solutions are used to connect camera positions to production facilities for sporting events, political conventions, and entertainment productions that need temporary broadcast infrastructure. Having the flexibility to set up and take down whole RF paths within setup windows that last only one day lowers event costs while maintaining broadcast quality standards. Networks don't have to deal with the delays and structural engineering needs that come with installing permanent towers. This is especially helpful for venues that host a lot of short-term events throughout the year.

Broadcasters like that they can make changes that make waveguide specifications work with their existing transmission equipment. Matching connector types, optimizing lengths to avoid mid-run splices, and offering material options suitable for different climate conditions by Huasen Microwave makes equipment integration easier and reduces the need for field troubleshooting during live production windows, when technical failures can cost a lot of money.

Strategic Procurement Considerations for B2B Buyers

Supplier Evaluation and Quality Verification

The first step in a successful procurement process is to evaluate the manufacturer by looking at their production capacity, quality management systems, and technical support infrastructure. Since 1993, Huasen Microwave has been making microwave components. Their institutional experience makes sure that the quality of their inflatable straight waveguide is consistent across production runs, which is very important when buying parts that need to work the same way in all installations.

Quality assurance should include the right to inspect the factory, validation testing by a third party, and sample evaluation programs. Before committing to large orders, procurement teams should ask for pre-production samples that are tested for RF interference by qualified laboratories. This way, they can be sure that the samples meet the manufacturer's requirements. Established suppliers provide calibration data that can be tracked back to national standards. This shows that the measurements are accurate, which backs up claims of performance guarantees.

Cost Optimization and Volume Pricing Structures

When negotiating prices for inflatable straight waveguide units, the total lifecycle costs should be taken into account, not just the price of each unit. When order quantities go over the manufacturer's break-even points for custom tooling and material procurement, volume commitments usually unlock tiered pricing structures that lower per-unit costs by 15–30%. But buyers have to weigh volume discounts against the costs of keeping inventory and the risk of items becoming obsolete. This is especially important for communication standards that change quickly and where equipment lifecycles last between 5 and 7 years.

When inflatable waveguides are important parts of larger system deployments, it's important to coordinate delivery schedules. While Huasen Microwave has the manufacturing capacity to support faster production schedules for urgent needs, orders that get in the way of normal production flow usually come with higher prices. By planning purchases with lead times of 8 to 12 weeks, manufacturers can make the best use of their production schedules, which cuts costs and makes sure that quality control processes get the attention they need.

Conclusion

Inflatable straight waveguide technology solves the basic problem of how to meet the performance requirements for radio waves while also making it easy to set up. This problem has been limiting temporary communication infrastructure for decades. By using advanced materials engineering and pressure-maintained structural design, these systems keep the signal integrity of traditional metal waveguides while also being portable and easy to set up, which were previously only possible with coaxial options that had higher loss. The QWAL series from Huasen Microwave shows how unique features like built-in air nozzles, customizable material options, and better VSWR performance can turn technical innovation into operational benefits for procurement teams that manage defense communications, emergency response networks, and satellite links. Strategic partnerships with well-known manufacturers make sure that you can get certified parts, full technical support, and prices that lower your total cost of ownership over multiple years of deployment.

FAQ

1. Can inflatable waveguides handle the same power levels as rigid metal alternatives?

Yes, when properly designed, inflatable waveguides can handle the same amount of power as rigid structures of the same size. The limiting factor changes from the thermal capacity of the material to the voltage breakdown thresholds and surface current density. These are set by the cross-section and frequency of the waveguide, not the rigidity of the wall. Huasen Microwave's designs can handle high power levels that are good for regular satellite uplink transmitters and moderate-power radar feeds. For each waveguide size and frequency band, technical datasheets give specific power ratings.

2. How does inflation pressure affect RF performance, and what maintenance does this require?

The shape of the waveguide needs to stay stable so that electromagnetic modes can travel properly. Recommended operating pressures are usually between 2 and 5 PSI above ambient. This is enough to keep the structure from deforming under wind loads without putting too much stress on the seam construction. Using standard gauges to check the pressure once a month takes less than five minutes per installation. For permanent installations, testing for leaks once a year is recommended. Rates of pressure loss below 0.5 PSI per month show that the seal is functioning properly.

3. What environmental conditions limit inflatable waveguide deployment?

Extreme temperatures change the flexibility and inflation pressure of materials. For example, cold temperatures make laminates stiffer, while heat raises the internal pressure. Most places on Earth can work in temperatures between -40°C and +70°C, but installations in desert or arctic areas need insulated enclosures to keep the waveguides from getting too hot or too cold from the sun. Limits on UV exposure depend on the type of laminate used. Huasen Microwave's materials can withstand five years of outdoor exposure without losing much of their performance.

Partner with Huasen Microwave for Your Inflatable Waveguide Requirements

If procurement professionals are looking for a reliable manufacturer of an Inflatable Straight Waveguide, Huasen Microwave's 30-year track record gives them the quality assurance and technical know-how they need for mission-critical communication infrastructure. Our QWAL series has the best VSWR performance in the industry, air nozzle configurations that can be changed, and material choices that can be made to fit your needs. Email our engineering team at sales@huasenmicrowave.com to talk about the details of your application, get technical datasheets, or start sample evaluation programs that show performance benefits before you commit to buying in bulk. We offer full support, from the initial design consultation to troubleshooting in the field during deployment, to make sure that your temporary link installations meet their operational goals on time and on budget.
