Linear DC Power Amplifier
Features & Applications:
- Power: Direct DC supply (no external AC-DC module)
- Function: Amplifies RF signals, 0.1-40GHz
- Output: Flexible (mW, W, hundreds of W, kW)
- Linear: Low distortion (gain flatness ±1dB typical)
- Uses: High-power signals for transmission links; radar, communication systems, etc. (high linearity scenarios)
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Linear DC Power Amplifier: Precision Amplification for Medical Devices
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of high-performance Linear DC Power Amplifier. With over 30 years of expertise in RF and microwave solutions, we deliver cutting-edge amplification technology tailored for medical device OEMs and diagnostic equipment manufacturers. Our products offer unparalleled stability, ultra-low noise, and superior linearity, making them ideal for sensitive medical applications like MRI systems and spectroscopy equipment.
| Product Type | Interface Type | ||
|---|---|---|---|
| Type Code | Meaning | Type Code | Meaning |
| PA | DC Power Amplifier Module | N | RF interface is N - 50K |
| ACPA | AC Power Amplifier Module | S | RF interface is SMA - 50K |
| HPA | High - Power Power Amplifier Module | K | RF interface is K2.92 - 50K |
| PAM | Complete Power Amplifier Machine | RF interface is waveguide interface | |
Why Choose Our Linear DC Power Amplifier?
Our products are designed to meet the exacting needs of medical device manufacturers:
- Ultra-low noise (<1 µV RMS) for precise measurements
- High linearity (0.001% THD) ensuring signal integrity
- Stable output (±0.01% voltage regulation) under varying loads
- Rugged design for 24/7 operation in clinical environments
- Customizable solutions to integrate with proprietary systems
- Compact form factors without compromising performance

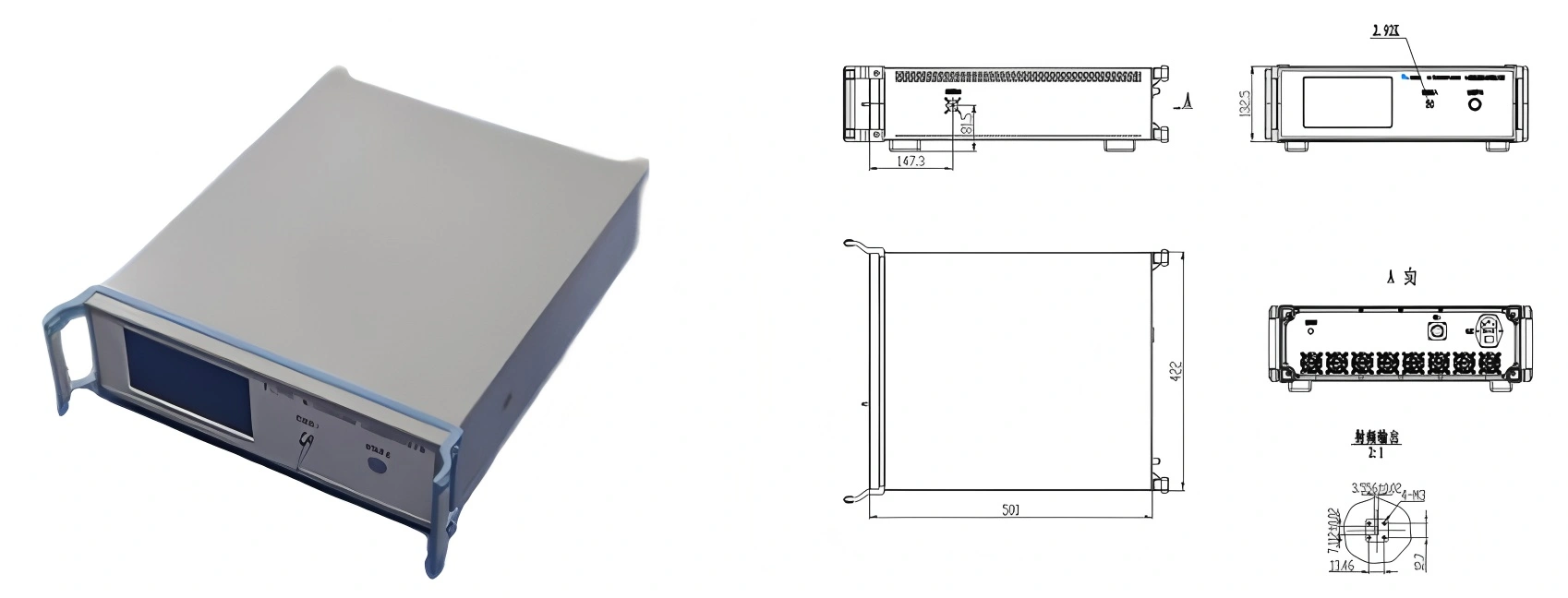

★[Star Product] HS270300HPA30WCM
| Technical Indicators | |
|---|---|
| Parameter | Specification |
| Frequency Range | 27 - 30GHz |
| Voltage Standing Wave Ratio (VSWR) | ≤2 |
| Gain | ≥40dB |
| Gain Flatness | ±3dB |
| Output Power | ≥30W |
| Power Adjustment Range | ≥15dB |
| Power Supply Requirement | AC220V/50Hz |
| RF Input Interface | 2.92 - K |
| RF Output Interface | BJ320 |
| Function | The power of the power amplifier can be displayed in real time. The output power can be adjusted through the buttons on the chassis panel. It has a fan detection indicator, temperature monitoring and protection functions, as well as over - voltage and over - current protection functions. |
Product Features & Process
Our Linear DC Power Amplifier is crafted with precision:
- Advanced thermal management for long-term stability
- High-quality components ensuring reliability and longevity
- Rigorous testing at each production stage
- Modular design allowing for easy integration and upgrades
- Optional custom features to meet specific application needs
Standard Product Data Sheets
|
Product Model |
Operating Frequency（GHz） |
Gain（dB） |
Gain Flatness（dB） |
Output Power (W) |
VSWR | Connector Type |
|
HS5200PA0.5WS |
0.05-20 |
30 |
±2 |
0.5 |
≤2 |
SMA-K |
|
HS130 PA0.1WS |
0.1-3 |
35 |
±2.5 |
0.1 |
≤2 |
SMA-K |
|
HS160 PA0.2WS |
0.1-6 |
28 |
±2 |
0.2 |
≤2.5 |
SMA-K |
|
HS9.516.5PA100WN |
0.95-1.65 |
40 |
±2 |
100 |
≤2 |
N-K |
|
HS1020HPA100WN |
1-2 |
50 |
±2 |
100 |
≤2 |
N-K |
|
HS1030 PA1WS |
1-3 |
30 |
±1.5 |
1 |
≤2 |
SMA-K |
|
HS1060 PA10WS |
1-6 |
30 |
±2.5 |
10 |
≤2 |
SMA-K |
|
HS10180PA25mWS |
1-18 |
28 |
±3 |
25mW |
≤2 |
SMA-K |
|
HS10280PA0.5WK |
1-28 |
10 |
±1 |
0.5 |
≤2 |
2.92-K |
|
HS2060HPA100WN |
2-6 |
50 |
±2 |
100 |
≤2 |
N-K |
|
HS20180PA1WS |
2-18 |
30 |
±2 |
1 |
≤2 |
SMA-K |
|
HS20265PA63mWK |
2-26.5 |
20 |
±1.5 |
63mW |
≤2 |
2.92-K |
|
HS60180HPA100W |
6-18 |
50 |
±3 |
100 |
≤3 |
WRD500 |
|
HS60180PA10WS |
6-18 |
30 |
±2 |
10 |
≤2 |
SMA-K |
|
HS80120 PA50mWS |
8-12 |
25 |
±1.5 |
50mW |
≤2 |
SMA-K |
|
HS95120PA5WS |
9.5-12 |
29 |
±4 |
5 |
≤2 |
SMA-K |
|
HS120180PA25mWS |
12-18 |
30 |
±1.5 |
25mW |
≤2 |
SMA-K |
|
HS120180HPA10WS |
12-18 |
40 |
±1.5 |
10 |
≤2 |
SMA-K |
|
HS120300PA0.5WK |
12-30 |
38 |
±1.5 |
0.5 |
≤2 |
2.92-K |
|
HS130150HPA30WS |
13-15 |
45 |
±2.5 |
30 |
≤2 |
SMA-K |
|
HS140180HPA50WS |
14-18 |
20 |
±0.7 |
50 |
≤2 |
SMA-K |
|
HS180265HPA100W |
18-26.5 |
50 |
±3.5 |
100 |
≤3 |
BJ220 |
|
HS180400PA1WK |
18-40 |
30 |
±1.5 |
1 |
≤1.5 |
2.92-K |
|
HS240360PA5mWK |
24-36 |
20 |
±2 |
5mW |
≤1.5 |
2.92-K |
|
HS265400HPA100W |
26.5-40 |
50 |
±4 |
100W |
≤3 |
BJ320 |
|
HS270300HPA30W |
27-30 |
40 |
±1.5 |
30 |
≤2 |
BJ320 |
|
HS320380HPA10WK |
32-38 |
40 |
±1.5 |
10 |
≤1.5 |
2.92-K |
|
HS330500PA10mW |
33-50 |
25 |
±2.5 |
10mW |
≤3 |
BJ400 |
|
HS500690PA15mW |
50-69 |
16 |
±3 |
15mW |
≤2 |
BJ620 |
|
HS710860PA5mW |
71-86 |
14 |
±3 |
5mW |
≤1.5 |
BJ740 |
Applications
- MRI Systems: Providing stable power for gradient coils
- Spectroscopy Equipment: Ensuring accurate signal amplification
- Medical Imaging Devices: Supporting high-resolution diagnostics
- Laboratory Analysis Tools: Enabling precise measurements
- Portable Diagnostic Devices: Offering compact, efficient amplification
Installation & Compatibility
Our amplifiers are designed for seamless integration:
- Plug-and-play functionality with standard connectors
- Comprehensive documentation for easy setup
- Compatible with various medical device control systems
- Optional installation support from our technical team
Quality Control & After-Sales
We prioritize quality and customer satisfaction:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliant for global markets
- Rigorous pre-shipment testing
- 1-year warranty on all products
- Dedicated after-sales support team
Packaging and Shipping
- ESD-safe packaging to protect sensitive components
- Custom foam inserts for secure transit
- Global shipping options with tracking
- Rush delivery available for urgent requirements
FAQ
Q: How do your products minimize signal distortion?
A: Our amplifiers use advanced circuit design and high-quality components to achieve ultra-low noise and high linearity, ensuring minimal signal distortion.
Q: Can your amplifiers be customized for specific medical applications?
A: Yes, we offer customization services to tailor our amplifiers to your exact specifications and integration requirements.
Q: What certifications do your products have?
A: Our amplifiers comply with IEC 60601-1 for medical electrical equipment safety and are manufactured in ISO 13485 certified facilities.
Q: How do you ensure long-term stability in continuous operation?
A: We employ advanced thermal management techniques and use high-reliability components to ensure stable performance in 24/7 operation.
Q: Are your products suitable for portable medical devices?
A: Yes, we offer compact models specifically designed for portable diagnostic equipment without compromising on performance.
