Ultra Wideband Low Noise Amplifier
Gain Range: 15dB to 50dB
Noise Figure: As low as 1.3dB
Connector Types: Supports N-type, SMA-type, K-type, or waveguide connectors
Product Series: standard low-noise amplifiers / AC low-noise amplifiers (Built-in AC-DC power module)
Support Customization
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Ultra Wideband Low Noise Amplifier: High-Performance RF Solutions
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Ultra Wideband Low Noise Amplifier (LNAs). With over three decades of mastery in RF and microwave innovation, we convey cutting-edge arrangements for car radar, broadcast communications, and aviation applications. Our items offer unparalleled execution, combining wide transmission capacity, moo clamor figures, and tall pick up to meet the requesting prerequisites of present day RF frameworks.
| Interface Type | |
|---|---|
| Type Code | Meaning |
| N | RF interface is N - 50K |
| S | RF interface is SMA - 50K |
| K | RF interface is K2.92 - 50K |
| W | RF interface is waveguide interface |
Why Choose Our Ultra Wideband Low Noise Amplifier?
Our products are designed to excel in challenging RF environments. Here's why they stand out:
- Exceptional Bandwidth: Covering 0.01GHz to 100GHz, our LNAs support a wide range of applications.
- Superior Noise Performance: With noise figures as low as 1.3dB, we ensure crystal-clear signal reception.
- High Gain: Offering up to 50dB gain, our amplifiers significantly boost weak RF signals.
- Versatile Connectivity: Compatible with N-type, SMA-type, K-type, or waveguide interfaces.
- Customizable Solutions: We tailor our LNAs to meet your specific frequency, gain, and form factor needs.

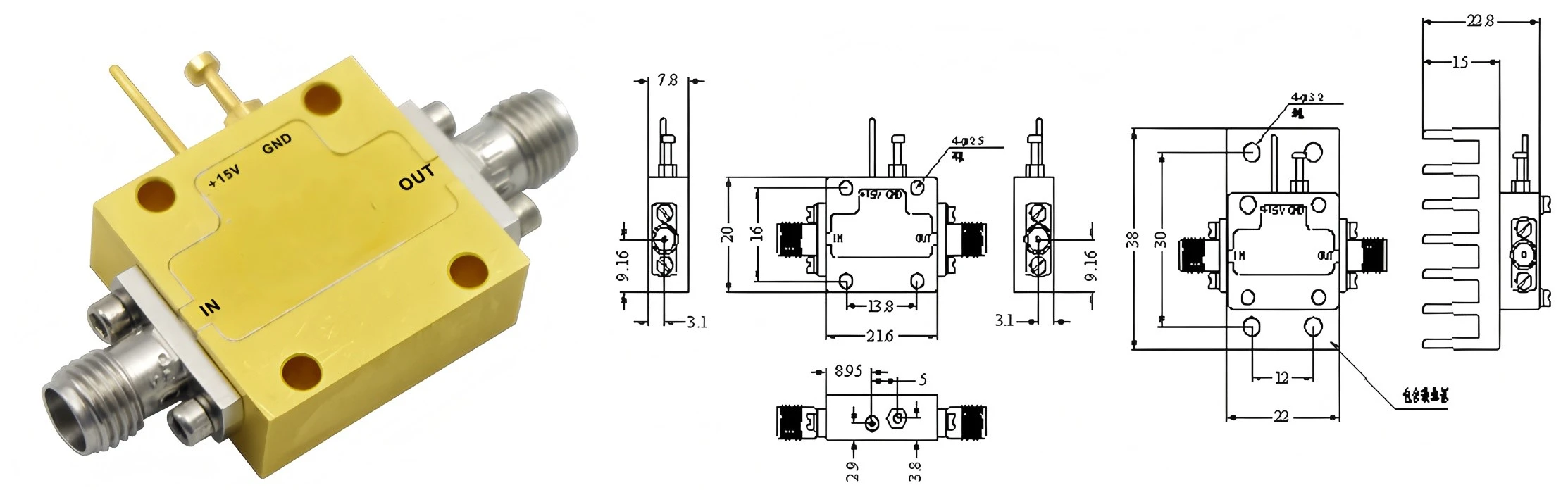

★[Star Product] HS60180LNA40S
| Parameter | Minimum | Typical Value | Maximum | Unit |
|---|---|---|---|---|
| Frequency Range | 6 | 18 | GHz | |
| Gain | 45 | 50 | 60 | dB |
| Gain Flatness | ±2.5 | dB | ||
| Gain Temperature Coefficient | ±1.0 | dB | ||
| Noise Figure | 1.3 | 1.5 | 2.0 | dB |
| Input VSWR | 1.8 | 2.5 | : 1 | |
| Output VSWR | 1.6 | 2.0 | : 1 | |
| 1dB Compression Point | 12 | 14 | dBm | |
| Saturated Output Power | 17 | dBm | ||
| Third - order Intercept Point | 20 | dBm | ||
| Operating Voltage | 15 | V | ||
| Operating Current | 165 | 250 | mA | |
| Isolation | -50 | dB | ||
| Weight | 45.36 | g | ||
| Matching Impedance | 50 | Ω | ||
| Input/Output Connector | SMA-K | |||
| Cavity Material | Aluminum | |||
| Surface Treatment | Gold Plating | |||
| Packaging Form | Epoxy Resin Sealing (Standard) | |||
| Hermetic Packaging (Optional) | ||||
Product Features & Process
Our products are built using advanced GaAs and GaN technologies. Key features include:
- Thermal management design for stable performance in automotive environments
- EMI/EMC shielding for robust operation in multi-sensor systems
- Precision impedance matching for optimal signal transfer
- Stringent quality control throughout the manufacturing process
Standard Product Data Sheets
| Product Model |
Operating Frequency（GH） |
Gain（dB） |
Gain Flatnes（dB） |
Noise Figure |
P-1dB |
VSWR |
|
HS0130LNA36S |
0.01-3 |
36 |
±1 |
2.5 |
21dBm |
≤1.8 |
|
HS01100LNA27S |
0.01-10 |
27 |
±1 |
2.0 |
21dBm |
≤1.8 |
|
HS01150LNA32S |
0.01-15 |
32 |
±2 |
2.5 |
24dBm |
≤1.6 |
|
HS01220LNA29S |
0.01-22 |
29 |
±1 |
3.5 |
27dBm |
≤1.8 |
|
HS01400LNA25K |
0.01-40 |
25 |
±2.5 |
5.5 |
16dBm |
≤2 |
|
HS110LNA15S |
0.1-1 |
15 |
±1.5 |
2.5 |
17dBm |
≤1.8 |
|
HS160LNA35S |
0.1-6 |
35 |
±1.5 |
3.5 |
18dBm |
≤2.5 |
|
HS1180LNA43S |
0.1-18 |
43 |
±1 |
3 |
16dBm |
≤1.5 |
|
HS1200LNA39S |
0.1-20 |
39 |
±0.7 |
3.4 |
14dBm |
≤1.5 |
|
HS330LNA20S |
0.3-3 |
20 |
±1.5 |
2.0 |
20dBm |
≤2 |
|
HS220LNA50S |
0.2-2 |
50 |
±1 |
1.2 |
20dBm |
≤2 |
|
HS5120LNA30S |
0.5-12 |
30 |
±2.5 |
3 |
14dBm |
≤2.5 |
|
HS5400LNA45K |
0.5-40 |
45 |
±4 |
4 |
18dBm |
≤1.6 |
|
HS1040LNA25S |
1-4 |
25 |
±2.5 |
2.5 |
15dBm |
≤2 |
|
HS1040LNA30S |
1-4 |
30 |
±3 |
2.5 |
18dBm |
≤2 |
|
HS10120LNA34S |
1-12 |
34 |
±1 |
2.8 |
26dBm |
≤1.5 |
|
HS10180LNA42S |
1-18 |
42 |
±3 |
3 |
16dBm |
≤1.5 |
|
HS10400LNA38K |
1-40 |
38 |
±2 |
5.5 |
20dBm |
≤2.8 |
|
HS2040LNA50S |
2-4 |
50 |
±2 |
1.1 |
16dBm |
≤2 |
|
HS2060LNA20S |
2-6 |
20 |
±2 |
2.5 |
15dBm |
≤2 |
|
HS2060LNA42S |
2-6 |
42 |
±1 |
2 |
23dBm |
≤1.6 |
|
HS20120LNA32S |
2-12 |
32 |
±1.5 |
2.5 |
15dBm |
≤2.5 |
|
HS20150LNA31S |
2-15 |
31 |
±1 |
3.5 |
23.5dBm |
≤1.8 |
|
HS20180LNA30S |
2-18 |
30 |
±2 |
2.5 |
10dBm |
≤2 |
|
HS20200LNA30S |
2-20 |
30 |
±2 |
2.5 |
10dBm |
≤2 |
|
HS4060LNA50S |
4-6 |
50 |
±2 |
1.1 |
16dBm |
≤2 |
|
HS50100LNA38S |
5-10 |
38 |
±1 |
2.3 |
26dBm |
≤1.8 |
|
HS50130LNA46S |
5-13 |
46 |
±1.5 |
1.8 |
21dBm |
≤2 |
|
HS60120LNA50S |
6-12 |
50 |
±2 |
1.6 |
14dBm |
≤2 |
|
HS60180LNA20S |
6-18 |
20 |
±2 |
3.0 |
10dBm |
≤2 |
|
HS60265LNA22K |
6-26.5 |
22 |
±2 |
2.5 |
10dBm |
≤1.5 |
|
HS7990LNA52S |
7.9-9 |
52 |
±0.75 |
1.3 |
10dBm |
≤1.5 |
|
HS80110LNA45S |
8-11 |
45 |
±1 |
4 |
27dBm |
≤2 |
|
HS80180LNA30S |
8-18 |
30 |
±2 |
2.5 |
16dBm |
≤2 |
|
HS95108LNA36S |
9.5-10.8 |
36 |
±2 |
2 |
15dBm |
≤1.6 |
|
HS107117LNA35S |
10.7-11.7 |
35 |
±0.25 |
1.6 |
15dBm |
≤1.6 |
|
HS100200LNA30S |
10-20 |
30 |
±1.5 |
3 |
10dBm |
≤2 |
|
HS120150LNA32S |
12-15 |
32 |
±0.5 |
1.7 |
19.5dBm |
≤1.7 |
|
HS120180LNA20S |
12-18 |
20 |
±1 |
2.8 |
13dBm |
≤2 |
|
HS120180LNA50S |
12-18 |
50 |
±2 |
1.6 |
11dBm |
≤2 |
|
HS120330LNA34K |
12-33 |
34 |
±2.5 |
2.5 |
23dBm |
≤1.6 |
|
HS140270LNA18K |
14-27 |
18 |
±1.5 |
2 |
16dBm |
≤1.6 |
|
HS150270LNA41K |
15-27 |
41 |
±2 |
2.5 |
28dBm |
≤2 |
Applications
Huasen's Ultra Wideband Low Noise Amplifier excels in various industries:
- Automotive Radar: Enhancing ADAS and autonomous driving capabilities
- Telecommunications: Boosting signal strength in 5G and satellite communications
- Aerospace & Defense: Supporting advanced radar and electronic warfare systems
- Test & Measurement: Enabling high-precision RF testing and analysis
Installation & Compatibility
Our LNAs are designed for seamless integration into your RF systems. They're compatible with standard RF connectors and offer flexible mounting options. For custom installations, our engineering team provides comprehensive support and documentation.
Quality Control & After-Sales
We maintain rigorous quality standards, including:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliance for environmental safety
- AEC-Q100/Q101 qualification for automotive applications
- 1-year warranty on all products
Packaging and Shipping
Our LNAs are securely packaged in ESD-safe containers to ensure safe transport. We offer global shipping options with tracking and insurance for your peace of mind.
FAQ
Q1: What is the typical power consumption of your products?
A1: Our LNAs are designed for efficiency, with typical power consumption ranging from 50mW to 500mW, depending on the specific model and configuration.
Q2: Can your LNAs be integrated into existing radar systems?
A2: Yes, our products are designed for easy integration. We offer various form factors and interface options to suit different system architectures.
Q3: Do you offer evaluation kits for your LNAs?
A3: Absolutely! We provide evaluation kits to help you assess performance in your specific application.
Q4: What is the MTBF (Mean Time Between Failures) of your LNAs?
A4: Our LNAs are built for reliable operation, with MTBF ratings exceeding 100,000 hours under standard operating conditions.
Q5: Are your products suitable for space applications?
A5: While our standard LNAs are not specifically rated for space use, we can develop custom solutions that meet space-grade requirements. Contact us for more information.
Contact Us
For more information about our Ultra Wideband Low Noise Amplifier or to discuss your specific RF amplification needs, please email us at sales@huasenmicrowave.com. Our group of specialists is prepared to offer assistance you discover the culminate arrangement for your application.
Send Inquiry
