Active Detector
Accuracy at Key Frequencies: Better than ±1 dB
Frequency Range: 0.01 to 44 GHz, adaptable to multiple scenarios
Temperature Drift: ±0.5 dB (-40°C to 85°C)
Low Power Consumption: Minimum 0.5 mW

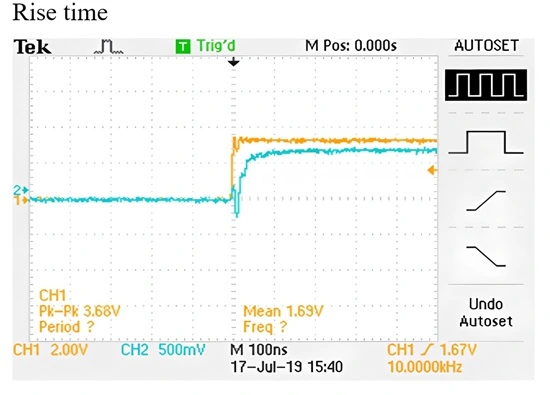

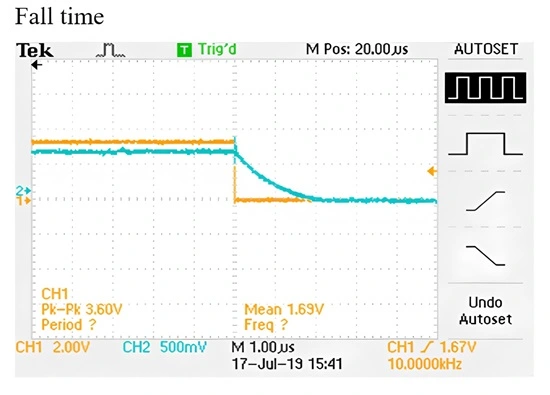

Fast Response Time: 8 ns (rise/fall)
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Partner for High-Performance Active Detector
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of high-quality Active Detector. With over 30 a long time of ability in microwave and millimeter-wave innovation, we convey cutting-edge arrangements for basic foundation and security applications. Our items offer unparalleled precision, unwavering quality, and toughness, making them the perfect choice for government offices overseeing transportation centers, utilities, and other delicate offices.
★【Star Product】HS618ACDSS
| Technical Indicators | ||||
|---|---|---|---|---|
| Parameter | Minimum | Typical Value | Maximum | Unit |
| Frequency Range | 6 | 18 | GHz | |

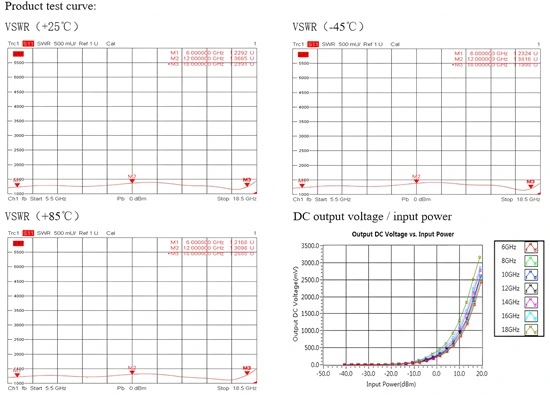

| VSWR (Voltage Standing Wave Ratio) | 1.4 | 1.5 | : 1 | |
| Detection Sensitivity | -45 | dBm | ||
| Sensitivity | 0.5 | mv/μw | ||
| Input Power | 23 | dBm | ||
| Output Polarity | Positive | |||
| Weight | 9.92 | g | ||
| Input/Output Connector | SMA-J / SMA-K | |||
| Cavity Material | Aluminum | |||
| Surface Treatment | Gold Plating | |||
Why Choose Our Active Detector?
At Huasen Microwave, we understand the unique challenges faced by infrastructure agencies. Our products are designed to meet your specific needs:
- Rugged Construction: Built to withstand extreme environments, from coastal areas to industrial zones.
- Long-Term Reliability: Engineered for 10+ years of low-maintenance operation.
- Seamless Integration: Compatible with legacy systems and modern IoT platforms.
- Advanced Threat Detection: High sensitivity to minimize false alarms in security applications.
- Future-Proof Design: Upgradable to address evolving threats like drone detection.
Standard Product Data Sheets
| Product Model | Frequency Range (GHz) | Dynamic Range (dBm) | Detection Voltage Range (V) | Rise Time (ns) | Fall Time (ns) | RF Interface | Power Supply (V/mA) |
|---|---|---|---|---|---|---|---|
| HS80MACDS | 0.01 - 8 | -60 ~ 0 | 2.1 ~ 0.5 | 10 | 12 | SMA-K | +5/68 |
| HS1200ACDK | 0.1 - 20 | -59 ~ 0 | 1.6 ~ 0.4 | 20 | 10 | 2.92-K | +3.3/31 |
| HS20180ACDS | 2 - 18 | -59 ~ 0 | 1.56 ~ 0.4 | 17 | 10 | SMA-K | +3.3/31 |
| HS10320ACDK | 1 - 32 | -55 ~ 0 | 1.8 ~ 0.6 | 20 | 12 | 2.92-K | +3.3/52 |
| HS5435ACDK | 0.5 - 43.5 | -28 ~ +16 | 3.8 ~ 0.1 | / | / | 2.92-K | +5/3 |
| HS50440ACDK | 5 - 44 | -30 ~ 0 | 3.3 ~ 0.8 | / | / | 2.92-K | +5/12 |
Product Features & Process
Our products are crafted using advanced microwave integrated chip technology, ensuring:
- Superior anti-interference capabilities
- Precise signal envelope demodulation
- Accurate power level monitoring
- Rapid response for burst RF pulse detection
Each detector undergoes rigorous testing and quality control to meet the highest industry standards.
Applications
Huasen Microwave's Active Detector excels in various critical sectors:
- Telecommunications: Signal monitoring and quality assurance
- Radar Systems: Accurate target detection and tracking
- Aerospace: Reliable communication and navigation equipment
- Defense: Secure and dependable threat detection systems
Our products use only high-grade copper and aluminum components, ensuring optimal performance and longevity.
Installation & Compatibility
We offer flexible mounting options and comprehensive integration support to ensure seamless deployment across your infrastructure. Our team provides detailed documentation and expert guidance for compatibility with SCADA, CCTV, and modern IoT platforms.
Quality Control & After-Sales
Huasen Microwave is committed to excellence:
- ISO9001 certified manufacturing processes
- RoHS and REACH compliant materials
- Rigorous multi-stage quality inspections
- 1-year warranty on all products
- 24/7 technical support from our experienced team
Packaging and Shipping
Our products are carefully packaged to ensure safe transit:
- Custom-designed protective cases
- Anti-static and moisture-resistant materials
- Secure palletization for bulk orders
- Global shipping with real-time tracking
FAQ
Q: How do your products handle extreme temperatures?
A: Our locators keep up ±0.5 dB precision from -40°C to 85°C, perfect for cruel environments.
Q: Are your products suitable for hazardous locations?
A: Yes, we offer ATEX-certified versions for use in potentially explosive atmospheres.
Q: Can your detectors integrate with our existing security systems?
A: Completely. We give comprehensive integration bolster for both bequest and cutting edge systems.
Q: What makes your products suitable for critical infrastructure?
A: Their tall precision, tough plan, and progressed risk location capabilities guarantee solid operation in delicate environments.
Q: Do you offer customization for specific project requirements?
A: Yes, we can tailor our items to meet your interesting determinations and utilize cases.
Contact Us
Ready to enhance your infrastructure security with Huasen Microwave's Active Detector? Contact our expert team at sales@huasenmicrowave.com for personalized solutions and support.
Send Inquiry
