Standard Gain Antenna
Gain: 10 dB, 15 dB, 20 dB, 25 dB
Polarization Type: Linear polarization
Accuracy Guarantee: ±0.5 dB
Coaxial Input Type: Integrated /separated
Construction Process: Aluminum arc welding（ low-frequency）, copper silver brazing （ high-frequency）, and precision machining（higher frequencies）
Delivery Time: In-stock
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Huasen Microwave: Your Trusted Standard Gain Antenna Supplier
As a leading manufacturer of precision RF and microwave components, Huasen Microwave Technology Co., Ltd. is proud to offer our cutting-edge Standard Gain Antenna solutions. With over 30 years of industry expertise, we've perfected the art of creating high-performance antennas that meet the exacting needs of wireless IoT device manufacturers. Our product range combines compact design, consistent performance, and unmatched versatility to power the next generation of smart city, industrial, and automotive connectivity solutions.
Product Type
|
Type |
Waveguide Input |
Integrated Coaxial Input |
With Coaxial Adapter Input |
|
Outline Drawings |
|
|
|
|
WG Type |
BJ12/WR770-BJ2600/WR3 |
BJ3/WR2300-BJ320/WR28 |
BJ9/WR975-BJ400/WR22 |
|
VSWR |
≤1.25 |
≤1.5 |
≤1.5 |
Why Choose Our Standard Gain Antenna?
- Ultra-Compact Design: Engineered to fit seamlessly into space-constrained IoT devices
- Exceptional Performance: Stable gain and radiation patterns across diverse environments
- Plug-and-Play Integration: Reduce deployment time and costs with easy installation
- Cost-Effective: Optimized for high-volume production without compromising quality
- Multi-Band Support: Compatible with global frequency standards (LTE-M, NB-IoT, 5G)
- Customizable Solutions: Tailored to your specific application requirements
Standard Product Data Sheet] Nominal Gain Value: 10dB
(This product also comes in 15dB, 20dB, and 25dB Gain Value; all of these are our standard products and are always in stock.)
|
Part No |
WG Type |
Freq Range (GHz) |
Gain (dB) |

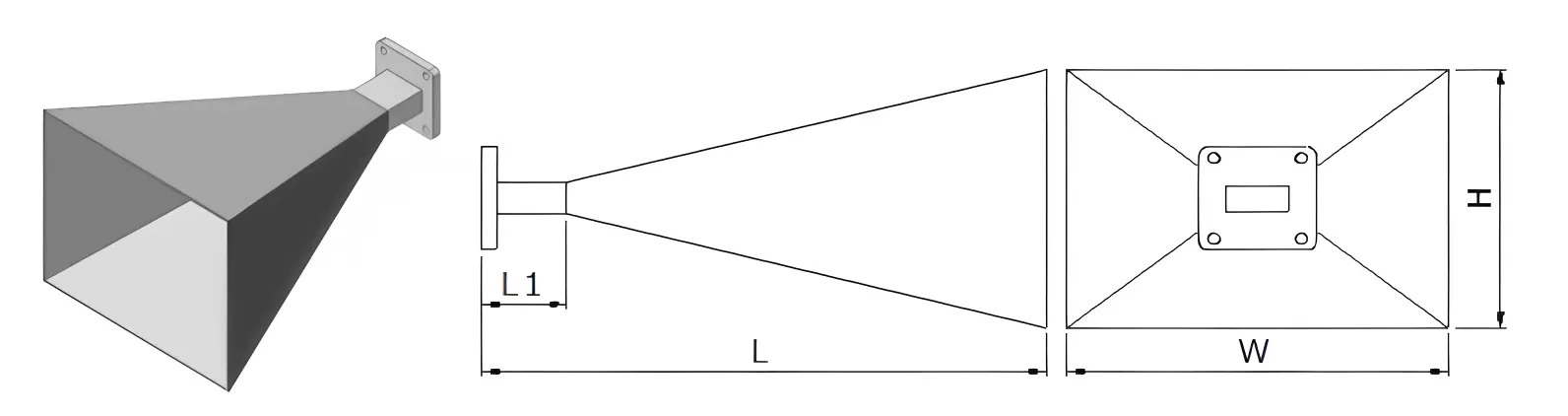

Dimensions (mm) |
Flange |
Material |
|||
|
EIA |
L |
L1 |
W |
H |
|||||
|
HS9SGAH15 |
WR975 |
0.75-1.15 |
15 |
640 |
70 |
850 |
580 |
FDP |
Al |
|
HS12SGAH15 |
WR770 |
0.96-1.46 |
15 |
600 |
100 |
700 |
480 |
FDP |
Al |
|
HS14SGAH15 |
WR650 |
1.13-1.73 |
15 |
430 |
80 |
550 |
380 |
FDP |
Al |
|
HS18SGAH15 |
WR510 |
1.45-2.20 |
15 |
365 |
65 |
456 |
316 |
FDP |
Al |
|
HS22SGAH15 |
WR430 |
1.72-2.61 |
15 |
310 |
60 |
380 |
265 |
FDP |
Al |
|
HS26SGAH15 |
WR340 |
2.17-3.30 |
15 |
250 |
50 |
296 |
215 |
FDP |
Al |
|
HS32SGAH15 |
WR284 |
2.60-3.95 |
15 |
230 |
50 |
275 |
190 |
FDP |
Al |
|
HS40SGAH15 |
WR229 |
3.22-4.90 |
15 |
180 |
50 |
205 |
145 |
FDP |
Al |
|
HS48SGAH15 |
WR187 |
3.94-5.99 |
15 |
160 |
40 |
169 |
119 |
FDP |
Al |
|
HS58SGAH15 |
WR159 |
4.64-7.05 |
15 |
130 |
40 |
141 |
97 |
FDP |
Al |
|
HS70SGAH15 |
WR137 |
5.38-8.17 |
15 |
110 |
25 |
122 |
84 |
FDP |
Al |
|
HS84SGAH15 |
WR112 |
6.57-9.99 |
15 |
100 |
25 |
105 |
71 |
FBP |
Al |
|
HS100SGAH15 |
WR90 |
8.20-12.40 |
15 |
80 |
20 |
81 |
56 |
FBP |
Al |
|
HS120SGAH15 |
WR75 |
9.84-15.0 |
15 |
75 |
25 |
68 |
47 |
FBP |
Al |
|
HS140SGAH15 |
WR62 |
11.9-18.0 |
15 |
80 |
25 |
57 |
40 |
FBP |
Al |
|
HS180SGAH15 |
WR51 |
14.5-22.0 |
15 |
55 |
20 |
47 |
33 |
FBP |
Copper |
|
HS220SGAH15 |
WR42 |
17.6-26.7 |
15 |
45 |
15 |
39 |
27 |
FBP |
Copper |
|
HS260SGAH15 |
WR34 |
21.7-33.0 |
15 |
40 |
15 |
32 |
22 |
FBP |
Copper |
|
HS320SGAH15 |
WR28 |
26.5-40.0 |
15 |
35 |
10 |
26 |
19 |
FBP |
Copper |
|
HS400SGAH15 |
WR22 |
32.9-50.1 |
15 |
30 |
10 |
22 |
15.5 |
FUGP |
Copper |
|
HS500SGAH15 |
WR19 |
39.2-59.6 |
15 |
25 |
6.35 |
17.8 |
12 |
FUGP |
Copper |
|
HS620SGAH15 |
WR15 |
49.8-75.8 |
15 |
21 |
8 |
15 |
11 |
FUGP |
Copper |
|
HS740SGAH15 |
WR12 |
60.5-91.9 |
15 |
6.35 |
11.8 |
7.84 |
9.5 |
FUGP |
Copper |
|
HS900SGAH15 |
WR10 |
73.8-112 |
15 |
6.35 |
9.5 |
6.6 |
8 |
FUGP |
Copper |
|
HS1200SGAH15 |
WR8 |
92.2-140 |
15 |
14 |
/ |
9 |
6.3 |
FUGP |
Copper |
Product Features & Process
Our product is crafted using state-of-the-art manufacturing techniques:
- Low-frequency: Argon arc welded aluminum for durability
- High-frequency: Silver-brazed copper for superior conductivity
- Ultra-high frequency: Precision electrical machining for unparalleled accuracy
Each antenna undergoes rigorous quality control, ensuring consistent performance and reliability.
Applications
Ideal for a wide range of RF and microwave applications, including:
- Smart City Infrastructure: Traffic management, environmental monitoring
- Industrial IoT: Factory automation, remote sensing, asset tracking
- Automotive Connectivity: V2X communication, telematics, infotainment systems
- Telecommunications: 5G small cells, wireless backhaul
- Aerospace and Defense: Radar systems, satellite communications
Installation & Compatibility
Our Standard Gain Antenna offers versatile installation options:
- Waveguide Input: Compatible with BJ12-BJ2600 standards
- Coaxial Input: Available in integrated or separate configurations
- Mounting: Adhesive and magnetic options for various surfaces
Quality Control & After-Sales
- ISO9001 certified manufacturing process
- RoHS and REACH compliant materials
- Rigorous testing at every production stage
- 1-year comprehensive warranty
- Expert technical support team
Packaging and Shipping
- Individual foam-lined boxes for maximum protection
- Bulk packaging available for high-volume orders
- Global shipping with tracking and insurance options
FAQ
Q: Can the antenna be customized for specific frequency bands?
A: Yes, we offer customization services to meet your exact requirements.
Q: Do your products support multi-band operation?
A: Yes, they are designed for compatibility with global frequency standards, including LTE-M, NB-IoT, and 5G.
Q: Are your antennas suitable for outdoor use?
A: Many models feature IP67 ratings for harsh environment deployment.
Q: Do you provide sample units for testing?
A: We offer evaluation kits for qualified customers to ensure compatibility.
Q: What type of connectors are available?
A: We support various RF connectors, including SMA, N-type, and custom options.
Contact Us
Ready to elevate your wireless connectivity? Our team of RF experts is here to help. Reach out to us at sales@huasenmicrowave.com to discuss your Standard Gain Antenna needs and discover how Huasen Microwave can power your next innovation.
