Ultra Wideband Omnidirectional Antenna
Advantages & Features:
- Horizontal omnidirectional radiation, 360° uniform coverage
- High efficiency, low VSWR, gain -20dB to 6dB
- Lightweight, portable; min size φ23×399mm
- N-type, SMA, K-type standard connectors
- Vertical polarization for stable reception
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Ultra Wideband Omnidirectional Antenna: Precision and Performance for Advanced Applications
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Ultra Wideband Omnidirectional Antenna. With over 30 a long time of skill in RF and microwave arrangements, we offer high-performance radio wires that meet the requesting prerequisites of broadcast communications, radar, aviation, and defense businesses. Our items convey unparalleled flag scope, proficiency, and unwavering quality for your most basic applications.
Why Choose Our Ultra Wideband Omnidirectional Antenna?
Our products are designed to meet the evolving needs of advanced technologies like ADAS and V2X communications. Here's why our antennas stand out:
- Precision Performance: Achieve sub-10cm positioning accuracy and <1ms latency for critical applications.
- Robust Design: Withstand extreme temperatures (-40°C to +125°C), vibration, and humidity.
- Interference Resilience: Advanced technology to mitigate signal interference in dense RF environments.
- Customizable Solutions: Tailor-made designs to fit your specific requirements and form factors.
- Compact Size: Miniaturized options for seamless integration into automotive modules.
Standard Product Data Sheet
|
Part No |
Freq Range |
AntennaType |
Gain (dB) |
VSWR |
Antenna Height (mm) |
Connector |
Polarization |
|
HS0330CVOA1 N |
30-300MHz |
Single Cone |
-10-1 |
≤2.5 |
700 |
N-K |
V |
|
HS03820CVOA1N |
0.38-2GHz |
Single Cone |
0-5 |
≤2.5 |
170 |
N-K |
V |
|
HS0530CVOA1N |
0.5-3GHz |
Single Cone |
0-5 |
≤2.5 |
150 |
N-K |
V |
|
HS10100CVOA1S |
1-10GHz |
Single Cone |
0-5 |
≤2.5 |
80 |
SMA-K |
V |
|
HS00303CVOAN |
30-300MHz |
Umbrella Cone |
-10-2 |
≤2.5 |
1100 |
N-K |
V |
|
HS0330CVOA1N |
0.3-3GHz |
Umbrella Cone |
0-5 |
≤2.5 |
550 |
SMA-K |
V |
|
HS0105CVOA1N |
0.1-0.5GHz |
Umbrella Cone |
0-5 |
≤2.5 |
813 |
N-K |
V |
|
HS0511CVOA1N |
0.5-1.1GHz |
Umbrella Cone |
0-5 |
≤2.5 |
153 |
SMA-K |
V |
|
HS.01.3CVOAN |
10K-30MHZ |
Whip |
80(Insertion Loss Factor) |
≤3 |
1500 |
N-K |
V |
|
HS001603CVOAN |
1.6-30MHz |
Whip |
-8-0 |
≤2.5 |
6200 |
N-K |
V |
|
HS03512CVOAN |
30-512MHz |
Whip |
-5-2 |
≤2.5 |
2000 |
N-K |
V |
|
HS00315CVOAN |
30-1500MHz |
Whip |
-20-5 |
≤3 |
276-1764 |
N-K |
V |
|
HS10400CVOA1K |
1-40 GHz |
Double Cone |
0-6 |
≤2.5 |
100 |
2.92-K |
V |
|
HS0710CVOA1N |
0.07- 1 GHz |
Cage |
-15-2 |
≤2.5 |
450 |
N-K |
V |
Product Features & Process
Our Ultra Wideband Omnidirectional Antenna features:

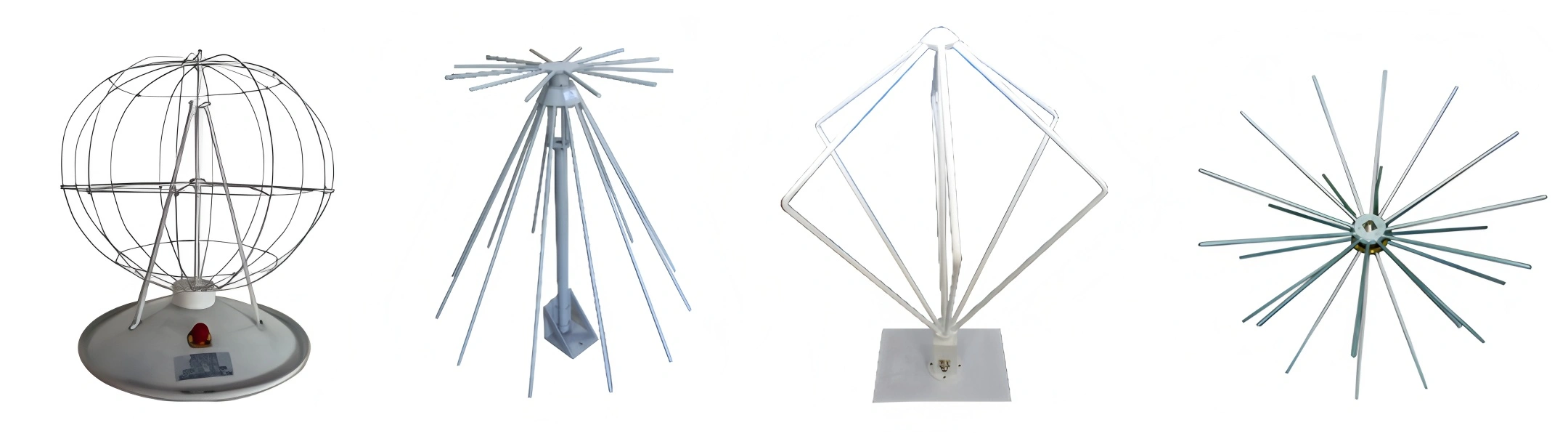

- Special structures: Conical, umbrella cone, cage, or whip designs
- Lightweight construction: From 0.225kg to 5.4kg
- High-quality materials: Copper and aluminum for durability and performance
- Precision manufacturing: Advanced CNC machining and assembly processes
- Rigorous testing: Each antenna undergoes comprehensive performance verification
Applications
Our antennas excel in various industries and applications:
- Automotive: ADAS, V2X communications, keyless entry systems
- Telecommunications: 5G networks, IoT devices
- Aerospace: Satellite communications, navigation systems
- Defense: Radar systems, electronic warfare
- Industrial IoT: Asset tracking, indoor positioning
Installation & Compatibility
Easy integration with your existing systems:
- Standard 50Ω impedance for seamless connection
- Multiple connector options for versatile installation
- Compact designs for space-constrained applications
- Compatible with major OEM and Tier 1 automotive platforms
Quality Control & After-Sales
We're committed to your satisfaction:
- ISO9001 certified quality management system
- RoHS and REACH compliant for environmental safety
- Rigorous testing at every production stage
- 1-year warranty on all antennas
- Dedicated technical support team
Packaging and Shipping
Your antennas arrive safe and ready:
- Custom protective packaging for each antenna type
- Shock-resistant containers for sensitive components
- Global shipping options available
- Flexible delivery schedules to meet your production needs
FAQ
Q: What makes your product suitable for automotive applications?
A: Our antennas offer high precision, low latency, and durability required for ADAS and V2X systems, meeting automotive-grade standards.
Q: Can your antennas be customized for specific frequency ranges?
A: Yes, we offer customization services to meet your exact frequency requirements within the UWB spectrum.
Q: How do you ensure the reliability of your antennas in harsh environments?
A: We use high-quality materials and rigorous testing procedures to ensure our antennas perform consistently in extreme conditions.
Q: What certifications do your antennas have?
A: Our antennas are compliant with FCC, CE, ISO 11452-8, and AEC-Q200 standards, with additional regional certifications available.
Q: How can I determine the best antenna for my application?
A: Our expert team can help you select the optimal antenna based on your specific requirements. Contact us for a consultation.
Contact Us
Ready to elevate your RF performance with our Ultra Wideband Omnidirectional Antenna? Contact our sales team at sales@huasenmicrowave.com for expert advice and quotations.
