How to Select Coaxial Power Combiner for Optimal Insertion Loss?

When your radar system loses signal strength, your telecommunications network experiences interference, or your test equipment shows inconsistent measurements, the problem often traces back to one critical component: your Coaxial Power Combiner. Selecting the right power combiner with optimal insertion loss isn't just about picking any device off the shelf—it's about understanding how minimal signal degradation directly impacts your system's overall performance, reliability, and operational efficiency in mission-critical applications.

Understanding Insertion Loss in Coaxial Power Combiners

Insertion loss represents one of the most critical performance parameters when evaluating any Coaxial Power Combiner for RF and microwave applications. This parameter directly measures how much signal power is lost as it passes through the device, combining theoretical power division losses with additional dissipation from conductor resistance, dielectric materials, and impedance mismatches. In practical terms, insertion loss determines how much of your input signal actually reaches the output port, making it a fundamental consideration for system designers who need to maintain signal integrity across their RF chain.

The insertion loss in a Coaxial Power Combiner consists of multiple components that work together to reduce overall signal strength. The theoretical power split accounts for the inherent division of power among multiple output ports—for example, a two-way combiner has a minimum theoretical loss of approximately three decibels due to the equal power division. Beyond this theoretical baseline, practical combiners experience additional losses from several sources including conductor losses in the metallic pathways, dielectric losses in the insulating materials, mismatch losses from imperfect impedance matching, and dissipation losses in isolation resistors that maintain port separation.

When engineers design high-performance RF systems for telecommunications, radar installations, or satellite communications, they must carefully calculate total system insertion loss to ensure adequate signal strength reaches the final destination. A Coaxial Power Combiner with excessive insertion loss can significantly degrade system performance, reducing transmission range, decreasing receiver sensitivity, and potentially requiring additional amplification stages that add cost, complexity, and potential noise to the signal chain. Modern combiners utilizing advanced technologies like radial line combining techniques and precision-machined coaxial structures can achieve insertion losses approaching the theoretical minimum, making component selection a crucial optimization step.

Factors Affecting Insertion Loss Performance

Multiple technical factors influence the insertion loss characteristics of a Coaxial Power Combiner, and understanding these variables enables engineers to make informed selection decisions for their specific applications. The operating frequency range stands as one of the most significant determinants of insertion loss behavior, since dielectric and conductor losses typically increase with frequency due to skin effect phenomena and material properties. A combiner designed for optimal performance at lower microwave frequencies may exhibit substantially higher losses when operated in millimeter-wave bands, making frequency-appropriate selection essential for maintaining system efficiency.

Material selection plays an equally important role in determining achievable insertion loss levels. High-grade copper and aluminum conductors with gold plating provide superior electrical conductivity and corrosion resistance compared to standard materials, directly translating to lower conductor losses across the entire frequency spectrum. The dielectric materials used in connector interfaces and internal structures must exhibit low loss tangent values and stable dielectric constants across temperature variations to minimize signal degradation. Manufacturing precision also significantly impacts insertion loss, as tight tolerances in machining operations ensure proper impedance matching and minimize reflections that contribute to overall signal loss.

The power splitting configuration of the Coaxial Power Combiner introduces additional complexity to insertion loss calculations. Devices with more output ports inherently experience higher theoretical power division losses—a four-way combiner has approximately six decibels of theoretical loss while an eight-way configuration approaches nine decibels. However, the relationship between number of ports and insertion loss is not purely additive, as clever circuit topologies and advanced design techniques can optimize performance beyond simple calculations. Engineers must balance the number of required outputs against acceptable insertion loss levels while considering how the combiner integrates into their complete system architecture.

Key Selection Criteria for Optimal Performance

Frequency Range and Bandwidth Considerations

Selecting a Coaxial Power Combiner that operates efficiently across your required frequency spectrum represents a fundamental prerequisite for achieving optimal insertion loss performance. The frequency range specification defines the operational boundaries within which the device maintains acceptable performance parameters, typically expressed as a continuous band from a lower frequency limit to an upper frequency limit. Modern power combiners designed for broadband applications can cover extensive frequency ranges from direct current up to forty gigahertz or beyond, providing versatility for systems that operate across multiple bands or require wide bandwidth capabilities for applications like frequency-hopping communications or broadband radar systems.

Bandwidth flatness becomes particularly important when evaluating Coaxial Power Combiner performance across the specified frequency range. A device may technically operate from two gigahertz to eighteen gigahertz, but if insertion loss varies dramatically across this spectrum—perhaps showing excellent performance at mid-band frequencies but degraded characteristics at band edges—system designers must account for these variations in their link budget calculations. Premium combiners utilizing radial line technology and advanced circuit designs maintain remarkably flat insertion loss profiles across their entire operating bandwidth, ensuring consistent performance regardless of operating frequency and simplifying system design by eliminating the need for frequency-dependent compensation.

The frequency-dependent behavior of insertion loss in power combiners stems from multiple physical phenomena that become more pronounced at higher frequencies. Skin effect causes current to flow increasingly near the surface of conductors as frequency rises, effectively reducing the cross-sectional area available for current flow and increasing resistance. Dielectric losses in insulating materials exhibit frequency-dependent behavior governed by the material's loss tangent characteristic. Standing wave patterns and resonances in the combining structure can create localized peaks in insertion loss at specific frequencies. Understanding these mechanisms helps engineers select Coaxial Power Combiner devices with frequency characteristics well-matched to their application requirements.

Power Handling and Thermal Management

Power handling capability represents another crucial selection criterion that interacts closely with insertion loss performance in Coaxial Power Combiner applications. Every device has maximum power ratings that define safe operational limits before thermal damage, performance degradation, or catastrophic failure occurs. These power specifications typically differentiate between average continuous power and peak pulse power, since thermal effects accumulate differently for continuous wave signals versus pulsed operation. The power dissipated within the combiner through insertion loss mechanisms must be effectively removed through thermal conduction and convection to maintain safe operating temperatures and stable electrical performance.

The relationship between power handling and insertion loss creates an important design tradeoff that influences Coaxial Power Combiner selection. Isolation resistors that provide port-to-port isolation in Wilkinson-type combiners dissipate significant power during operation, particularly when combining signals that are not perfectly phase-matched or when operating with high power levels. These resistors represent one of the primary thermal management challenges in high-power combiners, as they must dissipate heat while maintaining stable resistance values and avoiding thermal runaway conditions. Manufacturers specify maximum input power levels for each port and maximum combined output power, providing guidance for safe operation within thermal design limits.

Advanced thermal management techniques employed in modern Coaxial Power Combiner designs enable higher power handling while maintaining low insertion loss characteristics. Precision CNC machining creates excellent thermal conduction paths from internal components to the external housing, which serves as a heat sink for dissipating accumulated thermal energy. High-grade aluminum housings with enhanced surface treatments provide superior thermal conductivity and increased surface area for convective cooling. Some designs incorporate internal structures that distribute thermal loads more evenly across the device, preventing hot spots that could lead to localized degradation or failure. When selecting a power combiner for high-power applications, engineers must verify that the device's thermal management capabilities match their operational requirements while delivering the low insertion loss needed for system efficiency.

Practical Application Guidelines

Matching Combiner Specifications to System Requirements

Successfully integrating a Coaxial Power Combiner into your RF system requires careful alignment between device specifications and actual system requirements. Begin by conducting a comprehensive link budget analysis that quantifies the acceptable insertion loss at the combiner location within your signal chain. This analysis should account for source power levels, required signal strength at the receiver or antenna, path losses, amplifier gains, and margins for system variations and aging. Understanding how much insertion loss your system can tolerate while maintaining required performance helps narrow the selection to combiners that meet your efficiency targets without over-specifying expensive high-performance devices where simpler options would suffice.

Connector compatibility represents another practical consideration that significantly impacts installation complexity and long-term reliability. The Coaxial Power Combiner industry employs various standard connector types including N-type, SMA, 2.92-K, and specialized high-frequency connectors, each with specific frequency capabilities, power handling characteristics, and mechanical properties. Selecting a combiner with connectors that directly mate with your existing RF chain eliminates the need for adapters that introduce additional insertion loss, potential impedance mismatches, and mechanical failure points. Standard connectors also ensure easier maintenance and replacement scenarios, as technicians can quickly swap components without specialized tooling or custom interfaces.

Environmental operating conditions must also factor into Coaxial Power Combiner selection decisions. Devices intended for indoor laboratory use in temperature-controlled environments may not survive outdoor installation exposed to temperature extremes, humidity, precipitation, and solar radiation. Military and aerospace applications often require devices meeting stringent environmental specifications including wide operating temperature ranges from negative sixty-five degrees Celsius to positive eighty-five degrees Celsius or beyond, resistance to vibration and shock, and hermetic sealing to prevent moisture ingress. While environmentally hardened combiners may cost more initially, they deliver superior long-term reliability in challenging deployment scenarios, ultimately reducing total ownership costs through decreased maintenance and replacement requirements.

Installation and Integration Best Practices

Proper installation techniques play a vital role in achieving the optimal insertion loss performance that manufacturers specify for Coaxial Power Combiner devices. Mechanical stress on connectors during installation can degrade connection quality, introducing impedance discontinuities that increase insertion loss and create standing wave patterns that degrade system performance. Follow manufacturer torque specifications precisely when tightening connector interfaces—typically twelve inch-pounds or approximately one hundred thirty-six Newton-centimeters for N-type and SMA connectors. Under-tightening leaves gaps that increase contact resistance and allow potential signal leakage, while over-tightening can damage connector threads, crush dielectric insulators, or deform contact pins, all of which degrade electrical performance.

Cable routing and support structures around the Coaxial Power Combiner installation location require careful attention to minimize mechanical stress and maintain signal integrity. Sharp bends in coaxial cables create impedance variations and can damage the cable structure, increasing insertion loss in the overall system even if the combiner itself performs to specification. Maintain minimum bend radius requirements specified by cable manufacturers, typically ten times the cable outer diameter for flexible cables. Provide adequate mechanical support to prevent cables from hanging under their own weight, which creates stress concentrations at connector interfaces. In high-power applications, ensure sufficient spacing between cables and between the combiner and adjacent equipment to allow adequate airflow for thermal management.

System-level testing and validation after Coaxial Power Combiner installation verifies that actual performance meets design expectations and identifies potential issues before they impact operational capabilities. Measure insertion loss across the full operating frequency range using calibrated vector network analyzers, comparing measured values against manufacturer specifications and design requirements. Check voltage standing wave ratio at all ports to confirm proper impedance matching throughout the installation. For power combining applications, verify that phase relationships between input signals remain within acceptable tolerances, as phase errors can reduce combining efficiency and effectively increase insertion loss below theoretical expectations. Document baseline performance measurements for future comparison, enabling early detection of degradation trends that might indicate developing problems requiring maintenance intervention.

Huasen Microwave's Advanced Power Combiner Solutions

Superior Technology for Minimal Insertion Loss

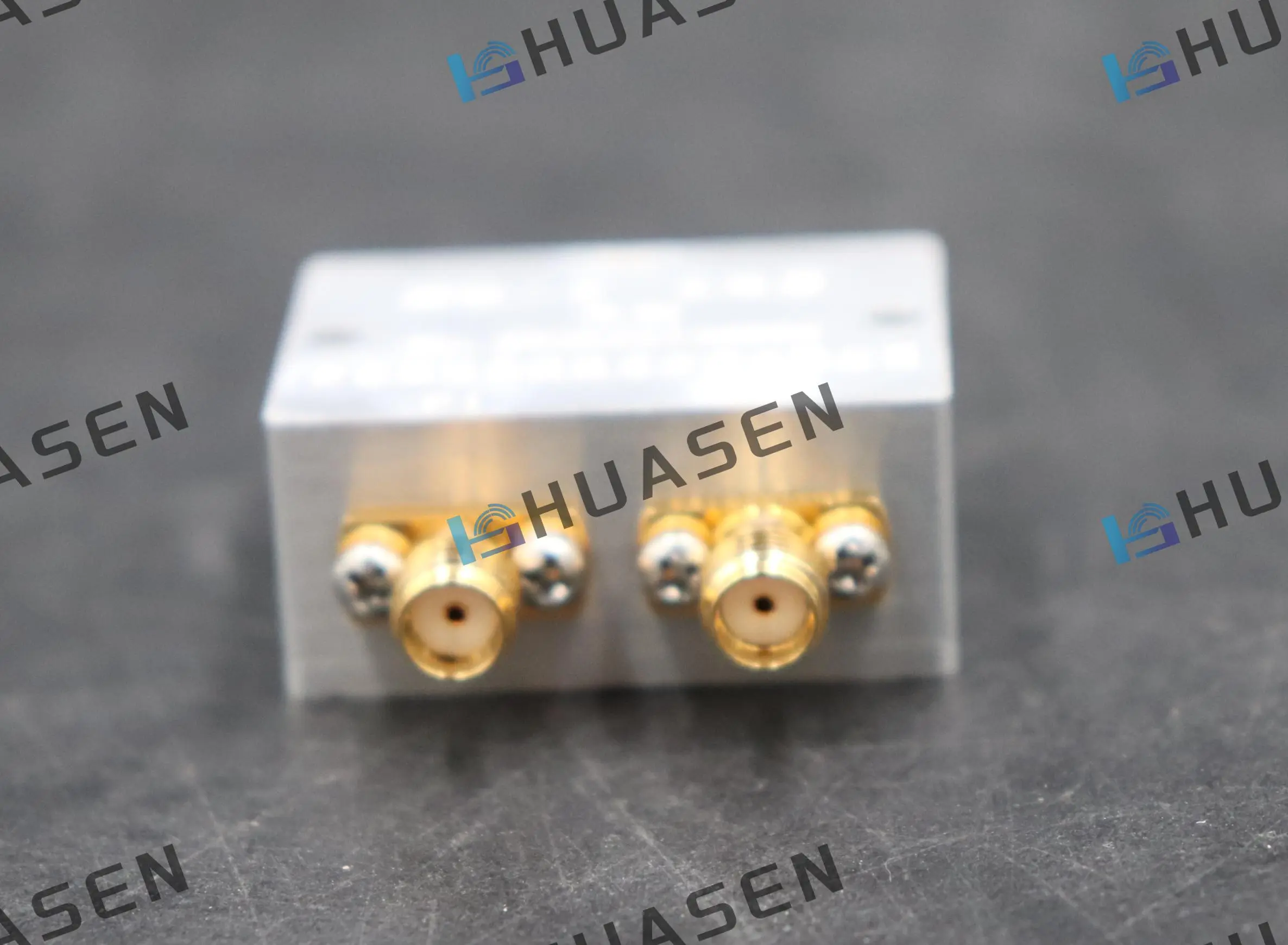

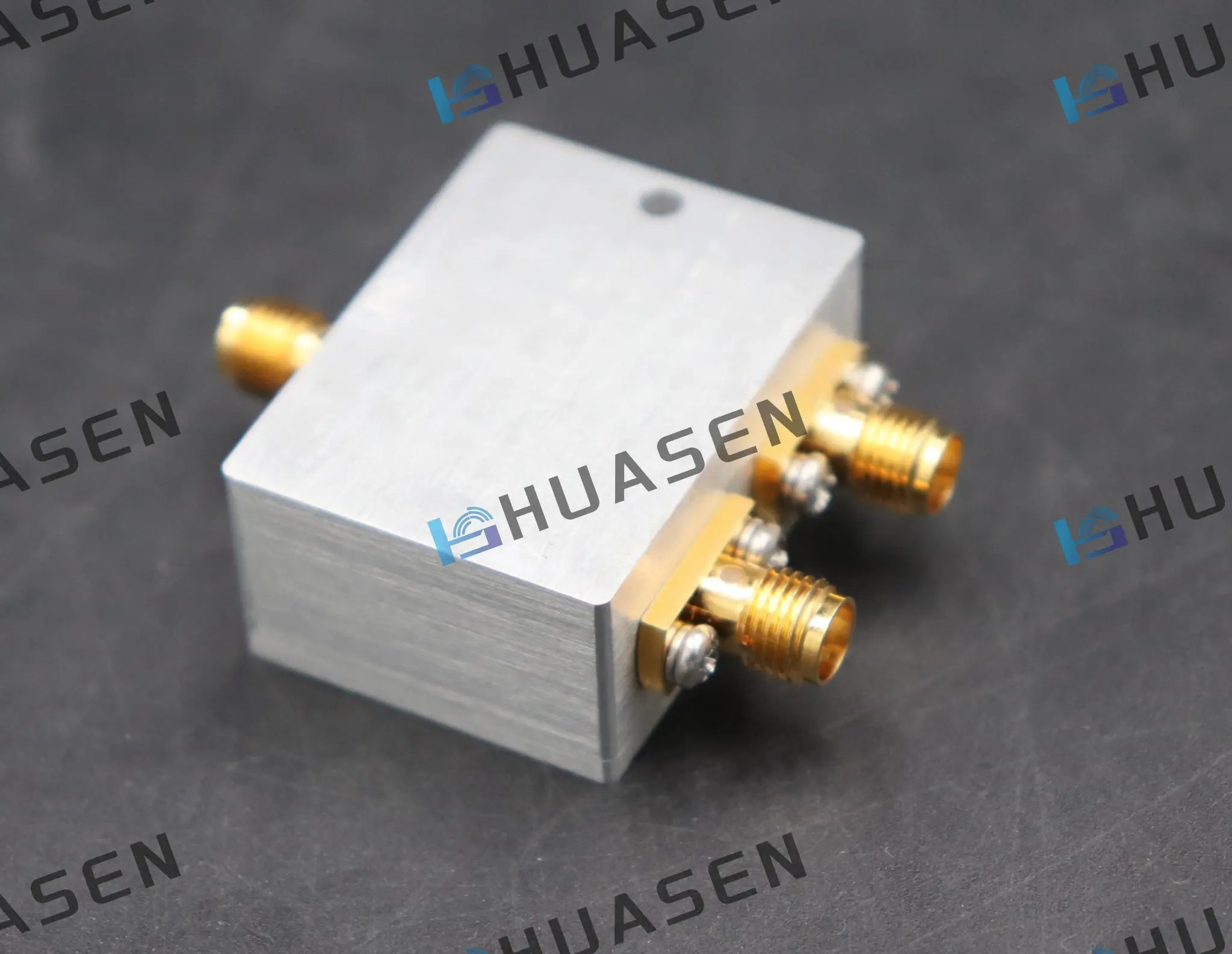

Huasen Microwave Technology has developed an advanced line of Coaxial Power Combiner products that deliver exceptional insertion loss performance through innovative radial line combining technology and precision manufacturing processes. Our combiners cover an extensive frequency range from direct current to forty gigahertz, providing versatile solutions for telecommunications infrastructure, radar systems, satellite communications, test equipment, and defense applications. The radial line topology employed in our designs ensures superior high-frequency stability and maintains remarkably flat insertion loss profiles across the entire operating bandwidth, eliminating the performance variations that plague conventional designs at band edges.

Manufacturing excellence stands at the core of achieving minimal insertion loss in our Coaxial Power Combiner products. We utilize high-grade copper and aluminum materials selected for optimal electrical conductivity and thermal management properties. Advanced CNC machining operations maintain tolerances measured in thousandths of an inch, ensuring precise impedance matching throughout the device structure and minimizing reflections that contribute to overall insertion loss. Gold plating on critical surfaces provides enhanced conductivity and long-term corrosion resistance, maintaining stable electrical performance throughout the operational lifetime even in challenging environmental conditions. Every combiner undergoes rigorous testing at multiple production stages, validating that insertion loss and other key parameters meet or exceed specifications before shipment.

Our Coaxial Power Combiner product line offers multiple power splitting ratios including one-to-two, one-to-three, one-to-four, one-to-eight, and one-to-ten configurations, enabling system designers to select the optimal device for their specific application requirements. Standard connector options including N-type, SMA, 2.92-K, and other high-frequency interfaces ensure seamless integration with existing RF chains. High power handling capabilities make our combiners suitable for demanding applications where substantial signal levels must be processed without performance degradation. Customization services allow us to tailor frequency response, connector configurations, and mechanical packaging to meet unique system requirements that standard catalog products cannot address.

Quality Assurance and Customer Support

As a National High-Tech Enterprise established in 1993 with over thirty years of experience in microwave and millimeter-wave component development, Huasen Microwave maintains stringent quality control measures throughout our production processes. Our ISO9001 certified manufacturing operations incorporate comprehensive testing protocols that verify electrical performance, mechanical integrity, and environmental resilience for every Coaxial Power Combiner we produce. RoHS and REACH compliance ensures our products meet international environmental and safety standards, while hundred percent performance testing before shipment guarantees that customers receive devices meeting all specified parameters including insertion loss, isolation, VSWR, and power handling capability.

Our three-thousand-square-meter research and development facility houses advanced testing capabilities including multiple microwave anechoic chambers, vector network analyzers covering frequencies to one hundred ten gigahertz and beyond, spectrum analyzers, signal generators, and specialized measurement equipment. This comprehensive instrumentation enables precise characterization of Coaxial Power Combiner performance across all relevant parameters, ensuring that our products deliver the low insertion loss and excellent electrical characteristics that demanding applications require. Our technical team possesses deep expertise in RF and microwave design, electromagnetic simulation, and measurement techniques, providing valuable support for customers facing challenging system integration requirements.

We back every Coaxial Power Combiner with a comprehensive one-year warranty covering defects in materials and workmanship, demonstrating our confidence in product quality and reliability. Our technical support team stands ready to assist with device selection, application guidance, integration support, and troubleshooting assistance throughout your product lifecycle. We understand that achieving optimal system performance requires more than just excellent components—it demands knowledgeable support and responsive service. Whether you need help selecting the right combiner for your application, guidance on installation best practices, or assistance resolving unexpected performance issues, our team brings decades of experience to help you succeed.

Conclusion

Selecting a Coaxial Power Combiner for optimal insertion loss requires comprehensive evaluation of frequency range, power handling, connector compatibility, and thermal management capabilities matched to your specific application requirements. Minimizing insertion loss directly improves system efficiency, reduces amplification requirements, and enhances overall performance across telecommunications, radar, and aerospace applications.

Cooperate with Huasen Microwave Technology Co., Ltd.

Founded in 1993, Huasen Microwave Technology Co., Ltd. stands as your trusted China Coaxial Power Combiner manufacturer delivering high-performance RF solutions. As a leading China Coaxial Power Combiner supplier and China Coaxial Power Combiner factory, we offer competitive Coaxial Power Combiner price with exceptional quality. Our products combine advanced radial line technology, precision CNC machining, and gold-plated construction for High Quality Coaxial Power Combiner solutions with minimal insertion loss. With over 200 skilled employees, three microwave anechoic chambers, and more than sixty advanced testing instruments, we deliver Coaxial Power Combiner for sale that meets the most demanding specifications. Whether you need standard configurations or custom solutions, our China Coaxial Power Combiner wholesale options provide outstanding value for radar, telecommunications, satellite, and defense applications. Contact us today at sales@huasenmicrowave.com to discuss your requirements and discover how our three decades of expertise can optimize your RF system performance. Save this page for easy reference when facing power combining challenges!
