What limits the bandwidth of a typical microstrip antenna?

A normal microstrip antenna's bandwidth is limited by the way it was designed and by the way it works physically. The main problem comes from the quality factor (Q) of the antenna, which makes bandwidth and other performance factors trade off. Basic microstrip patch setups have high-Q resonant structures that naturally have narrow bandwidth performance. For standard single-patch systems, the bandwidth limits are set by the thickness of the substrate, the dielectric constant, and the conductor losses. These limits are usually between 1% and 5% of the center frequency.

Introduction

Microstrip antennas have changed the way modern transmission systems work because of how low-profile they are, how easy they are to make, and how well they work with other parts. These small radiating elements are now essential parts in a wide range of devices, from simple cell phones to complex satellite transmission systems. Bandwidth is an important performance metric that directly affects an antenna's ability to handle multiple high-speed signal transmissions, especially in demanding industrial settings like 5G networks, IoT deployments, and defence communications infrastructure. In today's competitive market, B2B procurement specialists and engineering professionals need to understand the basic factors that limit antenna bandwidth in order to make smart supplier choices and product decisions. This in-depth study looks at the technical factors that affect bandwidth performance as well as practical factors that help clients choose the best antennas and improve deployment strategies in challenging wireless environments. As the needs of modern communication systems grow, they need antenna solutions that can work across a wider frequency range while still maintaining consistent performance. Industries that are building 5G networks for telecommunications, growing IoT networks, and making next-generation defence systems are always looking for antenna technologies that can work with multiple operational bands without affecting the integrity of the signal or the reliability of the system.

Understanding Microstrip Antenna Bandwidth

Bandwidth in microstrip antenna applications refers to the operational frequency range over which the antenna maintains acceptable performance standards, typically evaluated through return loss measurements or Voltage Standing Wave Ratio (VSWR) thresholds. Standard microstrip antenna designs commonly demonstrate relatively narrow bandwidth characteristics, often achieving only a few percentage points of the designated center frequency. This limitation presents significant challenges in industrial B2B contexts where bandwidth performance directly impacts signal reliability, multi-band operational capabilities, and overall system compatibility requirements.

Bandwidth Measurement Standards

Professional antenna evaluation employs specific criteria to define acceptable bandwidth performance. The most common standard establishes bandwidth boundaries at points where return loss drops to -10dB, corresponding to a VSWR of 2:1. This threshold ensures that at least 90% of transmitted power reaches the radiating element rather than reflecting back to the source. More stringent applications may require -15dB return loss performance, particularly in military and aerospace systems where signal integrity cannot be compromised.

Industrial Bandwidth Requirements

Industries implementing 5G telecommunications infrastructure, WiFi networks, IoT ecosystems, and defense communication systems increasingly demand antenna solutions with expanded bandwidth capabilities. These applications require seamless operation across multiple frequency bands while maintaining consistent radiation patterns and impedance matching. The narrow bandwidth characteristics of traditional microstrip designs often necessitate multiple antenna elements or complex matching networks, increasing system complexity and manufacturing costs. Modern communication protocols frequently employ frequency agility,microstrip patch antennas, and channel bonding techniques that require antenna systems capable of maintaining stable performance across broad frequency ranges. This operational requirement drives the need for advanced microstrip antenna designs that overcome traditional bandwidth limitations while preserving the inherent advantages of compact form factors and manufacturing efficiency.

Key Factors That Limit the Bandwidth of Microstrip Antennas

Multiple intrinsic design parameters work in combination to constrain the bandwidth performance of typical microstrip antenna configurations. Understanding these limiting factors enables engineers to make informed trade-offs during the design process and helps procurement professionals evaluate competing antenna solutions effectively.

Substrate Properties and Dielectric Effects

The dielectric substrate represents one of the most influential factors affecting microstrip antenna bandwidth performance. Substrate thickness directly impacts the antenna's quality factor, with thinner substrates typically producing higher Q values and correspondingly narrower bandwidth characteristics. Conversely, thicker substrates can improve bandwidth but often result in increased surface wave propagation and reduced radiation efficiency. Dielectric constant selection involves complex engineering trade-offs that significantly impact bandwidth performance. High dielectric constant materials enable compact antenna designs but typically constrain bandwidth due to increased energy storage within the dielectric medium. Low dielectric constant substrates can enhance bandwidth performance but require larger physical dimensions to achieve equivalent electrical characteristics. The dielectric loss tangent also influences bandwidth by affecting the antenna's quality factor and overall efficiency. Material stability across environmental conditions presents additional bandwidth considerations, particularly for outdoor installations and mobile applications. Temperature variations, humidity exposure, and mechanical stress can alter substrate properties and shift the antenna's resonant characteristics, potentially degrading bandwidth performance over operational lifetimes.

Patch Geometry and Feed Network Design

The physical dimensions and geometric configuration of the radiating patch element establish fundamental resonant properties that directly constrain bandwidth performance. Rectangular patch antennas, while simple to manufacture and analyze, typically exhibit the narrowest bandwidth characteristics due to their single-resonance behavior. The aspect ratio of rectangular patches influences bandwidth, with square configurations generally providing optimal impedance matching but a limited frequency range. Feed point location and feeding methodology significantly impact bandwidth performance through their effects on impedance matching and current distribution. Edge feeding techniques commonly used in microstrip designs can limit bandwidth due to impedance variations across frequency ranges. The feeding network design must balance impedance matching requirements with bandwidth objectives while maintaining acceptable radiation pattern characteristics. Ground plane configuration and finite ground effects introduce additional bandwidth constraints, particularly in compact antenna installations. The interaction between the radiating patch and ground plane boundaries affects the antenna's resonant behavior and impedance characteristics across the operational frequency range.

Manufacturing Tolerances and Real-World Performance

The transition from idealized simulation environments using tools such as HFSS or CST Microwave Studio to practical manufacturing realities often reveals additional bandwidth limitations. Manufacturing tolerances in substrate thickness, conductor dimensions, and dielectric properties can significantly impact resonant frequency and bandwidth performance. These variations become particularly critical in high-frequency applications where dimensional accuracy requirements increase substantially. Environmental factors, including electromagnetic interference, adjacent antenna coupling, and installation-specific conditions, can further constrain realized bandwidth performance compared to laboratory measurements. Proper consideration of these real-world effects during the design andmicrostrip patch antennaprocurement process helps ensure that antenna systems meet performance requirements in their intended operational environments.

Common Techniques to Improve Bandwidth in Microstrip Antennas

Advancing microstrip antenna bandwidth requires implementing sophisticated design methodologies and material selection strategies that address the fundamental limitations inherent in basic patch configurations. Modern antenna engineering employs multiple approaches to overcome traditional bandwidth constraints while preserving the compact profile and manufacturing advantages that make microstrip technology attractive for industrial applications.

Advanced Substrate Selection and Material Engineering

One of the most important things you can do to improve bandwidth is to choose the right low-loss dielectric materials with the best dielectric constants. Standard FR4 materials are not as good for electrical qualities as Rogers RT/duroid substrates, PTFE-based composites, and specialised ceramic-filled substrates. These more modern substrates usually have lower loss tangents and dielectric constants that are more stable across temperature and frequency ranges. This makes it possible for better bandwidth performance. As part of the process of optimising substrate thickness, improving bandwidth is weighed against other performance factors like radiation efficiency and surface wave transmission. Thick substrates can greatly increase bandwidth while keeping efficiency levels reasonable, as long as surface wave effects are carefully managed through careful design methods.

Multi-Resonant Design Approaches

Utilising multi-resonant antenna arrangements is one of the best ways to achieve significant bandwidth enhancements. Multiple radiating elements are divided by dielectric layers in stacked patch configurations. This creates multiple resonant frequencies that work together to make a wider overall bandwidth. This method can increase bandwidth by 300–50% compared to single-patch designs while keeping small sizes that are good for applications with limited room. The addition of non-fed radiating elements that create more resonant modes through parasitic element integration is another way to increase bandwidth. These extra patches can be put next to or stacked on top of the main radiating part to create coupled resonances that make the frequency response wider.

Advanced Feeding Techniques and Impedance Matching

Sophisticated feeding mechanisms, including aperture coupling, proximity coupling, and complex probe configurations, enable improved impedance matching across broader frequency ranges. Aperture-coupled feeding isolates the feed network from the radiating element, reducing spurious radiation and enabling more flexible impedance-matching network design. This feeding approach often achieves superior bandwidth performance compared to traditional edge-feeding or probe-feeding methods. Electromagnetic band-gap structures and metamaterial integration represent cutting-edge approaches for overcoming conventional bandwidth limitations. These engineered structures can modify the electromagnetic environment around the antenna element to enhance bandwidth, while abroadband microstrip antenna provides additional benefits such as reduced surface wave propagation and improved radiation pattern control.

Practical Procurement Considerations for Wideband Microstrip Antennas

Procurement professionals navigating the complex landscape of industrial antenna solutions must carefully evaluate bandwidth requirements against application-specific criteria to ensure optimal system performance. The selection process involves analyzing operational frequency bands for diverse technologies, including 5G infrastructure, LTE networks, WiFi systems, and IoT implementations, while considering long-term compatibility and scalability requirements.

Supplier Evaluation and Technical Capabilities

Forming relationships with antenna suppliers that have deep technical knowledge and a track record of improving bandwidth means getting access to cutting-edge solutions that are custom-made for each application. Suppliers should show that they know how to use advanced design methods, choose the right materials, and make changes that solve specific bandwidth problems. The availability of technical support, such as design help, simulation services, and prototype development, is a key factor in evaluating suppliers. The consistency of bandwidth performance across production quantities is greatly affected by the manufacturing capabilities and quality control processes. Manufacturers should follow strict testing procedures and give detailed information about how bandwidth behaves in a range of environments and operating situations.

Cost-Performance Analysis and Volume Considerations

To find the best balance between bandwidth performance needs and cost limits, it's important to look at the total system economics instead of just looking at the prices of the individual parts. Better bandwidth often makes the higher price worth it because it makes the system simpler, gets rid of the need for filters, and makes operations more flexible. Long-term supply agreements and volume pricing structures can have a big effect on the economics of a project, especially for large-scale deployments. As communication systems get more complicated, delivery logistics, inventory management, and supply chain reliability become more important. Beyond basic product specifications, suppliers who offer flexible delivery choices, reasonable lead times, and helpful customer service add value.

Case Studies: Bandwidth Optimization in Industrial Microstrip Antennas

Real-world implementation examples demonstrate the practical application of bandwidth enhancement techniques across diverse industrial sectors. These case studies illustrate the engineering challenges, solution approaches, and performance outcomes achieved through careful antenna design and supplier collaboration.

5G Infrastructure Implementation

When putting in place base station antennas for mid-band 5G applications that work in the 3.3–4.2 GHz frequency range, a big telecommunications equipment maker ran into bandwidth issues. Traditional single-patch microstrip designs couldn't get the 25% bandwidth they needed while still having good gain and radiation pattern properties. Using low-loss PTFE substrate materials and optimising element spacing, a stacked patch configuration with aperture-coupled feeding was used as a solution. The antenna system that was made had a 28% operational bandwidth and better than -15dB return loss across the entire frequency range. The change in gain stayed within ±1dB, and the stability of the radiation pattern was better than what was required by the standard. With this approach, the manufacturer was able to cut the number of antennas by 40% compared to older narrow-band designs. This made the system much cheaper and easier to install.

IoT Sensor Network Deployment

An industrial IoT system integrator needed small antenna options that could work with multiple communication protocols, such as cellular IoT, WiFi, and Bluetooth, over a frequency range of 2.4-6 GHz. The antenna could only be 20x15mm because of its size restrictions, and it had to work the same way on all target bands for it to meet performance standards. The solution used a fractal geometry patch design that was made on a flexible substrate material and had parasitic elements built in. Performance tests showed that it worked well across all frequency bands that were needed, with efficiency levels above 70%. The small size made it possible to fit sensors into housings with limited room, and the reliable connectivity worked in a variety of deployment settings. By getting rid of band-specific antenna variants, this solution cut inventory complexity by 60%. These real-life examples show how important it is for antenna suppliers and system integrators to work together on engineering projects. For bandwidth optimisation to work, it's important to think about the needs of the application, the surroundings, and the limitations of the manufacturing process throughout the design and implementation stages.

Conclusion

Microstrip antennas usually have frequency limits that come from broadband microstrip antennabasic design factors like the substrate's properties, the patch's shape, and how it is fed. Traditional single-patch configurations have bandwidth limits. But, using multi-resonant structures, picking the right substrate, and advanced feeding methods, along with other advanced design techniques, it is possible to make big bandwidth gains. When engineers know about these limitations and the different ways to make things better, they can choose the right antenna solutions for difficult applications while keeping performance, cost, and manufacturing quality in mind. As microstrip antenna technology keeps improving, new materials and creative design methods will make it possible to use even wider bandwidths.

FAQ

1. Can microstrip antenna bandwidth be expanded without increasing physical dimensions?

Bandwidth expansion without size penalties is achievable through multi-resonant design techniques such as stacked patches, parasitic elements, and advanced feeding mechanisms. These approaches create multiple coupled resonances that broaden the overall frequency response while maintaining compact form factors. However, some trade-offs in complexity and manufacturing cost typically accompany these enhancements.

2. How do substrate materials affect bandwidth performance in microstrip antennas?

Substrate selection significantly impacts bandwidth through dielectric constant, loss tangent, and thickness parameters. Lower dielectric constant materials generally enable broader bandwidth but require larger antenna dimensions. High-performance substrates like Rogers or Taconic materials offer superior bandwidth compared to standard FR4 while providing better temperature stability and lower losses.

3. What environmental factors can degrade microstrip antenna bandwidth performance?

Temperature fluctuations, humidity exposure, and electromagnetic interference can substantially impact realized bandwidth performance in operational environments. Temperature variations alter substrate properties and shift resonant frequencies, while moisture absorption changes dielectric characteristics. Proper environmental protection and ruggedized antenna designs help maintain bandwidth stability across diverse operating conditions.

Partner with Huasen Microwave for Advanced Microstrip Antenna Solutions

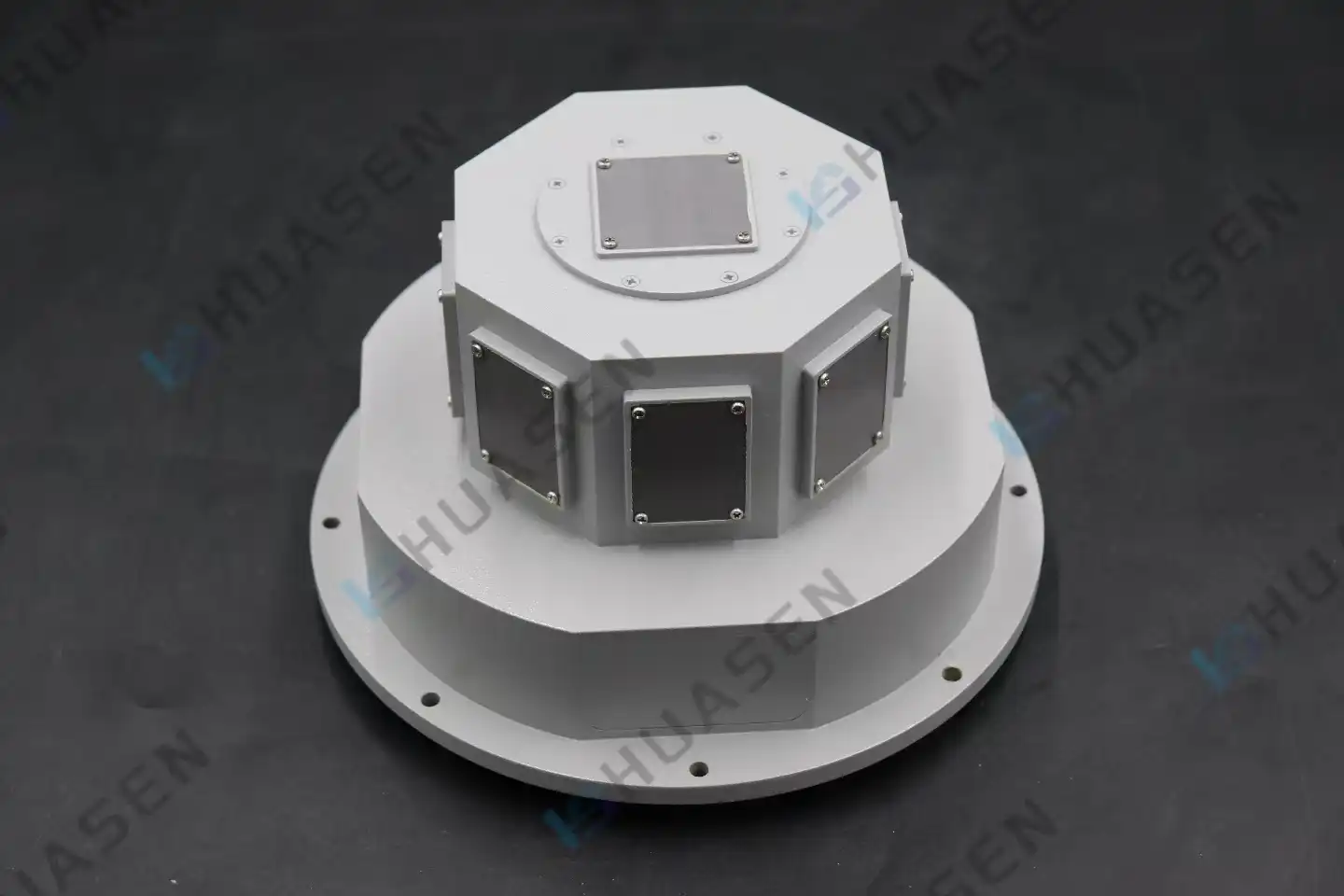

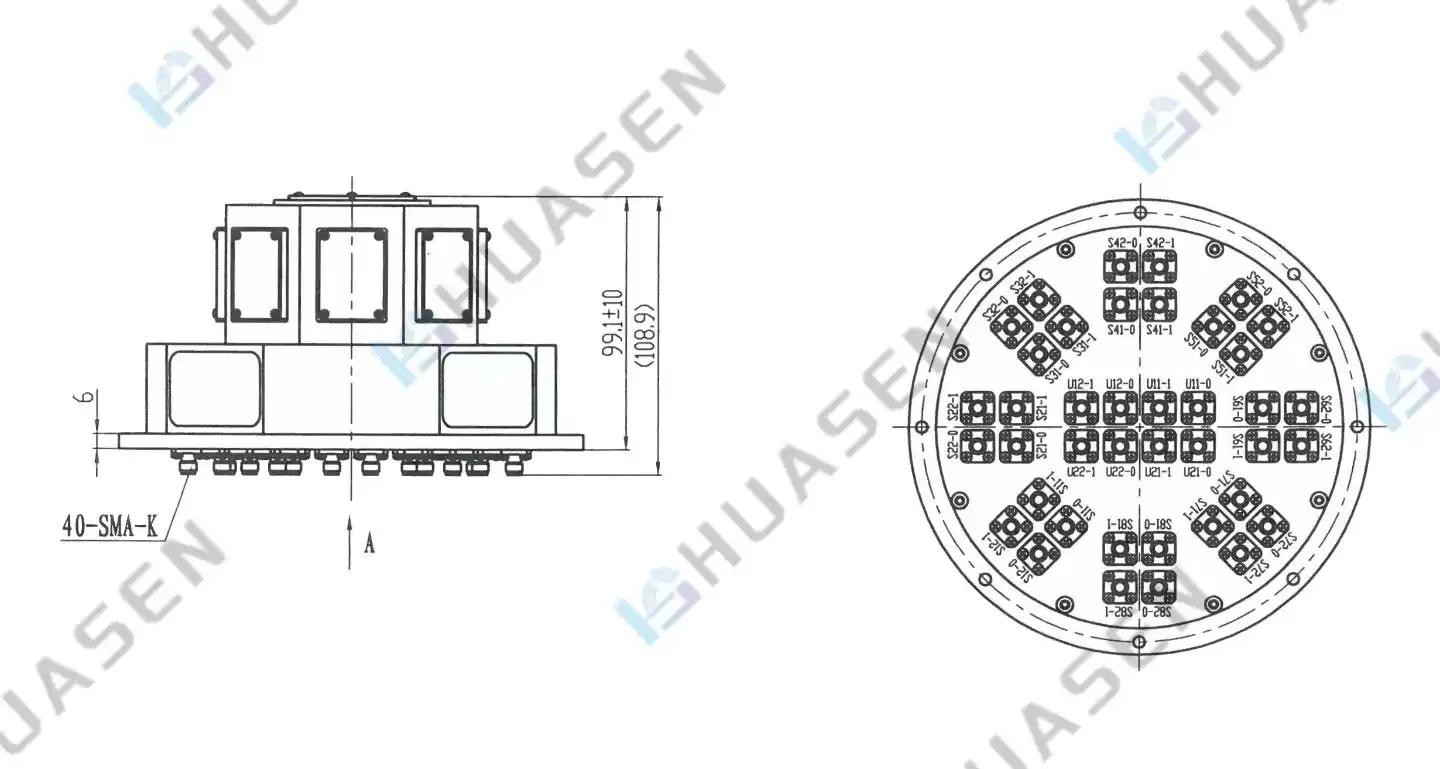

Huasen Microwave Technology delivers cutting-edge microstrip antenna solutions engineered specifically for demanding bandwidth applications across telecommunications, aerospace, and defense industries. Our hybrid waveguide-microstrip transmission networks achieve exceptional high-gain performance with ultra-lightweight construction and minimal profile requirements. Available configurations span from single patch to complex 8×8 arrays, supporting diverse polarization types including single linear, dual circular, and custom implementations. With radiation efficiency reaching 23dB gain across L to Ku bands, our customizable solutions address your most challenging bandwidth requirements while maintaining superior performance standards. Connect with our engineering team at sales@huasenmicrowave.com to explore how our microstrip antenna manufacturer expertise can optimize your next communication system deployment.

References

1. Garg, R., Bhartia, P., Bahl, I., & Ittipiboon, A. (2001). Microstrip Antenna Design Handbook. Boston: Artech House Publishers.

2. Kumar, G. & Ray, K.P. (2003). Broadband Microstrip Antennas. Boston: Artech House Publishers.

3. Lee, K.F. & Chen, W. (1997). Advances in Microstrip and Printed Antennas. New York: John Wiley & Sons.

4. Pozar, D.M. & Schaubert, D.H. (1995). Microstrip Antennas: The Analysis and Design of Microstrip Antennas and Arrays. New York: IEEE Press.

5. Wong, K.L. (2002). Compact and Broadband Microstrip Antennas. New York: John Wiley & Sons.

6. James, J.R. & Hall, P.S. (1989). Handbook of Microstrip Antennas. London: Peter Peregrinus Ltd.
