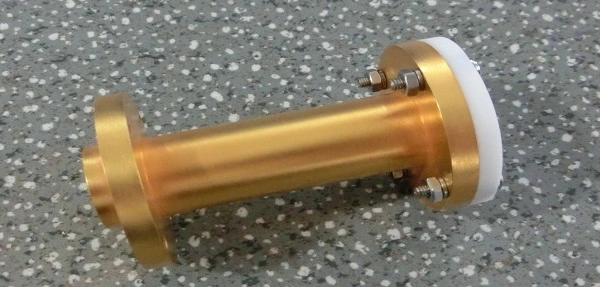

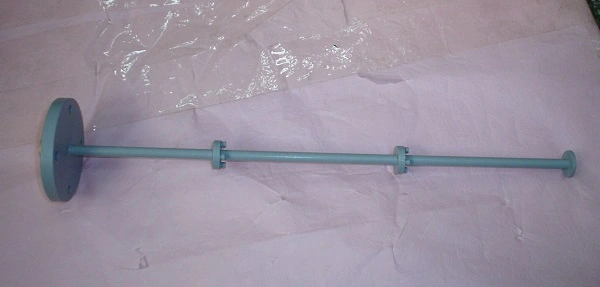

Circular Straight Waveguide
Advantages and Features:
- Low conductor and dielectric loss, no radiation loss
- High power capacity
- Simple structure, easy to manufacture
- Multiple materials available (lightweight aluminum, high-conductivity copper)
- Customizable length and radius options
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Circular Straight Waveguide: High-Performance RF Solutions by Huasen Microwave
Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Circular Straight Waveguide, offering cutting-edge RF solutions for aerospace, defense, and telecommunications industries. With over two decades of expertise, our products deliver unparalleled performance in high-frequency signal transmission. We pride ourselves on providing custom-tailored solutions that meet the most demanding requirements of our clients.
Why Choose Our Circular Straight Waveguide?
Our products are designed to excel in the most challenging environments. Here's why industry leaders trust Huasen:
- Exceptional Low-Loss Performance: Our waveguides offer minimal signal attenuation, ensuring optimal transmission efficiency.
- High Power Handling: Engineered to support high-power applications without compromising performance.
- Customizable Solutions: We offer tailored designs to meet your specific project requirements.
- Durability: Built to withstand extreme conditions, from space applications to harsh terrestrial environments.
- Compatibility: Our standardized flange interfaces ensure seamless integration with existing systems.
Product Features & Process
Our products are crafted using advanced manufacturing techniques:
- Precision CNC machining for tight tolerances (±0.001" diameter)
- High-conductivity copper and lightweight aluminum options
- Surface treatments include silver plating, gold plating, and passivation
- Hermetic sealing for vacuum and space applications
- Rigorous testing for axial deviation (<0.005°)
Core Performance Parameters
| Parameter | Value |
|---|---|
| Frequency Range | Up to 330 GHz |
| Insertion Loss | <0.01 dB/meter |
| Power Handling | 10+ kW (average) |
| VSWR | ≤1.05:1 |
| Temperature Range | -65°C to +150°C |
Applications
Huasen's Circular Straight Waveguide excels in various RF and microwave applications:
- Satellite Communication Systems
- Military Radar Networks
- Aerospace Testing Equipment
- Weather Radar Systems
- 5G/6G Infrastructure
- Scientific Research Facilities
Installation & Compatibility
Our waveguides feature:
- Standard flange interfaces (FBP/FBM) for easy integration
- Comprehensive installation guides and technical support
- Compatibility with major system architectures in the industry
Quality Control & After-Sales
We ensure top-notch quality through:
- ISO9001 certified quality management system
- RoHS and REACH compliance for global markets
- Rigorous testing at each production stage
- 1-year warranty on all products
- Dedicated after-sales support team
Packaging and Shipping
Our products are carefully packaged to prevent damage during transit:
- Custom-designed protective cases
- Shock-absorbing materials for sensitive components
- Vacuum-sealed options for long-term storage
- Detailed handling instructions included
FAQ
Q: What materials are used in your products?
A: We primarily use high-conductivity copper and lightweight aluminum, chosen for their excellent RF performance and durability.
Q: Can you provide waveguides for specific frequency bands?
A: Yes, we offer custom solutions tailored to your specific frequency requirements.
Q: Are your waveguides suitable for space applications?
A: Absolutely. Our waveguides undergo rigorous testing and can be specially treated for space environments, including thermal cycling and outgassing requirements.
Q: How do you ensure consistent quality across large production runs?
A: We employ advanced automated manufacturing processes and conduct 100% quality checks to maintain consistency across all production volumes.
Q: What's the typical lifespan of your products?
A: With proper installation and maintenance, our waveguides are designed to operate reliably for 20+ years in most applications.
Contact Us
Ready to elevate your RF system performance? Contact our expert team at sales@huasenmicrowave.com for Circular Straight Waveguide personalized support and quotations.
