How to ensure stability of antenna near field probe?

Ensuring antenna near-field probe stability requires implementing rigorous environmental controls, maintaining precise mechanical alignment, and conducting regular calibration protocols. A quality Measurement Probe must demonstrate consistent performance across temperature variations, electromagnetic interference, and mechanical stress. Stability directly correlates with measurement accuracy, making proper probe selection, handling procedures, and environmental management essential for reliable electromagnetic field characterization in critical applications, including 5G/6G base stations, satellite communications, and radar systems testing.

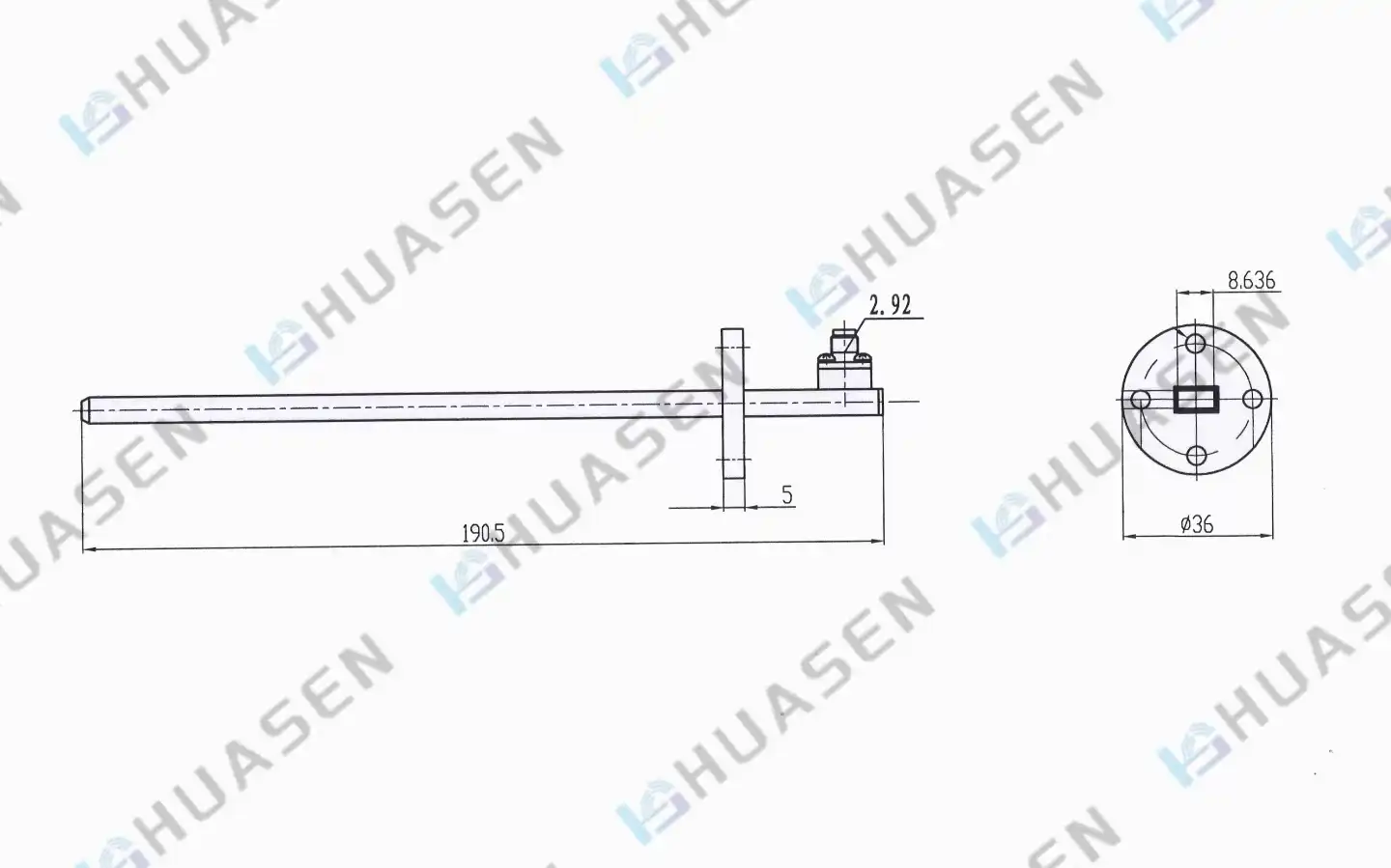

Understanding Antenna Near-Field Probe Stability

Antenna near-field probes serve as precision-engineered electromagnetic sensors that capture vector field data within the radiative near-field region of antennas under test. These sophisticated instruments enable engineers to characterize massive satellite arrays and gain-sensitive 5G/6G deployments within compact anechoic chambers, bypassing the logistical challenges of outdoor testing ranges.

Critical Stability Parameters

Probe stability encompasses multiple technical dimensions that directly influence measurement reliability. The most crucial parameters include cross-polarization isolation exceeding 25dB, return loss maintaining VSWR below 1.2:1, and mechanical aperture tolerances within ±0.01mm. These specifications ensure that the probe maintains its electromagnetic characteristics throughout extended measurement campaigns. Modern near-field measurement systems operate across frequencies from 0.49 to 112GHz, demanding exceptional stability across this broad spectrum. Temperature coefficients, connector repeatability, and cable phase stability become increasingly critical at millimeter-wave frequencies, where even microscopic mechanical variations can introduce significant measurement errors.

Environmental Impact on Probe Performance

Environmental conditions profoundly affect probe stability through multiple mechanisms. Temperature variations alter the physical dimensions of waveguide components, shifting resonant frequencies and modifying radiation patterns. Humidity influences the dielectric properties of connector materials and can cause corrosion in poorly sealed interfaces. Electromagnetic interference from nearby transmitters or switching power supplies can corrupt sensitive field measurements. Vibration from building HVAC systems or nearby machinery introduces mechanical instabilities that manifest as phase noise in the measurement data. Understanding these environmental factors enables engineers to implement appropriate mitigation strategies during facility design and measurement planning.

Common Causes of Instability in Antenna Near-Field Probes

Stability degradation in antenna near-field measurement systems stems from interconnected mechanical, environmental, and electronic factors that can compromise measurement accuracy over time. Identifying these root causes enables proactive maintenance strategies and informed procurement decisions.

Mechanical Deterioration Factors

Physical wear represents a primary source of measurement probe instability, particularly in high-usage laboratory environments. Connector wear from repeated mating cycles gradually increases return loss and introduces phase variations. The precision-machined waveguide apertures can sustain microscopic damage from improper handling or cleaning procedures, altering the fundamental radiation characteristics. Mounting system degradation affects probe positioning accuracy, Antenna Probe,which becomes especially critical at millimeter-wave frequencies. Temperature cycling causes thermal expansion and contraction in mechanical assemblies, potentially loosening critical joints or creating stress concentrations that lead to permanent deformation. These mechanical issues accumulate over time, gradually degrading measurement repeatability.

Electronic System Instabilities

Signal integrity issues arise from multiple electronic subsystems within the measurement chain. Cable flexure during probe positioning creates phase variations that appear as measurement noise. Connector oxidation increases contact resistance and generates intermodulation products that contaminate the desired signal. RF leakage through inadequate shielding allows external signals to influence measurement results. Calibration drift occurs naturally in all electronic systems due to component aging and environmental stress. Reference standards shift over time, causing systematic errors that may not be immediately apparent but accumulate to significant measurement uncertainty. Active electronic components in amplifiers or frequency converters exhibit noise figure degradation and gain variations that directly impact measurement sensitivity.

Environmental Stress Contributors

Atmospheric conditions create subtle but measurable effects on probe performance. Barometric pressure variations alter the dielectric constant of air-filled waveguide sections, shifting electrical length and phase characteristics. Relative humidity affects connector materials and can cause condensation in poorly sealed assemblies, leading to intermittent electrical contact issues. Electromagnetic interference from cellular networks, WiFi systems, and industrial equipment can overwhelm sensitive measurement receivers. Ground loops between measurement equipment create common-mode currents that introduce noise and spurious signals. Building electrical systems contributes interference through switching transients and harmonic distortion that couples into measurement circuits.

Proven Methods to Ensure and Improve Stability

Achieving consistent probe stability demands a comprehensive approach integrating design optimization, environmental control, and maintenance protocols. These methods have been validated across diverse measurement applications and provide measurable improvements in system performance.

Advanced Calibration Strategies

Implementing rigorous calibration protocols aligned with IEEE 1720 standards ensures measurement traceability and accuracy. The three-antenna method provides absolute gain verification against Standard Gain Horns, establishing NIST-traceable reference standards. Regular VSWR sweeps using Vector Network Analyzers confirm that probes maintain matched impedance characteristics across their operational bandwidth. Probe pattern verification through E-plane and H-plane measurements validates theoretical radiation models essential for probe correction algorithms. Cross-polarization isolation testing confirms the probe's ability to reject off-axis signals, critical for accurate axial ratio measurements. Documentation of calibration coefficients enables mathematical probe correction that removes systematic errors from measurement data. Temperature compensation techniques account for thermal effects on probe characteristics. Measuring probe parameters across operational temperature ranges enables software correction for thermal drift. Environmental chambers provide controlled conditions for characterizing temperature coefficients and developing compensation algorithms.

Environmental Control Implementation

Creating stable measurement environments requires attention to multiple physical parameters. Vibration isolation systems using pneumatic or elastomeric mounts prevent building vibrations from affecting probe positioning. Temperature regulation within ±1°C maintains the dimensional stability of mechanical components and consistentAntenna Probeelectrical characteristics. Electromagnetic shielding design encompasses both facility-level and equipment-level considerations. Shielded anechoic chambers provide controlled electromagnetic environments free from external interference. RF filters on power lines and data cables prevent conducted interference from contaminating measurement circuits. Proper grounding techniques eliminate ground loops while maintaining safety requirements. Humidity control prevents condensation in connectors and waveguide assemblies while maintaining consistent dielectric properties. Clean air filtration systems remove particulate contamination that could affect connector interfaces or probe apertures. These environmental controls work synergistically to create measurement conditions that support maximum probe stability.

Case Studies and Real-World Applications

Real-world implementation of probe stability enhancement measures demonstrates practical benefits across diverse measurement scenarios. These case studies illustrate how proper stability management translates to improved measurement confidence and reduced operational costs.

5G Base Station Characterization

A big company that makes telecommunications equipment set up full stability processes for testing massive MIMO base stations. Dual-polarization near-field measurement probes (WOEWDP) working at 28GHz were used in the measurement operation. They had to meet strict accuracy standards for beam-forming validation. As part of the environmental control methods, the temperature was kept within 0.5°C of the target level, and vibrations were blocked up to -40dB above 10Hz. Standardized probe calibration methods include checking the readings once a week and doing a full calibration once a month. The stability improvements cut the measurement range from ±0.3dB to ±0.1dB. This made it possible to see small beam-forming mistakes that were hidden by measurement noise before. Cost benefits included shorter tests because of higher faith in the measurements and fewer retests because of results that were not clear. The improved stability made it possible for tests to be done automatically overnight, which increased lab output by 40% while keeping quality standards for measurements.

Satellite Payload Testing Applications

A company that makes spacecraft came up with special stability procedures for using planar near-field techniques to test large synthetic aperture radar arrays. Broadband near-field measurement probes (WBOEWP) covering various frequency bands from 1GHz to 18GHz and exhibiting exceptional phase stability over long measurement periods were required for the application. As part of the implementation, custom environmental chambers were built that could keep thermal vacuum conditions while still meeting probe performance standards. Precision positioning systems with an accuracy of less than a millimeter made the mechanical stability better. Calibration methods were changed to work in space, taking into account things like outgassing and checking for errors during thermal cycling. The results showed that the phase stayed stable within ±2 degrees over 8 hours of measurements, which made it possible to accurately reconstruct the far-field pattern from the near-field data. The increased stability cut measurement sessions from weeks to days, which greatly sped up the development of spacecraft while still meeting mission-critical antenna performance standards.

Automotive Radar Sensor Validation

A company that makes parts for cars used millimeter-wave measurement methods to improve the stability of 77-81GHz radar sensor testing. For safety-critical sensor validation, the application needed very accurate measurements with errors of less than 0.2dB gain and 3 degrees phase. Coaxial symmetric dipole probes (COECP) were chosen because they are strong mechanically and have stable electrical properties at millimeter-wave frequencies. Environmental controls for production test settings included preventing vibrations and keeping the temperature stable. Automated calibration methods cut down on human error and made sure that probe performance was the same across multiple test stations. The stability improvements let manufacturers make changes that weren't seen before, which improved radar sensor quality and lowered field failure rates. Production output went up by 25% because measurements were more reliable and there was less need for retests.

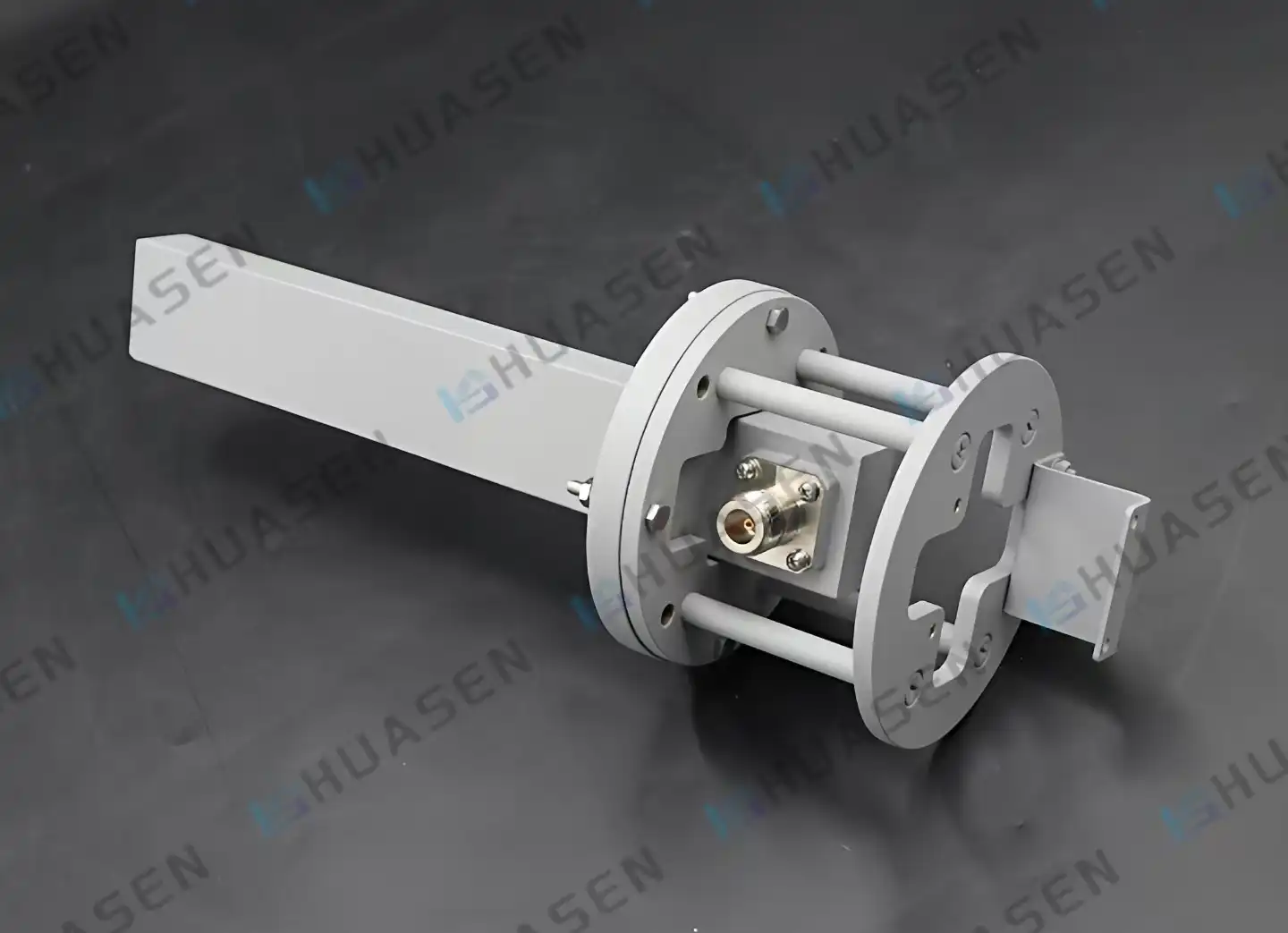

Procurement Guide: Choosing and Buying Stable Antenna Near-Field Probes

Selecting measurement probes with proven stability characteristics requires careful evaluation of technical specifications, manufacturer capabilities, and support infrastructure. Strategic procurement decisions balance immediate performance needs with long-term operational requirements.

Essential Technical Specifications

Finding out how stable a probe is starts with looking at basic electromagnetic factors that have a direct effect on how accurate a measurement is. To keep measurements from getting messed up, cross-polarization isolation requirements should be higher than 25dB across the working bandwidth. To keep standing wave effects that cause measurement ripple to a minimum, return loss requirements usually say that VSWR must be less than 1.2:1. Frequency coverage must take into account both present and future measurement needs. Broadband designs that cover frequencies from 0.49GHz to 112GHz give you more practical options, but they might not work as well as band-specific solutions. Connector compatibility with standard interfaces like K, SMA-K, and 2.92-K makes system integration flexible while keeping measurement accuracy. The following core specifications need to be carefully considered during the procurement process. Long-term stability is affected by the quality of the mechanical design in terms of how resistant the connectors are to wear and how stable the dimensions are when the temperature changes. Choice of materials affects how well they fight corrosion and how much they expand and contract when heated, both of which affect electrical performance. Tolerances in manufacturing determine both the original accuracy and the long-term stability trends. Quality certifications, such as ISO compliance and MIL-STD conformance, show that manufacturing is consistent and reliable. Traceability of calibration data ensures accurate measurements and guarantees coverage, guards against early failures. The total cost of ownership for the probe over its useful life is based on these specs.

Manufacturer Evaluation Criteria

When judging a manufacturer's skills, you need to look at both their technical know-how and how stable their business is, as both can affect the availability of long-term help. Design skills in microwave engineering are closely linked to how well a product works and how creatively it can be made. Manufacturing quality systems make sure thatMeasurement Probe production is always the same, and investments in research and development show how products will change in the future. Technical support skills are very important during adoption and ongoing operations. Help from applications engineers helps make the best choice of tool for each measurement need. Calibration services keep measurements accurate, and repair services keep operations running as smoothly as possible. Training programs make sure that users are competent and improve the accuracy of measurements. Long-term viability and help availability are shown by business factors such as financial stability, market position, and customer base size. Customers can be sure that their products will always be available and that they will get good technical help from manufacturers that have been around for a while. A global presence makes sure that local help is possible, and a strong supply chain makes sure that products are always available.

Conclusion

To keep an antenna near-field probe stable, you need a methodical approach that includes controlling the environment, making sure the mechanics are precise, and following strict calibration methods. Key factors that affect stability include controlling the temperature, isolating vibrations, protecting electromagnetic fields, and using the right handling techniques to keep the probe's integrity over long periods of use. When used correctly, modern measurement tools that work from 0.49GHz to 112GHz and have cross-polarization isolation of more than 25dB make it possible to accurately characterize electromagnetic fields. Strategic purchasing decisions that balance technical requirements, manufacturer capabilities, and long-term support needs ensure the highest level of measurement accuracy and operational efficiency in a wide range of settings, such as 5G/6G base stations, satellite communications, and automotive radar systems.

FAQ

1. What are the recommended calibration intervals for antenna near-field measurement probes?

Industry best practices recommend annual visual inspections for aperture damage, including dents or corrosion, with complete electrical verification every two years through Vector Network Analyzer sweeps. High-usage laboratory environments may require more frequent calibration cycles, particularly when measurement uncertainty budgets demand exceptional accuracy. Emergency recalibration becomes necessary immediately after any physical impact or suspected damage.

2. How do temperature variations affect probe stability and measurement accuracy?

Temperature fluctuations alter the physical dimensions of waveguide components, shifting resonant frequencies and modifying radiation patterns. Millimeter-wave probes exhibit heightened sensitivity with typical temperature coefficients of 10-50 ppm/°C affecting electrical length. Maintaining temperature stability within ±1°C during measurements prevents thermal drift errors, while temperature compensation algorithms can correct for known coefficients.

3. What distinguishes active versus passive probe stability characteristics?

Passive probes offer superior long-term stability due to their lack of active electronic components that can drift or fail over time. Active probes provide enhanced sensitivity and dynamic range but require more frequent calibration due to amplifier gain variations and noise figure degradation. Power handling capabilities differ significantly, with passive waveguide probes typically handling 100-500W compared to milliwatt levels for active designs.

4. How can environmental electromagnetic interference be minimized in probe measurements?

Implementing comprehensive shielding strategies, including anechoic chamber environments, RF-filtered power supplies, and proper grounding techniques, effectively reduces external interference. Measurement scheduling during low-interference periods avoids cellular and WiFi traffic peaks. Spectrum analysis prior to measurements identifies potential interference sources, while time-domain gating techniques can eliminate some contamination effects.

5. What mechanical factors most significantly impact probe stability?

Connector wear from repeated mating cycles gradually increases return loss and introduces phase variations, particularly at millimeter-wave frequencies. Mounting system precision directly affects positioning repeatability, while thermal expansion in mechanical assemblies can create permanent deformation. Proper handling procedures and mechanical protection prevent aperture damage that fundamentally alters probe radiation characteristics.

Contact Huasen Microwave for Premium Measurement Probe Solutions

Huasen Microwave stands as a trusted measurement probe supplier with over three decades of expertise in high-frequency microwave and millimeter-wave component development. Our comprehensive product portfolio includes waveguide orthogonal feed (WOEWP), dual-polarization near-field measurement probes (WOEWDP), Measurement Probe,and broadband measurement solutions covering 0.49-112GHz with superior cross-polarization isolation exceeding 25dB. Advanced manufacturing capabilities ensure exceptional stability and reliability for critical applications in telecommunications, aerospace, and defense sectors. Our engineering team provides comprehensive technical support, including custom probe design, calibration services, and application guidance to optimize your measurement accuracy. Contact our specialists at sales@huasenmicrowave.com or visit huasenmicrowave.com to discover how our proven measurement probe solutions can enhance your testing capabilities while ensuring long-term stability and performance reliability.
