Mitered Bend Waveguide

Types: E-plane notch bend (WTEB) 、 H-plane notch bend (WTHB)
Angle: Standard bend 90° (support customizable)
Applicable scenarios: Narrow bandwidth, low power, large waveguide size requirements
VSWR: ≤1.15 (for full-band) or ≤1.1 (for narrow-band)
Flange types: FDP/FDM (low frequency), FBP/FBM (high frequency)
Materials: Aluminum (oxidized coating) or copper (silver-plated coating)

Send Inquiry

Download

Free Samples
Quality Assurance
24/7 Customer Service

Product Introduction

Mitered Bend Waveguide: High-Performance RF Solutions by Huasen Microwave

Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Mitered Bend Waveguide, offering cutting-edge RF and microwave solutions since 1993. Our expertly crafted products are designed to meet the demanding needs of telecommunications, radar, aerospace, and defense industries. With our commitment to innovation and quality, we provide compact, high-performance waveguide components that excel in space-constrained applications.

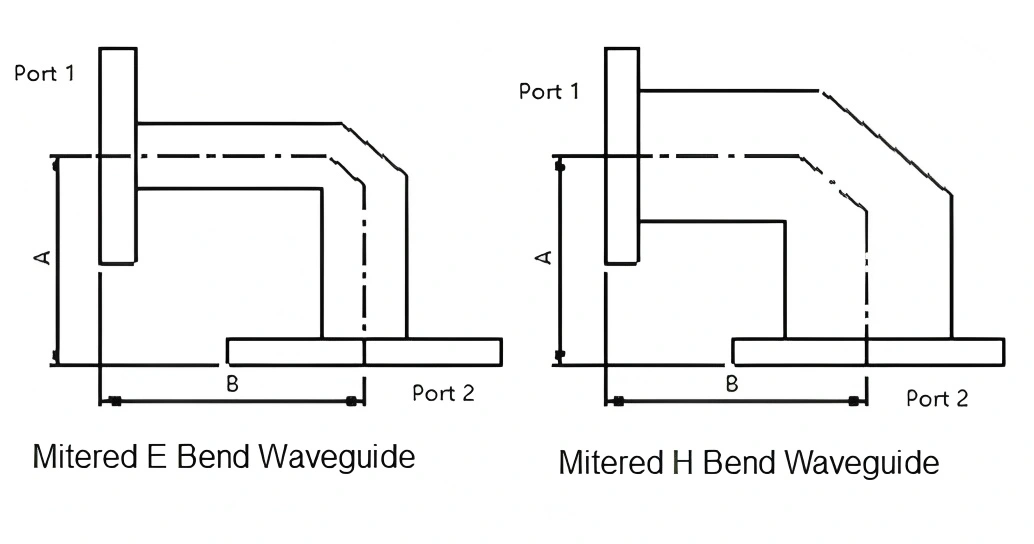

Mitered Bend Waveguide-1

Why Choose Our Mitered Bend Waveguide?

Our product stand out for their exceptional performance and versatility:

Compact Design: Ideal for tight spaces in aerospace and radar systems
Low VSWR: Ensures minimal signal reflection and maximum power transfer
Customization: Available in non-standard angles and sizes to fit your specific needs
Durability: Constructed from high-quality materials for long-lasting performance
Excellent Flange Compatibility: Seamless integration with existing systems

Standard Product Data Sheets

Part No	WG Type EIA	Freq Range (GHz)	Operating Bandwidth	VSWR	Min Dimension (A X B) mm	Flange	Material
HS3WTEBAXBPM	WR2300	0.32-0.49	Full bandwidth	≤1.15	220 X220	FDP/FDM	Aluminum
HS3WTHBAXBPM	WR2300	0.32-0.49	≤15%	≤1.15	350 X650	FDP/FDM	Aluminum
HS4WTEBAXBPM	WR2100	0.35-0.53	Full bandwidth	≤1.15	200 X200	FDP/FDM	Aluminum
HS4WTHBAXBPM	WR2100	0.35-0.53	≤15%	≤1.15	330 X330	FDP/FDM	Aluminum
HS5WTEBAXBPM	WR1800	0.41-0.62	Full bandwidth	≤1.15	180 X180	FDP/FDM	Aluminum
HS5WTHBAXBPM	WR1800	0.41-0.62	≤15%	≤1.15	300 X300	FDP/FDM	Aluminum
HS6WTEBAXBPM	WR1500	0.49-0.75	Full bandwidth	≤1.15	150 X150	FDP/FDM	Aluminum
HS6WTHBAXBPM	WR1500	0.49-0.75	≤15%	≤1.15	240 X240	FDP/FDM	Aluminum
HS8WTEBAXBPM	WR1150	0.64-0.98	Full bandwidth	≤1.15	130 X130	FDP/FDM	Aluminum
HS8WTHBAXBPM	WR1150	0.64-0.98	≤15%	≤1.15	220 X220	FDP/FDM	Aluminum
HS9WTEBAXBPM	WR975	0.75-1.15	Full bandwidth	≤1.15	120 X120	FDP/FDM	Aluminum
HS9WTHBAXBPM	WR975	0.75-1.15	≤15%	≤1.15	200 X200	FDP/FDM	Aluminum
HS12WTEBAXBPM	WR770	0.96-1.46	Full bandwidth	≤1.15	110 X110	FDP/FDM	Aluminum
HS12WTHBAXBPM	WR770	0.96-1.46	≤15%	≤1.15	160 X160	FDP/FDM	Aluminum
HS14WTEBAXBPM	WR650	1.13-1.73	Full bandwidth	≤1.15	100 X100	FDP/FDM	Aluminum
HS14WTHBAXBPM	WR650	1.13-1.73	≤15%	≤1.15	140 X140	FDP/FDM	Aluminum
HS18WTEBAXBPM	WR510	1.45-2.20	Full bandwidth	≤1.15	90 X90	FDP/FDM	Aluminum
HS18WTHBAXBPM	WR510	1.45-2.20	≤15%	≤1.15	120 X120	FDP/FDM	Aluminum
HS22WTEBAXBPM	WR430	1.72-2.61	Full bandwidth	≤1.15	70 X70	FDP/FDM	Aluminum
HS22WTHBAXBPM	WR430	1.72-2.61	≤15%	≤1.15	100 X100	FDP/FDM	Aluminum
HS26WTEBAXBPM	WR340	2.17-3.30	Full bandwidth	≤1.15	70 X70	FDP/FDM	Aluminum
HS26WTHBAXBPM	WR340	2.17-3.30	≤15%	≤1.15	100 X100	FDP/FDM	Aluminum
HS32WTEBAXBPM	WR284	2.60-3.95	Full bandwidth	≤1.15	60 X60	FDP/FDM	Aluminum
HS32WTHBAXBPM	WR284	2.60-3.95	≤15%	≤1.15	65 X65	FDP/FDM	Aluminum
HS40WTEBAXBPM	WR229	3.22-4.90	Full bandwidth	≤1.15	45 X45	FDP/FDM	Aluminum
HS40WTHBAXBPM	WR229	3.22-4.90	≤15%	≤1.15	60 X60	FDP/FDM	Aluminum
HS48WTEBAXBPM	WR187	3.94-5.99	Full bandwidth	≤1.15	45 X45	FDP/FDM	Aluminum
HS48WTHBAXBPM	WR187	3.94-5.99	≤15%	≤1.15	60 X60	FDP/FDM	Aluminum
HS58WTEBAXBPM	WR159	4.64-7.05	Full bandwidth	≤1.15	40 X40	FDP/FDM	Aluminum
HS58WTHBAXBPM	WR159	4.64-7.05	≤15%	≤1.15	50 X50	FDP/FDM	Aluminum
HS70WTEBAXBPM	WR137	5.38-8.17	Full bandwidth	≤1.15	35 X35	FDP/FDM	Copper
HS70WTHBAXBPM	WR137	5.38-8.17	≤15%	≤1.15	45 X45	FDP/FDM	Copper
HS84WTEBAXBPM	WR112	6.57-9.99	Full bandwidth	≤1.15	30 X30	FBP/FBM	Copper
HS84WTHBAXBPM	WR112	6.57-9.99	≤15%	≤1.15	40 X40	FBP/FBM	Copper
HS100WTEBAXBPM	WR90	8.20-12.40	Full bandwidth	≤1.15	25 X25	FBP/FBM	Copper
HS100WTHBAXBPM	WR90	8.20-12.4	≤15%	≤1.15	30 X30	FBP/FBM	Copper
HS120WTEBAXBPM	WR75	9.84-15.0	Full bandwidth	≤1.15	25 X25	FBP/FBM	Copper
HS120WTHBAXBPM	WR75	9.84-15.0	≤15%	≤1.15	30 X30	FBP/FBM	Copper
HS140WTEBAXBPM	WR62	11.9-18.0	Full bandwidth	≤1.15	20 X20	FBP/FBM	Copper
HS140WTHBAXBPM	WR62	11.9-18.0	≤15%	≤1.15	25 X25	FBP/FBM	Copper
HS180WTEBAXBPM	WR51	14.5-22.0	Full bandwidth	≤1.15	20 X20	FBP/FBM	Copper
HS180WTHBAXBPM	WR51	14.5-22.0	≤15%	≤1.15	25 X25	FBP/FBM	Copper
HS220WTEBAXBPM	WR42	17.6-26.7	Full bandwidth	≤1.15	15 X15	FBP/FBM	Copper
HS220WTHBAXBPM	WR42	17.6-26.7	≤10%	≤1.15	20 X20	FBP/FBM	Copper
HS260WTEBAXBPM	WR34	21.7-33.0	Full bandwidth	≤1.15	15 X15	FBP/FBM	Copper
HS260WTHBAXBPM	WR34	21.7-33.0	≤10%	≤1.15	20 X20	FBP/FBM	Copper
HS320WTEBAXBPM	WR28	26.5-40.0	Full bandwidth	≤1.15	12 X12	FBP/FBM	Copper
HS320WTHBAXBPM	WR28	26.5-40.0	≤10%	≤1.15	18 X18	FBP/FBM	Copper

Product Features & Process

Our products are precision-engineered using advanced manufacturing techniques:

CNC Machining: Ensures tight dimensional tolerances (±0.05mm)
High-Purity Materials: Oxygen-free copper and aluminum alloys for optimal performance
Surface Finishing: <0.8μm Ra for minimal signal attenuation
Rigorous Testing: Each unit undergoes thorough electrical and mechanical testing

Applications

Huasen's Mitered Bend Waveguide is crucial components in various high-frequency applications:

Radar Systems: Military and weather radar
Satellite Communications: Ground stations and space-based systems
Test & Measurement Equipment: Network analyzers and signal generators
Medical Imaging: MRI machines and cancer treatment systems

Installation & Compatibility

Our waveguides are designed for easy installation and broad compatibility:

Standard Flange Options: Compatible with UG, CPR, and CMR series flanges
Alignment Pins: Ensure precise mating and repeatability
Mounting Hardware: Included for secure installation
Custom Interfaces: Available upon request for unique system requirements

Quality Control & After-Sales

We prioritize quality and customer satisfaction:

ISO9001 Certified: Rigorous quality management system
RoHS and REACH Compliant: Environmentally friendly materials
1-Year Warranty: Peace of mind with our comprehensive coverage
Technical Support: Expert assistance available for installation and troubleshooting

Packaging and Shipping

Your products are carefully packaged to ensure safe arrival:

Custom Foam Inserts: Protect against shock and vibration
Moisture-Barrier Bags: Prevent corrosion during transit
Sturdy Outer Boxes: Additional protection for shipping
International Shipping: Available to most countries worldwide

FAQ

Q1: What is the difference between E-plane and H-plane mitered bends?
A1: E-plane bends (WTEB) are designed for bending in the electric field plane, while H-plane bends (WTHB) are for the magnetic field plane. The choice depends on your system's polarization and layout requirements.

Q2: Can you provide custom angle bends?
A2: Yes, we offer custom angle bends to meet your specific system requirements. Contact us with your specifications for a tailored solution.

Q3: Are your waveguides suitable for high-power applications?
A3: Our products can handle up to 5 kW of power. For higher power requirements, we can design custom solutions with enhanced cooling.

Q4: What materials are used in your waveguides?
A4: We primarily use high-purity oxygen-free copper and aluminum alloys for optimal RF performance and durability.

Q5: How do I select the right waveguide size for my application?
A5: Waveguide size selection depends on your operating frequency and power requirements. Our team can assist you in choosing the optimal size for your specific needs.
