What Is Circularly Polarized Microstrip Antenna Used For?

When communication systems fail due to signal polarization misalignment, mission-critical operations suffer costly disruptions. Whether you're designing satellite terminals that must maintain reliable connections despite platform rotation, developing GPS receivers that need consistent signal reception regardless of orientation, or engineering radar systems requiring immunity to multipath interference, the Circularly Polarized Microstrip Antenna provides the essential solution. These compact, lightweight antennas eliminate the need for precise transmitter-receiver alignment while delivering superior performance in environments where linear polarization proves inadequate, making them indispensable across defense, aerospace, telecommunications, and mobile communications applications.

Understanding Circularly Polarized Microstrip Antenna Technology

The Circularly Polarized Microstrip Antenna represents a revolutionary advancement in microwave antenna design, combining the inherent advantages of planar microstrip technology with the flexibility of circular polarization. Unlike conventional linearly polarized antennas, which require precise alignment between transmitter and receiver electric field vectors, circularly polarized configurations offer orientation-independent signal reception. This fundamental characteristic stems from the antenna's ability to generate electromagnetic waves where the electric field vector rotates continuously as the wave propagates, tracing a helical pattern through space. The rotation can be either right-handed or left-handed, providing additional design flexibility for polarization diversity applications.

The microstrip antenna structure consists of a metallic radiating patch printed on one side of a thin dielectric substrate, with a continuous ground plane on the opposite side. To achieve circular polarization, the antenna design incorporates geometric modifications that excite two orthogonal resonant modes with equal amplitude and a precise 90-degree phase difference. Common techniques include corner truncation, implementation of crossed slots, asymmetric feeding arrangements, or incorporation of perturbation elements. These modifications split the fundamental resonant mode into two degenerate orthogonal modes, and when properly dimensioned, generate the required field characteristics for circular polarization. The resulting Circularly Polarized Microstrip Antenna offers exceptional versatility, combining low profile, lightweight construction, ease of fabrication, and seamless integration with microwave and millimeter-wave integrated circuits.

Fundamental Operating Principles of Circular Polarization

Circular polarization generation in microstrip patch antennas relies on sophisticated electromagnetic field manipulation within the resonant cavity formed between the patch and ground plane. When a circularly polarized wave propagates, its electric field vector maintains constant magnitude while rotating at the frequency of the electromagnetic wave. This rotation creates a corkscrew pattern in space, fundamentally different from linear polarization where the electric field oscillates along a fixed plane. The achievement of this polarization state requires precise control over two critical parameters: the generation of two orthogonal electric field components with identical amplitudes, and the establishment of an exact 90-degree temporal phase shift between these components.

The quality of circular polarization is quantified through the axial ratio parameter, which measures the ratio between the major and minor axes of the polarization ellipse traced by the electric field vector. Perfect circular polarization corresponds to an axial ratio of zero decibels, indicating that both orthogonal components possess equal magnitude. In practical implementations, axial ratios below three decibels are generally considered acceptable for most applications, as this threshold ensures that the antenna maintains sufficient circular polarization characteristics to deliver the expected performance benefits. The Circularly Polarized Microstrip Antenna achieves these stringent requirements through careful geometric design and feeding arrangement optimization.

Modern Circularly Polarized Microstrip Antenna designs employ various techniques to broaden the axial ratio bandwidth while maintaining compact dimensions. Sequential rotation feeding, where multiple antenna elements are fed with progressive phase shifts, can significantly enhance both impedance bandwidth and axial ratio bandwidth. Stacked patch configurations, where multiple radiating elements are positioned at different substrate layers, provide another effective approach for bandwidth enhancement. Additionally, the integration of metamaterial structures or electromagnetic bandgap surfaces can further optimize the radiation characteristics and suppress undesired modes that degrade circular polarization purity.

Primary Applications of Circularly Polarized Microstrip Antennas

Satellite Communication Systems

Satellite communications represent one of the most demanding application domains for Circularly Polarized Microstrip Antenna technology. The inherent advantages of circular polarization prove particularly valuable in this context, where ground terminals must maintain reliable communication links with satellites regardless of the terminal's orientation or mounting angle. Unlike linear polarization systems that suffer severe signal degradation when transmitter and receiver polarizations are misaligned, circularly polarized systems maintain consistent performance across all orientation angles, eliminating the need for precise mechanical alignment. This characteristic becomes especially critical for mobile satellite terminals mounted on vehicles, ships, or aircraft, where platform motion continuously changes the antenna orientation relative to the satellite.

The Circularly Polarized Microstrip Antenna excels in satellite applications due to its ability to mitigate Faraday rotation effects that occur as signals traverse the ionosphere. Faraday rotation causes the polarization plane of linearly polarized waves to rotate unpredictably, potentially causing complete signal loss if the rotation angle approaches 90 degrees. Circularly polarized waves remain largely immune to this phenomenon, ensuring reliable communication even under adverse ionospheric conditions. Furthermore, circular polarization provides inherent rejection of multipath interference, as reflected signals experience polarization reversal upon reflection from most surfaces. When a right-hand circularly polarized signal reflects from the ground or building surfaces, it becomes left-hand circularly polarized, allowing the receiving antenna to discriminate against the unwanted reflected component.

Modern satellite terminals increasingly employ Circularly Polarized Microstrip Antenna arrays featuring phased array architectures that enable electronic beam steering without mechanical movement. These sophisticated systems can track satellites across the sky while maintaining optimal circular polarization characteristics, supporting high-data-rate communication links for applications including broadband internet access, remote sensing data transmission, and military tactical communications. The lightweight, low-profile nature of microstrip technology makes it particularly suitable for deployable satellite terminals and airborne platforms where size, weight, and aerodynamic considerations impose strict constraints.

Global Positioning and Navigation Systems

Global Positioning System receivers and other Global Navigation Satellite System equipment universally employ Circularly Polarized Microstrip Antenna technology as the standard reception solution. GPS satellites transmit right-hand circularly polarized signals, and ground-based receivers must utilize compatible circular polarization to achieve optimal signal reception. The choice of circular polarization for GPS applications addresses several critical operational requirements simultaneously, including immunity to receiver orientation changes, multipath rejection, and consistent performance across diverse mounting configurations.

The Circularly Polarized Microstrip Antenna provides ideal characteristics for GPS receivers that operate in challenging multipath environments such as urban canyons, mountainous terrain, or maritime applications. Multipath propagation, where GPS signals reach the receiver via both direct and reflected paths, represents a primary source of positioning error in satellite navigation systems. Since reflected signals undergo polarization reversal, changing from right-hand to left-hand circular polarization, a properly designed right-hand circularly polarized receiving antenna naturally suppresses these unwanted multipath components. This intrinsic multipath rejection capability can improve positioning accuracy by several meters in typical urban environments, making the difference between usable and unreliable navigation performance.

Advanced GPS applications, including precision agriculture, autonomous vehicle navigation, and surveying systems, demand even higher performance levels from their antenna subsystems. Specialized Circularly Polarized Microstrip Antenna designs for these applications incorporate features such as enhanced axial ratio bandwidth to accommodate multiple GPS frequency bands simultaneously, improved gain to ensure reliable signal acquisition in weak signal conditions, and carefully controlled radiation patterns to minimize sensitivity to signals arriving from low elevation angles where multipath contamination proves most severe. Array configurations combining multiple Circularly Polarized Microstrip Antenna elements enable controlled null steering to actively suppress interference sources while maintaining optimal reception of satellite signals.

Radar and Electronic Warfare Systems

Military and civilian radar systems extensively utilize Circularly Polarized Microstrip Antenna technology to achieve superior target detection and discrimination capabilities. Weather radar applications particularly benefit from circular polarization because different precipitation types and cloud formations exhibit distinctive polarimetric signatures when interrogated with circularly polarized electromagnetic waves. The differential response of raindrops, snow crystals, ice particles, and hail to circular polarization enables meteorologists to classify precipitation types, estimate rainfall rates, and detect severe weather phenomena with unprecedented accuracy. This capability has transformed weather forecasting and severe storm warning systems, directly contributing to improved public safety during hazardous weather events.

Target identification in military radar applications exploits the polarization characteristics of reflected signals to distinguish between different target types and to reduce false alarm rates. The Circularly Polarized Microstrip Antenna enables radar systems to implement sophisticated polarization diversity techniques, where both the transmitted and received signal polarizations are controlled and analyzed. Complex targets such as aircraft, vehicles, and ships exhibit characteristic polarization responses that vary with aspect angle, enabling advanced signal processing algorithms to extract target classification information from the polarimetric radar returns. Furthermore, circular polarization provides natural rejection of certain types of chaff countermeasures and weather clutter, improving the probability of detecting genuine targets in challenging electromagnetic environments.

Electronic warfare systems employ Circularly Polarized Microstrip Antenna arrays for both signal intelligence gathering and active jamming applications. The conformal mounting capability of microstrip antennas allows their integration into aircraft skin panels, missile radomes, and unmanned aerial vehicle structures without creating aerodynamic penalties. These installations support wide-angle coverage requirements for threat detection and response across the electromagnetic spectrum. The Circularly Polarized Microstrip Antenna's ability to maintain consistent polarization characteristics across its operational bandwidth ensures that electronic warfare systems can effectively counter threats employing various polarization states, providing comprehensive electromagnetic protection for military platforms.

Wireless Communication Networks

The deployment of fifth-generation wireless networks and emerging beyond-5G communication systems increasingly relies on Circularly Polarized Microstrip Antenna technology to address the challenges of millimeter-wave propagation and massive MIMO implementations. At millimeter-wave frequencies used in 5G systems, circular polarization offers significant advantages for mitigating polarization mismatch losses that occur as handheld devices rotate during use. The Circularly Polarized Microstrip Antenna enables consistent link performance regardless of how users hold their mobile devices, improving quality of service and reducing the number of transmission errors that would otherwise require power-hungry retransmission protocols.

Wireless local area network applications operating in the internationally allocated industrial, scientific, and medical radio bands benefit substantially from Circularly Polarized Microstrip Antenna implementations. These antennas enable robust wireless connectivity in complex indoor environments where multipath propagation creates challenging radio frequency conditions. The polarization diversity provided by circular polarization helps maintain stable connections as users move through buildings, reducing the frustrating connection drops that plague linearly polarized systems. Access points equipped with dual circularly polarized antennas can simultaneously support multiple polarization states, increasing system capacity through polarization division multiplexing while maintaining backward compatibility with legacy client devices.

Radio frequency identification systems for inventory tracking, access control, and automated toll collection increasingly specify Circularly Polarized Microstrip Antenna technology for both readers and tags. The orientation-independent reading capability proves essential in applications where tagged items assume random orientations, such as packages moving along conveyor belts or products stacked on warehouse shelves. A circularly polarized reader antenna can reliably interrogate tags regardless of their rotational position, dramatically improving read rates and reducing the need for multiple read attempts. This capability translates directly into faster processing throughput, reduced labor costs, and improved inventory accuracy in logistics operations handling thousands of items per hour.

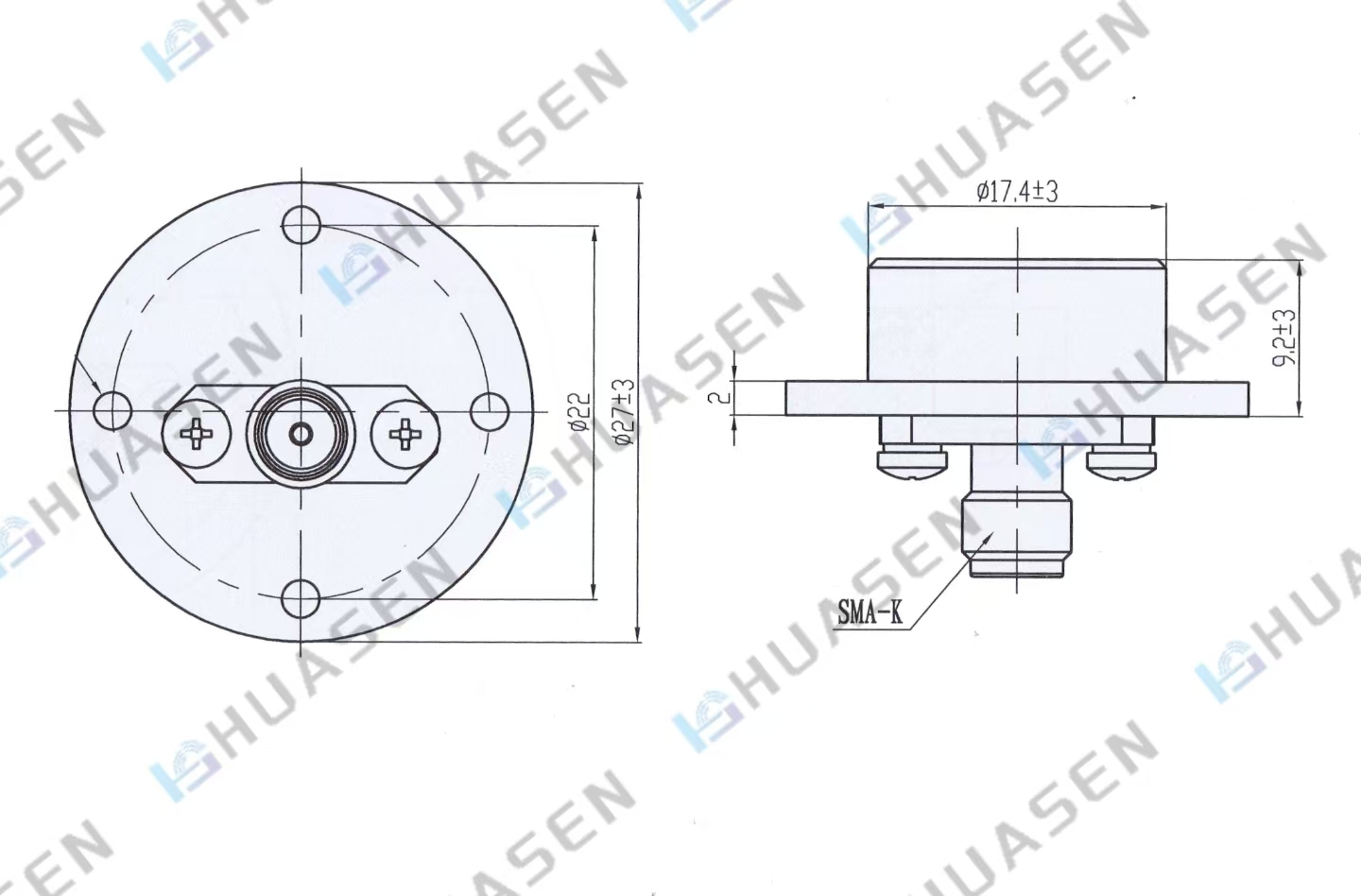

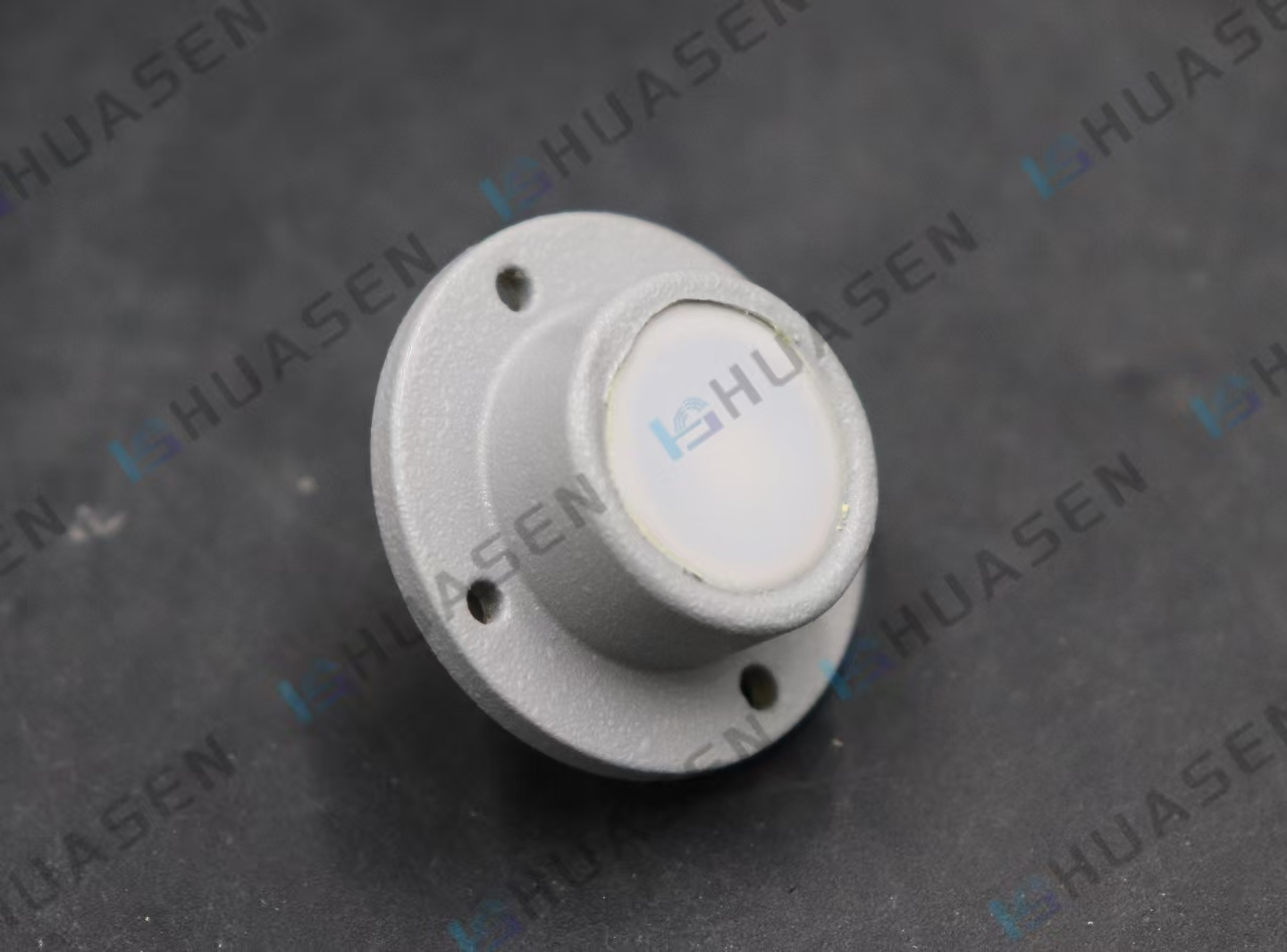

Huasen Microwave's Advanced Microstrip Antenna Solutions

Huasen Microwave Technology has developed a comprehensive portfolio of high-performance Circularly Polarized Microstrip Antenna products that address the demanding requirements of modern wireless systems. Our microstrip antenna implementations utilize an innovative hybrid waveguide-microstrip transmission network architecture that achieves exceptional gain performance while maintaining ultra-lightweight construction and minimal thickness. This unique design approach combines the low-loss characteristics of waveguide feed networks with the compact, conformal advantages of microstrip radiating elements, delivering superior electrical performance in a form factor optimized for space-constrained applications.

The versatility of our Circularly Polarized Microstrip Antenna family is demonstrated through an extensive range of array configurations, spanning from single patch elements for applications requiring minimal size and cost, to sophisticated 16×4 arrays delivering high directivity for long-range communication links. Intermediate configurations including 2×2, 1×4, 4×4, 6×8, and 8×8 arrays provide design flexibility to match specific gain, beamwidth, and coverage requirements. Each configuration is available with multiple polarization options, including single linear, single circular, dual linear, and dual circular polarization modes. This comprehensive selection enables system designers to specify the optimal antenna configuration for their application without compromising on electrical performance or physical constraints.

Special design capabilities further distinguish Huasen Microwave's Circularly Polarized Microstrip Antenna offerings from conventional solutions. Our engineering team provides custom microstrip monopulse antenna designs for applications requiring precision angle tracking, such as missile seekers, radar systems, and satellite ground terminals. Shaped beam designs optimize radiation patterns to match specific coverage requirements, eliminating wasted radiated power in unused angular sectors while maximizing gain in critical directions. These specialized capabilities leverage our three decades of experience in microwave antenna engineering and our advanced electromagnetic simulation tools to deliver solutions that precisely meet customer specifications. The key technical advantages of our products include exceptionally thin and lightweight construction, high radiation efficiency enabling gains up to 23 dB, broad frequency coverage from L-band through Ku-band, and customizable polarization and beamwidth characteristics tailored to specific application requirements.

Technical Specifications and Performance Characteristics

Frequency Range and Bandwidth Capabilities

The operational frequency range represents a critical specification for any Circularly Polarized Microstrip Antenna system, directly determining the application domains where the antenna can effectively function. Huasen Microwave's microstrip antenna family covers an extensive frequency spectrum from L-band through Ku-band, corresponding approximately to the 1 GHz to 18 GHz range. This broad coverage accommodates diverse applications including GPS navigation at L-band frequencies, wireless communications in S-band and C-band, radar systems operating across multiple bands, and satellite communications in X-band and Ku-band. The ability to customize designs for specific frequency allocations within this range ensures optimal performance for each target application rather than compromising efficiency through excessive bandwidth.

Impedance bandwidth, defined as the frequency range over which the antenna maintains a voltage standing wave ratio below a specified threshold, typically 2:1 or 1.5:1, determines how effectively the antenna can transfer power between the feed transmission line and free space. Our Circularly Polarized Microstrip Antenna designs achieve impedance bandwidths ranging from narrow single-percentage values for applications requiring frequency-selective operation to broadband implementations exceeding ten percent fractional bandwidth. Advanced techniques including stacked patch configurations, aperture-coupled feeding, and parasitic element loading enable bandwidth enhancement when application requirements demand operation across multiple communication channels or frequency allocations.

Axial ratio bandwidth, representing the frequency range over which the antenna maintains circular polarization quality with axial ratios below three decibels, often constitutes a more stringent constraint than impedance bandwidth. The Circularly Polarized Microstrip Antenna designs from Huasen Microwave employ sophisticated polarization optimization techniques to ensure that axial ratio bandwidth meets or exceeds the impedance bandwidth across the operational frequency range. This characteristic proves particularly critical for wideband applications such as satellite terminals operating across multiple frequency bands or electronic warfare systems requiring consistent polarization performance across broad instantaneous bandwidths. Sequential rotation feeding in array configurations provides a proven method for simultaneously enhancing both impedance and axial ratio bandwidth, enabling single-antenna solutions for multi-band applications.

Gain and Radiation Pattern Performance

The gain parameter quantifies the ability of the Circularly Polarized Microstrip Antenna to concentrate radiated power in desired directions relative to an isotropic radiator, directly affecting the achievable communication range and link margin in wireless systems. Single-element microstrip patches typically provide gains in the range of 5 to 8 dBic, with the "c" subscript indicating that the gain is referenced to a circularly polarized isotropic radiator. Array configurations substantially increase achievable gain, with our 4×4 arrays delivering approximately 15 dBic, and larger 8×8 or 16×4 configurations reaching gains exceeding 20 dBic. The precise gain values depend on array spacing, element design, feed network losses, and substrate properties, with our hybrid waveguide-microstrip approach minimizing feed losses to maximize realized gain.

Radiation pattern characteristics determine the antenna's directional properties, including beamwidth, sidelobe levels, and cross-polarization discrimination. The Circularly Polarized Microstrip Antenna exhibits broadside radiation patterns, with maximum gain occurring perpendicular to the antenna surface, making it ideal for applications requiring hemispherical or sector coverage. Half-power beamwidth, measured as the angular width where the radiated power decreases to half its maximum value, varies inversely with antenna size, ranging from approximately 80 degrees for single patches to less than 10 degrees for large arrays. Sidelobe levels, representing unwanted radiation in directions away from the main beam, are controlled through amplitude tapering of array elements, with typical values ranging from minus 15 to minus 25 dB relative to the main beam peak.

Cross-polarization discrimination, measuring the purity of circular polarization by quantifying the ratio between the desired circularly polarized component and the orthogonal undesired component, critically affects the antenna's ability to reject interference and maintain communication link quality. Our Circularly Polarized Microstrip Antenna designs achieve cross-polarization discrimination values exceeding 20 dB within the main beam region through careful optimization of patch geometry, feeding arrangements, and substrate selection. This excellent discrimination ensures that the antenna effectively rejects signals of opposite circular polarization handedness, enabling polarization diversity techniques and improving overall system performance in congested electromagnetic environments.

Manufacturing Excellence and Quality Assurance

Production Capabilities and Facilities

Huasen Microwave Technology operates a comprehensive manufacturing facility specifically configured to support high-volume production of precision Circularly Polarized Microstrip Antenna assemblies. Our production department encompasses four large specialized workshops spanning over 3,000 square meters of climate-controlled manufacturing space, organized into twelve dedicated work teams. This organizational structure ensures efficient workflow management and maintains the quality consistency essential for microwave components operating at frequencies where dimensional tolerances often measure in fractions of a millimeter. The facility supports parallel production lines for different antenna configurations, enabling rapid response to customer delivery schedules without compromising manufacturing quality.

The technical office serves as the nerve center for production engineering, employing experienced process engineers who develop detailed manufacturing procedures for each Circularly Polarized Microstrip Antenna variant. These procedures specify critical parameters including substrate handling requirements, photolithographic processes for patch formation, precision machining tolerances for waveguide components, and assembly sequences that ensure consistent electrical performance. Our machining workshop houses an extensive array of computer numerically controlled lathes and milling machines, electrical discharge machining equipment, and wire cutting systems capable of achieving the dimensional precision required for millimeter-wave components. All machining operations follow statistical process control protocols that verify dimensional conformance throughout production runs.

The fitting workshop provides specialized capabilities essential for Circularly Polarized Microstrip Antenna assembly, including silver brazing, aluminum brazing, vacuum furnace operations, tungsten inert gas welding, and coating processes. Our team of over 40 specialized waveguide fitters possesses the expertise necessary to assemble complex feed networks that combine waveguide and microstrip components, ensuring low-loss power distribution to antenna elements. The composite materials workshop enables in-house fabrication of carbon fiber reflectors and radomes for antenna systems requiring mechanical protection without electromagnetic performance degradation. This vertical integration of manufacturing capabilities provides complete control over all aspects of product quality and delivery scheduling.

Testing and Validation Procedures

Comprehensive testing infrastructure ensures that every Circularly Polarized Microstrip Antenna meets stringent electrical and mechanical specifications before shipment to customers. Huasen Microwave operates three professionally calibrated microwave anechoic chambers with dimensions of 21 meters, 9 meters, and 5 meters, enabling far-field radiation pattern measurements across frequency ranges from 0.5 GHz to 220 GHz. These chambers incorporate pyramidal absorber materials that provide reflection coefficients below minus 40 dB across the operational frequency range, ensuring measurement accuracy that meets international antenna testing standards. The chambers are equipped with precision two-dimensional positioning systems that enable automated pattern acquisition across complete angular coverage.

Advanced near-field measurement systems complement our far-field testing capabilities, particularly for characterizing large Circularly Polarized Microstrip Antenna arrays where far-field criteria would require impractically long measurement distances. Our planar near-field scanner features a 9-meter by 6-meter scanning aperture with positioning accuracy better than 0.1 millimeters, enabling high-resolution field mapping from which far-field patterns are computed through near-field to far-field transformation algorithms. A 68-probe spherical near-field system provides rapid pattern acquisition for antennas requiring complete spherical coverage characterization. External test ranges with distances extending to 2000 meters support validation measurements for the largest antenna apertures and lowest operational frequencies.

Network analyzer measurements verify critical electrical parameters including return loss, insertion loss for feed networks, and axial ratio across the operational bandwidth. Our laboratory maintains over 40 vector network analyzers calibrated to National Institute of Standards and Technology traceable standards, ensuring measurement accuracy and repeatability. Specialized equipment including 110 GHz vector network analyzers and 320 GHz spectrum analyzers support performance validation of millimeter-wave Circularly Polarized Microstrip Antenna products. Environmental testing capabilities including temperature cycling chambers, humidity exposure testing, and vibration testing ensure that antenna assemblies maintain performance specifications under the environmental stresses encountered in field deployments.

Conclusion

The Circularly Polarized Microstrip Antenna has established itself as an indispensable technology across critical applications spanning satellite communications, global positioning, radar systems, electronic warfare, and modern wireless networks. Its unique combination of orientation-independent performance, multipath rejection, compact form factor, and manufacturing scalability addresses fundamental challenges that cannot be effectively solved through alternative antenna technologies.

Cooperate with Huasen Microwave Technology Co., Ltd.

Partner with a proven leader in microwave antenna technology. Founded in 1993, Huasen Microwave Technology Co., Ltd. has established itself as a premier China Circularly Polarized Microstrip Antenna manufacturer, China Circularly Polarized Microstrip Antenna supplier, and China Circularly Polarized Microstrip Antenna factory. Our status as a National High-Tech Enterprise reflects three decades of innovation in RF and microwave solutions, backed by ISO certification, Environmental Management System compliance, and recognition as a Xi'an and Shaanxi Famous Trademark. With over 200 skilled professionals, advanced testing capabilities including three calibrated anechoic chambers, and state-of-the-art manufacturing facilities, we deliver High Quality Circularly Polarized Microstrip Antenna products at competitive Circularly Polarized Microstrip Antenna price points. Our comprehensive product portfolio serves telecommunications, radar, aerospace, defense, and emerging applications including 5G networks and unmanned aerial vehicles. Whether you need Circularly Polarized Microstrip Antenna for sale in standard configurations or require custom designs, our engineering team provides complete solutions from concept through production. Contact us today at sales@huasenmicrowave.com to discuss your project requirements and experience the Huasen Microwave difference. China Circularly Polarized Microstrip Antenna wholesale opportunities available for qualified partners.

References

1. Pozar, David M., and Duffy, S. M. "Dual-Band Circularly Polarized Aperture-Coupled Stacked Microstrip Antenna for Global Positioning Satellite." IEEE Transactions on Antennas and Propagation, November 1997.

2. Garg, Ramesh, Bhartia, Prakash, Bahl, Inder, and Ittipiboon, Apisak. "Microstrip Antenna Design Handbook." Artech House Publishers, 2001.

3. Kumar, Girish, and Ray, K. P. "Broadband Microstrip Antennas." Artech House Antennas and Propagation Library, 2003.

4. Huang, John, and Fang, Dou G. "Circularly Polarized Microstrip Antennas." IEEE Antennas and Propagation Society Newsletter, August 1984.

5. Wong, Kin-Lu. "Compact and Broadband Microstrip Antennas." John Wiley & Sons, Inc., 2002.
