Waveguide Gasket Selection Guide for RF Sealing & Reliability

To choose the correct waveguide gasket, you have to balance the needs for RF performance with those for sealing against the surroundings. Engineers have to look at how conductive a material is, how it compresses, and how well it works with the working conditions. The best seal keeps the electricity flowing between flanges while stopping wetness from getting in and EMI from leaking out. This guide talks about the important factors that system designers and equipment makers need to think about when choosing closing solutions for high-frequency uses, such as base station infrastructure and aircraft radar systems.

Understanding the Dual Role of RF Sealing Components

When waveguide systems are used in tough situations, tiny holes between metal plates can seriously hurt their performance. A good seal does two main things that have a direct effect on how reliable a machine is. The first function protects the purity of the signal by creating a constant path for electricity to flow between matching surfaces. Without this electrical consistency, joint defects act as heaters without meaning to, causing insertion loss and VSWR degradation that makes the gearbox less effective.

Protecting the Earth is the second very important job. To keep the pressure inside high-power waveguide assemblies, which stop voltage breakdown at high power levels, the assemblies need airtight covers. Salt spray, UV light, and temperature changes can make maritime and outdoor setups even more difficult. One broken seal can let water in, which can cause rust and deadly arcing inside the waveguide structure.

In the lab, tests show that at frequencies above 10 GHz, even a 0.002-inch gap can let a sound through. When working with 5G backup lines or satellite ground stations, system designers can't stand these kinds of losses. Under standard pressure conditions, the gasket material must compress evenly and keep its conducting qualities throughout its useful life. This two-in-one feature makes choosing materials very hard for buying teams that have to balance performance needs with cost limitations.

Material Science Behind High-Performance Sealing

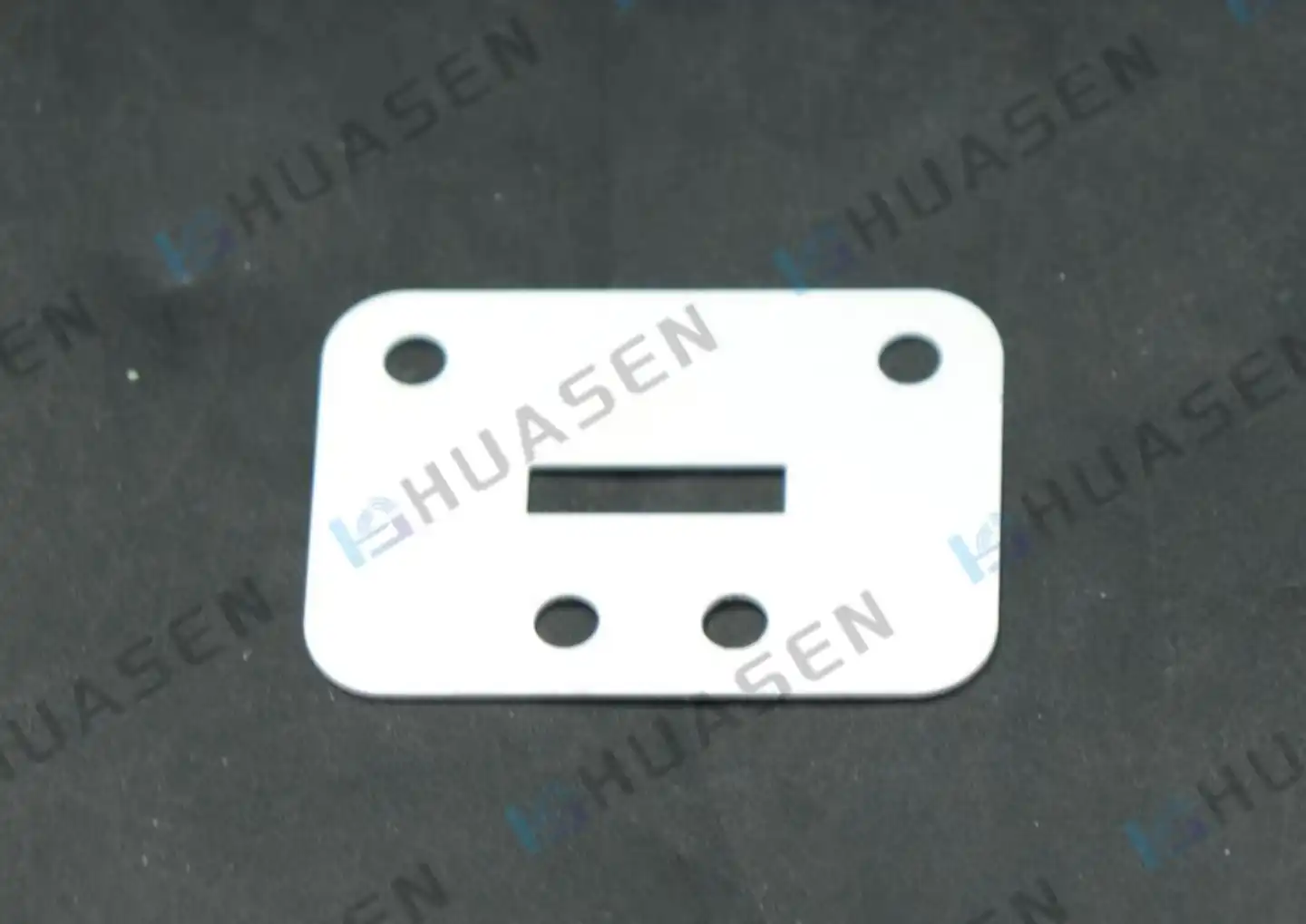

Conductive elastomers are the sealing technology for Flange Gasket waveguide flanges that is used the most. A silicone or fluorosilicone base polymer is mixed with electrical fillers like nickel-coated graphite or silver-aluminum bits to make these materials. The amount of filler has a direct effect on the volume resistance, which can be anywhere from 0.002 to 0.100 ohm-cm based on the needs of the application. Higher filler loads make the conductivity better, but it may lower the compression set resistance over longer service intervals.

Because they are so resistant to galvanic rusting, silver-aluminum-filled silicone gaskets are used a lot in military and marine settings. When aluminium waveguide flanges connect to metals that are not the same, the gasket has to stop electrolytic processes that weaken the seal over time. Field data from naval radar systems shows that these materials can hide signals better than 80 dB across the X-band spectrum, even after being exposed to salt fog nonstop for five years.

Different types of fluorosilicone are better at withstanding chemicals in aircraft settings where jet fuel, hydraulic fluids, and de-icing agents are often present. Radar systems in the air quickly go from -55°C at high altitude to +125°C close to engine bays. The seal has to stay flexible and conductive through these temperature changes while also being able to handle loads of more than 20 G. Expanded PTFE with electrical holes built in is an option for ultra-high frequency millimeter-wave uses, where flange distortion can be avoided by using little compression force.

For lab-grade waveguide systems, metal covers plated with indium or tin have the lowest contact resistance. When insertion loss must stay below 0.01 dB, these materials are used by research institutions that do precise RF readings. But because they are more expensive and can't be used again and again, they can only be used in controlled settings and not in the field.

Critical Selection Parameters for System Integration

The most important factor that affects both RF efficiency and seal integrity is the accuracy of the dimensions. The seal hole has to be an exact match for the waveguide's inside measurements, usually within ±0.005 inches for normal UG flange setups. Any interference in the signal line causes an iris effect, which leads to a difference in resistance and more return loss. On the other hand, screening that isn't enough leaves holes where EMI can get out, or moisture can get in.

How the gasket reacts to bolt force is based on its compression deformation properties. Specifications usually call for 25–40% compression at rated force values. This lets the material fill in any bumps on the surface without putting too much stress on the joint. According to ASTM D395, testing shows compression set behaviour, which is how well the material can recover after being loaded for a long time. When tested at their highest temperature for 1000 hours, high-quality materials show less than 15% permanent set. This means that the seal will last for a long time without needing to be retorqued.

The gasket's ability to keep RF energy in and stop outside radiation is measured by its shielding efficiency. Testing must be done according to MIL-DTL-83528 for military and aircraft uses to make sure that the loss is greater than 100 dB from 10 MHz to 10 GHz. This is especially important for phased array radar systems, where beam direction accuracy is lost due to crosstalk between neighbouring waveguide elements. The gasket is more than just a mechanical seal; it is part of the electromagnetic design as a whole.

The operating setting sets the limits for Flange Gasket material choices. Base station equipment on cell phone towers has to be able to handle years of UV light, temperature changes from -40°C to +85°C, and rain that comes in through the wind. These conditions get rid of things that don't hold up well to weather. On the other hand, safe lab settings inside allow for a wider range of Flange Gasket materials to be used with the sole goal of improving electrical performance.

Application-Specific Considerations Across Industries

Satellite communication ground stations utilize high-power amplifiers where waveguide gaskets must handle both thermal management and pressure containment. These systems often maintain positive pressure with dry nitrogen to prevent condensation during rapid temperature changes. The seal must maintain integrity under internal pressures up to 15 PSI while conducting heat away from high-power RF junctions. Thermal conductivity becomes an additional selection criterion alongside electrical and mechanical properties.

Marine radar installations present unique challenges, combining high salinity environments with continuous operational requirements. Naval defense systems cannot tolerate maintenance-induced downtime, pushing reliability requirements beyond commercial standards. Gaskets in these applications undergo accelerated life testing simulating 20 years of salt fog exposure before qualification. The material must prevent saltwater ingress that causes immediate arcing and corrosion while maintaining conductivity for accurate target acquisition across the entire operational bandwidth.

Millimeter-wave 5G infrastructure operates at frequencies where traditional gasket designs create unacceptable losses. Ultra-thin materials with precise thickness control minimize signal disruption while still providing adequate EMI containment. Installation procedures become more critical as torque variations directly affect compression uniformity. Equipment manufacturers increasingly specify torque-limiting fasteners to ensure consistent gasket performance across thousands of field installations performed by technicians with varying skill levels.

Aerospace and drone-mounted communication systems require gaskets that maintain performance despite severe vibration and shock loading. The material must remain in intimate contact with flange surfaces even under dynamic G-forces that attempt to create intermittent connections. Adhesive-backed gaskets prevent shifting during installation and operation, though the adhesive system must tolerate the same environmental extremes as the base material without outgassing compounds that contaminate optical systems or sensitive electronics.

Quality Verification and Inspection Protocols

Incoming inspection procedures for gasket components directly impact system reliability and warranty costs. Visual examination identifies molding flash, surface contamination, or foreign object debris that prevents proper sealing. Dimensional verification using optical measurement systems confirms aperture sizes match specifications and material thickness falls within tolerance bands. Statistical sampling plans based on MIL-STD-105 provide confidence levels appropriate to the application's criticality.

Volume resistivity testing per ASTM D991 validates that electrical conductivity meets datasheet specifications. This destructive test requires dedicated samples from each production lot, measuring resistance across standardized specimen geometry under controlled pressure. Results confirm proper filler dispersion and polymer cure, catching manufacturing variations before defective gaskets reach assembly lines. Batch traceability allows rapid isolation of any field failures to specific production runs.

Shielding effectiveness testing represents the most comprehensive validation but requires specialized facilities with calibrated field generators and anechoic chambers. Many procurement organizations rely on manufacturer certifications backed by periodic witness testing. When specified, testing follows IEEE-STD-299 procedures across frequency ranges matching intended applications. Documentation includes detailed test setups, instrumentation calibration certificates, and environmental condition records.

Compression set testing provides insight into long-term performance stability. Accelerated aging at elevated temperatures simulates years of service, revealing potential degradation modes before widespread deployment. Materials exhibiting excessive hardening or softening fail qualification, protecting against premature seal failure in fielded systems.

Installation Best Practices: Maximizing Performance

Proper installation techniques prove as critical as material selection for achieving specification performance. Flange surfaces must be clean and free from corrosion, burrs, or previous gasket material residue. Surface finish typically requires better than 125 micro-inch RMS to ensure intimate contact without requiring excessive compression forces. Solvent cleaning with isopropyl alcohol removes oils and particulates without leaving residues that degrade gasket adhesion.

Torque application follows star patterns, distributing compression force evenly across the flange perimeter. Uneven loading creates localized stress concentrations and leaves gaps where sealing fails. Calibrated torque wrenches ensure consistent bolt tension, typically specified between 30-50 inch-pounds for standard waveguide flanges. Over-torquing damages gaskets and can distort flanges, while insufficient torque allows gaps that compromise both RF and environmental sealing.

Gasket positioning requires attention to aperture alignment and surface contact. Self-adhesive variants simplify installation but must be applied with care to avoid wrinkles or trapped air bubbles. Some designs incorporate alignment features matching flange dowel pins, preventing rotation during assembly. Documentation photographing gasket placement before final torquing provides quality records for critical installations.

Retorquing schedules depend on material properties and operating conditions. Elastomeric materials experience stress relaxation over initial service hours, potentially requiring bolt tensioning verification after 100-200 hours of operation. Permanent installations in stable environments may never need adjustment, while field-deployable systems benefit from periodic inspection during scheduled maintenance intervals.

Conclusion

Waveguide gasket selection requires balancing multiple interdependent parameters affecting both immediate performance and long-term reliability. Material properties must align with electrical requirements, environmental conditions, and mechanical constraints specific to each application. Rigorous quality verification protects against field failures that compromise system availability and generate costly warranty claims. By understanding these selection criteria and following proper installation procedures, system integrators and equipment manufacturers achieve the zero-tolerance performance their customers demand across telecommunications, aerospace, defense, and research applications.
