Thermal Challenges in High Power Differential Isolators

When microwave systems are used at megawatt peak powers or kilowatt average powers, thermal management is what makes the difference between reliable performance and catastrophic failure. One of the most important problems in high-energy radio frequency (RF) systems is keeping the signal intact while stopping thermal runaway. The high-power waveguide differential phase shift isolator solves this problem. Differential phase shift designs spread thermal loads across waveguide-mounted ferrite elements, which is different from regular junction isolators that concentrate heat in a central ferrite disk. This allows for direct liquid cooling and can handle power levels that would destroy standard components in seconds.

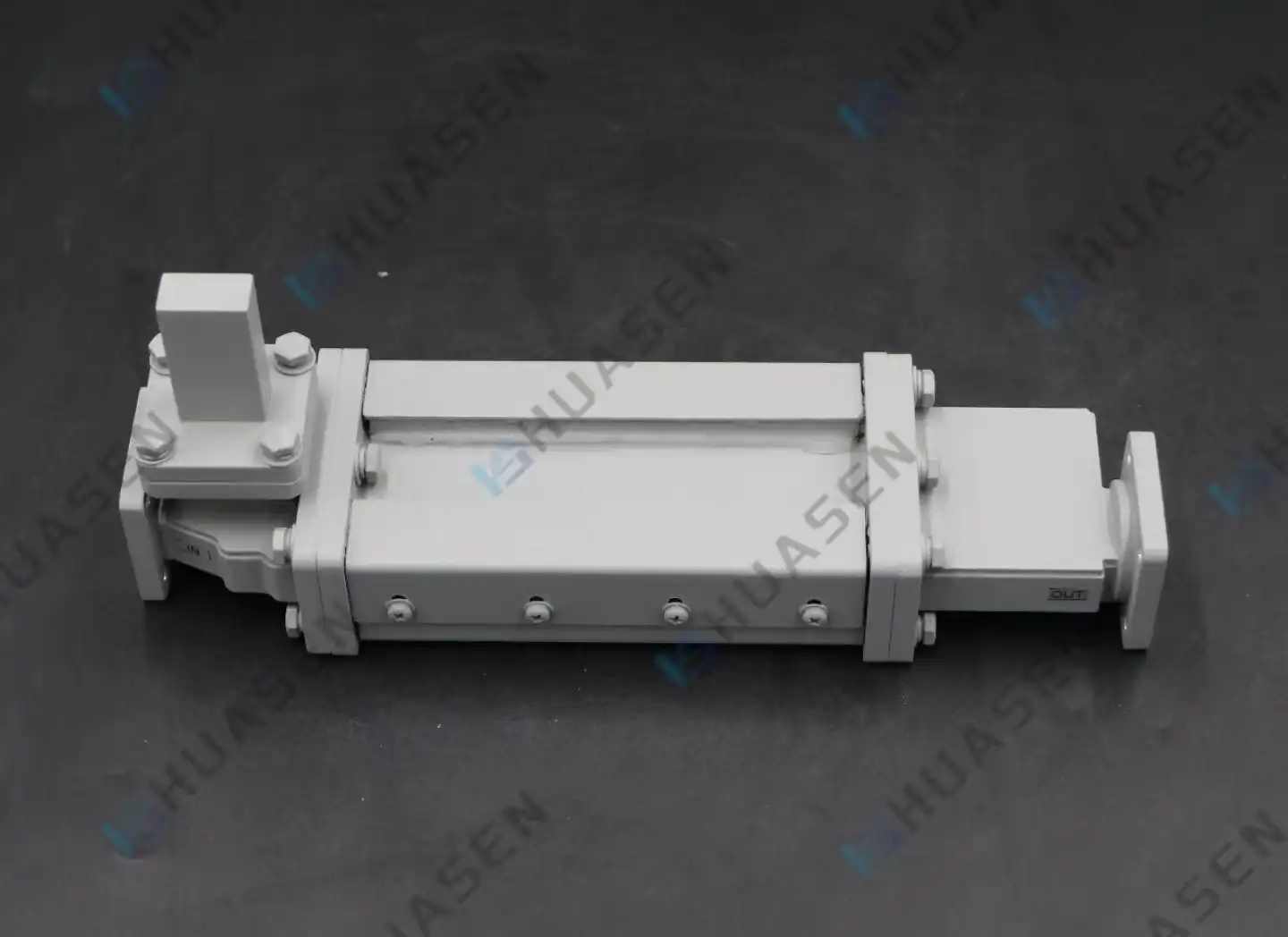

Understanding Thermal Challenges in High-Power Waveguide Differential Phase Shift Isolators

Waveguide isolators have special thermal problems that come from the way RF power is lost. When signals go through ferrite materials with a strong magnetic bias, even a small amount of insertion loss causes a lot of heat to be produced at power levels in the kilowatt range. If you have a system that uses 50 kW of power on average and only 0.2 dB of insertion loss, it needs to constantly remove about 230 watts of heat from ferrite elements that are smaller than a smartphone. This concentrated heat energy creates hotspots in certain areas that speed up the breakdown of materials.

Primary Heat Generation Mechanisms

RF energy is absorbed by ferrite materials through interactions between the magnetic domain wall and spin resonance. In the frequency range from L-band to Ku-band, ferrite losses rise in direct proportion to power density. This creates temperature differences that put stress on both the magnetic material and the mechanical structures around it. As the temperature gets closer to the ferrite's Curie point, which is usually 200°C for yttrium iron garnet formulations, the saturation magnetization goes down. This creates a dangerous feedback loop where lower magnetic performance leads to more losses, which creates more heat.

Environmental factors compound these natural thermal challenges. On naval ships, salt spray and temperature changes from -30°C to +60°C can damage radar installations. Particle accelerators need designs that work in vacuums, since convective cooling can't be used there. In industrial microwave heating systems, the loads change, which causes the reflection coefficient to change. As a result, isolators have to absorb power surges that are hard to predict.

Impact on Performance Parameters

When thermal stress lasts for a long time, it leads to measurable performance loss. Insertion loss can rise by 0.1 dB for every 50°C rise in temperature, which directly lowers the efficiency of the system. As the permeability characteristics of ferrite change, isolation gets worse, letting reflected power leak back toward sensitive amplifiers. When something expands mechanically, it causes impedance mismatches that raise the VSWR from the recommended 1.10:1 to levels above 1.25:1, which is problematic because it sets off protection circuits and lowers the availability of operations.

The frequency response changes because thermal expansion changes the size of structures that are resonant. Under full thermal load, a C-band isolator made to work at 5.5 GHz might change its center frequency by 15 MHz, which would be outside of its performance specifications. We've seen installations where not enough cooling led to ferrite cracking, which are thermal shock fractures that make devices useless and need to be replaced instead of being fixed in the field.

Analytical Approach to Thermal Management Principles

To do good thermal engineering, you need to know the whole path that heat takes from the ferrite surfaces to the outside cooling systems. In high-power waveguide differential phase shift isolators, where ferrite slabs are mounted directly against metal walls, heat is mostly removed through conduction. Copper waveguides that don't contain oxygen have a thermal conductivity of about 400 W/m·K, which means they efficiently move heat to cooling channels machined into the outside of the housing.

Material Selection and Thermal Properties

In modern differential phase shift designs, ferrite compositions are used that are best for both magnetic performance and thermal stability. Spinel ferrites that have been doped with manganese and zinc have lower loss tangents at high temperatures than pure garnets. This means that they can still meet the requirements for isolation when the junction temperature goes above 120°C. To keep mechanical stress from happening, the coefficient of thermal expansion must match the surrounding metal structures. For ferrite ceramics and copper alloys, this is usually between 8 and 10 ppm/°C.

There are very small gaps of air between the ferrite and waveguide walls that are filled with thermal interface materials. We ask for diamond-filled thermal pastes that have conductivities above 5 W/m·K. This is to make sure that the contact resistance is less than 10% of the total thermal resistance path. Care must be taken to calibrate the clamping pressure; too little force leaves gaps, and too much compression can cause the ferrite to break.

Cooling System Architecture

Passive cooling is only good for uses with less than 1 kW of average power. Extended fin arrays on heatsinks increase the surface area for natural convection, but they are limited in how well they work by their size. When the temperature outside is higher than 35°C, fans that move 50 to 100 cubic feet of air per minute across the heatsink surfaces are needed to cool the computer.

Liquid cooling systems that move deionized water with low conductivity through precisely machined channels are needed for high-power installations. Even at 100 kW of average power, flow rates of 2 to 4 liters per minute keep ferrite temperatures within safe operating ranges. Controlling the temperature of the coolant coming in is very important—changes of more than 3°C cause thermal cycling, which wears down brazed joints and solder connections. Monitoring the water quality stops the buildup of minerals that block cooling surfaces and cause areas to get too hot.

The external dummy load that is connected to the isolation port handles power that is reflected and needs the same kind of thermal management. A radar system that puts out 50 kW and has a 10% reflection coefficient sends 5 kW continuously into this termination. Load designs use ceramic or water-cooled resistive films as absorbers, and temperature sensors set off alarms before thermal limits are reached.

Real-world performance data from S-band radar installations shows that keeping ferrite temperatures below 100°C increases operational lifetime from 8 years to over 20 years. This lowers the total cost of ownership by avoiding replacements in the middle of their useful lives. Accelerator facilities that use high-power waveguide differential phase shift isolators in klystron protection circuits report 99.7% availability, compared to 94% for older junction circulator designs that were more likely to break down due to heat.

Comparing Thermal Performance: Differential Phase Shift Isolators vs. Other Isolator Types

Junction isolators focus the power they take in on a ferrite disk in the middle that is surrounded by resistive material. This makes a thermal bottleneck. The inside of the ferrite gets as hot as it can get, but only the outside touches the cooling mechanisms. This shape means that standard S-band waveguide sizes can only handle about 500 watts of power on average, even though pulsed applications can handle hundreds of kilowatts of power.

The thermal equation is completely changed by the differential phase shift topology. Ferrite slabs are attached to the wide sides of a rectangular waveguide. They expose a lot of metal with good thermal conductivity to the slabs. The pattern of distributed absorption gets rid of hotspots so that heat can spread across the whole waveguide cross-section before it reaches the cooling channels. Compared to junction designs in the same frequency band, this architecture can handle 20–100 times as much power.

Faraday Rotation vs. Phase Shift Mechanisms

Faraday isolators make non-reciprocal transmission possible by rotating the polarization plane magnetically. To do this, they need ferrite lengths that are proportional to the rotation angle they want to create. Insertion loss and heat production go up as interaction lengths get longer. In circular waveguide Faraday devices, the isolation that is needed by rotating them 45 degrees creates ferrite sections of different lengths, and they need to be cooled.

Different propagation constants are used by phase shift isolators between two waveguide arms to create interference for reverse signals, which is harmful. To get a 90-degree phase difference, you need a certain length of ferrite, which is usually possible in short sections that are less than one wavelength long. When ferrite interaction zones are shorter, they produce less heat and have smaller thermal masses that cool down quickly. This makes the transient thermal performance better during pulsed operation.

Waveguide vs. Coaxial Structures

Coaxial isolators have small sizes, but they don't do a good job of managing heat. The surrounding dielectric medium, such as air or PTFE, keeps the central conductor carrying the highest RF currents from getting too hot. Heat has to move outward through small cross-sectional areas, which creates thermal resistance that raises the temperature by 5 to 10°C for every watt of power lost. Because of these problems, coaxial isolators can only be used in situations with less than 1 kW of average power at microwave frequencies, unlike high-power waveguide differential phase shift isolators.

The rectangular waveguide has large metal surfaces that are in direct contact with the ferrite elements and has a more rigid structure. Because of the way it's shaped, cooling channels naturally fit into the top and bottom walls. Waveguide sizes get bigger as the frequency goes up. Lower frequency bands, like L and S, have bigger cross-sections that make thermal conductance paths even better. We found that WR-284 high-power waveguide differential phase shift isolators have 8–15 times lower thermal resistance values than equivalent-frequency coaxial designs.

Industrial microwave processing systems working at 915 MHz benefit dramatically from waveguide differential phase shift isolators. Within seconds, reflection coefficients can change from 1.1:1 to 2.5:1 because of changing loads caused by changing moisture levels in materials being heated. These transients are absorbed by the isolator's thermal capacity without lowering performance. This protects magnetron sources that cost between $15,000 and $30,000 each. In similar situations, junction circulators usually break down between 18 and 24 months, while differential designs don't need any maintenance for 5 to 7 years.

Practical Troubleshooting and Maintenance of Thermal Issues

Thermal failures almost never happen without any signs. Monitoring key performance indicators allows for planned maintenance that stops major damage and expensive system downtime. We suggest taking baseline measurements during commissioning and comparing them to verification tests done every three months to see how the degradation is progressing.

Diagnostic Indicators and Measurement Techniques

Increases in insertion loss of 0.15 dB or more are a sign of thermal stress that is changing the properties of ferrite or breaking down materials that are used in thermal interfaces. When you use a vector network analyzer to measure the operating bandwidth, you can see if losses are concentrating at certain frequencies or spreading out evenly. Localized peaks can mean physical damage or contamination, while broadband increases can mean general thermal aging.

If the isolation level drops below the specified levels, more and more reflected power will reach the protected parts. If a device that is supposed to isolate 25 dB drops to 18 dB, it lets 4% of the reflected energy come back instead of the 0.3% that was supposed to, which puts more stress on the amplifier output stages. With calibrated test setups and a network analyzer, these changes can be found before they cause problems in the field.

Thermal imaging cameras show how the temperature of the surface is distributed, which helps find problems with the cooling system. If you see hot spots on the outside of a waveguide, it means that coolant channels are blocked or the thermal interfaces between the ferrite and housing have failed. If the temperature difference between the coolant connections at the inlet and outlet is more than 15°C, it means that the flow rates aren't high enough or the pump is breaking down in closed-loop systems. We take pictures of the temperature during the first installation so that we have patterns to compare them to in the future.

Systematic Troubleshooting Protocol

If you think there might be a thermal problem, make sure the installation environment meets the requirements set by the designer. Temperatures above the rated maximums put too much stress on cooling systems that were made for normal conditions. Make sure that airflow paths aren't blocked. Cables that run across air intake areas can collect dust on equipment racks or stop them from working properly.

A check of the coolant system confirms that it is working properly. Check the connection fittings for leaks that slow down the flow and let air in. Check the conductivity of the coolant to find mineral contamination that makes heat transfer less effective. Flow meters put in cooling loops should show readings that are within 10% of the design values. Lower flows mean that the pumps are wearing out or that debris is blocking the lines.

Mounting hardware and waveguide flanges are checked by mechanical inspection, including the high-power waveguide differential phase shift isolator. When thermal cycling happens, fasteners become less tight, which lowers the clamping pressure that keeps thermal contact. Tools that have been calibrated must be used to check and fix torque specifications. When flange connections are made, they need to be checked for gasket wear or surface oxidation that makes critical interfaces thermally resistant.

Measurements of return loss often show impedance discontinuities when ferrite cracking is suspected. Time-domain reflectometry accurately locates where physical breaks happen in the device, but you need special tools and training to understand the results correctly.

Conclusion

The limits of what high-power waveguide differential phase shift isolators can do are set by thermal management. This has a direct effect on the reliability of the system, the cost of maintenance, and its total lifetime value. Differential designs have fundamental advantages over junction topologies because they use a distributed thermal architecture. This makes it possible to handle power in ways that meet the needs of modern radar, accelerator, and industrial microwave systems. To do good procurement, you need to look at thermal specifications with the same care as RF performance parameters, choose suppliers who have experience with high-power applications, and set up maintenance procedures that check thermal health indicators. If engineers and purchasing managers know about these thermal issues, they can choose isolators that work well for years without any problems, protecting expensive RF sources and keeping the signal integrity needed for mission-critical applications.

FAQ

1. What makes waveguide differential phase shift isolators break down over time?

When kilowatts of power are applied to ferrite materials, even very low insertion losses cause a lot of heat. This is what causes thermal degradation. As the temperature of ferrite rises toward the Curie point, which is usually 200°C, its magnetic properties start to lose their strength. This leads to more losses and a dangerous feedback loop. Mechanical assemblies are stressed by thermal expansion, which could crack ferrites or break down materials at the thermal interface that move heat to cooling systems.

2. How do I pick the right cooling options for each level of power?

Passive cooling with heat sinks and natural convection can be used for tasks that don't use more than 1 kW. For systems between 1 and 10 kW, fans that control the flow of air across finned surfaces are usually needed to cool them down. For powers greater than 10 kW, liquid cooling systems are needed that move deionized water through built-in channels at a rate of 2 to 4 liters per minute. This keeps the ferrite temperatures below 100°C to make sure they last a long time.

3. What diagnostic tools can find performance problems that are caused by heat?

Vector network analyzers check for insertion loss and isolation parameters, which show how the device is thermally degrading through specification drift. Thermal imaging cameras can see how temperatures are distributed inside devices, which helps find problems with the cooling system or blocked airflow. In liquid-cooled systems, keeping an eye on the difference in temperature between the coolant's entry and exit points can find flow problems or worn-out pumps. When these tools are used together during routine maintenance, faults can be predicted and fixed before they become catastrophic.

Partner with Huasen Microwave for Thermally Optimized High Power Solutions

Huasen Microwave has been making high-power waveguide differential phase shift isolators for 30 years. These isolators are made to work in the harshest thermal environments. Our designs use advanced ferrite compositions that keep working well at high temperatures, liquid cooling channels that are machined to very precise measurements, and thermal management architectures that have been proven to work through rigorous testing. As an established High Power Waveguide Differential Phase Shift Isolator manufacturer, we can make solutions that are specific to your frequency bands, power levels, and environmental needs—whether protecting klystrons in particle accelerators, magnetrons in industrial heating systems, or amplifiers in defense radar installations. Contact our applications engineering team at sales@huasenmicrowave.com to discuss your thermal challenges and receive detailed technical specifications, thermal modeling data, and quotations backed by ISO-certified manufacturing processes. Huasen Microwave's commitment to quality ensures your RF systems achieve maximum uptime and reliability.

References

1. Baden Fuller, A.J. (1987). Ferrites at Microwave Frequencies. London: Peter Peregrinus Ltd.

2. Helszajn, J. (2000). The Stripline Circulators: Theory and Practice. New York: Wiley-IEEE Press.

3. Linkhart, D.K. (2008). Microwave Circulator Design (2nd ed.). Boston: Artech House.

4. Pozar, D.M. (2011). Microwave Engineering (4th ed.). Hoboken: John Wiley & Sons.

5. Collins, R.E. (2007). Foundations for Microwave Engineering (2nd ed.). New York: IEEE Press.

6. Adam, J.D., Davis, L.E., Dionne, G.F., Schloemann, E.F., & Stitzer, S.N. (2002). Ferrite devices and materials. IEEE Transactions on Microwave Theory and Techniques, 50(3), 721-737.
