Four Arm Helical Antenna

Four Arm Helical Antenna: Advanced Circular Polarization for Satellite Communications

Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of high-performance Four Arm Helical Antenna. With over 30 years of expertise in microwave and millimeter-wave technology, we deliver cutting-edge solutions for the most demanding applications in telecommunications, radar, and aerospace industries.

Standard Product Data Sheet

Why Choose Our Four Arm Helical Antenna?

Our product offers unparalleled versatility and performance for your satellite communication needs. Here's why it stands out:

1. Adaptable Polarization: Switch between left-hand and right-hand circular polarization effortlessly.
2. Compact Design: Ideal for low-frequency applications, perfect for portable devices and space-constrained installations.
3. Wide Bandwidth: Approximately 20% bandwidth ensures reliable performance across various frequencies.
4. Excellent VSWR: ≤1.5 VSWR guarantees efficient power transfer and minimal signal reflection.
5. Enhanced Gain: Can be used as a feed for parabolic reflectors to boost overall system gain.
6. Superior Axial Ratio: Typically 2dB, ensuring clean circular polarization for optimal signal quality.

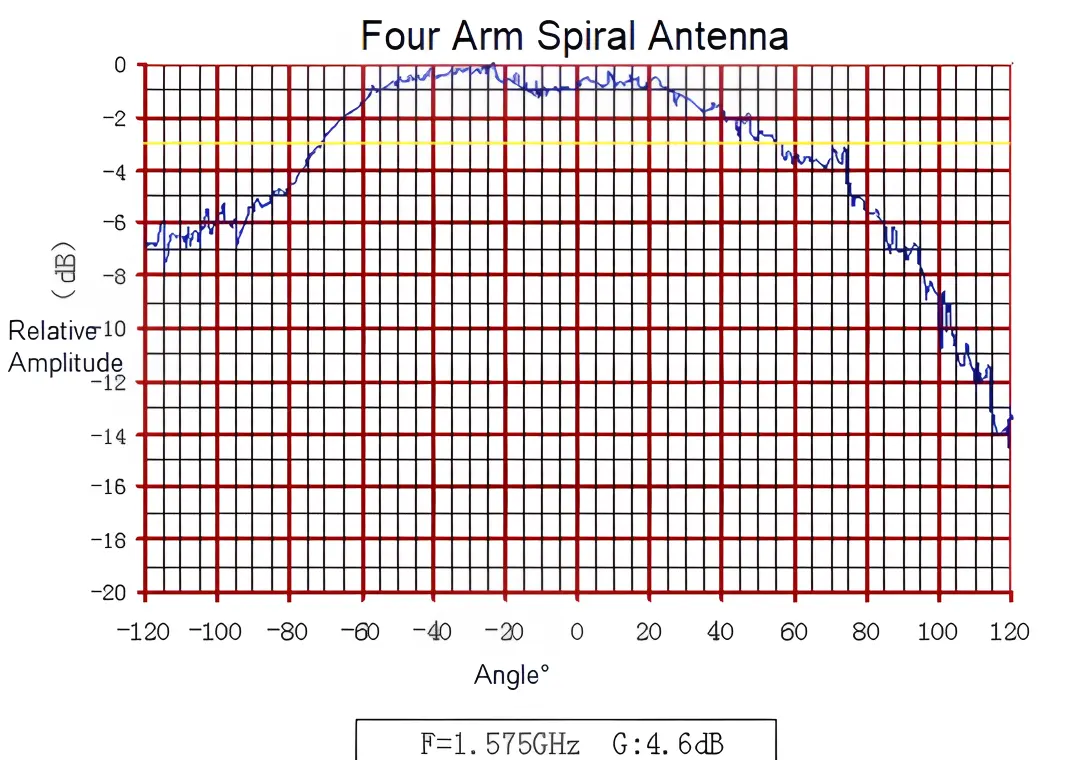

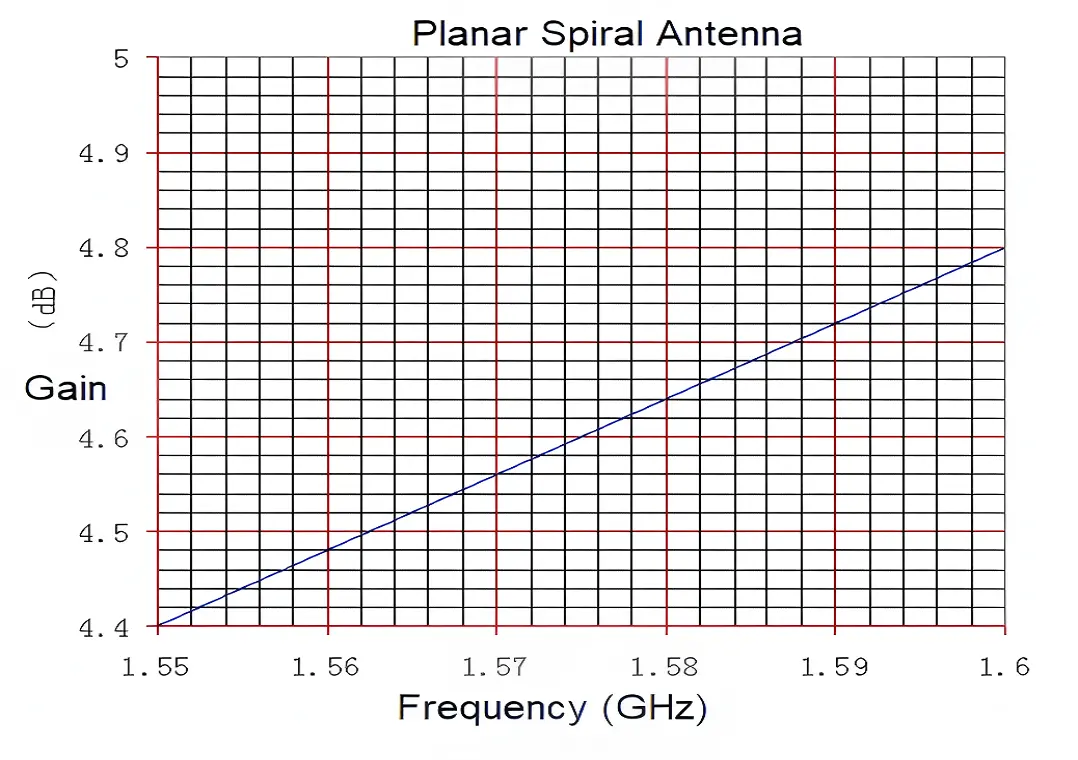

Measured Direction Pattern and Gain Curves

​​​​​​​​​​​​​​

Product Features & Process

Our products are meticulously crafted using:

• High-grade copper and aluminum materials for durability and performance
• Precision CNC machining for tight tolerances (±0.1mm)
• Advanced coating techniques for environmental protection (UV-resistant, IP67 rated)
• Rigorous testing including OTA, thermal cycling, and vibration/shock compliance

Applications

The versatility of our Four Arm Helical Antenna makes it ideal for:

• Satellite Communications: Ground stations, LEO constellations, VSAT terminals
• Radar Systems: Weather monitoring, air traffic control, defense applications
• Aerospace: Telemetry, tracking, and command systems
• Electronic Warfare: Signal intelligence and jamming systems

Installation & Compatibility

Our antennas are designed for easy integration:

• Modular design allows for quick plug-and-play installation
• Compatible with standard RF connectors and mounting systems
• Detailed installation guides and technical support available

Quality Control & After-Sales

We ensure top-notch quality and support:

• ISO9001 certified manufacturing processes
• RoHS and REACH compliant for global markets
• Rigorous in-house testing and quality assurance
• 1-year warranty on all products
• Dedicated technical support team

Packaging and Shipping

Your product will arrive safely:

• Custom-designed protective packaging
• Shock-absorbing materials to prevent damage during transit
• Global shipping options available
• Expedited delivery for urgent requirements

FAQ

Q: Can the antenna withstand extreme weather conditions?
A: Yes, our antennas are designed to operate in harsh environments, with IP67 rating and UV-resistant coatings.

Q: Is the product suitable for LEO satellite tracking?
A: Absolutely. Its wide-angle coverage and quick tracking capabilities make it ideal for LEO applications.

Q: How does the axial ratio affect signal quality?
A: Our typical 2dB axial ratio ensures clean circular polarization, reducing signal degradation and improving overall link quality.

Q: Can the antenna be customized for specific frequency ranges?
A: Yes, we offer customization services to meet your exact frequency requirements within the 200-5000MHz range.

Q: What certifications does the antenna have?
A: Our antennas comply with ISO9001, RoHS, and REACH standards. Additional certifications like CE and FCC are available upon request.

Contact Us

For inquiries or customized solutions, please reach out to our expert team at sales@huasenmicrowave.com. Let's elevate your RF and microwave systems with our advanced Four Arm Helical Antenna technology.
