Microstrip Conformal Array Antenna for UAV and Aircraft Platforms

For modern aircraft transmission to work, everything has to fit together smoothly without affecting the aerodynamic performance. This problem can be solved with a microstrip conformal array antenna, which shapes itself to non-flat surfaces like the fuselages of unmanned aerial vehicles (UAVs) and the wings of aeroplanes. This gets rid of any jutting parts that make the radar cross-section and drag higher. These high-tech beaming systems put microstrip patch elements right on curved platforms. This lets them control the beam electronically and work on multiple bands while keeping the original shape of the host structure. This technology makes things lighter, more stealthy, and easier to install. These are all very important benefits for military unmanned aerial vehicles, business planes, and satellite communication systems that have to stay within strict size and weight limits.

Understanding Microstrip Conformal Array Antennas

Fundamental Design Principles for Curved Surfaces

When compared to traditional flat antennas, conformal array technology is a big step forward. When antenna elements are attached to curved surfaces, like circular radomes or cylinder fuselages, it can be hard to keep the impedance matching and radiation pattern integrity. The curve causes phase differences between array parts that don't happen in flat designs. Our method fixes these geometric errors by making carefully measured changes to the feed network and the space between elements. To make sure that devices work the same way across all frequency bands, engineers have to think about how electromagnetic waves interact with dielectric surfaces that are bent around complicated shapes.

Substrate Selection and Material Engineering

By choosing the right substrate materials, you can get a good mix between electrical performance and mechanical freedom. PTFE composites and liquid crystal plastics have low dielectric constants that keep surface wave losses to a minimum while still allowing for dynamic deformation. These materials keep their electrical properties steady at temperatures ranging from -55°C to +125°C, which is important for high-altitude UAV activities and supersonic flight conditions. The bandwidth and power handling are affected by the thickness of the substrate. Thinner layers allow for tighter bending radii but lower power handling, while thicker substrates improve heat transfer but make the device less flexible. The adhesion strength between copper traces and dielectric layers is put through a lot of peel tests to make sure it doesn't separate when the temperature changes and the layers are stressed by vibrations.

Integration Challenges Specific to Aerial Platforms

When microstrip conformal array antennas are added to UAVs and planes, they create new mechanical and electrical challenges. Installation must protect the structure's integrity without causing stress points that weaken the airframe's longevity. Careful planning is needed to place connectors so that they don't interfere with control surfaces and so that they can still be reached for repair. In marine activities, environmental sealing keeps out water, dust, and salt spray, which is very corrosive. Optimising weight is still very important—every gram counts in aircraft uses where payload capacity has a direct effect on mission endurance and fuel economy.

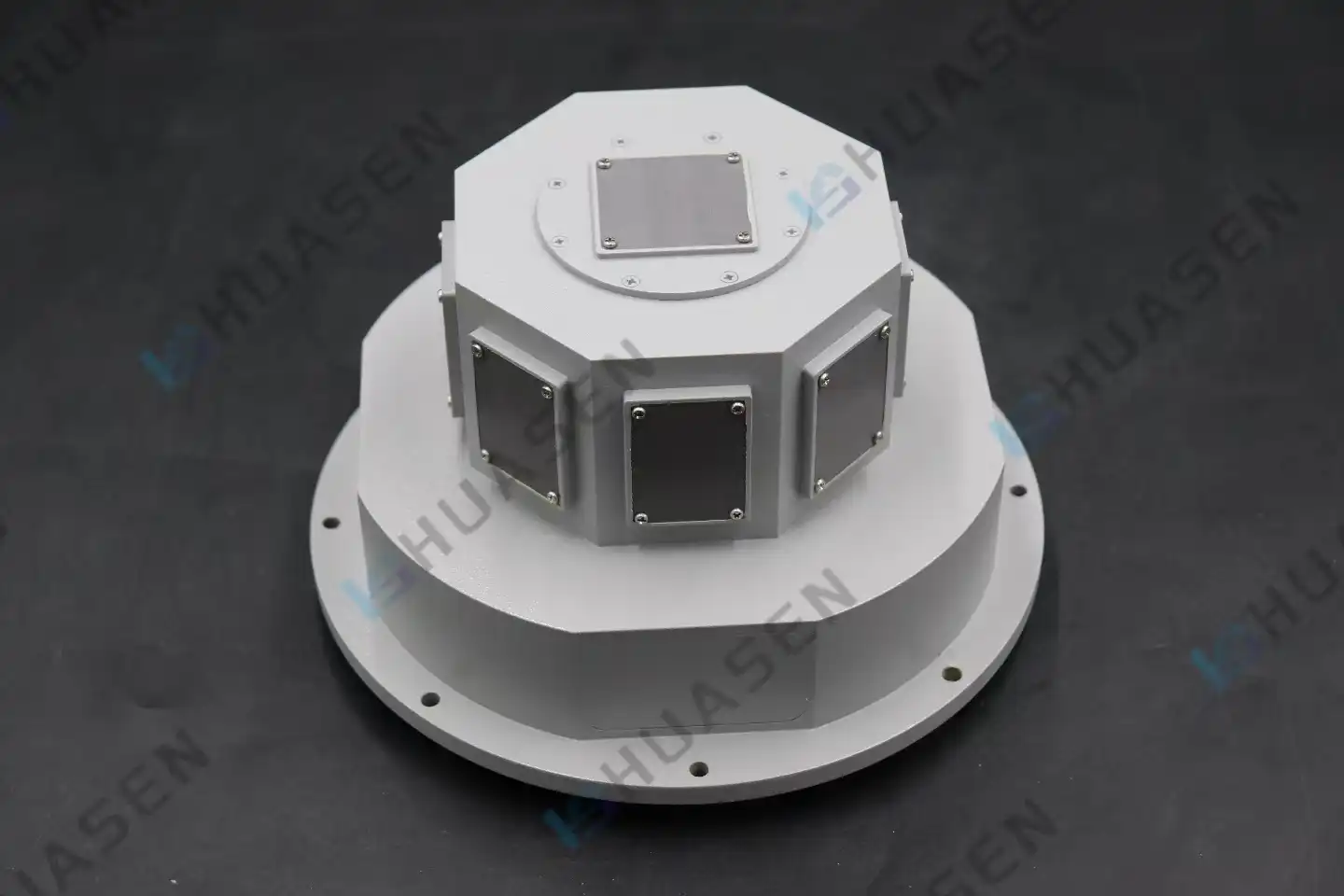

Microstrip Conformal Array Antenna-s1

Key Performance Optimisation Techniques for UAV and Aircraft Use

Advanced Beamforming and Gain Enhancement

In conformal arrays, you need complex beamforming networks to get directed control and high gain. Digital phase shifters fix phase mistakes caused by curves, which lets you steer the beam precisely over a wide range of scanning angles. Our phased array solutions can switch beams in 100 microseconds quickly and scan lengths of up to 60°, which lets you quickly retarget for tracking purposes and communication between multiple targets. The microstrip conformal array antenna design gives 18 dB gain and a tightly controlled 18°×18° beamwidth, which focuses energy for long-distance lines. Circularly polarised directed arrays with gain levels ranging from 3 to 12dB can be used for a variety of missions, ranging from wide-area spying to focused point-to-point data transfer.

Microstrip Conformal Array Antenna, The adaptability of beam control lets workers change radiation patterns to meet specific practical needs. By changing how the elements are fed and arranged, end-fire patterns can be made for forward-looking radar, broadside radiation for contact with the ground, or all-around coverage for command and control lines. Dual polarisation makes signals more reliable in tough transmission conditions where echoes and multipath interference hurt single-polarisation systems. These methods for optimising make sure that the performance of the antenna matches exactly the needs of the platform.

Material Selection Balancing Performance and Durability

In addition to their electrical properties, materials must also be able to handle high operating pressures. Power amplifiers built into active arrays generate heat that is removed by high-thermal-conductivity surfaces. This stops thermal runaway, which damages the reliability of the components. Composite radomes are light and protect radio elements from wind and the environment while keeping electromagnetic signals clear at all operating frequencies. Corrosion-resistant metallisation processes make sure that things will work for a long time in tough environments like the ocean and factories, where copper traces break down quickly.

Simulation and Testing Validation Workflows

Before release, design expectations are checked against strict testing. The vector network analyser tests show that the S-parameters work as expected, with return loss below -15 dB and VSWR below 2:1 across all bandwidths that were defined. By checking in an anechoic room, you can see the far-field radiation patterns and find any unwanted side lobes or blind spots caused by the platform's curve. Coordinate measuring machines check the accuracy of measurements to the nearest micron, making sure that the parts that are made fit the plan specifications. For environmental stress screening, samples are put through shaking profiles that mimic flight conditions, thermal cycling that mimics changes in temperature at different altitudes, and humidity exposure tests to see how well the seals work. Intermodulation distortion testing proves that multiple carrier signals can be handled without creating unwanted crosstalk.

Comparative Analysis: Choosing the Right Antenna for UAVs and Aircraft

Performance Metrics Comparison

Traditional flat patch antennas are easy to use and don't cost much, but when placed outside, they cause aerodynamic drag. Microstrip conformal array antennas get rid of protrusions, which lowers drag factors and increases mission range while using less fuel. When it comes to integration, conformal designs are more difficult because they need to be custom-made to fit the geometry of each platform. Planar antennas, on the other hand, can be mounted on standard flat surfaces. However, this customisation allows for better performance that isn't possible with off-the-shelf solutions. For challenging applications, the extra engineering work is worth it for tighter beam control, wider scanning coverage, and better stealth properties.

Platform Integration Advantages

Low-profile placement of the microstrip array antenna keeps the laminar flow of air over the wing surfaces and the shape of the fuselage, which is important for keeping aerodynamic efficiency that is needed for fuel economy and flying stability. Fixed-wing UAVs can use grids built into the wings to cover the whole hemisphere without having to use heavy and fragile mechanical control systems. Rotary-wing planes use conformal arrays placed on the fuselage to provide transmission coverage in all directions through electronically switched array faces. Manned aeroplanes build these systems into existing structural parts instead of adding exterior fairings that are harder to maintain and don't look as good.

Material Innovation Driving Robustness

New developments in flexible printed circuit technology make it possible for antenna arrays to follow complex shapes that weren't possible with hard bases before. These new ideas make it possible to put communication holes on nose cones, wing leading edges, and other complicated shapes where they couldn't exist before. Scalability lets you set up anything from simple 1D linear arrays to complex 2D planar setups. You can add or remove parts to suit your gain and coverage needs. Slot arrays, dipole configurations, and microstrip patches work together in combined systems to let more than one band work from a single structure.

Procurement Considerations for B2B Buyers

Identifying Qualified Suppliers and Partners

To find microstrip conformal array antenna solutions, you have to look at providers' technical skills, quality processes, and how well they deliver. Well-known companies keep a close eye on quality by using tools like CMMs to check the dimensions, VNAs to test the electricity, and environmental stress screening procedures. Certification shows that the product meets the requirements for MIL-STD-810 environmental standards, IPC-6012 rigid-flexible board specs, and RoHS environmental laws. Ask for sample data that shows observed radiation patterns, S-parameter runs, and a description of the thermal performance. Suppliers you can trust give you detailed test records that show they met the performance standards you set.

Custom Manufacturing and OEM Collaboration

System designers often need solutions that are specially made for their platforms and their specific needs. Check out possible partners to see what engineering support they can offer. Design help, electromagnetic modelling, and prototype iteration services can all speed up the development process. Custom designs take into account particular frequency assignments, polarisation needs, and mechanical link requirements. Adaptive null steering, shaped beam patterns, and pulse tracking arrays are examples of advanced customisations that help with specific tasks. When engineers work together, they can come up with better ideas than they could have by choosing products from a catalogue alone.

Pricing Factors and Lead Time Management

Cost designs take into account the choice of materials, the difficulty of production, and the number of orders. Precision manufacturing and high-performance substrates raise unit costs, but the dependability they provide justifies the higher prices for mission-critical uses. Lead times include making a sample, trying it to make sure it works, and then scaling up production. They usually range from 12 weeks for basic setups to 20 weeks for fully customised designs. By making production more efficient, volume agreements lower the price per unit. Clear information about the supply of materials, the amount that can be made, and quality checkpoints helps with realistic project planning and keeps schedule delays from becoming too expensive.

Future Trends and Innovations in Microstrip Conformal Array Antennas for Aviation

5G Integration and Enhanced Data Throughput

5G millimetre-wave frequencies are used in next-generation aircraft communication to enable gigabit data rates for real-time video streaming, sensor data fusion, and UAV control beyond optical line of sight. These uses need a lot of bandwidth, and microstrip conformal array antennas that work in the Ka-band and higher frequencies can support them while keeping their small sizes. Beamforming techniques improve the quality of the link on the fly as the platforms move, keeping the connection even when the flight profiles are very rough. With these features, UAV activities go from being simple command-and-control to complex self-driving systems that handle huge amounts of sensor data.

Smart System Integration and IoT Connectivity

Embedded sensors check the health of the microstrip array antenna in real time, finding problems before they get too bad to meet requirements. Onboard analytics engines use data from temperature sensors, VSWR monitors, and power indicators to figure out what repair needs to be done. IoT connection lets you keep an eye on the performance of your whole fleet, finding systemic problems across multiple platforms and speeding up the steps needed to fix them. By optimising working factors, this predictive maintenance method cuts down on unplanned downtime and increases the service life of parts.

Sustainability and Lightweight Materials

Eco-friendly materials that meet performance needs without sacrificing green goals are widely used because they are better for the environment. Bio-based dielectric substrates and composite radomes that can be recycled are better for the environment while still having good electrical qualities and lasting reliability. Weight reduction is still very important—advanced materials offer the same performance at a lower mass, which increases payload capability and fuel economy. These new ideas are in line with efforts to lower carbon emissions across the whole business and also provide real, practical benefits.

Conclusion

By building high-performance transmitters right into platform structures, microstrip conformal array antenna technology changes the way transmission works in space. Along with less drag and better stealth, the perks include electric beam steering, multi-band operation, and radiation patterns that can be changed to meet different task needs. When making a procurement choice, people should weigh the performance requirements against the costs, time, and difficulty of integration. Qualified providers offer engineering help, thorough testing, validation, and quality assurance to make sure that the system works reliably in harsh environments. As aircraft transmission moves toward higher frequencies and wider bandwidths, conformal arrays will become more and more important in the systems of the future.

FAQ

1. What differentiates conformal arrays from standard patch antennas?

Standard patch antennas are mounted on flat surfaces and have set radiation patterns. Microstrip conformal array antennas, on the other hand, are built into curved platforms and keep their controlled beam features even when the surface is curved. The conformal design gets rid of structures that stick out, lowers air drag, and lets the electronic beam steer across wide angles without using mechanical pivot systems.

2. How does platform curvature affect antenna performance?

Curvature introduces phase variations across array elements that change radiation patterns if they are not fixed. These geometry effects are fixed by advanced feed networks and digital phase shifters, which keep the beam's purity and scan accuracy. With the right adjustments, microstrip conformal array antennas can match or beat the efficiency of planar arrays while still fitting into complex platform shapes.

3. What criteria identify reliable antenna suppliers?

Quality standards (MIL-STD-810, IPC-6012), testing tools (anechoic chambers, VNA measurements), and engineering support services should all be looked at by potential providers. Ask for sample data that shows how the performance measured against the requirements compares. Well-known companies offer thorough test records, info on dimensions, and environmental stress screening results that show how reliable parts are in real-world situations.

Partner with Huasen Microwave for Your Conformal Array Antenna Needs

Huasen Microwave Technology makes Microstrip Conformal Array Antenna systems that are precisely designed to work with UAVs and aeroplanes. We have been making high-frequency microwave parts for the military, defence, and telecoms industries around the world since 1993. Custom dual-polarization arrays, monopulse tracking systems, and shaped-beam setups that meet MIL-STD weather standards are all things we can make. We help system integrators and original equipment makers (OEMs) with the whole buying process, from the first meeting and electromagnetic modelling to testing the prototype and mass production. Email our engineering team at sales@huasenmicrowave.com to talk about your particular needs, get detailed datasheets, or set up an evaluation sample. Choose a Microstrip Conformal Array Antenna provider with a track record of quality, dependability, and quick technical help.
