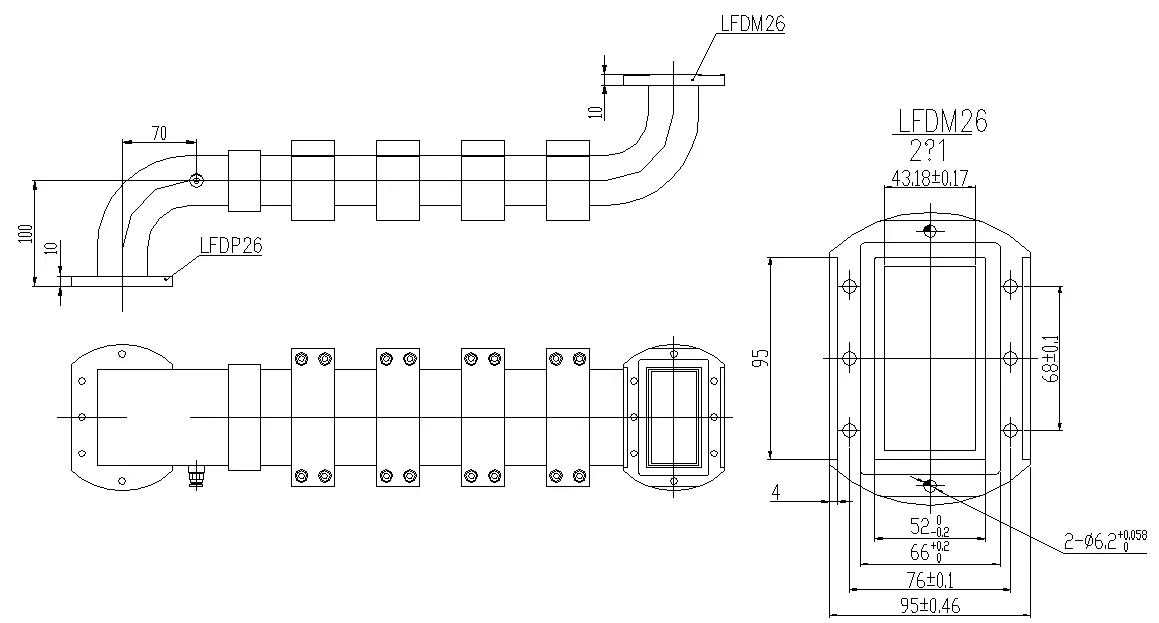

Inflatable Waveguide Bend
Advantages and Features:
- Excellent airtightness, maintaining internal pressure and reducing signal loss
- Customizable dimensions, bending angles, arm lengths, pressure thresholds, and interface specifications
- Suitable for harsh environments such as outdoor, high humidity, and dust.
- Free Samples
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Inflatable Waveguide Bend: Advanced Solutions for Research & Development
Huasen Microwave Technology Co., Ltd., a leading manufacturer of Inflatable Waveguide Bend solutions, brings cutting-edge innovation to research laboratories and academic institutions. With over 30 a long time of mastery in high-frequency microwave and millimeter-wave components, we offer customizable, high-performance waveguide twists outlined to meet the demanding benchmarks of electromagnetic inquire about, radio space science, and molecule speeding up applications.
Why Choose Our Inflatable Waveguide Bend?
Our product stands out with its unique gas injection technology, effectively preventing moisture infiltration and extending product lifespan. Key advantages include:
- Customizable Design: Tailor size, bending angle, arm length, pressure threshold, and interface specifications to your exact needs.
- Environmental Resilience: Ideal for harsh outdoor, high-humidity, and dusty conditions, ensuring stable operation.
- Superior Airtightness: Advanced sealing and welding technology maintains stable internal air pressure, significantly reducing signal transmission loss.
- Rapid Prototyping: Quick turnaround for R&D projects, supporting iterative design processes.
- Precision Manufacturing: Sub-millimeter tolerances and smooth inner surface finishes for optimal performance.
Core Performance Parameters
| Parameter | Specification | Advantage |
|---|---|---|
| Frequency Range | 0.32-330 GHz | Suitable for high-frequency applications |
| Insertion Loss | As low as 0.1 dB | Minimal signal degradation |
| VSWR | ≤ 1.2:1 | Excellent impedance matching |
| Power Handling | Up to 500W CW | Ideal for high-power scenarios |
| Customization | Fully customizable | Meets unique research requirements |
Product Features & Process
Our Inflatable Waveguide Bend utilizes advanced manufacturing techniques:
- Precision CNC machining for exact dimensional control
- Specialized gas injection process for moisture prevention
- High-performance sealing technology for airtight construction
- Rigorous quality control at each production stage
Applications
Ideal for RF and microwave applications in:
- Radio astronomy observatories
- Particle accelerator facilities
- Electromagnetic research laboratories
- High-frequency communication systems
Our copper and aluminum construction ensures compatibility with a wide range of research equipment and experimental setups.
Installation & Compatibility
Easy integration with existing waveguide systems:
- Standard flange options available
- Custom interfaces upon request
- Comprehensive installation guide provided
Quality Control & After-Sales
We stand behind our products with:
- 1-year warranty
- ISO9001, RoHS, and REACH certifications
- Rigorous testing for frequency performance and leakage
- Dedicated technical support team
Packaging and Shipping
Each product is carefully packaged to ensure safe transport:
- Custom-fitted foam inserts
- Robust outer packaging
- Detailed handling instructions included
FAQ
Q1: Can you provide custom testing reports?
A: Yes, we offer detailed performance reports tailored to your specifications.
Q2: What's the typical lead time for a custom design?
A: Lead times vary based on complexity, but we strive for quick turnarounds on prototypes.
Q3: Are your products suitable for cryogenic environments?
A: We offer specialized designs for extreme temperature applications. Please inquire for details.
Q4: Can you manufacture bends for frequencies above W-band?
A: Yes, we have involvement with higher recurrence groups. Contact us to talk about your requirements.
Q5: Do you offer academic discounts?
A: We provide competitive pricing for research institutions. Please reach out for a customized quote.
Contact Us
For inquiries or to discuss your specific Inflatable Waveguide Bend needs, please email us at sales@huasenmicrowave.com. Our group of specialists is prepared to help you in finding the idealize arrangement for your investigate extend.
