How to Match Planar Slot Antenna for Optimal VSWR?

Are you struggling with poor signal transmission and excessive power reflection in your Planar Slot Antenna systems? Impedance mismatches can waste valuable RF power, damage sensitive equipment, and compromise communication reliability across critical applications from IoT deployments to satellite communications. Achieving optimal VSWR through proper impedance matching techniques transforms your Planar Slot Antenna from an underperforming component into a high-efficiency radiator, ensuring maximum power transfer and minimal signal degradation for mission-critical wireless systems.

Understanding VSWR and Its Impact on Planar Slot Antenna Performance

Voltage Standing Wave Ratio represents the fundamental metric for evaluating how effectively your Planar Slot Antenna converts received power into radiated electromagnetic energy. When impedance mismatches exist between the antenna feedline and the radiating element, standing waves develop along the transmission path, creating voltage maxima and minima that indicate wasted energy. The VSWR measurement quantifies this phenomenon as the ratio between maximum and minimum voltage amplitudes, with values closer to the ideal 1.0 indicating superior impedance matching. For most commercial communication systems utilizing Planar Slot Antenna designs, maintaining VSWR below 2.0 ensures acceptable performance, corresponding to return loss better than negative ten decibels and reflection coefficients under approximately 0.11. Understanding this relationship proves essential because even moderate VSWR degradation translates directly into reduced effective radiated power, decreased receiver sensitivity, and potential equipment damage from excessive reflected energy concentrating at vulnerable components.

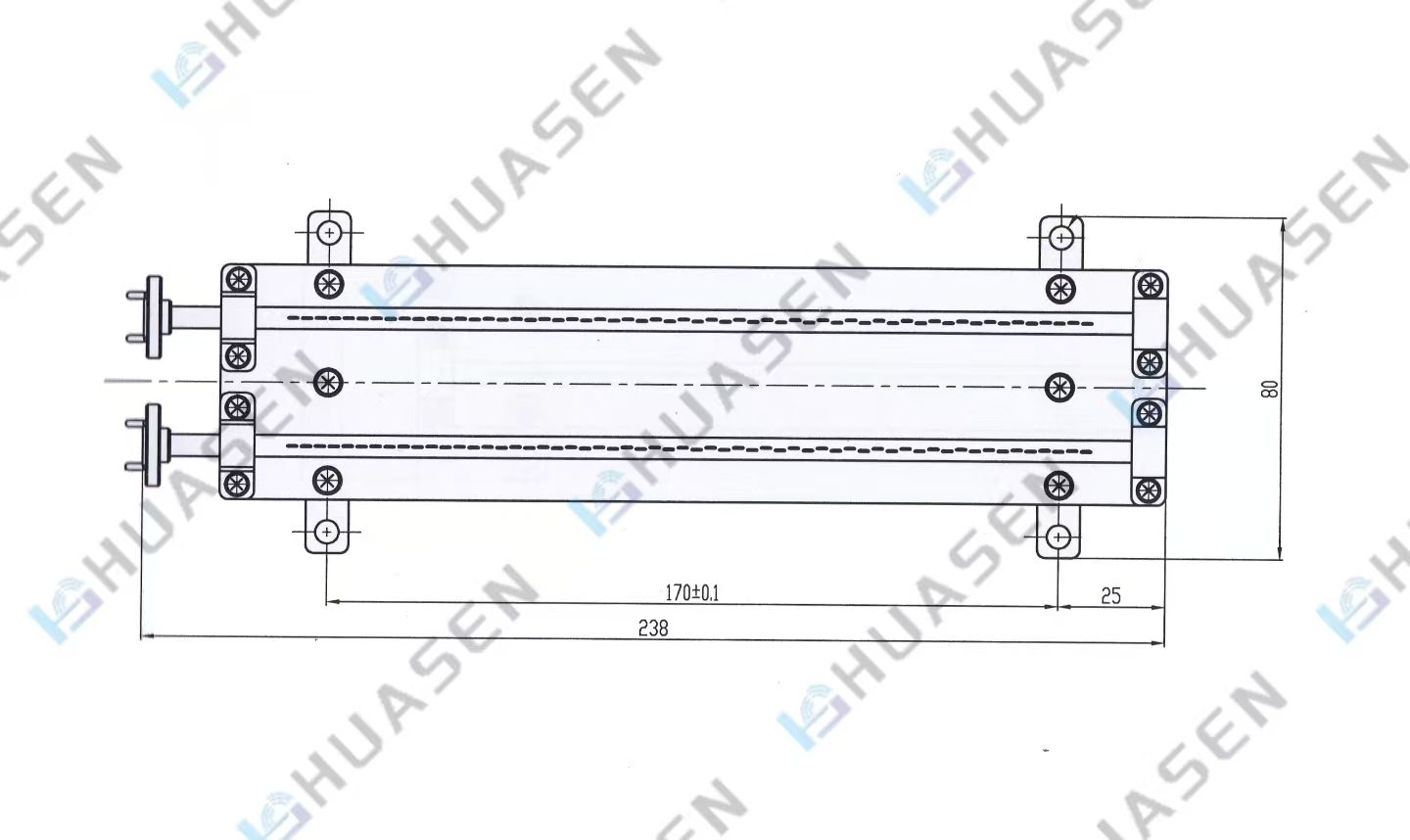

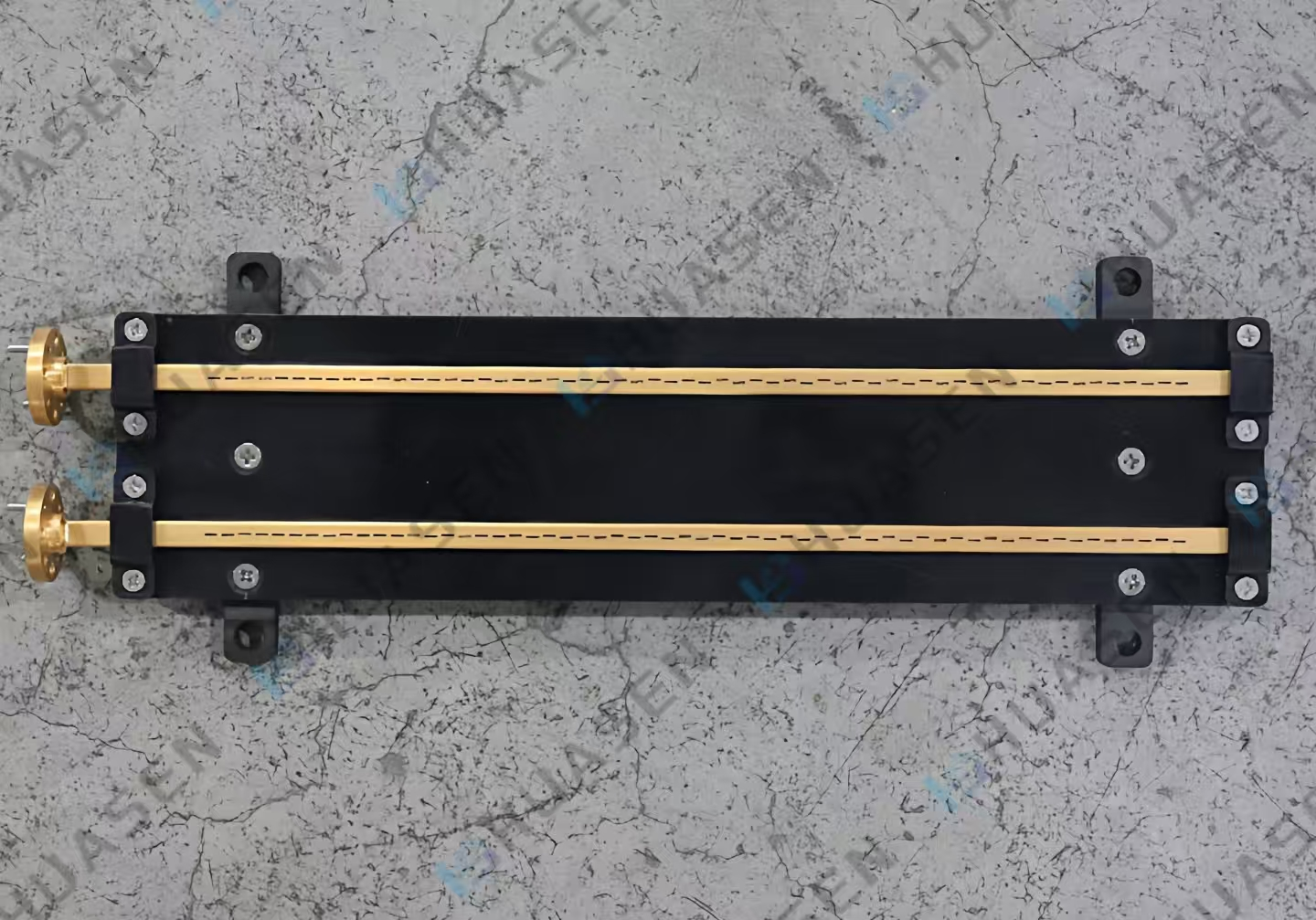

Why VSWR Matters for Waveguide Slot Array Designs?

Planar Slot Antenna architectures employing waveguide slot array configurations face unique impedance matching challenges due to their complex electromagnetic boundary conditions and multi-element coupling effects. Each individual slot within the array contributes to the overall antenna impedance, with mutual coupling between adjacent slots significantly affecting the input impedance presented to the feed network. When designing these sophisticated radiators for applications spanning one to forty gigahertz frequency ranges, engineers must account for how slot dimensions, spacing configurations, and waveguide wall thickness interact to determine the resultant impedance characteristics. Huasen Microwave's advanced Planar Slot Antenna solutions address these challenges through precision-engineered slot array layouts manufactured with stringent tolerance control within plus or minus 0.1 millimeters, ensuring consistent impedance characteristics across the entire operating bandwidth of five to eight percent. This meticulous approach enables reliable omnidirectional coverage with three hundred sixty degree horizontal beamwidth while maintaining controllable vertical beamwidth between 3.2 and 4.5 degrees, critical specifications for applications requiring uniform coverage patterns without blind spots.

The Relationship Between Return Loss and Radiation Efficiency

Return loss provides complementary insight into Planar Slot Antenna matching quality by quantifying the logarithmic ratio of reflected to incident power, measured in negative decibels where larger magnitude values indicate better performance. While VSWR below 2.0 generally satisfies most communication system requirements, achieving return loss better than negative ten decibels ensures that reflected power remains below ten percent of the total incident energy. However, practitioners must recognize that excellent VSWR alone does not guarantee efficient radiation, as lossy antenna materials or poor design execution can absorb significant power while presenting acceptable impedance matching. Professional Planar Slot Antenna implementations from manufacturers like Huasen Microwave target radiation efficiency exceeding seventy percent, combining low return loss with minimal resistive losses through high-quality copper and aluminum construction techniques. This dual focus on both impedance matching and loss minimization proves particularly crucial for battery-powered IoT sensors and energy-constrained mobile platforms where every milliwatt of transmitted power directly impacts operational lifetime and communication range.

Critical Parameters Affecting Planar Slot Antenna Impedance Matching

Slot Dimensions and Geometric Configuration

The physical dimensions of radiating slots fundamentally determine the impedance characteristics presented at the Planar Slot Antenna feed point, with slot length primarily controlling the resonant frequency while width influences bandwidth and input resistance. Research demonstrates that circular slot antennas with diameters below thirty-five millimeters cannot achieve impedance matching suitable for ultra-wideband applications requiring minimum matched frequencies below 3.1 gigahertz while maintaining VSWR under 2.0 across seven and one-half gigahertz bandwidth. Rectangular slot configurations offer additional design flexibility through independent control of length and width parameters, enabling impedance optimization across broader frequency ranges particularly valuable for multi-band Planar Slot Antenna applications. The adjustable slot array layout capability in advanced designs allows engineers to precisely tune impedance characteristics by modifying individual slot orientations, offsets from centerline positions, and relative phasing between elements, providing comprehensive control over both impedance matching and radiation pattern characteristics simultaneously.

Feed Network Design and Stub Matching Techniques

Microstrip feed lines terminating in rectangular or tapered stubs provide effective impedance transformation from standard fifty-ohm transmission line impedance to the typically higher impedance values presented by Planar Slot Antenna radiating elements. The stub dimensions, including longitudinal length designated as yi, stub projection distance ys, and stub width ws, can be systematically optimized through electromagnetic simulation tools to achieve broadband impedance matching across the desired operating frequency range. For waveguide-fed slot array implementations, coupling aperture dimensions and positions within the waveguide broad wall critically influence the power coupled into each radiating slot, directly affecting both the element impedance and the mutual coupling between adjacent slots. Huasen Microwave's innovative waveguide design methodology leverages advanced manufacturing techniques including precision CNC milling and electrical discharge machining to achieve the exacting dimensional tolerances required for predictable impedance characteristics, enabling first-pass design success rates that minimize costly prototype iteration cycles.

Substrate Material Properties and Dielectric Loading Effects

The dielectric substrate supporting Planar Slot Antenna elements profoundly influences impedance matching through its relative permittivity and loss tangent characteristics, which alter electromagnetic wave propagation velocities and introduce frequency-dependent attenuation. Lower dielectric constant materials like Rogers RT/duroid 5870 with relative permittivity around 2.33 provide closer matching to free space impedance of approximately 377 ohms, facilitating broader bandwidth operation compared to higher permittivity substrates that compress wavelength and narrow impedance bandwidth. However, the substrate thickness must be carefully selected to balance mechanical stability requirements against undesired surface wave excitation that can degrade radiation efficiency and pattern characteristics. Manufacturing facilities equipped with composite materials expertise, such as Huasen Microwave's specialized carbon fiber workshops producing reflectors with surface accuracies between 0.03 and 0.15 millimeters, enable precise control over substrate characteristics critical for repeatable high-performance Planar Slot Antenna production across frequencies extending into millimeter-wave bands.

Practical Impedance Matching Methods for Optimal VSWR

Quarter-Wave Transformer Matching Sections

Quarter-wavelength transmission line transformers provide elegant single-frequency impedance matching solutions by exploiting the impedance inversion property of transmission lines exactly one-quarter wavelength long at the design frequency. By selecting the transformer characteristic impedance as the geometric mean between the source impedance and load impedance requiring matching, engineers achieve perfect impedance transformation at the center frequency with gradually degrading match as frequency deviates from the design point. For Planar Slot Antenna applications requiring modest bandwidth, cascaded multi-section quarter-wave transformers extend the matched bandwidth through Chebyshev or binomial impedance taper designs that distribute reflections across frequency to maintain acceptable VSWR over bandwidths approaching thirty percent. The compact size and straightforward implementation of quarter-wave matching sections make them particularly suitable for printed circuit board implementations of Planar Slot Antenna feed networks, where controlled-impedance microstrip or stripline transmission lines can be precisely fabricated using standard photolithographic processes.

Reactive Element Tuning and Matching Networks

Lumped element matching networks employing series inductors and shunt capacitors offer compact broadband impedance transformation particularly valuable for Planar Slot Antenna implementations at lower frequencies where quarter-wave sections become prohibitively large. L-section matching networks provide impedance transformation using only two reactive elements, though achieving low VSWR across substantial bandwidths typically requires more sophisticated designs such as pi or T-networks incorporating three or more reactive components. For waveguide slot array configurations, inductive or capacitive irises machined into the waveguide structure provide distributed reactive matching without requiring discrete lumped components, maintaining the advantages of high power handling and low loss inherent to waveguide transmission systems. Huasen Microwave's fitting workshop capabilities spanning silver brazing, aluminum brazing, and vacuum furnace processing enable precise fabrication of complex three-dimensional matching structures with the mechanical precision required for repeatable microwave performance, supported by over forty specialized waveguide fitters with decades of accumulated expertise.

Computational Optimization Using Electromagnetic Simulation

Modern electromagnetic simulation software packages employing finite element method, method of moments, or finite-difference time-domain algorithms enable comprehensive Planar Slot Antenna impedance optimization before committing resources to physical prototyping. These sophisticated tools accurately predict how geometric parameter variations influence input impedance, VSWR, and radiation characteristics across broad frequency ranges, allowing systematic exploration of multi-dimensional design spaces to identify optimal configurations. Parametric optimization algorithms combined with electromagnetic simulation provide automated design refinement, iteratively adjusting slot dimensions, feed network geometry, and matching element values to minimize VSWR while satisfying constraints on radiation pattern, gain, and other performance metrics. To validate simulated predictions and ensure manufacturing variations remain within acceptable tolerances, comprehensive testing capabilities including vector network analyzers, spectrum analyzers, and calibrated anechoic chambers become essential. Huasen Microwave maintains over sixty advanced testing instruments including forty vector network analyzers covering frequencies through 110 gigahertz, enabling thorough characterization of Planar Slot Antenna impedance characteristics and radiation performance throughout development and production phases.

Advanced Techniques for Wideband VSWR Optimization in Planar Slot Antenna Systems

Tapered Slot and Vivaldi Antenna Approaches

Tapered slot antenna configurations including exponentially flared Vivaldi designs achieve exceptional impedance bandwidth by gradually transitioning from compact feed regions to expanded radiating apertures that efficiently couple electromagnetic energy into free space across decade or greater frequency ratios. The continuous impedance transformation inherent in properly designed tapered structures minimizes discrete reflections that limit conventional slot antenna bandwidth, enabling VSWR below 2.0 across multi-octave frequency ranges particularly valuable for software-defined radio and cognitive radio applications. For Planar Slot Antenna implementations requiring both wide bandwidth and compact form factors, resistively loaded tapered slots incorporate distributed absorbing materials that dampen undesired resonances while maintaining acceptable radiation efficiency across the operating band. Huasen Microwave's carbonyl iron absorption material production capability enables customization of microwave absorbing materials shaped according to specific design requirements, suitable for integration into advanced Planar Slot Antenna configurations operating across L-band through W-band frequency allocations with power handling up to five watts in small reflection matching load applications.

Frequency-Selective Surfaces and Metamaterial Matching Layers

Frequency-selective surfaces consisting of periodic metallic patterns printed on dielectric substrates provide engineered electromagnetic boundary conditions that can enhance Planar Slot Antenna impedance matching while simultaneously controlling radiation pattern characteristics. When positioned at appropriate distances from the radiating aperture, these structures modify the effective impedance presented to the antenna, enabling bandwidth extension or multi-band operation without modifying the fundamental antenna geometry. Metamaterial-inspired matching layers employing sub-wavelength resonant inclusions offer even greater design flexibility by synthesizing effective medium parameters including negative permittivity or permeability not available in natural materials, potentially enabling ultra-wideband impedance matching in electrically small Planar Slot Antenna configurations. The sophisticated electromagnetic analysis required for these advanced matching techniques demands extensive computational resources and experimental validation facilities, requiring partnerships with established manufacturers possessing comprehensive research and development capabilities such as Huasen Microwave's three thousand square meter facility housing advanced machining equipment, composite materials workshops, and multiple calibrated anechoic chambers spanning dimensions from five to twenty-one meters.

Active Impedance Matching Using Tunable Components

Reconfigurable Planar Slot Antenna systems incorporating tunable matching networks based on varactor diodes, microelectromechanical switches, or other electronically controlled components enable dynamic VSWR optimization adapting to changing operating conditions or frequency agility requirements. By monitoring reflected power or VSWR in real time and adjusting reactive matching element values accordingly, these active systems maintain optimal impedance matching despite environmental variations, component aging, or deliberate frequency retun ing for cognitive radio applications. The additional complexity of control circuitry and potential nonlinearity introduced by active tuning elements must be carefully managed to avoid intermodulation distortion or other performance degradation, requiring sophisticated system engineering and thorough testing across all operating conditions. For demanding applications in aerospace, defense, and satellite communications where Planar Slot Antenna performance directly impacts mission success, the integration of active matching capabilities with robust control algorithms validated through extensive environmental testing provides crucial performance margins ensuring reliable operation throughout harsh deployment scenarios.

Measurement and Verification of Planar Slot Antenna VSWR Performance

Vector Network Analyzer Testing Procedures

Accurate VSWR characterization requires calibrated vector network analyzers configured with appropriate calibration standards compensating for systematic errors in the measurement system including directivity, source match, and reflection tracking uncertainties. For Planar Slot Antenna testing, full two-port calibration using precision open, short, and load standards establishes reference planes at the antenna connector interface, enabling accurate measurement of reflection coefficient magnitude and phase across the frequency range of interest. The measured complex S11 parameter directly relates to VSWR through the mathematical relationship VSWR equals one plus reflection coefficient magnitude divided by one minus reflection coefficient magnitude, providing complete characterization of impedance matching quality. When evaluating Planar Slot Antenna designs intended for specific system applications, engineers should verify VSWR performance under realistic mounting conditions including ground plane size, proximity to other structures, and cable routing configurations that may significantly influence input impedance compared to idealized test fixture measurements.

Anechoic Chamber Far-Field Pattern Validation

While vector network analyzer measurements characterize Planar Slot Antenna impedance matching, comprehensive performance validation requires far-field radiation pattern measurements conducted in calibrated anechoic chambers equipped with precision positioning systems and frequency-appropriate measurement antennas. These facilities suppress unwanted reflections from surrounding structures that would otherwise corrupt pattern measurements, enabling accurate characterization of gain, beamwidth, sidelobe levels, and polarization purity parameters essential for system performance prediction. Huasen Microwave operates three microwave anechoic chambers with dimensions of twenty-one meters, nine meters, and five meters, covering frequency ranges from 0.5 gigahertz through 220 gigahertz with calibration traceable to national metrology standards ensuring measurement accuracy and repeatability. The combination of near-field planar scanning systems for electrically large aperture characterization and spherical near-field systems with sixty-eight probes covering 0.4 to eight gigahertz provides comprehensive diagnostic capabilities identifying performance issues related to manufacturing defects, assembly errors, or design flaws requiring corrective action before production commitment.

Statistical Process Control for Production Consistency

Manufacturing high-performance Planar Slot Antenna systems at production volumes demands rigorous quality control procedures ensuring every unit meets specified VSWR requirements despite normal manufacturing variations in dimensions, material properties, and assembly processes. Statistical process control methodologies employing regular sampling and measurement of critical parameters including slot dimensions, substrate thickness, and metallization quality enable early detection of process drifts before producing significant quantities of non-conforming product. Automated testing systems incorporating programmable vector network analyzers, precision test fixtures, and computerized data acquisition maximize measurement throughput while minimizing operator variability, supporting production rates necessary for high-volume commercial deployments. With ISO 9001 certified manufacturing processes, RoHS and REACH compliant materials, and comprehensive environmental testing capabilities including temperature shock chambers, vibration test benches, and humidity exposure systems, established manufacturers like Huasen Microwave provide the quality assurance infrastructure essential for delivering consistent Planar Slot Antenna performance across diverse application requirements spanning smart home sensors, industrial automation systems, wireless communication devices, and connected vehicle telematics.

Conclusion

Optimal VSWR achievement in Planar Slot Antenna systems requires systematic attention to impedance matching through careful geometric design, appropriate feed network synthesis, and validated manufacturing processes ensuring consistent performance.

Cooperate with Huasen Microwave Technology Co., Ltd.

Partner with Huasen Microwave Technology Co., Ltd., a National High-Tech Enterprise established in 1993 with three decades of microwave and millimeter-wave expertise serving telecommunications, radar, aerospace, and defense industries. Our ISO-certified three thousand square meter facility employs over two hundred specialists utilizing advanced CNC machining, precision brazing, and comprehensive testing capabilities including forty vector network analyzers and calibrated anechoic chambers covering 0.5 to 220 gigahertz. As a leading China Planar Slot Antenna factory, China Planar Slot Antenna supplier, and China Planar Slot Antenna manufacturer, we offer China Planar Slot Antenna wholesale solutions with competitive Planar Slot Antenna price for customers seeking High Quality Planar Slot Antenna for sale. Contact sales@huasenmicrowave.com for custom solutions delivering superior performance.

References

1. Bancroft, R., "Microstrip and Printed Antenna Design," SciTech Publishing

2. Pozar, D. M., "Microwave Engineering," Fourth Edition, John Wiley & Sons

3. Balanis, C. A., "Antenna Theory: Analysis and Design," Fourth Edition, Wiley

4. Collin, R. E., "Foundations for Microwave Engineering," IEEE Press

5. Stutzman, W. L. and Thiele, G. A., "Antenna Theory and Design," Third Edition, Wiley
