How Lens Horn Antenna Improves Beam Focus and Directivity？

Lens Horn Antennas revolutionize beam focus and directivity by incorporating precision dielectric lenses into traditional horn apertures, transforming spherical wavefronts into planar configurations. This innovative design dramatically reduces phase errors that typically limit gain and increase sidelobes in conventional horn antennas. The integrated lens system enables exceptional directional control while maintaining compact dimensions, making these antennas invaluable for high-frequency applications requiring superior beam shaping capabilities and enhanced signal quality in industrial communications and radar systems.

Introduction

In the fast-changing world of communications today, beam focus and directivity are two important performance measures that show how well an antenna works in a variety of industrial settings. More and more engineers and procurement professionals are realising that traditional antenna solutions don't always meet the needs of 5G/6G networks, satellite communications, and advanced radar systems. Lens horn antenna technology solves some of the most important problems that system integrators and equipment manufacturers are having. Lens-enhanced designs are better at controlling electromagnetic waves than regular horn antennas, which have problems with beam dispersion and low gain efficiency. This new technology is especially useful for purchasing managers who are looking for solutions that balance performance, size limitations, and cost-effectiveness. Our in-depth analysis is aimed at procurement decision-makers, RF engineers, and OEM partners who need a deep understanding of the technology along with useful sourcing advice. We look at basic ideas, design factors, comparative benefits, and strategic ways to buy things that help people make smart investment choices. This guide lays the groundwork for successfully integrating lens horn antennas into a wide range of industrial communication and sensing systems by looking in depth at performance measures and real-world applications.

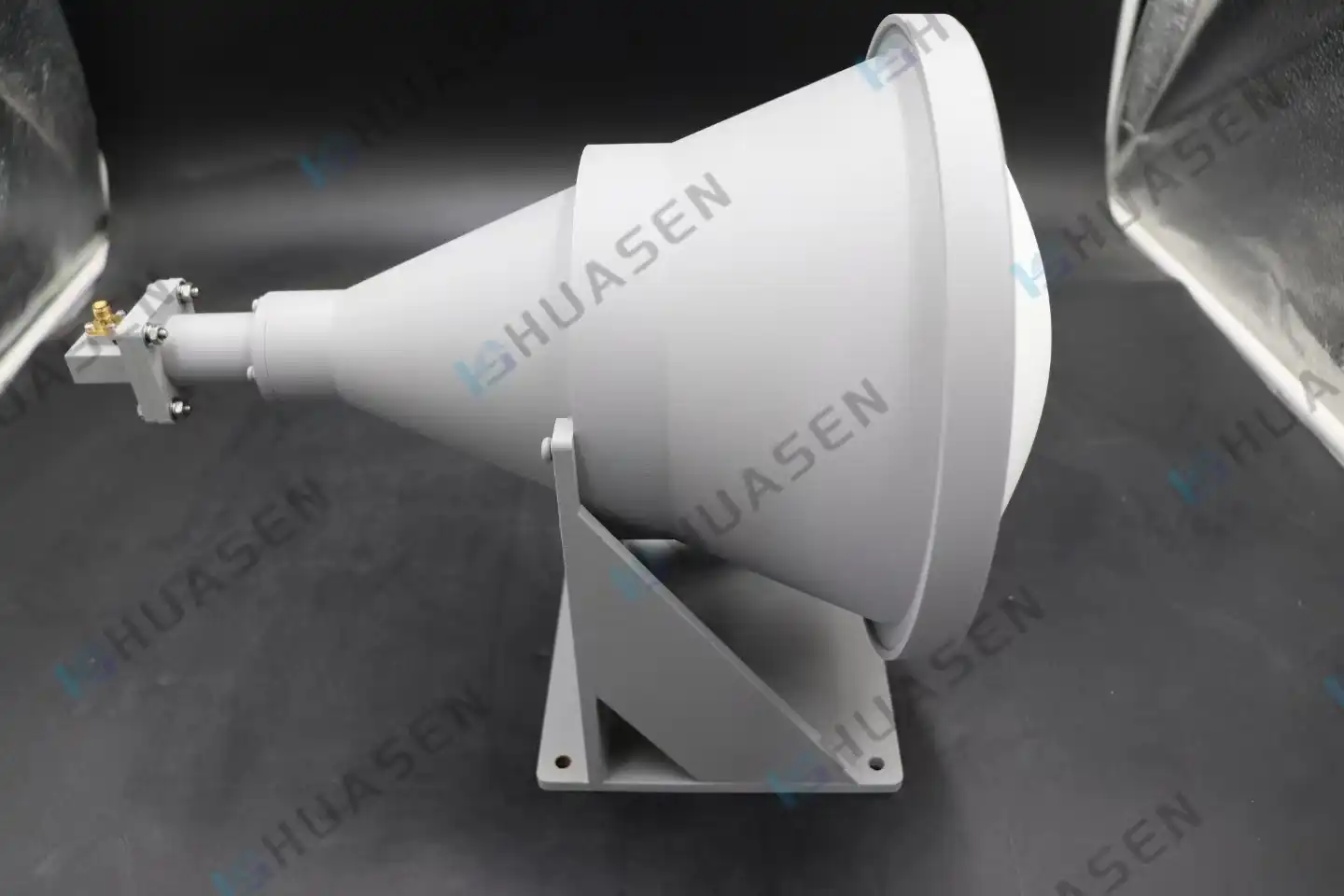

Lens Horn Antenna-g1

Understanding Lens Horn Antenna: Principles and Design

Electromagnetic Lens Principle and Wave Transformation

Lens horn antennas use special dielectric lenses inside the horn holes to precisely control electromagnetic waves. The basic idea behind how it works is to change the naturally spherical wavefronts that come from the feed horns into uniformly flat wavefronts at the opening exit. The electromagnetic lens uses carefully chosen dielectric materials like PTFE, Rexolite, or high-grade Quartz to change how waves travel. This transformation gets rid of phase errors that usually hurt gain and directivity in normal horn configurations. These materials have certain dielectric factors that let electromagnetic waves bend in a controlled way, like how an optical lens works. The exact phase correction that is applied to waves coming in is based on the shape of the lens, which usually has hyperbolic or plano-convex profiles.

Critical Design Elements and Material Considerations

Modern lens horn antenna designs have a lot of complex parts that have a direct effect on how well they work. When choosing a lens material, frequency-dependent dielectric properties, temperature stability, and mechanical sturdiness are all things that are taken into account. PTFE-based materials work well in millimeter-wave applications because they have low dissipation factors and stable dielectric constants across a wide range of temperatures. To get the best frequency range, you need to be very careful with the dimensions and characterize the material. Engineers need to think about how dielectric dispersion effects can change performance over a wide range of working bandwidths. The horn flare angle, lens positioning, and aperture sizes all work together to get the desired radiation patterns while keeping the VSWR below 1.5:1 across all operating frequencies.

Product Type Variations and Specialized Configurations

The industry offers several distinct lens horn antenna configurations, each optimized for specific application requirements. Here are the primary product categories available:

Conical Horn Lens (LHA): Features circular apertures with symmetric radiation patterns, ideal for applications requiring equal E-plane and H-plane beamwidths
Pyramidal Horn Lens: Incorporates rectangular apertures enabling independent control of E-plane and H-plane radiation characteristics
Feed-Illuminated Lens: Designed specifically for parabolic reflector illumination, optimizing spillover efficiency and edge taper
Point-Focus Lens (PLHA): Provides concentrated beam focus for precision measurement applications and long-range communication links
These configurations enable system designers to select optimal solutions based on specific polarization requirements, aperture constraints, and radiation pattern specifications. The customization capabilities extend to focal length adjustment, aperture sizing, and beamwidth optimization according to application demands.

How Lens Horn Antennas Enhance Beam Focus and Directivity

Addressing Traditional Horn Antenna Limitations

Standard horn antennas inherently produce spherical Lens Antenna phase wavefronts that create significant limitations in high-gain applications. As aperture dimensions increase to achieve higher gain, phase errors accumulate across the aperture, resulting in degraded efficiency and elevated sidelobe levels. These characteristics particularly impact applications requiring precise beam control and minimal interference. The beam divergence characteristics of conventional horns limit their effectiveness in long-range communication links and precision radar applications. Traditional solutions often require impractically long horn lengths to achieve adequate phase uniformity, creating installation challenges and increased system complexity. These limitations become increasingly problematic at millimeter-wave frequencies, where dimensional tolerances directly impact performance.

Lens-Enabled Wavefront Correction and Performance Enhancement

The integration of precision dielectric lenses transforms antenna performance through sophisticated wavefront manipulation. The lens geometry corrects phase variations across the aperture, enabling uniform phase distribution that maximizes aperture efficiency. This correction mechanism allows significantly shorter horn lengths while achieving superior gain and directivity compared to conventional designs. Sidelobe suppression represents another critical improvement achieved through lens integration. The uniform aperture illumination produces radiation patterns with exceptional sidelobe performance, typically achieving E-plane levels ≤-15dB and H-plane levels ≤-26dB. This performance enhancement directly translates to reduced interference in multi-antenna installations and improved signal-to-noise ratios in receiver applications.

Measurable Performance Benefits and Application Impact

Real-world performance data demonstrates substantial improvements in key antenna characteristics. Lens horn antennas achieve aperture efficiencies exceeding 80% compared to 60-70% typical for standard horn designs. The improved efficiency translates directly to higher gain per unit aperture area, enabling more compact system implementations. The enhanced directivity characteristics enable precise beam steering and focusing capabilities essential for modern communications infrastructure. 5G backhaul applications benefit from reduced beam divergence that minimizes interference between adjacent links. Radar systems achieve improved target resolution through tighter beam focus, while measurement applications gain enhanced accuracy through reduced pattern distortion.

Comparing Lens Horn Antennas with Other Antenna Types

Performance Comparison with Parabolic Reflector Systems

Parabolic reflector antennas achieve high gain through large aperture areas but require complex feed positioning and mechanical stability. Lens horn antennas offer comparable gain performance with significantly reduced size and weight, particularly advantageous for mobile and aerospace applications. The integrated lens design eliminates feed support structures that can cause blockage and pattern distortion in reflector systems. Wind loading considerations favor lens horn designs in outdoor installations where structural simplicity reduces mechanical stress. The compact form factor enables installation in space-constrained environments while maintaining superior electromagnetic performance. Maintenance requirements also favor lens horn designs through reduced mechanical complexity and improved environmental sealing capabilities.

Comparative Analysis with Standard Horn and Array Antennas

Standard horn antennas require significantly longer physical dimensions to achieve equivalent gain and directivity performance. The length-to-gain relationship becomes particularly unfavorable at higher frequencies, where wavelength reduction demands proportionally longer horns. Lens horn antennas overcome this limitation through optical focusing principles that compress the required physical length while improving performance. Phased array systems offer electronic beam steering capabilities but introduce complexity, cost, and power consumption challenges. Lens horn antennas provide fixed beam solutions with superior efficiency and lower system complexity for applications not requiring dynamic beam steering. The passive nature eliminates failure modes associated with active electronic components while providing consistent performance across operational lifetimes.

Size, Weight, and Installation Advantages

The compact dimensions of lens horn antennas enable installation flexibility critical for modern communications infrastructure. Tower space constraints in urban environments favor compact antenna solutions that maximize performance per unit volume. The reduced weight characteristics simplify mounting hardware requirements and reduce structural loading on support structures. Installation simplification extends to waveguide interface standardization and environmental protection. The lens itself provides inherent radome functionality, protecting internal waveguide structures from environmental contamination while eliminating additional protective coverings. These design advantages reduce total system cost while improving long-term reliability in challenging environmental conditions.

Procurement Guide: How to Buy and Source Lens Horn Antennas

Market Overview and Cost Considerations

The lens horn antenna market encompasses specialized manufacturers focused on high-frequency applications and precision electromagnetic components. Pricing structures reflect the sophisticated manufacturing processes required for precision lens fabrication and horn integration. Cost factors include dielectric material specifications, dimensional tolerances, frequency range optimization, and customization requirements. Manufacturing complexity increases with frequency range and performance specifications. Millimeter-wave applications require sub-micron dimensional tolerances and specialized materials that command premium pricing. However, the superior performance characteristics often justify higher initial costs through improved system efficiency and reduced installation complexity.

Supplier Selection and Quality Assurance Criteria

Reliable suppliers demonstrate comprehensive quality control procedures encompassing material characterization, dimensional verification, and electrical performance validation. Certification requirements include IEEE standards compliance, environmental testing verification, and traceability documentation for critical applications. Military and aerospace applications require additional certifications, including MIL-STD compliance and qualification testing. Technical support capabilities represent crucial supplier differentiators in complex procurement decisions. Suppliers offering design consultation, custom engineering services, and application-specific optimization provide added value for system integrators. Manufacturing flexibility, enabling prototype development and production scaling, supports efficient project implementation timelines.

Customization Options and Technical Collaboration

More and more, modern applications need customised solutions that are best for their unique needs. Customisation options include changing the focal length, optimising the aperture, adjusting the frequency band, and setting up the polarisation. As part of the collaboration process, there are usually in-depth technical discussions about system requirements, environmental constraints, and performance goals. For technical collaborations to be successful, there needs to be detailed documentation of frequency range, gain requirements, radiation pattern specifications, and environmental conditions. Early interaction with suppliers allows for optimisation of design parameters while keeping costs low and delivery dates on track. Before committing to production, prototype development and testing validation make sure that the final goods meet strict performance requirements.

Advantages of Lens Horn Antennas in B2B Applications

System Efficiency and Performance Enhancement

Through better beam control and higher efficiency, lens horn antennas make a noticeable difference in the performance of the whole system. The small size makes it possible to place more antennas in a space while still meeting the isolation requirements between elements next to each other. This feature comes in handy for installing 5G infrastructure in places where traditional antennas can't go because of a lack of room. Better aperture utilisation and lower sidelobe radiation lead to higher power efficiency. The focused main beam cuts down on wasted power and makes it easier to figure out link budgets for long-distance talks. Radar apps can tell the difference between targets better because the beam is more focused and there is less noise coming in from off-axis directions.

Versatility Across Frequency Bands and Industries

The basic ideas behind lens horn antennas work well for a wide range of frequency bands, from microwaves to millimetre waves and below terahertz. This flexibility lets you use standard design methods while still meeting specific needs that depend on frequency. Consistent performance across multiple frequency bands is good for telecommunications infrastructure. Industrial uses include those in the aerospace, defence, and automotive sectors. Each industry takes advantage of its own specific benefits, such as small size for radar integration in cars, high accuracy for communications in space, and dependability for defence uses. Because of this, suppliers can reach out to a wide range of market groups while still focusing on their core technical skills.

Long-term Value and Total Cost of Ownership

The durability of lens horn antennas makes them very valuable in the long run because they need less upkeep and keep working well for their whole lives. The passive design gets rid of the failure modes that come with active parts and keeps the electrical properties stable even when the environment changes. Compared to open-aperture designs, the integrated lens protection makes it less likely that contamination will get in. When figuring out the total cost of ownership, you need to take into account how much easier installation is, how much less upkeep there is, Lens Horn Antennas,and how stable the performance is. The small size cuts down on the tower room needed and the rental costs that come with it for commercial use. Improvements in performance can make a system simpler by lowering the number of parts needed and making signal handling easier.

Conclusion

Lens horn antennas are a big step forward in high-frequency antenna technology. They offer better beam focus and directivity thanks to their innovative use of dielectric lenses. When wavefronts change from spherical to planar, performance goes up a lot, but the small form factors needed for modern apps stay the same. Better gain efficiency, lower sidelobe levels, and easier installation requirements are good for a lot of different industries, from telecommunications to aircraft. Lens horn antennas are the best choice for demanding communications and radar uses because they have a lot of technical benefits, are reliable over time, and need less maintenance. Lens horn antenna technology gives next-generation systems the performance base they need as frequency needs keep moving toward millimetre waves and sub-terahertz bands.

FAQ

1. What frequency ranges are suitable for lens horn antenna applications?

Lens horn antennas operate effectively across microwave, millimeter-wave, and sub-terahertz frequency ranges, typically spanning 10 GHz to 300 GHz. The Ka-band (26.5-40 GHz), V-band (50-75 GHz), E-band (60-90 GHz), and W-band (75-110 GHz) represent common operational frequencies. Higher frequency applications require more precise manufacturing tolerances and specialized dielectric materials to maintain performance specifications.

2. How do lens horn antennas differ from parabolic reflector systems?

Lens horn antennas achieve comparable gain performance through compact, integrated designs, while parabolic reflectors require larger apertures and complex feed positioning. The lens integration eliminates feed blockage issues common in reflector systems and provides superior environmental protection. Installation simplicity and reduced wind loading make lens horn antennas advantageous for space-constrained applications.

3. Can lens horn antennas be customized for specific applications?

Extensive customization options include focal length adjustment, aperture sizing, beamwidth optimization, and frequency band tailoring. Polarization configurations support both linear and circular polarization requirements through waveguide phase shifter integration. Custom engineering services enable optimization for specific radiation patterns, environmental conditions, and performance specifications.

4. What materials are used in lens horn antenna construction?

High-quality dielectric materials, including PTFE, Rexolite, and Quartz, provide optimal electromagnetic properties for lens applications. These materials offer low dissipation factors, stable dielectric constants, and excellent temperature stability. Horn structures utilize precision-machined aluminum or brass with gold or silver plating to minimize ohmic losses and ensure long-term performance reliability.

5. Are lens horn antennas suitable for high-power applications?

Power handling capabilities depend on lens material selection and thermal management considerations. Specialized materials like Quartz or ceramic enable high-power applications exceeding kilowatt levels. Continuous wave power ratings require careful thermal analysis to prevent dielectric heating and performance degradation. Proper specification ensures reliable operation under demanding power conditions.
