Features and Selection Guide: Manual Waveguide Switches vs. Electric Waveguide Switches

Waveguide switches are very important parts of RF and microwave systems because they let signals be routed and controlled in a wide range of situations. When engineers choose between manual and electric waveguide switches, they need to think about things like how the system will be used, how it will be automated, and how well it will work with other systems. These days, electric waveguide switches are very popular because they can be controlled from a distance and can switch quickly. This complete guide looks at the main differences between these two switching technologies. It talks about their unique features, performance factors, and benefits for certain applications to help engineers make smart choices for their microwave systems.

Key Performance Characteristics of Manual vs. Electric Waveguide Switches

Switching Speed and Response Time Analysis

Manual waveguide switches rely on mechanical operation, requiring physical interaction for position changes. The switching time depends entirely on operator response and can range from several seconds to minutes, making them unsuitable for automated systems or rapid signal routing requirements. In contrast, Electric Waveguide Switches offer exceptional response capabilities with switching times typically under 300 milliseconds, while specialized ferrite switches can achieve microsecond-level performance. Due to their ability to switch quickly, electric versions are perfect for real-time signal routing tasks, like in radar systems and automated test equipment where timing accuracy is very important.

Control Interface and Automation Compatibility

The control mechanisms between manual and electric waveguide switches differ significantly in complexity and functionality. Manual switches require direct physical access, limiting their use in remote or hazardous environments. Electric switches utilize sophisticated dual power supply control methods, enabling remote operation through various interfaces including TTL, RS-232, or Ethernet protocols. This automation compatibility allows Electric Waveguide Switches to integrate seamlessly with computer-controlled systems, facilitating complex switching sequences and enabling unmanned operation in critical applications such as satellite communication systems and defense installations.

Reliability and Maintenance Considerations

Manual waveguide switches typically exhibit excellent long-term reliability due to their simple mechanical construction, requiring minimal maintenance beyond occasional cleaning and lubrication. However, their performance depends on operator skill and consistency. Electric Waveguide Switches incorporate more complex internal mechanisms but offer consistent, repeatable performance independent of human factors. Modern electric switches feature robust designs with isolation levels exceeding 70 dB and insertion losses below 0.1 dB, maintaining these specifications across millions of switching cycles while requiring only periodic calibration and software updates.

Application-Specific Selection Criteria

Laboratory and Test Environment Requirements

Laboratory environments often prioritize flexibility and cost-effectiveness, making manual switches attractive for basic applications where switching frequency is low and operator presence is guaranteed. However, Electric Waveguide Switches excel in automated test systems where repeatability and remote control are essential. These switches support complex multi-channel configurations including SPDT, DPDT, and three-channel six-port arrangements, enabling sophisticated test scenarios. The wide frequency coverage from 1.72GHz to 112GHz allows Electric Waveguide Switches to handle diverse measurement requirements across various frequency bands without requiring multiple switch types.

Field Deployment and Remote Operations

Field applications demand robust, remotely controllable solutions that can operate reliably in harsh environments without direct human intervention. Electric Waveguide Switches work better in these situations because they can be set up in either an E-plane or an H-plane way and can handle both rectangular and dual-ridge waveguide types. The two-power supply control method ensures operating redundancy, and the materials, such as copper with silver- or gold-plating or aluminum treated with oxidation, are very resistant to the environment. This makes Electric Waveguide Switches very important for places where upkeep is hard to get to, like telecommunications infrastructure, radar installations, and aerospace uses.

High-Frequency and Precision Applications

Critical applications requiring exceptional signal integrity benefit significantly from the advanced specifications of Electric Waveguide Switches. The high isolation characteristics (typically ≥70 dB) and low insertion loss (≤0.1 dB at lower frequencies, ≤0.5 dB at higher frequencies) ensure minimal signal degradation and excellent channel separation. In situations where signal purity has a direct effect on system performance, like millimeter-wave communications, radiometry, and precise measurement systems, these performance parameters are very important. Even though manual switches can do what they're supposed to, they can't always meet these exact requirements.

Economic and Technical Trade-offs

Initial Investment and Total Cost of Ownership

Manual waveguide switches typically require lower initial capital investment, making them attractive for budget-conscious applications with limited switching requirements. However, the total cost of ownership must consider operational factors including labor costs for manual operation, potential downtime due to human error, and limitations in automation capabilities. Electric Waveguide Switches cost more up front, but they pay for themselves in the long run by lowering operational costs, making the system more reliable, and making it easier to add on to and update automation systems in the future.

Integration Complexity and System Architecture

System integration requirements heavily influence the choice between manual and Electric Waveguide Switches. Manual switches offer simplicity but create limitations in system architecture design, particularly in applications requiring coordinated switching across multiple channels or time-critical operations. Electric Waveguide Switches enable sophisticated system architectures with centralized control, automated fault detection, and integration with monitoring systems. The switching time of ≤300ms for standard electric switches or ≤2μs for ferrite variants allows complex switching matrices and real-time signal routing that would be impossible with manual alternatives.

Future-Proofing and Scalability Considerations

Modern RF systems increasingly demand automated operation and remote monitoring capabilities, making Electric Waveguide Switches a strategic choice for future-proofing investments. These switches support software updates, remote diagnostics, and integration with emerging communication protocols, ensuring compatibility with evolving system requirements. The multi-channel configuration options and frequency coverage from 1.72GHz to 112GHz provide scalability for expanding system requirements, while manual switches may require complete replacement when automation becomes necessary.

Conclusion

The selection between manual and Electric Waveguide Switches depends on specific application requirements, operational constraints, and long-term system goals. While manual switches offer simplicity and lower initial costs, Electric Waveguide Switches provide superior performance, automation capabilities, and future-proofing advantages that justify their investment in most modern applications.

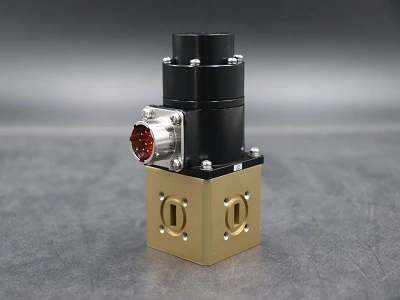

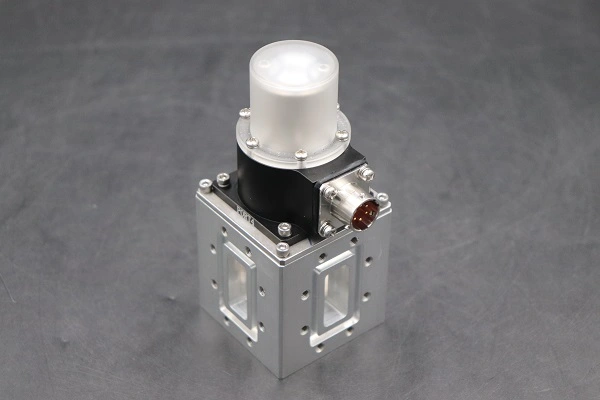

As a leading Electric Waveguide Switches supplier and manufacturer, Huasen Microwave manufactures Electric Waveguide Switches (WDESMD) in various types, including single-pole double-throw, double-pole double-throw, and three-channel six-port configurations. The production line accommodates waveguide sizes ranging from WR-2300 to WR-10, offering advantages such as wide-frequency operation, low loss, and high isolation. Core advantages include isolation ≥70 dB, insertion loss ≤0.1 dB, switching time ≤300 ms, and frequency coverage from 1.72–112 GHz with dual power supply control method. These switches are widely used in communication, radar, and aerospace fields. For expert consultation and custom solutions, contact our team at sales@huasenmicrowave.com to discuss your specific waveguide switching requirements.
