Comb-Line Coaxial Bandpass Filter Design Fundamentals

Comb-line coaxial bandpass filters are made with precision engineering that uses resonator groups set up in a "comb" shape inside a coaxial frame. Transverse electromagnetic (TEM) mode propagation and tightly coupled resonators work together in this configuration to make it very selective for certain frequencies. When it comes to mission-critical RF applications like 5G macro cells and airborne radar systems, where signal integrity and electromagnetic compatibility are key to success, a well-designed coaxial bandpass filter has low insertion loss, high skirt rejection, and stable power handling.

Introduction

Modern RF and microwave systems need filtering solutions that balance how well they work electrically with how well they work mechanically. These days, comb-line coaxial bandpass filters are essential tools for engineers and procurement experts who have to deal with tricky spectrum management issues. These gadgets work really well in places where disturbance from nearby channels, harmonic reduction, and high-power operation all come together. Coaxial cavities with comb-line designs offer the best Q-factors and temperature stability compared to ceramic or microstrip options. This makes them perfect for base station infrastructure, satellite transponders, and electronic warfare platforms.

Buying managers and system integrators can make smart choices when they understand the basic structure, design principles, and buying factors of these filters. The right filter design has a direct effect on link budget efficiency and legal compliance, no matter if you're putting in place spread antenna systems for public safety networks or improving test equipment for 6G research. This guide goes into the technical details that RF engineers need to know and also gives B2B buyers useful ways to find products while dealing with the complexity of the supply chain.

Understanding Comb-Line Coaxial Bandpass Filters

Core Architecture and Operating Principles

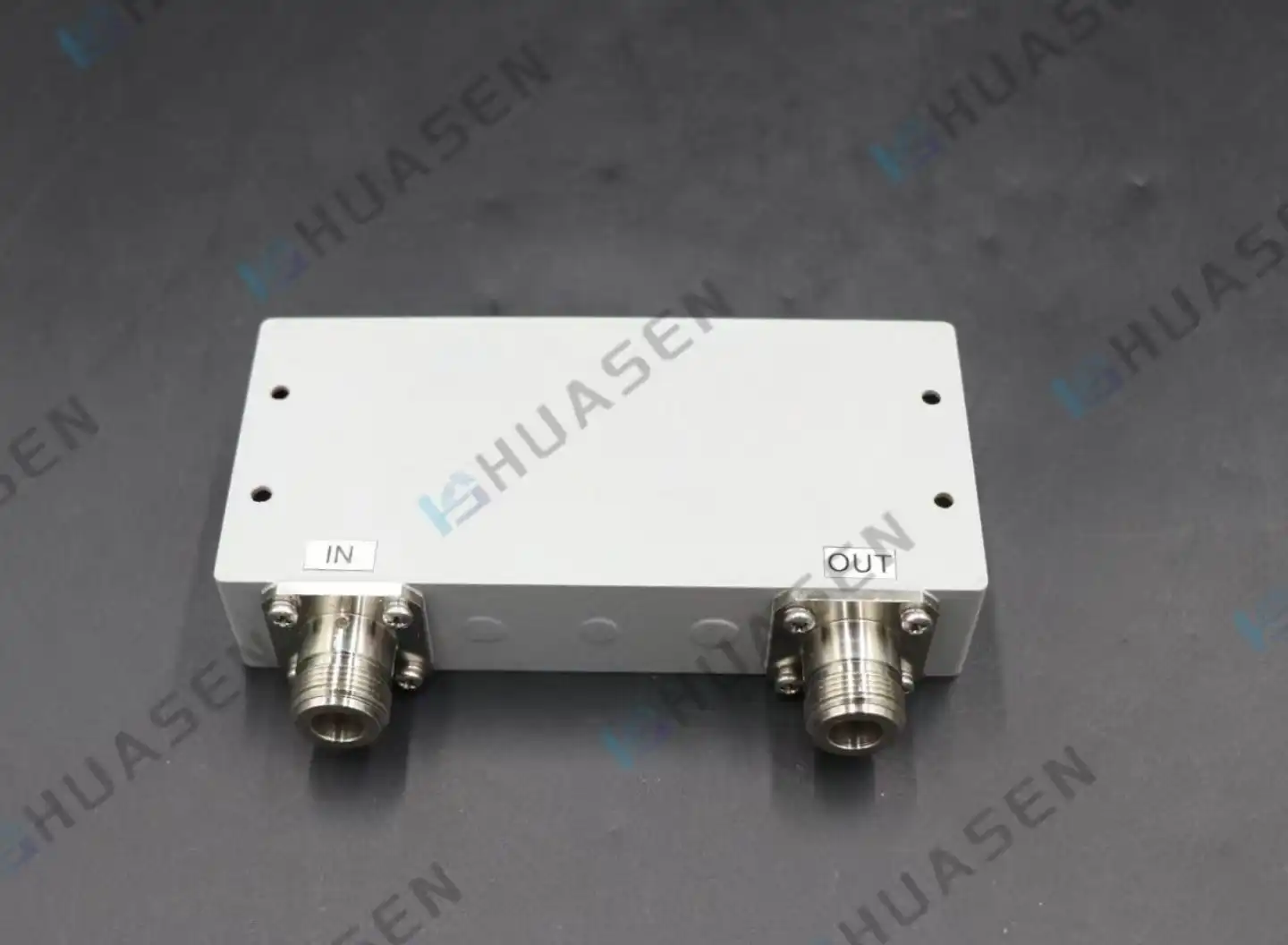

Multiple quarter-wavelength or half-wavelength resonators are lined up parallel to each other inside a metal case to make a comb-line coaxial bandpass filter. From the side, each resonator looks like a "comb" because it acts like a short-circuited gearbox line at one end. TEM waves can pass through the coaxial structure, which has a conductor in the middle and a dielectric gap and shield around the outside. In this way, small patterns can be made with little radiation loss. You can change the passband noise and bandwidth by changing the resonator coupling strength, which is based on the openings' size and spacing.

Electromagnetic Behavior and Signal Integrity

When a signal goes through these filters, energy is exchanged between resonators that are close to each other using magnetic or electric connection. Bandwidth is directly related to the coupling coefficient. Passbands are larger when coupling is tight, and they are narrower when coupling is open. When there is a lot of interference in the spectrum, this resonant behavior makes sharp roll-off slopes at the band ends. Resistance losses are kept to a minimum by high unloaded Q-factors (usually 500–5000), which means low insertion loss in the passband. Understanding these electromagnetic interactions helps people who buy things match the details on the document with what the system needs. This makes sure that the specs match the budgets for receiver sensitivity and the requirements for emitter spectral purity.

Material Selection and Manufacturing Precision

To cut down on skin-effect losses, coaxial bandpass filters are made from high-conductivity materials like silver-plated aluminum or brass housings. To get the required center frequency accuracy, the resonator lengths must stay within micrometers of each other. This requires very precise CNC cutting and strict quality control. Supports made of PTFE or ceramic keep resonators in place and reduce parasitic capacitance. These choices of materials have a direct effect on how stable they are at different temperatures, how well they handle power, and how reliable they are over time. This is especially true for outdoor base station installations that go from -40°C to +85°C.

Design and Simulation of Comb-Line Coaxial Bandpass Filters

Resonator Configuration and Bandwidth Control

The first step in designing a comb-line filter is to figure out the resonator length by using the desired center frequency and the dielectric properties. The order of the filter and the final rejection slope depend on how many resonators are used. A sixth-order version usually gets 80–100 dB stopband attenuation. Tuning the iris sizes between resonators or making screw adjustments to the resonator-to-ground capacitance are ways to change the bandwidth. When engineers design filters, they have to weigh bandwidth against insertion loss. This is because smaller filters are more sensitive to manufacturing flaws.

FFW, which is the ratio of absolute bandwidth to center frequency, is one of the most important design factors. A typical cellular duplexer might need an FBW of 2–5%, which means it needs to be able to precisely control the coupling. The relationship between resonator Q, insertion loss (IL), and bandwidth is based on well-known filter theory. IL rises as bandwidth decreases compared to empty Q. To make sure that performance is the same across production batches, procurement teams should ask suppliers for detailed coupling matrix data and tolerance analysis.

Simulation Tools and Validation Methodology

HFSS (High-Frequency Structure Simulator) and CST Microwave Studio are examples of modern design workflows that use electromagnetic simulation software to model field distributions and predict S-parameters before making a prototype. By using finite element methods to answer Maxwell's equations, these tools show where current is concentrating, where voltage is rising, and where passive intermodulation (PIM) could happen. Simulation helps find the best tap points for connecting inputs and outputs, reducing return loss across the passband while keeping the same resistance as 50-ohm systems.

Validation is more than just checking the S-parameters. To make sure that the resonator stays below critical levels during continuous wave operation, thermal modelling is needed for power handling analysis. PIM simulation finds places where materials meet, and mechanical parts can behave in a way that isn't linear. This helps designers make changes that meet the strict -160 dBc requirements for LTE and 5G infrastructure. Filter manufacturers with a lot of experience use Monte Carlo tolerance analysis to predict yield rates and make cost-effective plans for production.

Applications and Advantages of Comb-Line Coaxial Bandpass Filters

Industry-Specific Deployment Scenarios

Comb-line coaxial bandpass filters solve important problems in many areas. In frequency-division duplex systems, these devices separate the transmit and receive paths in cellular base station front-ends. This keeps receivers from becoming less sensitive to noise from transmitters. The high Q-factor makes sure that there is little signal loss (usually less than 0.8 dB insertion loss), which keeps the link budget high so that the coverage area is larger. These filters are used in aerospace radar systems to block harmonic signals that could interfere with navigational aids or nearby radar bands. They are built to be durable, so they can handle loads that are stronger than MIL-STD-810 standards for shaking and shock.

Maritime communication systems work well in salty settings because their housings are tightly sealed and the coats are resistant to rust. These filters are built into vector network analyzers and spectrum analyzers by test equipment makers. They make sure that measurements are accurate by ensuring stable frequency response and low phase distortion. Point-to-point microwave backup links depend on high skirt selection to get the most out of approved bands and keep interference from other channels to a minimum.

Comparative Performance Analysis

Comb-line coaxial designs and coaxial bandpass filters are clearly better than other filter technologies when compared to them. Ceramic dielectric filters take up less space, but their frequency drifts with temperature, and they can't handle much power (usually less than 50 watts). Above 10 GHz, waveguide cavity filters have better Q-factors, but at UHF and lower microwave bands, they get too big to use. Microstrip planar filters allow for inexpensive PCB assembly, but they have more insertion loss and less rejection depth than coaxial designs.

Filter Technology	Insertion Loss	Size (relative)	Power Handling	Frequency Stability
Comb-Line Coaxial	≤0.8 dB	Medium	100–500 W	Excellent (-40 to +85°C)
Ceramic Dielectric	1.5–2.5 dB	Small	10–50 W	Moderate
Waveguide Cavity	≤0.5 dB	Large	>1000 W	Excellent
Microstrip Planar	2–4 dB	Very Small	<10 W	Poor

Environmental Adaptability and Reliability

When deploying in harsh environments, it's important to pay attention to ingress protection (IP) ratings and how resistant materials are to corrosion. To get an IP65 or IP67 grade, good makers use adhesive coats and stainless steel parts. This makes sure that the product works without getting wet or dusty. For ocean locations, salt spray testing according to ASTM B117 makes sure that the connectors and housing are solid. Temperature adjustment methods, like bimetallic tuning screws, keep the center frequency stable across a wide range of operating temperatures. This is very important for systems that don't have automatic frequency correction.

How to Choose the Right Comb-Line Coaxial Bandpass Filter for Your Project?

Defining Technical Requirements

To choose a good coaxial bandpass filter, you should start by making a detailed needs grid that includes electrical, mechanical, and weather factors. The electrical specs list the center frequency, the absolute bandwidth, the highest insertion loss, the minimum stopband rejection, and the return loss, which is usually ≥18 dB. When dealing with power, it's important to tell the difference between average continuous power and peak pulse power, because thermal management strategies are very different. When two transmitters are close to each other, passive intermodulation performance is very important because PIM products can fall into receive bands.

Supplier Evaluation and Procurement Strategies

In order to find qualified suppliers, you need to look at their manufacturing skills, certifications, and technical support systems. Leading filter makers use quality control systems that are compliant with ISO 9001 and MIL-STD-461 for defense uses. Before committing to production orders, evaluation samples let you check the S-parameters in-house using vector network analyzers and PIM testing that meets IEC 62037 standards.

Talking about prices should include things like volume discounts, the cost of making tools for custom designs, and the total cost of ownership, which includes how often things break and what the warranty covers. For catalogue items, lead times are 4–6 weeks, but for fully customized solutions that need new mechanical designs, they are 12–16 weeks. Depending on how complicated the product is, the minimum order quantity (MOQ) is usually between 10 and 100 units. For trial stages, smaller MOQs are possible. Setting up framework agreements with reliable suppliers protects the supply chain and makes sure that parts are distributed quickly when they become scarce.

Customization Capabilities and Design Support

For many jobs, custom solutions are needed that aren't available in a catalogue. Frequency retargeting, bandwidth changes, power scaling, and connection swaps are some of the customization choices. For more advanced customizations, multi-section designs that combine bandpass and notch replies or combined multiplexers that put together several filters in one body may be used. Suppliers who have their own RF design teams can work together to improve specifications by providing coupling matrix designs and tolerance analysis to make the products easier to make.

Technical help goes beyond the planning phase. Calibration data packages with measured S-parameters across a wide range of temperatures make it possible to accurately model the Coaxial Bandpass Filter. The coaxial bandpass filter helps fix integration problems like impedance mismatches or sudden drops in insertion loss. This way of working together cuts down on the time it takes to get a product to market and lowers the risk of mistakes at the component level that are found during system integration testing.

Technical Specifications: Huasen Microwave CBPF Series

Parameter	Specification	Notes
Frequency Range	DC–60 GHz	Custom tuning available
Insertion Loss	≤0.8 dB	At center frequency
Return Loss	≥18 dB	Across passband
Stopband Rejection	≥60 dB	At specified offset
Power Handling	Up to 500 W CW	Design-dependent
Operating Temperature	-40°C to +85°C	With temperature compensation
Housing Material	Aluminum or Copper	Silver-plated or anodized finish
Connector Options	N-type, SMA, 7/16 DIN	Custom connectors available

Conclusion

Comb-line coaxial bandpass filters are an advanced technology that is still changing to meet the needs of current RF systems, which are getting more complicated. They are essential for many uses, including commercial telecommunications, aerospace defense, and precision test instruments, because they have the right amount of electrical performance, mechanical robustness, and environmental resilience. To be good at filter buying, you need to know how design factors like resonator Q, coupling coefficients, and material traits affect each other, as well as how to deal with real issues like source capabilities, lead times, and customization options. By using organized review methods and working with seasoned makers, engineers, and buying managers, they can find filtering solutions that meet budget and time constraints and improve system performance.

FAQ

1. What distinguishes comb-line from cavity resonator filters?

Comb-line filters utilize many short-circuited quarter-wavelength resonators grouped in parallel, enabling compact designs through efficient packing. Cavity filters use separate half-wavelength resonators in separate chambers, offering a higher unloaded Q but requiring larger volumes. When compared to cavity designs, comb-line architectures typically achieve a 30–50% size reduction at frequencies below 3 GHz.

2. How can insertion loss be minimized in filter design?

To lower insertion loss, you need high-conductivity materials (silver plating is preferred), optimized gaps between the resonator and the housing to maximize the Q-factor, and minimized dielectric loss through air-gap supports or low-tan-delta materials like PTFE. Losses are spread across more resonators when the filter order is increased, though this enlarges the overall size. For well-executed coaxial designs in the UHF through lower microwave spectrum, practical limits range between 0.5 and 0.8 dB.

3. What are typical supplier lead times and MOQ requirements?

Standard catalog filters ship within 4–6 weeks with MOQs of 10–25 units. Custom designs requiring new mechanical layouts extend lead times to 12–16 weeks, including validation cycles for prototypes. MOQs for fully customized solutions range from 50 to 100 units to amortize tooling costs. If manufacturing capacity is available, expedited programs with premium pricing can reduce timelines by 30–40%. What makes cavity resonator filters different from coaxial bandpass filters?

Partner with a Trusted Coaxial Bandpass Filter Manufacturer

Huasen Microwave Technology delivers precision-engineered coaxial bandpass filters that meet the stringent demands of modern RF infrastructure. With three decades of experience serving telecommunications, aerospace, and defense sectors, we combine advanced simulation capabilities with meticulous manufacturing processes to achieve insertion loss ≤0.8 dB and out-of-band suppression ≥60 dB across DC-60 GHz frequency ranges. Our coaxial cavity filters feature high Q-factor resonators, compact form factors, and environmental ratings proven in outdoor base stations and shipborne platforms worldwide.

Whether you need a standard catalog solution or a fully customized design tailored to unique frequency, power, or mechanical requirements, our engineering team provides comprehensive support from initial specification through production qualification. We maintain ISO 9001 certification and offer rapid prototyping to accelerate your development timeline. Contact our sales team at sales@huasenmicrowave.com to discuss your project requirements and request technical datasheets. Discover why system integrators and OEMs rely on Huasen Microwave as their preferred coaxial bandpass filter supplier for mission-critical applications demanding uncompromising performance and reliability.
