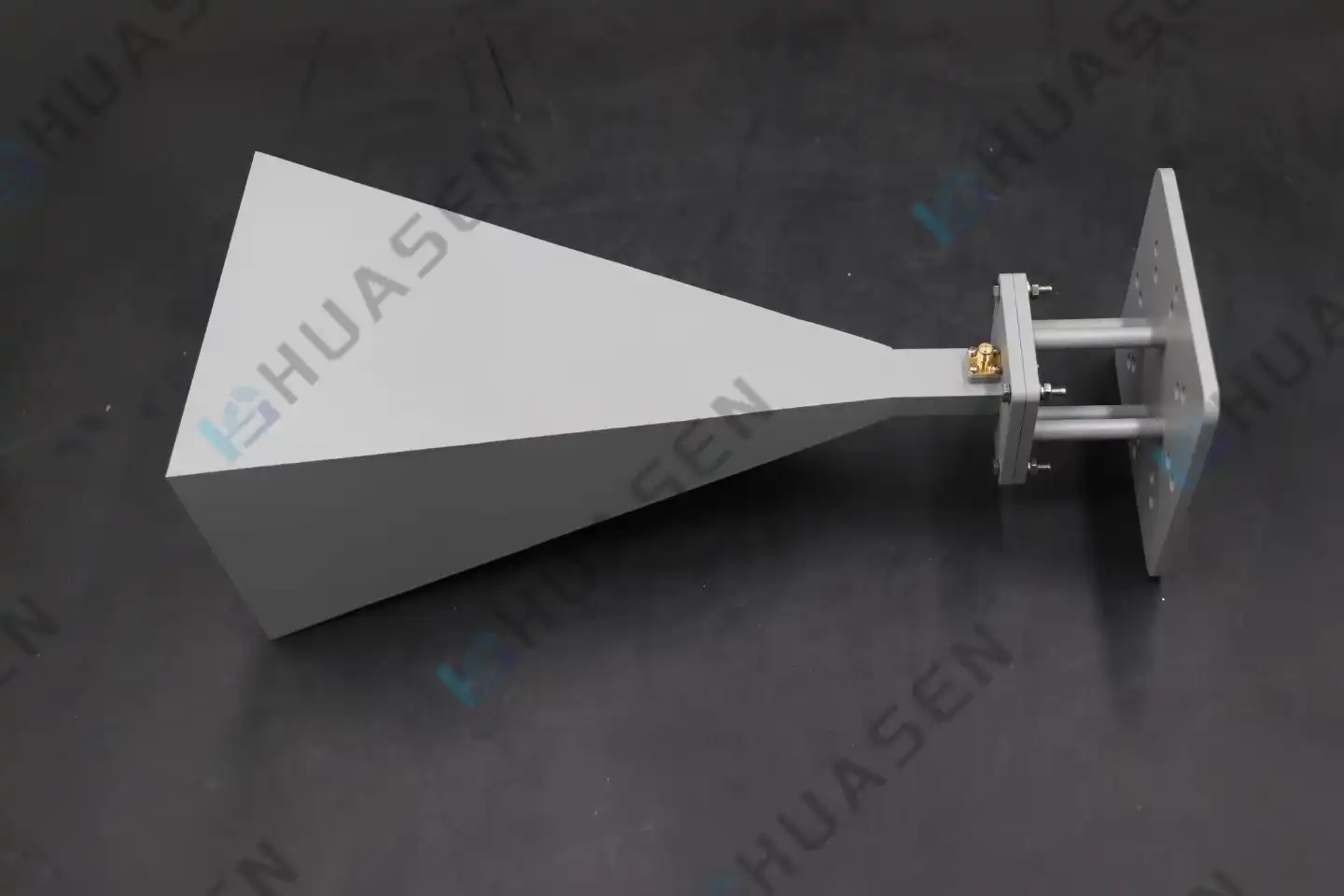

Broadband Horn Antenna Radiation Pattern and Performance Explained

A Broadband Horn Antenna is an electromagnetic reflector that sends energy in a reliable way across a large frequency range, usually from 1 GHz to 18 GHz or higher. In serious situations, the radiation pattern—which shows how electromagnetic energy spreads from the antenna into space—determines how well signals can be sent and received. Engineers and procurement professionals can choose antennas that perfectly match system needs by understanding these patterns along with performance parameters like gain, bandwidth, and polarization. This makes sure that systems work reliably and cost-effectively in the defense, testing, and telecommunications sectors.

Introduction

Modern radio frequency (RF) and microwave systems rely on antennas that work well across a wide range of frequency bands. In order to work, internet infrastructure, EMC compliance labs, radar sites, and satellite communication networks all need Broadband Horn Antennas. These devices have the unique benefit of being able to work with multiple octaves without needing to be physically replaced or the system to be rearranged. This means that they are easier to use and cost less to own overall.

The radiation pattern tells us how energy travels through space, which affects the measurement accuracy, distortion, and coverage areas. If an antenna meets the strict standards for 5G backhaul tests, radiated immunity evaluations, or aerospace signal tracking, it will have performance measures like gain stability, bandwidth flatness, and voltage standing wave ratio (VSWR). This guide was made to help purchasing managers, RF engineers, system designers, and OEMs understand technical specs, compare solutions, and make sure their buying choices are in line with their business goals and budgets.

Understanding Broadband Horn Antenna Fundamentals

What Defines a Broadband Horn Antenna

When electromagnetic waves leave directed transmission lines and enter empty space, horn antennas act as expanded waveguide structures. The Broadband Horn Antenna version builds on this idea by adding design changes—like ridges or tapered parts for impedance matching—that keep the resistance and radiation properties the same across multiple octaves. Broadband designs can achieve ratios greater than 10:1 (for example, 2-18 GHz or 18-40 GHz), meeting the need for single-device solutions that don't require swapping antennas during multi-frequency testing or surveillance operations. Standard pyramidal horns may work well over 50–100% of their fractional bandwidth.

Operating Principles and Frequency Coverage

Through slow changes in shape, these antennas change directed electromagnetic modes into emitted plane waves. Matching the resistance is controlled by the flare rate, and internal features such as double spikes lower the cutoff frequency and stop higher-order modes that mess up the pattern. Most industrial models can constantly cover 1 to 18 GHz, which is the whole microwave spectrum used for business EMC, radar, and wireless tests. Versions with an extended range can hit 40 GHz or higher, which helps with millimeter-wave research and 6G development programs for the next generation.

Core Performance Metrics That Matter

• Radiation pattern shows the angle distribution of emitted power and is usually shown as polar or rectangular plots that show the main lobe direction, beamwidth, and side lobe levels. Engineers use these plots to guess where service will be and where interference might come from.
• Gain is a measure of how well and where something works. It usually ranges from 6 dBi at lower frequencies to 15 dBi at the upper band ends. As the frequency goes up, the opening gets electrically bigger, so the gain goes up too.
• Bandwidth is the range of frequencies over which performance stays good. VSWR limits below 2.0:1 are often used to define bandwidth.
• Polarization tells us the direction of the electric field, which can be linearly vertical, linearly horizontal, or circular. It is important for the transmitter and sensor to have the same direction so that the information doesn't get lost.

Analyzing Radiation Pattern Characteristics and Performance Optimization

Common Performance Challenges in High-Stakes Applications

Pattern distortion is still a problem when Broadband Horn Antennas work near the edges of the frequency range or when manufacturing tolerances don't match the specs. In crowded spectrum settings, unwanted side lobes make interference more likely, and main lobe broadening lowers spatial precision in radar and direction-finding uses. Gain differences in the operational band make it hard to calibrate during EMC testing, where repeatability within ±0.5 dB is required because of measuring error budgets. Frequency limits happen when standard horn designs can't keep single-mode transmission going at the lowest frequencies. This causes pattern breakup and random nulls that make it hard to trust measurements in compliance labs.

Design Principles for Radiation Pattern Optimization

The flare angle has a direct effect on matching resistance and keeping the pattern pure. Shallow angles (10–15 degrees) make changes easier and lower VSWR, but they need longer physical lengths. Steeper angles, on the other hand, make things smaller, but they reflect more light. The size of the aperture affects the gain and beamwidth. Broader patterns are good for wide-area lighting in chamber tests, while narrower beams with higher directivity are created by bigger apertures that focus energy into longer-range point-to-point links. The choice of material affects both how well it works electrically and in the surroundings. Aluminum bodies that have been precisely made have good conductivity, are light, and don't rust when coated with powder. This means that they can be used outside on towers or ships.

In broadband systems, the shape of the internal ridges is very important. In double-ridged designs, conductive fins are placed along the walls of the E-plane. This lowers the dominant mode cutoff frequency and makes the impedance profile flatter. This idea is expanded with quad-ridged models that work with circular polarization or very wide bandwidths. Whether it's a linear, exponential, or multi-step ridge taper shape, the return loss performance is balanced against the cost and difficulty of making.

Manufacturing Excellence and Validation Protocols

Advanced CNC cutting makes sure that measurements are accurate to within a few microns, which is very important for keeping the phase center stable and reducing side lobes across production lots. Treatments for the surface finish cut down on resistance losses. This is especially important at millimeter-wave frequencies, where skin depth effects are most noticeable. To make sure that patterns are correct, reputable companies like ETS-Lindgren and Schwarzbeck use strict near-field scanning and far-field range readings. Testing in an anechoic room measures gain, polarization purity, and cross-polarization discrimination. The results are recorded on data sheets that can be linked to national measurement standards. Buyers can be sure that public specs accurately reflect performance in the real world when products meet MIL-STD-461, CISPR 16, and ISO 17025 standards. This lowers the risk of purchasing and allows for accurate system-level modeling.

Comparing Broadband Horn Antennas with Alternative Antenna Types

Performance Parameters Across Antenna Technologies

Patch antennas are commonly used in household electronics and small IoT devices because they are small and easy to add to circuit boards. Their narrow bandwidth (usually 5–10%) and inability to handle high power levels, on the other hand, make them less useful for wideband testing or high-power transfer situations. Log-periodic antennas have self-scaling dipole arrays that cover a wide range of frequencies. However, they have lower gain (6–9 dBi) and bigger back lobes that make screening harder in lab settings.

It is great for satellite ground stations and long-distance microwave links that parabolic reflector systems have very high gain (20–40 dBi) and narrow beamwidths. However, their size, weight, and mechanical complexity make them more expensive to install and make it harder to use them in places with limited room. Waveguide slot arrays offer controlled patterns with low side lobes, which are ideal for phased array radar systems. However, because they are narrowband and expensive to make, they are not suitable for multi-frequency test tools or research labs that need to be able to quickly change their layout.

Double Ridged Horn Antennas are one of a kind because they have a modest gain, a wide bandwidth, and patterns that are easy to predict. Their strong construction means they can handle rough conditions like shaking, temperature changes, and salt spray without losing any of their performance. They can handle power levels from 300 W to over 1 kW CW, which makes them useful for both measuring and jamming. Long-term dependability is ensured by not having any active parts or fragile structures. Low upkeep needs lower lifetime costs.

Selection Criteria for 1-18 GHz and EMC Testing Environments

When buying antennas for EMC testing, uninterrupted sweeps across legal frequency bands are required by standards, so bandwidth consistency is the most important thing to look for. With a single 1-18 GHz horn, you don't have to switch out antennas, which can mess up measurements and waste important chamber time. VSWR less than 2.0:1 makes sure that power moves smoothly from the amplifiers to the device being tested. This is very important when field strengths are higher than 200 V/m for testing military or car protection.

Field uniformity estimates are affected by gain flatness. Antennas with strength changes of less than ±2 dB across the band make tuning easier and make measurements more accurate. In small test rooms, where big apertures can't keep the right measurement distances, size does matter. Connector compatibility—SMA for frequencies below 18 GHz, 2.92mm or 2.4mm for higher bands—affects how well a system works and how long it lasts when it is mated many times.

Procurement Guide: Choosing, Buying, and Customizing Broadband Horn Antennas

Assessing Needs According to Application Types

For MIMO channel sounding and propagation studies, the infrastructure for 5G backup communications needs receivers with stable phase centers. To test the uniformity and intermodulation performance of amplifiers under real-world loading situations, base station front-end testing needs to handle a lot of power. When there are geomagnetic storms, satellite communication systems can use dual-polarization to make up for Faraday spin in ionospheric paths. This keeps the link open.

Peak power rate and pulse handling are the most important things in radar and electronic countermeasure uses, where instantaneous energy levels can hit kilowatts. Pattern clarity is important for telling the difference between targets and blocking out noise. When research institutions characterize antennas or test materials, they need calibrated reference standards that come with official calibration papers that can be traced back to national labs. The measurement uncertainty must also be clearly recorded.

Reliable Brand Overview and Industry Leaders

ETS-Lindgren has a great name for its EMC test equipment. It sells horn antennas that come with full instructions and calibration help around the world. Their product lines go from 700 MHz to 40 GHz, and some of them are approved to meet more than one foreign standard. Schwarzbeck focuses on making precise measurement devices for compliance labs that are stable over time and have low error. Keysight offers integrated test solutions that make it easy to measure things by connecting horn antennas to signal producers, analyzers, and automation systems.

Huasen Microwave Technology Co., Ltd. has been making RF and microwave parts for more than 30 years and makes Broadband Horn Antennas that are designed to work in harsh industrial settings. Our designs use precise cutting and strict testing methods that meet the needs of MIL-STD and CISPR. Customization is possible for non-standard frequency ranges, link types, and environmental requirements. Our engineering teams are quick and work with clients from the idea stage all the way through production. Global logistics skills guarantee on-time delivery, and clear price systems allow for both small prototype orders and large volume sales.

Customization Pathways and Technical Specifications

A lot of system engineers need changes that aren't in the catalog. Shifts in the frequency bands are used to work with area spectrum allocations or study frequencies. Changing connectors from SMA to K-type or WR-series waveguide flanges works with current equipment. Custom mounting frames for tower installs, shock-resistant enclosures for airborne platforms, and radome-protected models for marine service are some of the mechanical changes that can be made.

Buyers should be clear about the following operational parameters during the specification process: frequency range with required gain flatness, maximum VSWR, power handling (average and peak), environmental conditions (temperature, humidity, salt fog exposure), and physical constraints (size, weight, mounting interface). By giving manufacturers this information, they can come up with the best options that match performance, cost, and delivery times.

Pricing Structures, Logistics, and After-Sales Services

The price of a horn antenna depends on its frequency range, bandwidth ratio, and amount of customization. Catalog versions for 1-18 GHz usually cost between $800 and $3000, but this depends on the model, its licenses, and its specs. Custom designs or millimeter-wave versions cost more because they take more time to build and require different ways to make them. System integrators and original equipment manufacturers (OEMs) who need more than one unit can get a volume price. Discounts usually range from 15% to 25% for orders over 20 pieces.

When shipping, logistics must take into account how big and fragile the items are. Damage can't happen during shipping if you use the right packing, like foam layers and rigid outer cases. When you send something internationally, you need to fill out export paperwork and coordinate with customs. Experienced providers can make these tasks easier. Lead times range from 4 to 8 weeks for standard goods and from 10 to 16 weeks for customized ones, based on how complicated they are and how busy the factories are right now.

Technical advice for installation and integration, help with problems, and recalibration services are all part of after-sales support. Reliable providers keep calibration labs that are accredited by NVLAP or A2LA and offer regular recertification that keeps measurement tracking throughout the antenna's useful life. The warranty usually lasts between 12 and 24 months and covers problems with the way the product was made. It does not cover damage caused by abuse or outdoor factors that go beyond what is specified.

Conclusion

Broadband Horn Antennas provide the performance across multiple octaves, pattern stability, and weather resistance needed for current defense, testing, and telecommunications. By knowing about radiation patterns and performance measures, you can make smart choices about what to buy that match technical needs with practical goals. By comparing options, checking out vendors' skills, and requesting customizations, engineers and buying professionals can make systems work better while keeping costs low. As wireless technologies move closer to 6G and more spectrum is used, it becomes more important to choose reliable antenna options from experienced makers in order to stay ahead of the competition and follow the rules.

Frequently Asked Questions

1. What frequency ranges do broadband horn antennas typically cover?

Most commercial models can constantly cover 1 to 18 GHz, meeting the needs of microwave frequency uses for EMC testing, telecommunications, and radar. Longer versions can go as low as 700 MHz or as high as 40 GHz for a millimeter-wave study. They can work with a wide range of system designs, from 5G networks below 6 GHz to Ka-band satellite links.

2. How do radiation patterns influence EMC testing accuracy?

Radiation patterns determine field distribution within test chambers. Antennas with clean main lobes and suppressed side lobes produce uniform illumination of the device under test, reducing measurement uncertainty. Pattern distortions lead to hot spots or nulls that make compliance results useless, which could mean expensive retesting or changes to the equipment.

3. Can horn antennas be customized for specific project requirements?

The Broadband Horn Antenna frequency bands, connector types, polarization setups, and mechanical connections are often changed by manufacturers like Huasen Microwave. Giving specifics during the enquiry step helps engineering teams come up with the best solutions for each application, whether it's for a study prototype or a production run that needs hundreds of units to work consistently.

Partner with Huasen Microwave for High-Performance Broadband Horn Antenna Solutions

Picking the correct Broadband Horn Antenna provider has a big effect on the success of your project, the accuracy of your measurements, and the long-term costs of running it. With 30 years of experience in RF and microwave technology and state-of-the-art manufacturing, Huasen Microwave Technology Co., Ltd. can make antennas that work in the toughest conditions. The VSWR of our double-ridged horn designs stays below 2.0:1 across all operating bands. Accredited testing methods confirm the gain stability and pattern purity. We can make changes to meet non-standard frequency, power, and environmental requirements, and we'll work closely with your engineering teams to make sure that the plans you send us meet the needs of your system.

Our manufacturing process is flexible enough to meet your needs, whether you need a few units for testing in the lab or a lot of them for building a telecommunications infrastructure. You can email our technical sales team at sales@huasenmicrowave.com to talk about your unique application needs, get full datasheets, or ask about custom broadband horn antenna options. As a reputable company that serves global business-to-business markets, we offer clear pricing, consistent shipping times, and full after-sales support that lasts the entire operating lifecycle of your antenna.

References

1. Balanis, Constantine A. Antenna Theory: Analysis and Design. 4th ed. Wiley, 2016.

2. Milligan, Thomas A. Modern Antenna Design. 2nd ed. Wiley-IEEE Press, 2005.

3. IEEE Standard 149-2021. IEEE Recommended Practice for Antenna Measurements. Institute of Electrical and Electronics Engineers, 2021.

4. CISPR 16-1-4:2019. Specification for Radio Disturbance and Immunity Measuring Apparatus and Methods – Part 1-4: Antennas and Test Sites for Radiated Disturbance Measurements. International Electrotechnical Commission, 2019.

5. Stutzman, Warren L., and Gary A. Thiele. Antenna Theory and Design. 3rd ed. Wiley, 2012.

6. U.S. Department of Defense. MIL-STD-461G: Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment. 2015.
