What Affects the Performance of a Helical Antenna?

Helical antenna success depends on a number of things that are all connected and affect how well your data link works. Radiation patterns and working bandwidth are largely determined by geometrical factors such as the diameter of the helix, the pitch angle, the number of turns, and the thickness of the wire. Gain stability, polarization clarity, and signal-to-noise ratio are also affected by the quality of the materials used, the accuracy of the manufacturing process, and the surroundings. When procurement managers and RF engineers understand these factors, they can choose antennas that can withstand the tough requirements of satellite data, 5G backhaul, radar systems, and flight platforms, making sure they work reliably across frequency bands from 200 MHz to 5 GHz.

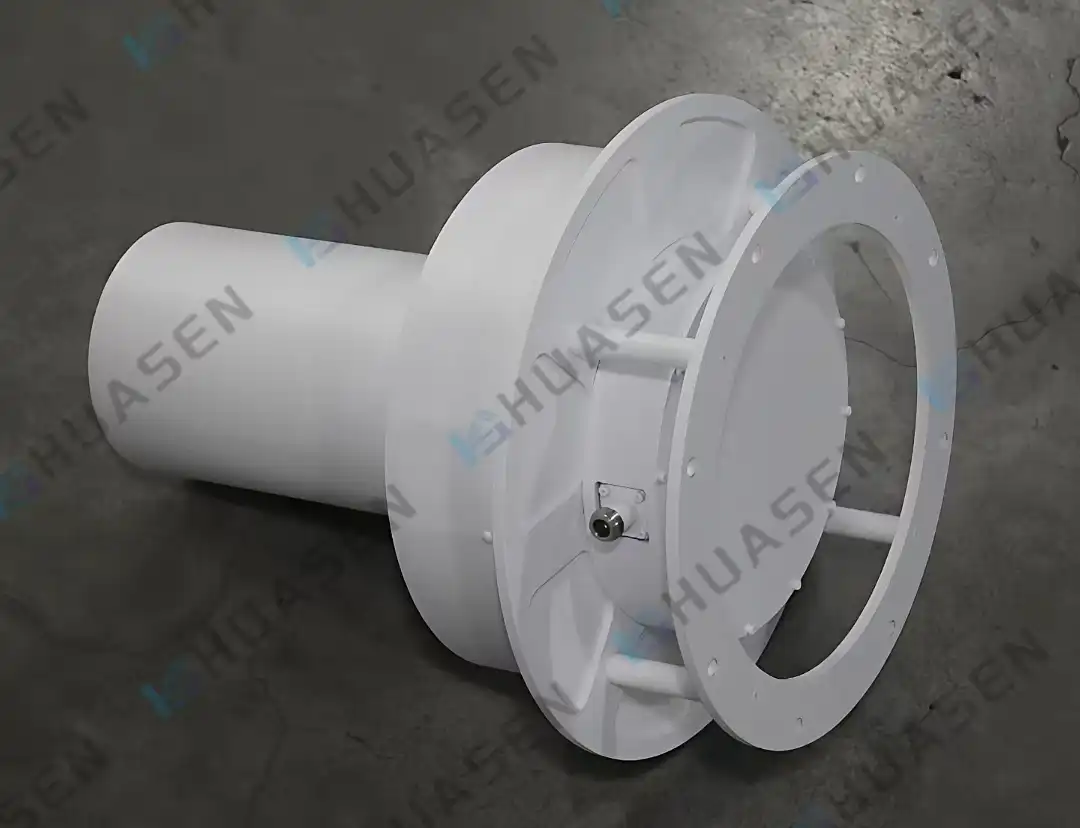

Understanding Helical Antenna Performance Fundamentals

Core Operating Principles and Radiation Modes

Helical antennas work in different radiation modes depending on how their shape is related to the wavelength. When the helix's diameter gets close to one wavelength, the antenna switches to axial mode and sends a directed beam along the helix's axis with circular polarization. This mode is highly valued in satellite ground stations and radar feeds because it blocks multipath echoes and keeps the link strong even if the emitter or receiver turns. When the diameter is much smaller than the wavelength, on the other hand, the antenna works in normal mode, spreading in all directions perpendicular to the axis. This is good for mobile communications, but it has less gain. If you know which mode your application needs, you can avoid expensive problems where the antenna's features don't match up with what the system expects.

Critical Performance Metrics That Define Quality

Gain, which is usually between 3 and 12 dB in industrial helix designs, tells you how well the antenna focuses energy in the direction you want it to go. Higher gain means better link budget margins, which are especially helpful when working on the edges of service areas or in lossy situations. The axial ratio is a way to measure how pure the circular polarization is. Values below 3 dB keep signals orthogonally polarized, which reduces interference and fading. If the Voltage Standing Wave Ratio (VSWR) is less than 1.5, it means that the antenna and feed line have good impedance matching. This lowers the amount of reflected power that could hurt transmission efficiency and even damage transmitter stages. When engineers look at datasheets, these specs should come first, followed by bandwidth coverage, which shows how flexible the device is across different frequency sets.

Material Selection and Its Impact on Durability

The type of conductor material—copper, brass, or stainless steel—affects both how well it conducts electricity and how well it holds up against force. Copper is a better conductor than most metals, which means it has lower resistance losses and better radiation efficiency. However, it needs protective coats to keep it from rusting in marine or industrial settings. Stainless steel can handle acidic environments and high temperatures, but it has slightly lower performance because it has higher resistance. To keep frequency drift and efficiency loss from happening, dielectric support structures need to have a low loss slope and stable permittivity across a wide range of temperatures. When buying things for the aerospace or defense industries, procurement teams often look for materials that are approved to MIL-STD-810 environmental standards. This makes sure that antennas keep working even when they are exposed to temperature changes, vibrations, and dampness, which would damage consumer-grade parts.

Primary Factors Influencing Helical Antenna Performance

Geometrical Dimensions and Their Electromagnetic Consequences

The thickness of the helix directly affects the resistance and beamwidth. To keep the VSWR low across the working band, careful matching network design is needed as the sizes get bigger. Polarization sense and gain are controlled by the pitch angle, which is the angle between the helical wire and a line that is perpendicular to the axis. Axial-mode performance is best at pitch angles between 12 and 14 degrees, which balance gain and bandwidth. Huasen Microwave's helical antennas can have either left-handed or right-handed circular polarization by simply switching the way of the helix winding. This gives system builders the freedom to fit polarization standards without having to redesign the whole antenna structure. The number of turns affects both gain and directivity. Adding turns narrows the beamwidth while increasing forward gain, but antennas that are too long can be hard to handle manually and can be damaged by wind loads when installed outside.

Directional Versus Omnidirectional Configurations

Directional helical antennas focus energy into a narrow beam. They work well for point-to-point connections like satellite uplinks, wireless backup, and radar tracking systems that only need to cover certain angles. These designs make the most of the gain and keep interference from off-axis sources to a minimum. This is very important in RF settings with a lot of interference, like urban cell phone networks or military electronic warfare scenarios. In normal mode, omnidirectional helical versions are used for mobile communications where the sender or receiver orientation changes without warning. For example, data from tumbling satellites or maritime communications on ships that pitch and roll. Which of these designs to use relies on whether your application cares more about coverage area or link budget efficiency.

Environmental and Installation Factors

Mounting factors have a big effect on how well an antenna works. The size and closeness of ground planes change the input resistance and the symmetry of the radiation pattern. If there aren't enough ground planes, the pattern gets messed up, and the efficiency goes down. Nearby metal structures, like buildings, equipment racks, and car bodies, reflect radiation, which lowers the axial ratio and creates nulls in the radiation pattern. When installed outside, they have to deal with ice buildup, UV damage, and temperature changes. Radomes protect delicate helical elements, but if they aren't built correctly, they can cause dielectric losses and possible resonance problems. When engineers choose antennas for base stations or unmanned aerial vehicles, they should take these real-world limitations into account when designing the system. They should also ask providers for environmental testing data to make sure the antennas will work well under actual stress.

Comparative Analysis: Helical Antenna Versus Other Antenna Types

When Helical Antennas Outperform Alternatives？

Helical antennas have a wider instantaneous bandwidth than patch antennas. In Huasen Microwave's applications, they have about 20% fractional bandwidth with VSWR ≤ 1.5, while regular patches only have 5–10%. This benefit in bandwidth cuts down on the number of parts needed in multi-band systems, which makes accounting easier and lowers the total cost of ownership. In contrast to patches, which need two feeds and hybrid couplers, helical antennas also produce natural circular polarization without the need for complicated feed networks. When compared to Yagi antennas, helical designs keep the circular polarization pure across the working band. Yagis, on the other hand, are linearly polarized by nature and lose 3 dB of signal when they talk to circularly polarized satellites.

Parabolic mirrors have a higher gain, but they need to be precisely aligned mechanically and take up a lot more space. Helical antennas work well as feeds for these reflectors because of their small size and circular polarization, which evenly lights up the dish. Although monopole and dipole antennas can pick up signals from all directions, they don't have the ability to block interference and reduce multipath that circular polarization does. Helical antenna shapes are the best choice when your application needs to handle cross-polarized interference, platforms that rotate, or surroundings that reflect light.

Commercial-Grade Reliability Versus DIY Risks

By wrapping copper wire around PVC pipe and other common materials, people can make homemade helical antennas (quadrifilar helix antennas) that work for simple tasks. However, they often have problems with impedance that changes, an axial ratio that isn't good, and mechanical weakness when exposed to force from the surroundings. To make sure that every unit meets the published specs, commercial makers like Huasen Microwave use controlled-dielectric support structures, precision winding fixtures, and strict testing procedures. Batch-to-batch consistency is very important for big deployments. For example, a cell phone company could put 500 base stations and find that half of them don't work as well as the others because of differences in how they were made. Professional goods are different from cheap ones because they go through quality assurance steps like network analyzer sweeps, anechoic chamber pattern measures, and accelerated life testing.

Procurement Insights: Selecting and Buying the Right Helical Antenna

Evaluating Supplier Credentials and Product Documentation

When looking for antennas for mission-critical systems, the name of the seller and how well they can help with technical issues are just as important as the price per unit. Well-known companies offer detailed datasheets that show gain patterns, axial ratio outlines, VSWR curves, and power handling limits for the whole frequency range that the device can be used. Huasen Microwave was established in 1993 by people with 30 years of experience working with microwave components. The company releases calibration data and test results that can be linked to national standards. This gives procurement teams faith in the performance claims made. Look for providers that offer customization services, such as frequency tuning, port choice (SMA, K, and waveguide interfaces), and mounting bracket options. This way, you can make antennas fit your mechanical and electrical needs exactly, without having to pay for full custom development.

Certification compliance shows a dedication to quality and following the rules. For defense companies, MIL-STD certification is important. For technology sold in Europe, RoHS and REACH compliance are musts. ISO 9001 certification means that the manufacturing method is strong, with few mistakes and uniform quality. Before agreeing to large sales, ask for sample units to be tested in-house. When you test potential antennas in your real system, they can show integration problems like incompatible connectors, mounting interference, and unexpected pattern nulls that datasheets don't always show.

Balancing Cost, Lead Time, and After-Sales Support

Unit price is often the most important factor in buying choices, but the total cost of ownership also takes into account things like installation labor, guarantee coverage, and how quickly technical support can respond. A cheaper helical antenna that needs a lot of fixing in the field ends up costing more than a high-quality product that works right away. When deployment plans are tight, lead times become very important. Suppliers who keep standard models in stock can complete orders quickly, but full-custom designs may take 8–12 weeks for tooling and production. The frequency range of 200–5000 MHz and standard gain choices of 3–12 dB from Huasen Microwave cover most business and defense uses without the need for special engineering, which speeds up the procurement process.

After-sales support is what sets good sellers apart from great partners. Having access to application engineers who know how your system works and can suggest the best quadrifilar helix antenna radio setups is very helpful. Some makers offer design help by modeling where to put the antennas within your mechanical envelope and predicting far-field patterns that take nearby buildings into account. When problems happen, like performance loss, mechanical failure, or problems with integration, quick problem-solving by a responsive expert helps keep downtime and project delays to a minimum. The warranty should cover both problems with the way the product was made and problems with how it works. There should also be clear steps for getting the product returned and getting a new one sent out.

Conclusion

Geometry, materials, production accuracy, and installation techniques all play a role in the success of a helical antenna. Radiation patterns and polarization are affected by diameter, pitch, and turn count. The quality of the conductor and insulator determines how well it works and how well it can handle the surroundings. Figuring out when helical designs work better than patches, Yagis, or parabolic reflectors helps with choosing the best antenna for radar feeds, mobile communications, satellite links, and flight data. It's important to look at more than just unit price when judging providers when it comes to technical ability, customization options, certification compliance, and support timeliness. Systematic fixing and best-practice installation fix common performance problems, and new materials and multi-band designs protect systems against changing standards in the future. With this information, engineers and procurement managers can safely choose helical antennas that will work well in a wide range of difficult situations.

FAQ

1. Why does my helical antenna show high VSWR only at certain frequencies?

VSWR peaks usually happen because of mechanical resonances or impedance changes at feed transitions. This can happen when support systems introduce parasitic coupling. Make sure that the spiral has the same pitch and width all the way along its length. When a connector changes, the resistance profile should be smooth. Sudden changes cause echoes. Resonant frequencies can change because of things in the environment, like water getting in. Manufacturers like Huasen Microwave use network analyzers that run across the 200–5000 MHz range to make sure that the VSWR is less than 1.5 before shipping. This way, problems like these are caught during production.

2. Can I use a helical antenna designed for right-hand circular polarization with a left-hand transmitter?

Polarization mismatch causes a 3 dB signal loss and takes away the benefits of interference avoidance. The antenna has to physically fit the polarization sense of the emitter. By changing the direction of the winding, helical designs reverse the polarization. Huasen Microwave's goods make it clear which hand is being used in the paperwork. Field repair can be avoided by ordering the right polarization when it is being bought.

3. What power levels can helical antennas handle safely?

How much power a wire can handle relies on its cross-section, the dielectric breakdown voltage, and how much heat it can lose. Typical industrial helical antennas can handle 10-100 watts continuously, with pulse power levels higher. For high-power uses like radar transmitters and broadcast stations, special designs with bigger wires and forced air cooling are needed.

Partner with Huasen Microwave for Superior Helical Antenna Solutions

Huasen Microwave offers precision-engineered Helical Antenna options and has been making RF components for 30 years. Our goods have strengths between 3 and 12 dB, a wide bandwidth with VSWR ≤ 1.5, and axial ratios of less than 3 dB for pure circular polarization. They work with frequencies between 200 and 5000 MHz. Whether you need left-hand or right-hand polarization, catalogue models, or unique designs that meet your exact mechanical and electrical needs, our engineering team can help you from the first request all the way through mass production. Huasen Microwave is a trustworthy Helical Antenna provider that is dedicated to the success of your project. They are certified to international quality standards and are trusted by telecommunications, aerospace, and defense companies around the world. You can talk to our expert sales team at sales@huasenmicrowave.com about your application needs, ask for sample evaluation units, or get full product datasheets and prices for putting our products into your next-generation communication system.

References

1. Kraus, J. D. (1988). Antennas for All Applications. McGraw-Hill Education, Third Edition.

2. Balanis, C. A. (2016). Antenna Theory: Analysis and Design. John Wiley & Sons, Fourth Edition.

3. Kilgus, C. C. (1975). "Resonant Quadrifilar Helix Antenna Design Techniques," IEEE Transactions on Antennas and Propagation, Vol. AP-23, No. 4, pp. 483-489.

4. Emerson, D. T. (1996). "The Gain of the Axial-Mode Helix Antenna," National Radio Astronomy Observatory Technical Note, NRAO Electronics Division.

5. Wong, K. L. (2002). Compact and Broadband Microstrip Antennas. Wiley-Interscience, Chapter 6: Helical and Spiral Antennas.

6. IEEE Standard 145-2013. IEEE Standard for Definitions of Terms for Antennas. Institute of Electrical and Electronics Engineers, New York.
