Selecting the Right Helical Antenna for RF Projects

Choosing the appropriate antenna configuration determines the success or failure of mission-critical RF systems in telecommunications, aerospace, and defense applications. Helical antennas stand out among the crowded marketplace of radiating elements due to their unique ability to deliver circular polarization, wide bandwidth, and robust performance across demanding operational environments. When system integrators and equipment manufacturers evaluate solutions for satellite telemetry, base station feeds, or UAV communication links, understanding how helical designs address specific technical challenges becomes paramount to procurement decisions and long-term system reliability.

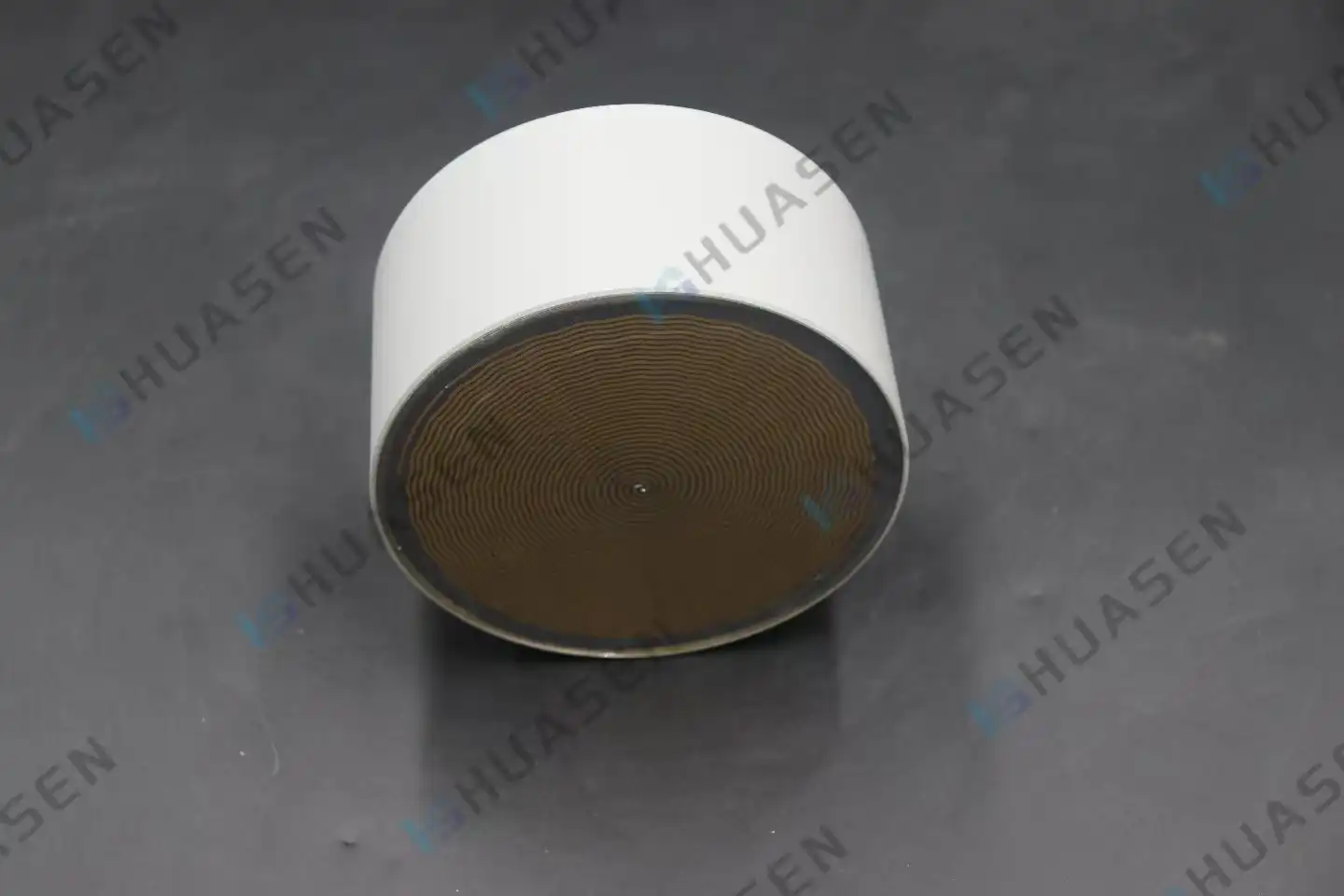

Understanding Helical Antennas: Fundamentals and Key Features

Working Principles and Design Architecture

A helical antenna is made up of a wire that carries electricity and is wound into a spiral coil shape. It is usually placed above a ground plane. The shape, which includes the pitch angle, diameter, and number of turns, determines how the radiation behaves. When the antenna's diameter is close to one wavelength, it works in axial mode, sending out a circularly polarized beam along the helix axis with directed gain. It is different from resonant structures like dipoles or patches because it behaves like traveling waves. This lets it have wider operational bandwidths and stable polarization purity.

Polarization and Radiation Pattern Characteristics

The direction of winding in the helical conductor determines whether the circular polarization is left-handed (LHCP) or right-handed (RHCP). The Helical Antenna from Huasen Microwave can be used in a variety of ways by simply flipping the helix orientation. This lets system builders choose how to spread the antenna without having to rethink the whole structure. This feature is very helpful when connecting to satellites that send signals in different polarization modes or when reducing multipath fading in links on Earth. The radiation pattern that is made has the shape of a cardioid, and the gain is highest along the helix axis. This keeps back-lobe radiation and interference from unwanted directions to a minimum.

Frequency Range and Gain Specifications

Helical antenna setups work with applications ranging from VHF mobile communications to C-band satellite uplinks and cover a frequency range of 200 MHz to 5000 MHz. Depending on how many helical turns there are and how long the antenna is overall, the gain value is usually between 3 dB and 12 dB. The axial ratio, which is a measure of how pure the polarization is, stays below 3 dB throughout the operational band, with most values being close to 2 dB. This makes sure that there is little signal loss when getting circularly polarized transmissions. When VSWR stays at or below 1.5, bandwidth performance hits about 20%. This means that power is transferred efficiently and there is less returned energy that could damage transmitter stages.

Comparative Analysis with Other Antenna Types

Antenna Type	Bandwidth	Polarization	Gain Range	Size Factor	Best Use Case
Helical	15–25%	Circular (LHCP/RHCP)	3–12 dB	Moderate	Telemetry and satellite feeds
Dipole	5–10%	Linear	2 dB	Compact	Simple point-to-point links
Yagi	10–15%	Linear	7–15 dB	Large	Directional links on land
Patch	2–5%	Linear/Circular	5–8 dB	Very compact	Mobile phones and groups
Parabolic Reflector	10–20%	Depends on feed	20–40 dB	Extra-large	Long-range radar or satellite

In terms of bandwidth, helical designs are better than patch antennas, and they can achieve circular polarization without having to use complicated dual-feed networks. They have better multipath avoidance than Yagi arrays because they use circular polarization, but their peak gain is a little lower. Helical antenna elements are great for feeding parabolic reflectors because they have low cross-polarization and a wide beamwidth, which makes sure that the reflector surface is well lit.

Evaluating Helical Antenna Performance for Your RF Project

Critical Performance Metrics: Bandwidth, Gain, and Efficiency

Bandwidth is the range of frequencies over which the antenna can keep its VSWR and gain levels stable. Helical antennas offer about 20% fractional bandwidth, which enables a single design to cover numerous transmission channels or frequency-hopping spread-spectrum devices without retuning them. This directly solves the problem of inventory complexity in the industry, letting procurement teams standardize on fewer SKUs while still serving a range of operational situations.

Gain tells you how well an antenna can focus radiated power in a certain direction, which has a direct effect on how you figure out the link budget. Helical antennas are good for tracking uses where the target moves across moderate angular ranges because they typically have values between 3 dB and 12 dB, which match directivity with beamwidth coverage. Radiation efficiency—often more than 90% in well-designed helicals—makes sure that input power is turned into emitted energy instead of heat. This is very important for battery-powered devices like drones or portable transceivers.

Antenna Comparison for Technical Decision-Making

Procurement workers have to look at a lot of things when comparing helical antennas to patch, monopole, loop, and fractal options. Monopole antennas are small and can cover all directions, but they can only provide linear polarization and low gain, so they can't be used for satellite links that need circular polarization. Loop antennas have small sizes and low gains, but they have trouble with bandwidth issues. Fractal patterns make things smaller by using space-filling shapes, but they are harder to make, which costs more and takes longer.

When circular polarization, moderate gain, and wide bandwidth are all necessary for a project, helical antennas become the practical choice. They can handle mechanical flaws better than high-Q resonant structures, which makes them easier to make and lowers the number of rejects during production quality testing.

Design Tradeoffs: Size Versus Operating Frequency

The working frequency has the opposite effect on the physical measures. To keep the right ratio of circumference to wavelength for axial-mode operation at lower frequencies, helical diameters must be bigger and axial lengths must be longer. A 200 MHz helical antenna might be 50 cm long, but a 5000 MHz one can be squished down to 4 cm. When working with platforms that don't have a lot of room, like UAVs or ship-mounted communication arrays, system designers have to balance electrical performance with weight and volume limits.

By changing the pitch angle, you can tune the sound to get the best balance of bandwidth and gain. When you lower the pitch, you get more turns in the same length, which increases gain but decreases bandwidth. On the other hand, wider pitch angles increase bandwidth but decrease directivity. The engineering team at Huasen Microwave often works with clients to use electromagnetic simulation tools to model these choices. This makes sure that the final design meets both RF requirements and mechanical limits.

Off-the-Shelf Versus Custom-Built Solutions

Standard catalogue items shorten the time it takes to deploy and lower the cost of engineering. They are perfect for testing in the lab, making proof-of-concept prototypes, or doing small production runs. Helical antennas from Huasen Microwave that are sold off the shelf come with standardized test data, such as measured gain patterns and VSWR curves, which makes system integration go quickly.

When a project needs special features like non-standard frequency bands, specialized connector connections, weather sealing to MIL-STD-810 standards, or integration with proprietary mechanical mounting systems, it needs a custom design. Customization also takes into account approval needs, like meeting RoHS standards for European markets or DO-160 standards for tools used in the air. Custom development adds a few weeks to the lead time, but it avoids performance problems and the cost of redesigning in the future.

Procurement Insights: Buying Helical Antennas for B2B RF Projects

Identifying Trustworthy Suppliers and Manufacturers

Stability in the supply chain depends on choosing reliable vendors. Look for companies that have documented quality management systems. For example, ISO 9001 certification shows that the company follows consistent production methods. Need proof of traceability that includes certifications for raw materials and records of inspections done during the production process. Huasen Microwave keeps full test data for every serialized unit of the helical antenna. This gives customers performance confirmation as shipped, which makes receiving a review easier.

Check out the technical support infrastructure of the provider. Project risk is lower when responsive engineering teams help with integration issues, offer simulation models for system-level analysis, and provide sample units for assessment. Long-term partnerships rely on how financially stable the manufacturer is and how well they can source parts, especially for critical materials that can't be easily sourced when the supply chain breaks down.

Key Procurement Considerations

Think about	Important Questions	Reduction of Risk
Structure of Prices	Discounts for buying in bulk? How do I pay?	Long-term deals with stable costs
Changing things	When will the unique specs be ready? NRE fees?	Starting early to work with tech teams
Types of Connectors	Are there SMA, N, K, or waveguide interfaces?	Check to see if it will work with current tools
Rating for the environment	IP67 for use outside? Temperature range: -40°C to +85°C?	Match ratings to the conditions of deployment
Getting certified	Compliance with MIL-STD? RoHS? REACH?	Ask for certificates before you place your order.

Prices vary a lot depending on the number of items ordered, the frequency band, and the amount of customization. Standard designs can range from $50 to $200 per unit in small quantities, while custom millimeter-wave versions that require precise machining can cost up to $1500 per unit. To allow for design changes without going over budget, talk about the prices of prototypes away from the costs of production runs.

Specialized Variants for Demanding Applications

Waterproof helical antennas have sealed feed systems and radomes that are resistant to UV light. They are good for marine communications, where salt spray corrosion and constant exposure to wetness can be hard on exposed designs. Different types of satellite communication make sure that the axial ratio is less than 1.5 dB across narrow bands. This increases the link margin when working with weak satellite signals at low elevation angles.

High-power versions have thicker conductors and stronger dielectric supports so they can handle transmit power of kilowatts without arcing or warping due to heat. These are used in radar systems and electronic defenses where the peak pulse power is many times higher than the average rate.

Industry Brand Landscape

Leading providers like L-com have large catalogs that can be filled quickly for standard VHF and UHF bands. Times Microwave puts a lot of emphasis on integrating cable assemblies. They package helical antennas with transmission lines that match so that setups are ready to go. Comet is best at amateur radio and business broadcasting. Huasen Microwave stands out because it can be customized in a lot of ways. It can work with frequencies from 200 MHz up to millimeter waves and has full control over its own design, simulation, and manufacturing. This speeds up the custom development process and makes sure that the quality is the same across all production lots.

Conclusion

To choose the right helical antenna configuration, you have to weigh electrical requirements against mechanical limitations, the environment, and the realities of procurement. Because they have circular polarization, a wide bandwidth, and small directivity, helical designs are essential for satellite communications, data in space, and high-demand links on Earth. Your RF projects will continue to succeed even as communication standards change if you carefully look at performance metrics, compare them to other antenna types, and form strategic partnerships with vendors.

FAQ

1. In terms of satellite links, why would you pick a helical antenna over a patch antenna?

Patch antennas have a narrow bandwidth that makes it hard to receive multiple channels because they can't keep the axial ratio purity below 3 dB without complicated feeding setups. For satellite stations where polarization alignment mistakes result in serious signal loss, helical antennas naturally produce circular polarization with little cross-polarization.

2. Can helical antennas work with both WiFi and satellite systems at the same time?

WiFi bands 2.4 GHz are covered by a single helical antenna that works between 2400 and 2500 MHz. 5 GHz WiFi is covered by a different unit that works at 5800 MHz. Usually, satellite systems work in the L-band (1-2 GHz) or C-band (4-8 GHz), which means they need different helix designs that work best in those bands. Concentric helices or stacked configurations are used by dual-band or multi-band Helical antennas to accomplish this, but at a higher cost.

3. What effect does polarization sense have on how well the whole system works?

A potential 20 dB isolation loss is caused by mismatched polarization, which means sending LHCP while getting RHCP. In real life, systems lose 15 to 25 dB, which makes communication impossible without taking corrective action. Matching polarization sense makes sure that the most power is transferred and that the signal-to-noise ratio is at its best. This is important for keeping link margins in weak signal situations.

4. What effect does the size of the ground plane have on the pattern of radiation?

Ground planes that are too small let light bend around the edges, which changes the symmetry of the axial pattern and boosts back-lobe radiation. This makes it easier for interference from the back quadrants to get through and lowers the forward gain. Ground planes with diameters greater than 0.75 wavelengths can stabilize patterns, but beyond 1.5 wavelengths, the returns start to drop off.
