How Circularly Polarized Microstrip Antenna Generates CP Waves

In order to make CP waves, a Circularly Polarised Microstrip Antenna has to excite two electromagnetic modes that are not parallel to each other and have the same amplitude and an exact 90-degree phase difference. In this process, linear polarisation is changed into rotational polarisation, where the electric field vector keeps spinning in either right-hand (RHCP) or left-hand (LHCP) circles. To get circular polarisation, carefully designed patch geometries, specialised feeding networks, and careful material selection for the substrate are used. This makes it possible for signals to be more reliable in complex communication environments.

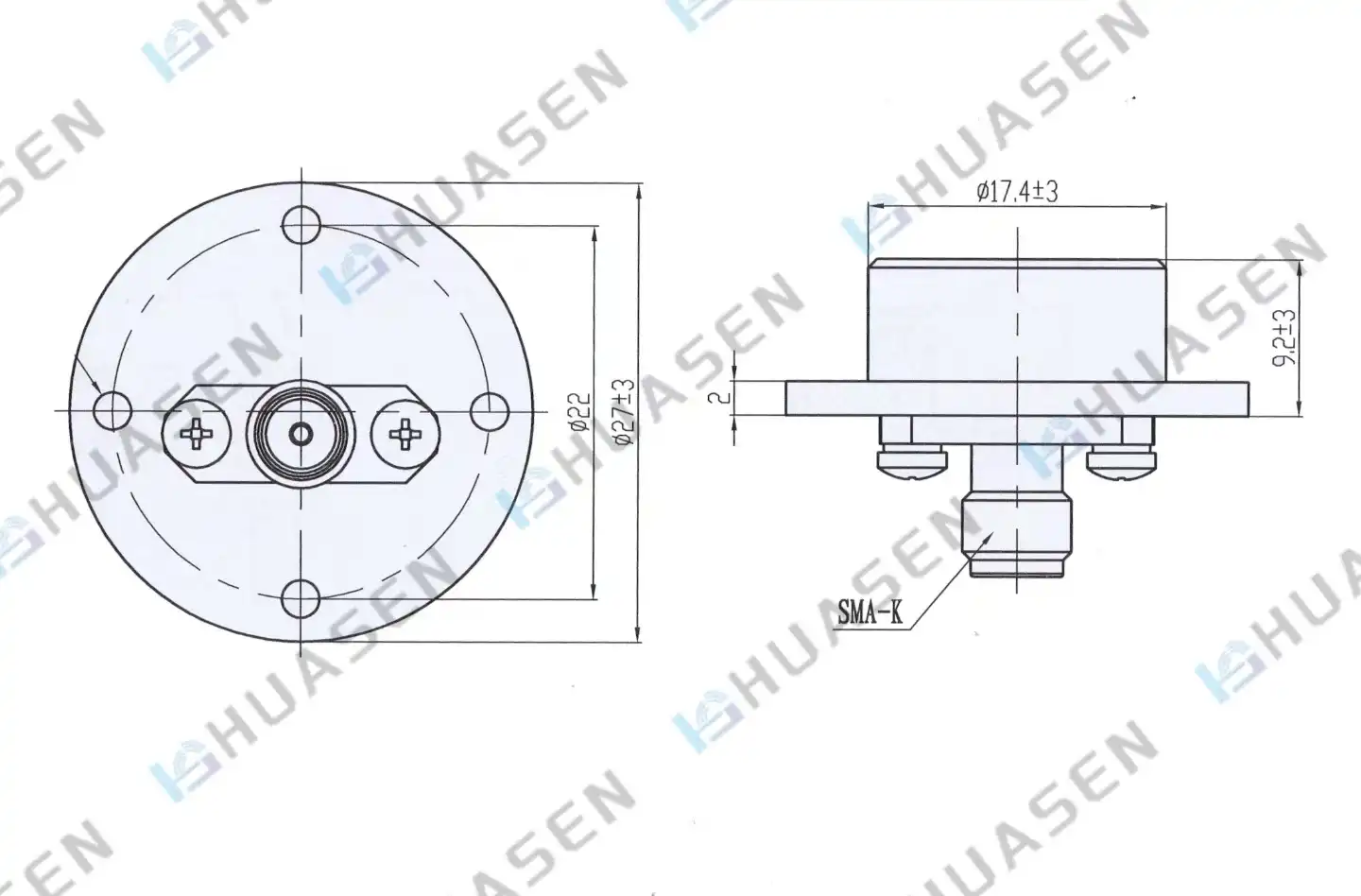

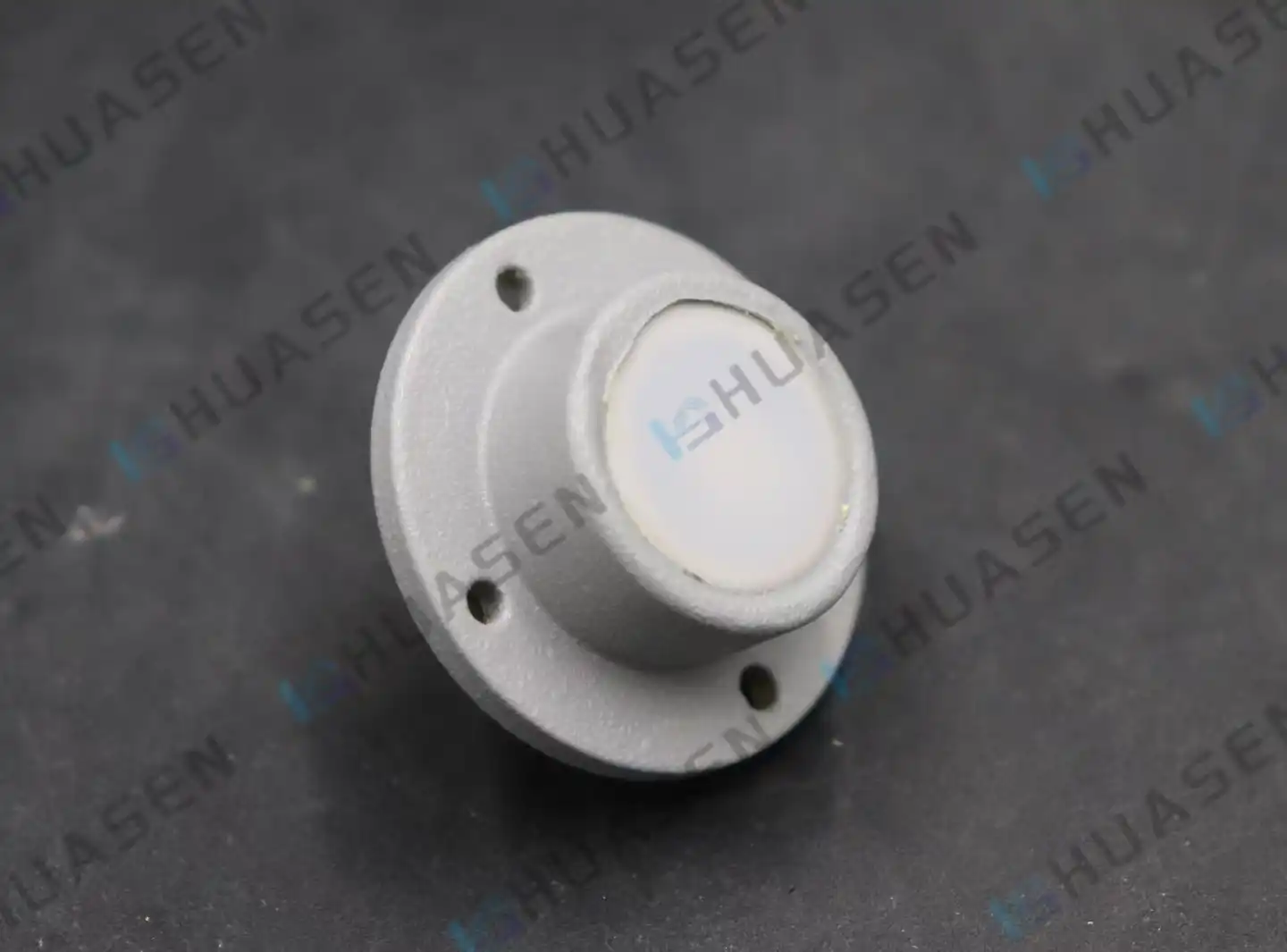

Introduction to Circularly Polarized Microstrip Antennas

As modern wireless communication systems have grown, there has been an unprecedented demand for antenna technologies that keep the signal strong no matter the orientation or interference from other objects in the surroundings. Circularly polarised (CP) microstrip antennas are a revolutionary way to solve important problems that engineers in satellite communications, radar systems, and mobile network infrastructure are facing. CP microstrip antennas are different from traditional linearly polarised antennas because they produce electromagnetic waves with an electric field vector that rotates continuously in a circular pattern. In multipath settings, where signal reflections can cause a lot of interference, this rotational property is very helpful. When signals bounce off buildings, terrain, or layers of the atmosphere, linear polarisation can suffer severe signal degradation. On the other hand, circular polarisation keeps signals intact by naturally rejecting cross-polarized interference. Microstrip antennas are especially useful for applications that need to save space, like UAVs, satellite terminals, and handheld communication devices. Their flat shape lets them fit smoothly into aerodynamic surfaces without affecting performance, which is very important for military and defence uses where every gram and millimetre counts.

Understanding the Fundamental Technology

To get the best circular polarisation, modern CP microstrip antennas use complex patch geometries and feeding methods. The technology depends on making two resonant modes that are orthogonal to each other and vibrate with the same amplitude while keeping a precise 90-degree phase relationship. To achieve this delicate balance, the antennas must be made with great care and use advanced substrate materials that keep their dielectric properties stable as temperature and frequency change. The main way to measure how well these antennas work is by their axial ratio, which shows how close they are to perfect circular polarisation. Axial ratios must be less than 3dB across the operating bandwidth for professional systems, and even lower tolerances of less than 1dB are needed for premium uses.

Core Principles Behind Generating Circular Polarization in Microstrip Antennas

The generation of circular polarization in microstrip antennas involves intricate electromagnetic field manipulation that transforms linear oscillation into rotational wave propagation. Understanding these principles enables engineers to select optimal solutions for specific application requirements while ensuring reliable performance across diverse operating conditions.

Orthogonal Mode Excitation Methods

When two electromagnetic modes that are not parallel move at the same level of strength and keep a quarter-wavelength phase difference, circular polarization happens. Several tried-and-true methods have been used to achieve this effect, and each has its own benefits for different uses. Single-feed methods use uneven patch geometries like rounded corners, diagonal slots, or perturbation elements that create the necessary phase difference naturally. These designs are great for low-cost applications with moderate bandwidth needs because they have small sizes and easier-to-use feeding networks. Dual-feed methods use two separate feeding points on opposite sides of the patch that are connected by hybrid couplers or power dividers that create the necessary 90-degree phase shift. This method works better for bandwidth and axial ratio, but it needs more complicated feeding networks and careful impedance matching.

Substrate Material Optimization

The base material has a big effect on both how well CP microstrip antennas work and how easy they are to make. Good substrates like Rogers RT/duroid, Taconic TLX, and ceramic-filled PTFE composites have stable dielectric properties that are needed to keep the circular polarization even when the temperature and frequency change. The thickness of the substrate affects both the bandwidth and the radiation efficiency. Thicker materials usually have wider bandwidths but more surface wave losses. The dielectric constant determines the antenna's physical size. Higher values allow for smaller designs, but they may lower the antenna's bandwidth and efficiency. Newer substrate technologies use low-loss tangent materials that reduce conductor and dielectric losses, which leads to better gain performance and higher radiation efficiency. These materials are especially useful in high-frequency settings where reducing loss directly leads to better system performance.

Comparative Analysis: Circularly Polarized Microstrip Antennas vs Other Antenna Types

Selecting the optimal antenna technology requires a comprehensive understanding of how different approaches perform across various metrics, including size, efficiency, bandwidth, Microstrip Antenna, and environmental tolerance. This analysis provides procurement teams with essential insights for making informed technology decisions that balance performance requirements with practical constraints.

Performance Comparison with Linear Polarized Systems

When considering link reliability in difficult propagation environments, the main benefit of circular polarisation becomes clear. When the transmitter and receiver orientations aren't lined up correctly, which can happen in mobile communications or when mechanical vibrations change the position of the antenna, the signal strength in linear polarised systems drops a lot. However, circularly polarised systems keep the signal strength the same no matter what the relative orientation between the transmitter and receiver is, which is up to 20dB better in the worst-case scenarios compared to cross-polarized linear systems. This independence from orientation is especially useful in satellite communications, where changes in the attitude of spacecraft can otherwise cause communication blackouts. Multipath interference has different effects on linear and circular systems. Circular polarisation naturally rejects reflected signals that change polarisation when they hit most surfaces. Being able to rely on this feature makes operation possible in cities and indoor areas where multipath propagation would normally lower connection quality.

Size and Integration Considerations

Compared to older helix or horn antennas, modern microstrip antenna designs are incredibly small while still providing similar performance levels. The flat shape lets it be put on flat surfaces like car roofs, building facades, or equipment enclosures without having parts stick out and cause mechanical problems. Weighing is very important in aerospace and portable applications where every gram can affect how well the system works or how much it costs to run. Usually, microstrip antennas are 50–80% lighter than equivalent gain helical antennas. This makes them the best choice for UAV, satellite, and handheld communication systems. For high-volume uses, manufacturing scalability is better with microstrip technology because techniques for making printed circuit boards allow accurate, repeatable production at low costs. This manufacturing edge is especially important for OEM integrations that need to have consistent performance and low prices.

Procurement Insights: Choosing and Purchasing Circularly Polarized Microstrip Antennas

Successful procurement of CP microstrip antennas requires careful evaluation of supplier capabilities, technical specifications, and long-term support commitments. Modern B2B purchasing decisions must balance immediate technical requirements with lifecycle considerations, including obsolescence risk, supply chain stability, and customization flexibility.

Supplier Evaluation Criteria

Leading manufacturers distinguish themselves through comprehensive testing capabilities, quality management systems, and technical support resources that ensure consistent product performance. Established suppliers maintain ISO 9001 certification, implement statistical process controls, and provide detailed test documentation, including axial ratio measurements, radiation patterns, and environmental qualification data. Manufacturing capability assessment should examine substrate sourcing practices, assembly techniques, and quality control procedures that directly impact product reliability. Suppliers utilizing automated assembly equipment, precision etching processes, and environmental stress screening demonstrate commitment to consistent quality that reduces field failure risks. Technical support capabilities become crucial when customization requirements arise or application-specific optimization becomes necessary. Premier suppliers provide simulation software access, design consultation services, and prototype development capabilities that accelerate product development cycles while ensuring optimal performance.

Customization and Specification Considerations

Standard catalog products rarely address all application requirements, making customization capabilities an essential selection criterion. Huasen Microwave's advanced design capabilities encompass frequency optimization, polarization purity enhancement, and gain pattern shaping that address specific propagation challenges or regulatory requirements. Array configurations ranging from single patch designs to complex 8×8 arrangements enable scalable performance optimization based on gain requirements, beamwidth specifications, and size constraints. Huasen's expertise in array design includes element spacing optimization, feed network design,Microstrip Antenna, and mutual coupling minimization that ensures optimal performance across diverse applications. Environmental qualification requirements vary significantly across industries, with aerospace and defense applications demanding MIL-STD-810 compliance while commercial systems may require only basic IP ratings. Understanding these requirements early in the procurement process prevents costly specification mismatches and project delays.

Practical Applications and Performance Evaluation of Circularly Polarized Microstrip Antennas

The versatility of CP microstrip antennas enables deployment across numerous high-value applications where signal reliability and system integration constraints demand optimal solutions. Understanding these applications helps procurement teams identify appropriate specifications while appreciating the technology's impact on overall system performance.

Satellite Communication Systems

One of the hardest uses for CP antenna technology is in satellite communication, where link costs have to be kept up even when the weather and elevation angles change. The circular polarisation standard for satellite services gets rid of the Faraday rotation effects that can have a big effect on linearly polarised systems during ionospheric propagation. Modern satellite terminals use adaptive array configurations that keep the accuracy of the pointer while giving enough gain margins for reliable communication. As a result of optimised element spacing and corporate feeding networks that minimise loss while maintaining excellent axial ratio performance across the operating bandwidth, Huasen Microwave's array solutions offer up to 23dB gain. Ground station applications benefit from the lower pointing accuracy requirements that come with circular polarisation, which lets mechanical tracking systems work with wider tolerances while keeping link margins. This loosening of the pointing requirement means that the system will be simpler to build and more reliable.

RFID and IoT Deployments

Radio frequency identification systems depend on orientation-independent communication to make sure that tags can be read reliably even if the box is moving or positioned differently during scanning. When linearly polarised readers come across orthogonally oriented tags, they lose some of their signal. Circular polarisation gets rid of these signal nulls, allowing almost 100% read rates in automated sorting and inventory management systems. Microstrip antennas' small size lets them be built into handheld readers, fixed portal systems, and conveyor-mounted scanners without affecting ergonomics or mechanical design constraints. Bandwidth optimisation makes sure that performance stays the same across regulatory frequency allocations while reducing interference from adjacent channels. The multipath rejection properties of circular polarisation help industrial IoT applications work better in metal-heavy environments where reflected signals usually stop communication. RF environments in factories, warehouses, and processing plants can be difficult, but circular polarisation keeps data lines reliable.

Radar and Defense Applications

More and more, military and private radar systems use circular polarisation to better separate targets and cut down on interference from things like weather or terrain. Switchable RHCP/LHCP operation gives you a choice of polarisations, aCircularly Polarised Microstrip Antenna,which lets you use advanced signal processing techniques that improve your ability to detect things. Huasen Microwave's military-approved designs meet strict requirements for electromagnetic compatibility and environmental safety while providing excellent performance across the L to Ku frequency bands. Specialised materials and assembly methods make sure that the antennas work well in harsh environments like shock, vibration, and temperature changes that are common in defence applications. Electronic warfare systems use the polarisation agility of advanced CP antennas to fight adaptive threats and keep communication lines open with friendly forces. Because it has a low profile and can be mounted in a conformal way, it can be used on platforms where other antenna systems would make them less stealthy or less efficient.

Conclusion

Circularly polarized microstrip antennas represent essential technology for modern communication systems demanding reliable performance in challenging environments. The generation of CP waves through orthogonal mode excitation and precise phase control enables superior signal integrity compared to traditional linear polarized solutions. Understanding the fundamental principles, comparative advantages, and application-specific requirements empowers procurement teams to select optimal solutions that balance performance, cost, and integration constraints. The technology's continued evolution through advanced materials and manufacturing techniques ensures sustained relevance across emerging applications, including 5G networks, autonomous vehicles, and space-based systems.

FAQ

1. What makes circular polarization superior to linear polarization in communication systems?

Circular polarization provides orientation independence and multipath rejection that linear systems cannot achieve. When signals reflect off surfaces, they undergo polarization reversal, allowing CP receivers to naturally reject interference while maintaining desired signal reception. This characteristic proves particularly valuable in mobile communication scenarios where antenna alignment cannot be guaranteed.

2. How does substrate material selection affect CP antenna performance?

Substrate materials directly influence bandwidth, efficiency, and temperature stability of CP antennas. Low-loss dielectric materials such as Rogers or Taconic substrates minimize power dissipation while maintaining stable electrical properties across temperature variations. The dielectric constant determines physical antenna size, with higher values enabling compact designs at the potential expense of bandwidth.

3. What axial ratio specifications should procurement teams target?

Professional applications typically require axial ratio values below 3dB across the operating bandwidth, with premium systems demanding specifications approaching 1dB. Tighter axial ratio specifications ensure purer circular polarization and improved cross-polarization rejection, directly translating to enhanced system performance in interference-limited environments.

4. How do array configurations affect overall system performance?

Array configurations multiply single-element gain while enabling beamwidth control and pattern shaping capabilities. Larger arrays, such as 8×8 configurations, can achieve gains exceeding 20dB while maintaining excellent polarization purity through careful feed network design. Array selection should balance gain requirements against size, weight, and complexity constraints.

Partner with Huasen Microwave for Advanced CP Antenna Solutions

Huasen Microwave Technology delivers cutting-edge circularly polarized microstrip antenna solutions engineered for mission-critical applications across telecommunications, aerospace,Circularly Polarised Microstrip Antenna and defense industries. Our hybrid waveguide-microstrip transmission networks achieve exceptional gain performance up to 23dB while maintaining ultra-lightweight construction and minimal profile dimensions. As a leading circularly polarized microstrip antenna manufacturer with over three decades of RF expertise, we provide comprehensive customization capabilities, including array configurations from single patch through 8×8 arrangements, diverse polarization options, and frequency coverage spanning L through Ku bands. Contact our engineering team at sales@huasenmicrowave.com to discuss your specific requirements and discover how our proven antenna solutions can enhance your system performance while meeting stringent environmental and reliability standards.

References

1. Balanis, Constantine A. "Antenna Theory: Analysis and Design, Fourth Edition." John Wiley & Sons, 2016.

2. Kumar, Girish and Ray, K.P. "Broadband Microstrip Antennas." Artech House Publishers, 2003.

3. Garg, Ramesh, Bhartia, Prakash, Bahl, Inder, and Ittipiboon, Apisak. "Microstrip Antenna Design Handbook." Artech House Publishers, 2001.

4. Wong, Kin-Lu. "Compact and Broadband Microstrip Antennas." John Wiley & Sons, 2002.

5. Chen, Wen-Shan, Wu, Chang-Kun, and Wong, Kin-Lu. "Novel Compact Circularly Polarized Square Microstrip Antenna." IEEE Transactions on Antennas and Propagation, Vol. 49, No. 3, 2001.

6. Nasimuddin, Chen, Zhi Ning, and Qing, Xianming. "Asymmetric-Circular Shaped Slotted Microstrip Antennas for Circular Polarization and RFID Applications." IEEE Transactions on Antennas and Propagation, Vol. 58, No. 12, 2010.
