Dual Polarized Horn Antenna in OTA & EMC Testing Systems

Measurement precision can determine 5G base station, satellite ground equipment, and advanced radar system testing success. Modern OTA and EMC testing requires recording both horizontal and vertical signal components through a single aperture. Dual polarised horn antennas eliminate mechanical rotation errors and greatly reduce test cycle times. These specialised instruments are essential for laboratories, system integrators, and equipment makers who need consistent, high-fidelity measurements across several frequency bands while minimising space and operational costs. This paper covers dual-polarised horn antenna technical architecture, performance benefits, selection criteria, and sourcing methods for testing settings for procurement managers and RF engineers. Understanding these characteristics promotes informed selections that meet growing wireless standards and project needs.

Understanding Dual Polarised Horn Antennas in OTA & EMC Testing

Modern testing standards demand antennas that can withstand complicated signal environments without affecting measurement fidelity. Due to advanced internal architecture, dual-polarised horn antennas control orthogonal polarisations separately.

Core Design Architecture and Operating Principles

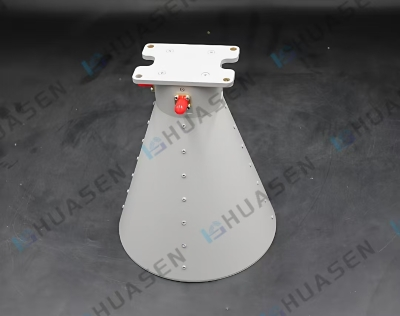

The Huasen Microwave Dual Polarised Horn Antenna uses an Orthomode Transducer with a circular or square conical horn shape to radiate and receive linearly polarised waves independently. The OMT divides incoming electromagnetic energy into two orthogonal components and sends them to separate ports while isolating channels. This construction varies from ordinary horn antennas that need physical adjustment to change polarisation.

Conventional OMT designs are easy to manufacture and operate across narrowband frequencies of 5% or less. These devices are useful for fixed-frequency applications, but their bandwidth limits multi-band testing. A sophisticated setup, the symmetrical feed OMT may operate at 40% fractional bandwidth. This design complexity provides polarisation isolation above 30 dB, essential for MIMO system assessment and cross-polarisation discrimination.

Critical Technical Specifications for Procurement Evaluation

Several aspects affect measurement quality when procurement teams evaluate these antennas. To optimise power transmission and reduce reflections, high-performance units keep VSWR below 1.5 across operational bands. Polarisation isolation defines how well the antenna isolates orthogonal signal components; 30 dB or more prevents measurement channel crosstalk that corrupts test results.

Gain ranges from 10 to 25 dBi, depending on aperture size and frequency, depending on the application. High gain concentrates radiated energy, increasing signal-to-noise ratios for sensitive receiver testing but diminishing measuring field homogeneity. Radiation pattern stability over the operating range impacts calibration validity and measurement repeatability, especially when characterising devices under test at numerous frequencies without recalibration.

Performance Advantages Over Alternative Antenna Types

Mechanical rotation during test sequences causes time overhead and positioning issues with single-polarised horn antennas. This is useful for mobile device total radiated power and total isotropic sensitivity assessments when test throughput affects laboratory economics. In anechoic chambers, where space allocation is expensive, the single-aperture design decreases equipment footprint.

Patch arrays and dipoles are cheaper but lack the wideband performance and polarisation purity of horn designs. Beam steering is possible with phased arrays, although calibration and phase coherence may complicate compliance testing operations. Horn antennas reduce measurement uncertainty budgets for authorised testing facilities due to their stable phase centres and predictable patterns.

Comparison and Selection of Dual-Polarised Horn Antennas for Testing Systems

Understanding application-specific performance trade-offs and how different designs meet testing issues helps choose the best antenna arrangement.

Bandwidth Requirements and OMT Configuration Selection

Narrowband testing applications with licensed frequency allocations may use traditional OMT designs cost-effectively. These devices are ideal for fixed satellite service ground station characterisation and single-band radar cross-section studies that need maximal gain within confined frequency ranges. Multiple units for multi-channel test systems are cheaper and more robust due to their simpler mechanical structure.

Wideband tests for 5G base station validation or multi-standard device assessment require symmetrical feed OMTs with dual polarised horn antennas. The 40% fractional bandwidth is necessary for a single antenna to span FR1 bands from 3.3 to 4.9 GHz. This consolidation simplifies inventories and allows frequency sweep measurement continuity without antenna changeouts that increase calibration uncertainty.

Gain Optimisation for Specific Test Scenarios

Field uniformity is prioritised above highest gain in EMC immunity testing; therefore, moderate-gain antennas with larger beamwidths light equipment more uniformly. High-gain setups provide appropriate received signal levels with reduced transmitter power, lowering test equipment cost and complexity for radiated sensitivity studies.

Gain-antenna size relationships limit practicality. Compact antennas with decreased gain may be needed to sustain far-field conditions in testing locations with restricted positioner-to-device separation. Understanding geometric restrictions before purchase minimises costly retrofitting or performance sacrifices after installation.

Specialised Considerations for MIMO and 5G Testing

MIMO system assessment needs simultaneous multi-channel measurements where port-to-port isolation influences dynamic range. Isolated antennas exceeding 30 dB throughout operating bands prevent measurement channel interference from corrupting beamforming or throughput estimates. Modern base station cross-polarised antenna arrays may be tested without rotating the equipment by separately controlling orthogonal polarisations.

Advanced wireless polarisation diversity techniques need precise cross-polarisation ratio measurements. Superior polarisation purity antennas minimise measurement uncertainty and increase test repeatability, especially when validating devices at specification limits where marginal performance differences have regulatory significance.

Practical Guidance on Installation & Integration in OTA & EMC Testing Systems

Proper installation affects antenna measurement performance. When combined without alignment, calibration, and environmental considerations, even premium antennas perform poorly.

Physical Mounting and Alignment Procedures

Mechanical stability underpins reproducible measurements. Testing sequences require robust mounting systems to minimise vibration-induced position drift. Install antennas on positioning towers or goniometers using mounting brackets that distribute load equally across attachment points to avoid mechanical stress that might distort the aperture or change the phase centre.

Polarisation alignment must be considered before installing. OMT ports usually match antenna housing polarisation orientations. Checking port-to-polarisation before cable connection eliminates test data corruption from inappropriate polarisation assignments. Setting vertical and horizontal references using precision levels or laser alignment tools guarantees polarisation accuracy within cross-polarisation discrimination limitations.

Calibration Methods and Verification Approaches

System losses between signal sources and the antenna are compensated by path loss calibration. Measure site insertion loss with calibrated reference antennas to set baseline correction factors for device testing. These calibrations at numerous frequencies over the operating band reveal frequency-dependent losses that single-point calibrations lack.

Polarisation purity check ensures antenna function after installation. Rotating a linearly polarised probe antenna in the far field and measuring received power reveals cross-polarisation and main polarisation. Variations from specification values indicate mounting bracket interference or connectivity issues that must be resolved before production testing.

Common Integration Pitfalls and Mitigation Strategies

Cable routing near the antenna aperture scatters radiation and reduces polarisation purity. Routeing cables along the antenna rear axis reduces the radiation zone presence. Absorber-wrapped cables in key sections decrease unintentional reflections, but absorber material selection must include frequency-dependent performance to avoid measurement mistakes.

Multipath interference from chamber walls, equipment racks, and positioning gear contaminates readings, including those from the dual polarised horn. Anechoic chamber absorbers minimise broadband reflections, while metallic objects in the near field cause localised scattering. Range verification measurements using reference antennas identify reflected sources that need relocation or treatment before facility certification.

Sourcing and Procurement of Dual-Polarised Horn Antennas

Partnering with trusted manufacturers provides product quality, delivery dependability, and equipment lifetime technical support. Through service responsiveness and personalisation, procurement techniques impact the initial and total cost of ownership.

Evaluating Manufacturer Credentials and Capabilities

Manufacturers with quality certifications and testing skills display knowledge. Technical datasheets show whether specifications reflect production unit performance or idealised design aims. Suppliers of national-standard calibration certifications verify unit performance rather than type-tested specifications.

Since 1993, Huasen Microwave Technology has specialised in high-frequency microwave and millimetre-wave component development. When project needs exceed catalogue offerings, this expertise base enables standard product reliability and bespoke design execution. Unlike vendors using design simulations, in-house testing facilities can characterise antennas across climatic conditions and power levels matching end-use applications, lowering deployment risk.

Custom Solutions for Specialised Testing Requirements

Catalogue antennas cover common testing scenarios, but custom configurations are needed for particular applications. For some chamber designs or test methodologies, custom frequency band coverage, gain profiles, or mounting interfaces may improve performance. Engineering consultancy services from manufacturers can assess project needs and suggest design changes that balance performance, cost, and delivery.

Ordering lead times differ greatly between regular and bespoke setups. Catalogue items using current tooling arrive in weeks, whereas unique designs with novel mechanical features or frequency bands take months to engineer. These variances must be considered in procurement planning, especially when project timetables involve antenna-dependent facility building or system integration milestones.

Strategic Considerations for Bulk Procurement

Multi-unit purchases for production test lines or dispersed test facilities offer volume pricing and standardised configurations to facilitate inventory management. Manufacturer framework agreements ensure pricing consistency across fiscal periods and supply priority during high-demand cycles. Service level agreements for calibration intervals, maintenance turnaround times, and technical assistance ensure operational continuity.

Early supplier involvement in project design permits concurrent test system and antenna development, shortening timeframes. While producing production numbers, manufacturers can give preliminary units for system integration certification, lowering the chance of interface incompatibilities during final installation.

Future Trends and Innovations in Dual-Polarised Horn Antennas for Testing Systems

As wireless technology advances, antenna development must keep up with tests and performance criteria. Understanding these patterns helps procurement teams predict future demands and choose adaptable solutions as protocols mature.

Material Advances and Miniaturisation Trends

Additive manufacturing allows intricate interior geometries that were impossible to machine. These features, including the dual polarised horn, improve bandwidth and polarisation purity in OMT systems while minimising component count and failure sites. Lightweight composite materials and metal printing generate antennas with equal electrical performance at lower weight, aiding robotic positioning systems where mass directly influences positioning accuracy and cycle times.

Miniaturisation addresses testing tiny devices and space-constrained chambers. Innovative feed network and mode converter architectures are needed to provide equal electrical performance in smaller apertures. Miniaturisation is limited by fundamental physics, but incremental advancements extend antenna applications for near-field testing or portable measuring devices.

Enhanced Measurement Accuracy for Next-Generation Protocols

Beamforming and polarisation modification in 5G Advanced and 6G standards need measuring equipment with high dynamic range and isolation. Advanced mode suppression and port matching increase polarisation isolation beyond 35 dB and VSWR below 1.3, tightening measurement uncertainty budgets needed to validate devices approaching theoretical performance limitations.

Ka-band and beyond antenna development is driven by millimetre-wave frequency growth for increased data speeds. Pattern stability and polarisation purity across greater absolute bandwidths need fine manufacturing tolerances and thermal stability issues not seen in lower frequency solutions.

Adaptation to Evolving Testing Standards

As wireless technology advances, regulatory organisations update testing methodologies to handle new interference scenarios and performance indicators. Modular antennas with field-replaceable feed networks or configurable bandwidth selection protect fixed-design equipment against specification changes. Manufacturers who offer firmware-level or mechanical tweaking options preserve capital investments over regulatory cycles.

Conclusion

In the current OTA and EMC testing infrastructure, dual-polarised horn antennas provide measurement precision and operating efficiency unmatched by other technologies. The simultaneous orthogonal polarisation handling, wideband capabilities, and improved isolation parameters meet 5G validation, MIMO characterisation, and regulatory compliance testing needs. Successful procurement requires matching antenna specifications—particularly OMT configuration, bandwidth, and polarisation purity—to application-specific needs and cooperating with vendors with technical depth and customisation capabilities. High-performance antenna systems with robust engineering assistance allow testing facilities to adapt easily while preserving measurement integrity across technology generations as wireless protocols increase frequencies and signal complexity.

FAQ

1. What distinguishes dual-polarised horn antennas from single-polarised designs in testing applications?

In testing, what sets dual-polarised horn antennas apart from single-polarised designs? Mechanical rotation is needed to detect orthogonal polarisation components in single-polarised antennas, causing positioning errors and longer test cycles. Dual-polarised designs record both directions concurrently using independent OMT ports, enhancing measurement throughput and removing rotation-induced errors for MIMO system assessment.

2. Can dual-polarised horn antennas accommodate custom frequency ranges for specialised testing?

Manufacturers with in-house design capability can create project-specific frequency band solutions. For schedule-critical projects, early supplier involvement is vital since custom designs need longer engineering validation and tooling lead times than catalogue goods.

3. How does antenna gain selection impact measurement accuracy in EMC testing?

Higher gain concentrates radiated energy, increasing signal-to-noise ratios but diminishing field homogeneity across test equipment. Moderate gain antennas produce more uniform field distributions for EMC immunity testing, whereas sensitivity measurements emphasise gain to create appropriate signal levels with reduced transmitter power.

Partner with Huasen Microwave for Your Testing Antenna Needs

Selecting the right Dual Polarized Horn Antenna supplier affects product performance and adaptability to changing testing needs. With over 30 years of RF component experience and extensive customization possibilities, Huasen Microwave offers narrowband traditional OMT designs to advanced wideband symmetrical feed setups with polarization isolation standards surpassing 30 dB. To optimize antenna characteristics for chamber shapes, frequency allocations, and performance goals, our engineering teams work with customers. Contact our experts at sales@huasenmicrowave.com for confirmed quality, fast technical assistance, and production dependability for your project. Huasen Microwave is your trusted manufacturer for precision testing components that satisfy stringent requirements, whether you need single evaluation units or bulk manufacturing.

References

1. IEEE Standard 149-2021, "IEEE Recommended Practice for Antenna Measurements," Institute of Electrical and Electronics Engineers, New York, 2021.

2. Balanis, C.A., "Antenna Theory: Analysis and Design, Fourth Edition," John Wiley & Sons, Hoboken, New Jersey, 2016.

3. Razavi, S.M. and Khalaj-Amirhosseini, M., "Wideband Orthomode Transducers for Millimeter-Wave Applications," IEEE Transactions on Microwave Theory and Techniques, vol. 68, no. 9, pp. 3678-3686, 2020.

4. CTIA Certification Program, "Test Plan for Wireless Device Over-the-Air Performance, Version 3.8.1," CTIA, Washington DC, 2020.

5. Rodriguez, V., "Advances in Antenna Measurement Technologies for 5G and Beyond," International Journal of RF and Microwave Computer-Aided Engineering, vol. 31, no. 6, 2021.

6. IEC 61000-4-3:2020, "Electromagnetic Compatibility – Testing and Measurement Techniques – Radiated Radio-Frequency Electromagnetic Field Immunity Test," International Electrotechnical Commission, Geneva, 2020.
