Calibration Stability Issues in Broadband Coaxial Detector Design

How stable the calibration is in a broadband coaxial detector tells you if your RF power readings stay correct over time or start to drift into mistake areas that cost a lot of money. When temperature changes, parts wearing out, or mechanical stress cause detector circuits to lose their measured reference, system engineers have to deal with measurement errors that spread through automatic level control loops, radar pulse profiling, and scalar network analysis. We need to know how diode physics, matching circuit design, and external factors affect long-term performance in mission-critical uses in order to solve these stability problems.

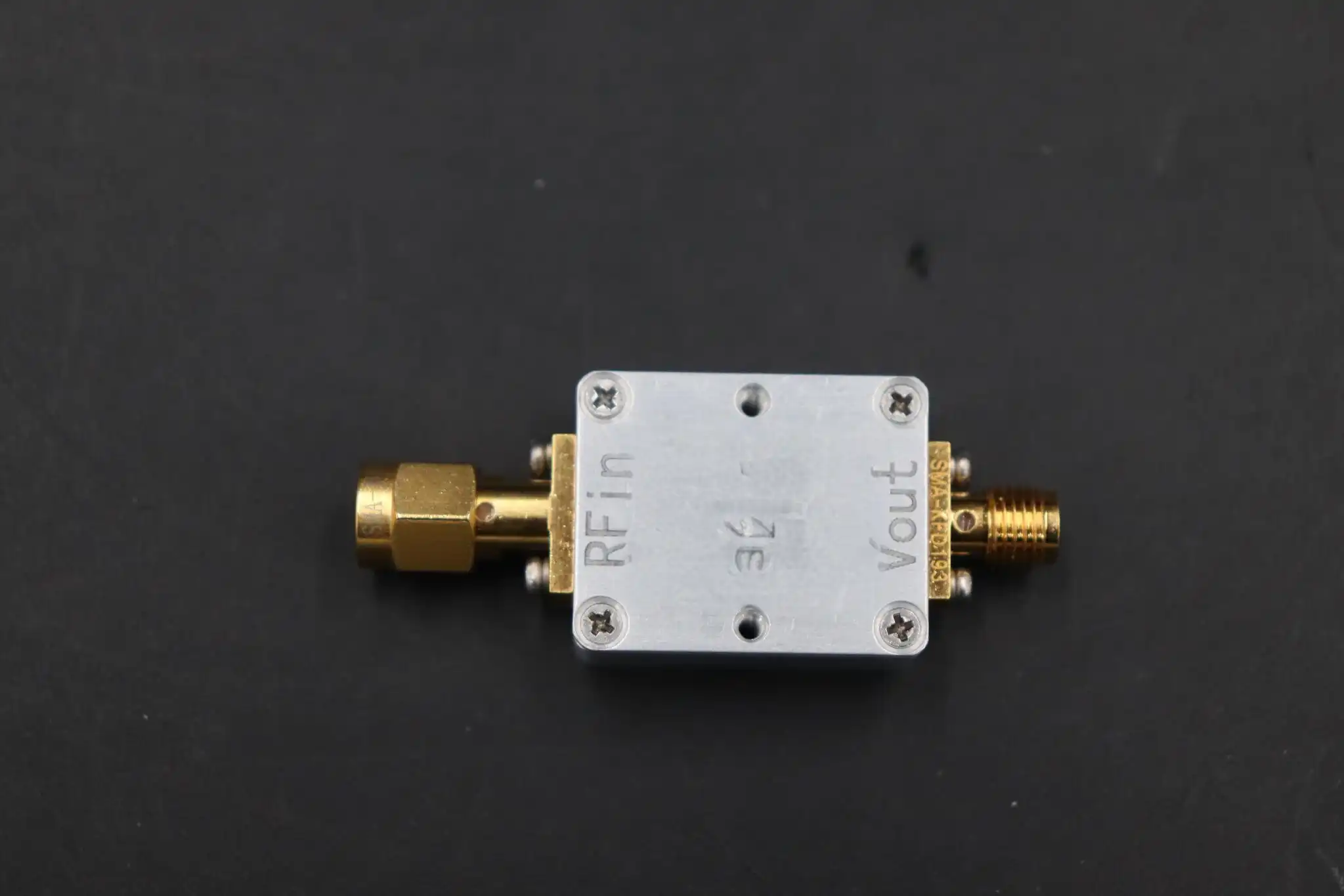

Understanding Calibration Stability Issues in Broadband Coaxial Detectors

Defining Calibration Stability and Its Impact on Measurement Accuracy

The calibration stability of a detector is how well it keeps its voltage-to-power conversion ratio stable over its entire working range and in all kinds of environmental situations. When we talk about detecting RF power from 0.1 to 18 GHz, even small changes, like 0.5 dB over six months, can cause big problems for people who build base stations for telecommunications or radar systems and need to be very accurate with signal levelling. Purchasing managers know that unstable devices cause more downtime, more calibrations, and a higher total cost of ownership. This messes up production plans and makes people less confident in the supply chain's dependability.

Key Pain Points Driving Calibration Concerns in Industrial Applications

When engineers put detectors in 5G front-end units or satellite data lines, they keep running into three problems. The first problem is thermal drift, which happens when temperature changes between outdoor sites and labs with climate control change the diode's properties in unpredictable ways. Another issue is the wear and tear on the mechanical connectors. When SMA or N-type interfaces are mated over and over again, they cause small changes in the matching impedance that mess up measurement baselines. The third problem comes from the fact that point-contact diodes get worse with age. Over thousands of hours of use, the junction breaks down, which changes the sensitivity curves too much, causing early replacement of parts and making inventory management harder.

Why Maintaining Consistent Calibration Protects Long-Term Investment？

Companies that spend money on broadband coaxial detector systems need devices that keep their accuracy over long periods of time. Stable calibration protects against guarantee claims, lowers the cost of recalibration labour, and helps meet MIL-STD and ISO quality standards. Automatic level control systems in signal generators keep the output flat without having to be adjusted all the time. Radar pulse analysers give accurate measurements of the envelope, and scalar network analysers give accurate information on insertion loss across the whole frequency range. This consistency directly leads to working reliability and saves capital spending by increasing the service life of parts.

Core Causes and Principles Behind Calibration Instability

Electrical Factors: Diode Physics and Circuit Design Influences

A diode junction, which changes RF power into equivalent DC voltage using the square law, is at the heart of every broadband coaxial detector. Point-contact diodes are liked for having nanosecond rise times and low capacitance. Their sensitivity changes when the junction temperature and contact pressure change. The diode's barrier height changes when the environment changes, which changes the voltage coefficient, which is given in mV/μW. When designing a circuit, the sensitivity and dynamic range need to be balanced. For example, trying to get a high output voltage to make the readout electronics easier can make temperature coefficients bigger, and designs that are too cautious give up the ability to identify small signals. A very important factor is the design of the matching network. For example, wideband transformers with ferrite cores have frequency-dependent losses that change as the core ages, and reactive matching networks have problems with capacitor tolerance stacks at high and low temperatures.

Mechanical Factors: Connector Tolerances and Housing Integrity

The way a broadband coaxial detector is built physically has a big impact on how stable its calibration is. For coaxial connections rated up to 18 GHz, precise machining is needed. Differences in the centre pin width or the concentricity of the outer conductors can cause impedance discontinuities that change as the temperature rises and falls. In military applications, when detectors rotate between -40°C and +85°C, the different expansion of the brass connectors and stainless steel housings causes tiny movements that change the VSWR properties. When hermetic sealing fails, water can get in and damage internal solder joints and lower the dielectric properties of matched circuits. Over the span of a deployment, these mechanical drift mechanisms add up and slowly destroy the calibration that was set during factory acceptance testing.

Design Principles That Minimise Drift and Enhance Stability

Engineers at well-known companies use a variety of methods to deal with calibration instability. When choosing materials, it's best to use parts with matching thermal expansion factors. For example, PTFE dielectrics have very little change in permittivity as the temperature changes. Using shielding methods keeps detector circuits from getting electromagnetic interference from outside sources that could send false signals and mess up DC output readings. Calibration standards based on traceable measurements, like power metres that are mentioned by NIST, set baselines that take into account frequency flatness across octave bands. Modern systems have temperature adjustment networks that check the temperature of the environment and use correction factors to keep the flatness within 0.3 dB from DC to 18 GHz. These engineering practices make sure that detectors meet the strict needs of companies that make lab instruments and people who put together radar systems and can't stand fuzzy measurements.

Troubleshooting and Maintaining Calibration Stability in the Field

Identifying Calibration Drift Symptoms in Operational Systems

Field workers can spot calibration shifts using a number of clear signs. During frequency sweeps, automatic level control loops that used to keep output power within ±0.2 dB start to show swings of ±0.8 dB. When a scalar network analyser checks passive filters, it finds that the insertion loss values are moving 0.5 dB higher than what is written in the specs. This means that the detector's sensitivity has gone down. Radar pulse envelope screens show differences in intensity between sent and received pulses that can't be explained by propagation effects. When a lot of symptoms show up at once, like after temperature cycling or being exposed to vibrations during transport, the detector's calibration integrity is called into question and needs to be systematically diagnosed.

Practical Diagnostic Methods Using Signal Strength Tests

To start fixing the problem, an RF source that has been measured and whose power levels are known across the detector's frequency range should be used. By comparing the observed DC output voltages to the original calibration curves, you can see if the sensitivity has changed evenly or if it has errors that depend on frequency. Using both continuous wave and pulsed signals for testing helps separate problems with video bandwidth loss from problems with pure power recognition. By looking at connecting surfaces under a microscope, you can see wear patterns, corrosion, or debris that makes impedance matching less accurate. Using a vector network analyser to measure VSWR lets you find out how much reflection there is at the input ports. Values higher than 1.5:1 mean that the mechanical or electrical components need to be fixed before the accuracy can be restored through calibration changes.

Maintenance Strategies: Calibration Intervals and Environmental Controls

Setting up regular recalibration plans for broadband coaxial detectors based on the seriousness of the application stops drift from building up too much. Base station front-end modules that work in equipment rooms with stable temperatures may only need to be checked once a year, but flying radar systems that are subject to strong vibrations and temperature changes should be checked every three months. Controlling the environment is also very important. For example, keeping detectors in places with controlled humidity stops connector corrosion, and sending them in boxes with shock-absorbing foam lowers the mechanical stress. When regular maintenance shows that the device is still not stable after recalibrating it, moving to devices with temperature-compensated designs or hermetically sealed construction gets rid of the root causes instead of just the symptoms. This lowers the long-term maintenance needs and working interruptions.

Comparing Calibration Stability Across Broadband Coaxial Detector Brands

Performance Analysis of Leading Manufacturers

The market for RF components has a wide range of detection options with different levels of calibration consistency. Laboratory-grade detectors with precise machining and hermetic seals that stay stable within ±0.25 dB for five years have helped well-known names like Rohde & Schwarz build their reputations. Agilent's older models stress frequency flatness from 0.01 GHz to 40 GHz, but some users say they experience sensitivity drift in situations with temperatures above 70°C. Tektronix works on video bandwidth performance for pulse applications, which gives great rise times but needs to be recalibrated more often in continuous-power tracking situations. Fluke makes detectors that can handle mechanical shock for industrial use, but their wideband flatness specs aren't always as good as those of competitors who focus on the lab.

Evaluating Price Versus Quality for Procurement Decisions

When purchasing managers try to balance budgets with performance needs, they need to look at both the original cost of buying something and the total cost of ownership. Premium devices that cost $2,000 or more each usually come with factory calibration certificates, longer warranties, and tighter tolerance promises that lower the number of times they need to be calibrated. Options in the middle range, which cost between $800 and $1,200, usually offer good stability for point-to-point wireless lines or streaming tasks where an accuracy of ±0.5 dB is enough. Alternatives that cost less than $500 might be able to meet your basic power-tracking needs, but they often need to be re-calibrated every three months and break down more often when they get hot. Downtime costs, expert time for recalibration, and possible measurement mistakes that hurt system performance must all be added to the real cost equation. This is why it makes financial sense to use expensive detectors in mission-critical situations.

Leveraging Authorised Distributor Support and Custom Solutions

Working with manufacturers who allow scientific teamwork has a lot of benefits that go beyond just supplying parts. Huasen Microwave Technology, which has been around since 1993, is a good example of this method because it combines 30 years of RF experience with quick tech support. Their broadband coaxial detectors use point-contact diode technology along with special microwave matching circuits to give sensitivity greater than 0.15 mV/μW from 0.1 GHz to 18 GHz while keeping flatness of ±1 dB/octave. Signal transients that happen a lot during base station testing can be handled by the 20 mW overload capacity. Standard test tools can be used with the SMA-J/N-J input and BNC-K output connections. When purchasing teams need special frequency ranges, certain mechanical form factors, or MIL-STD qualification, makers can help with the design, offer sample trials with full calibration data, and keep the supply chain stable to avoid production delays.

Conclusion

Broadband coaxial detector design faces problems with calibration stability due to complicated relationships between diode physics, circuit layout, connector mechanics, and stresses from the environment. To fix these problems, we need to carefully choose the materials we use, follow the rules of engineering design, and make sure that our operating repair procedures keep the accuracy of our measurements during multi-year deployments. As RF systems get better at handling higher frequencies, wider bandwidths, and harsher working conditions, it's important to choose detectors from companies that have a history of stability and quick technical support to avoid costly downtime and measurement mistakes. Moving towards digital compensation, predictive maintenance, and customised solutions should raise the standards for calibration stability. This will allow for test instruments, telecoms infrastructure, and radar systems that work at their best.

FAQ

1. What causes calibration drift in point-contact diode detectors?

There are several ways that point-contact diodes can lose their calibration. Changes in temperature affect the heights of the junction barriers, which changes the ratio of voltage to power. The contact pressure at the diode junction changes because of the mechanical stress caused by mating cycles of the connection. When junction materials are used for long periods of time, they go through small chemical changes that make them less sensitive over time. High-power transients can damage contact surfaces very slightly, which can lead to nonlinearities that mess up measurements.

2. How often should broadband detectors undergo recalibration?

How often calibration is done depends on how serious the application is and how accurate it needs to be. Laboratory tools that are kept in a safe environment usually need to be checked once a year. On the other hand, military and defence systems that are exposed to vibration and high temperatures do better with checks every three months. Base station tracking applications that are subject to mild environmental stress normally keep their accuracy at a good level with recalibration every six months. Broadband coaxial detectors that show signs of drift, like readings that aren't consistent or VSWR degradation, need to be fixed right away, no matter what the plan is.

3. Can digital compensation completely eliminate calibration drift?

Digital correction cuts down on drift effects a lot, but it can't get rid of physical degradation processes completely. Temperature monitors and correction methods work well to deal with changes in temperature, so they stay accurate over a wide range of temperatures. But over time, mechanical wear in contacts, diode junction ageing, and matched circuit component tolerances make corrections less effective. Modern adjusted detectors make it possible to recalibrate less often and more consistently, but they still need to be checked against reliable standards on a regular basis to ensure long-term measurement confidence in important applications.

Partner with Huasen Microwave for Superior Detector Stability

Huasen Microwave Technology can help you with your calibration stability problems because they have been specialised in RF engineering for 30 years. Our Broadband Coaxial Detectors have point-contact diode accuracy and special matching circuits that keep the frequency range flat within ±1 dB/octave from 0.1 to 18 GHz. They are very sensitive, measuring more than 0.15 mV/μW, and can handle 20 mW overload conditions. As a reliable provider of Broadband Coaxial Detectors to the defence, telecommunications, and aircraft industries, we offer custom solutions that meet MIL-STD requirements and come with full calibration data and quick expert support. Talk to our engineering team at sales@huasenmicrowave.com about your specific stability needs and find out how our tried-and-true designs can lower your total cost of ownership while increasing your faith in your measurements.
