  Water Cooled Twist Waveguide

  The Water Cooled Twist Waveguide manufactured by Huasen Microwave combines cooling functionality with the feature of twisting the polarization direction of electromagnetic waves, equipped with a water-cooling circulation system for efficient heat dissipation.
  Advantages and Features:
  - Efficient heat dissipation
  - Low-loss polarization twisting
  - High power capacity
  - Supports a wide frequency range
  - Compact structure, easy installation, space-saving

  view more >>
•

  Sep 29, 2022

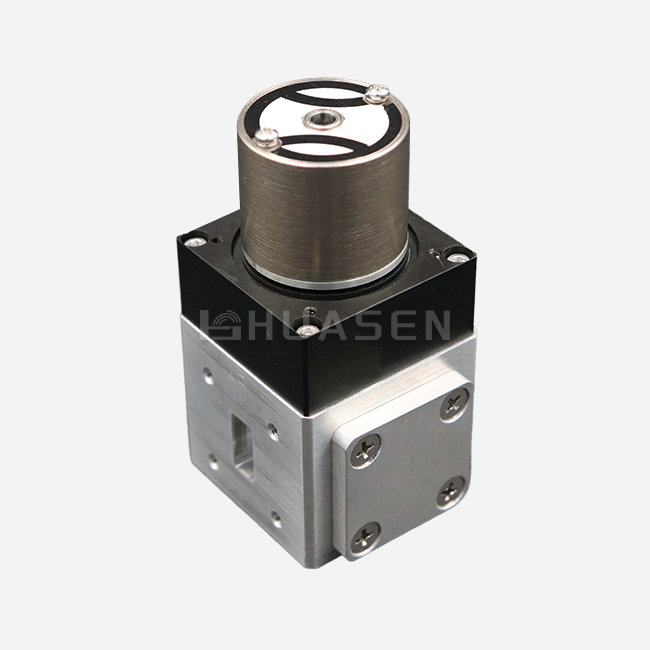

  Manual Waveguide Switch

  Structure: E-plane (WES) and H-plane (WHS), supporting rectangular waveguide and dual-ridge waveguide types.
  Multi-channel configuration: SPDT, DPDT, Three-channel six-port.
  Isolation: ≥70dB
  Insertion Loss: Low-frequency range ≤0.1dB, high-frequency range ≤0.5dB
  Frequency range: 1.72GHz to 112GHz
  Advantages: Simple operation, high cost-performance ratio, strong anti-electromagnetic interference capability.

  view more >>
•

  Jun 2, 2022

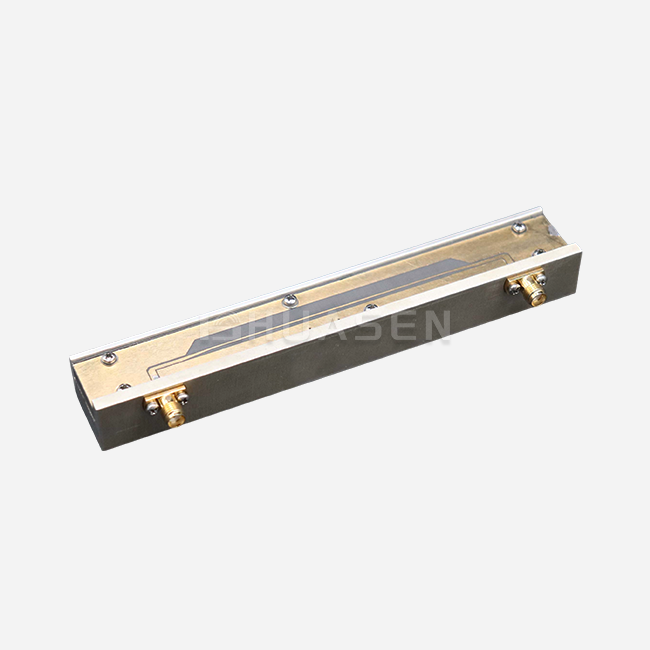

  Coplanar WG

  Huasen Microwave's Coplanar WG position transmission lines and components on the same plane, enabling highly integrated microwave circuit systems.
  Key Advantages:
  - Center conductor and ground plane on the same level, easing component installation
  - Wide operating frequency range, meeting diverse application needs
  - Excellent compatibility with various materials and processes

  view more >>
•

  May 26, 2022

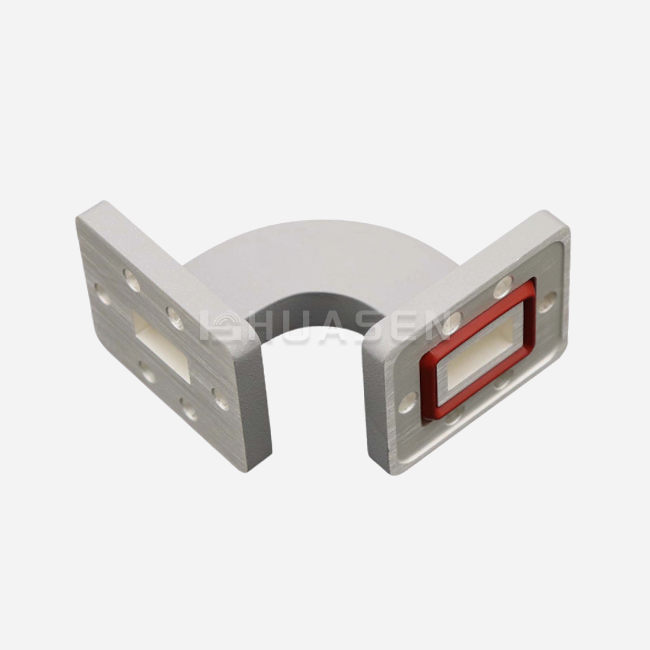

  WG Bend

  Waveguide Bend Types:
  - Arc Bend Waveguide: E-plane bend (WEB) / H-plane bend (WHB)
  - Mitered Bend Waveguide: E-plane Mitered Bend Waveguide (WTEB) / H-plane Mitered Bend Waveguide (WTHB)
  - Dual-Ridge Bend Waveguide
  Frequency: 0.32 GHz to 220 GHz
  Angle: Standard 90°, customizable
  Materials: Aluminum oxide, copper with silver/gold plating
  Flanges: Compatible with FDP/FDM, FBP/FBM, FUGP, etc.
  Dimensions: Compact design, with the smallest Mitered Bend Waveguide being 15×15 mm

  view more >>
•

  May 4, 2022

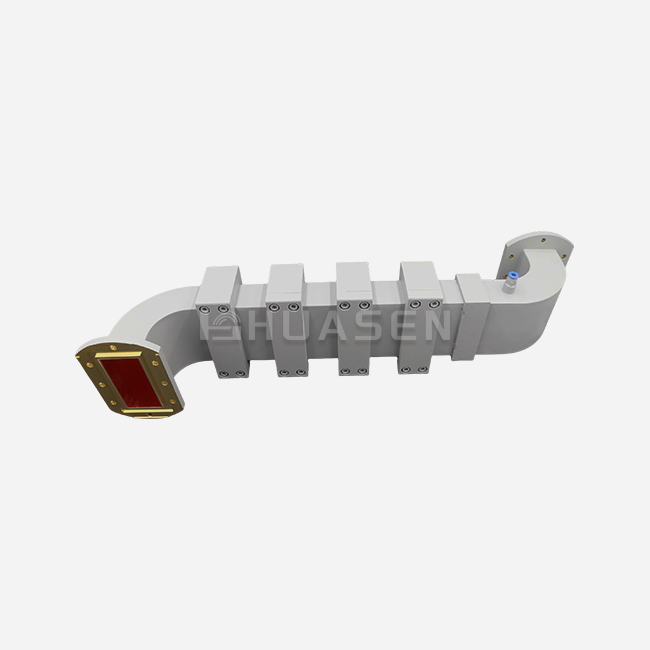

  Inflatable Waveguide Bend

  Huasen Microwave's Inflatable Waveguide Bends prevent moisture intrusion and extend lifespan by injecting specific gases.
  Advantages and Features:
  - Excellent airtightness, maintaining internal pressure and reducing signal loss
  - Customizable dimensions, bending angles, arm lengths, pressure thresholds, and interface specifications
  - Suitable for harsh environments such as outdoor, high humidity, and dust.

  view more >>
•

  Apr 28, 2022

  Multi Bend Waveguide

  Huasen Microwave's Multi Bend Waveguides support various bending forms and specifications, offering customized designs based on different scenario requirements.
  Advantages and Features:
  - Flexible adjustments for dimensions, bending angles, arm lengths, and interface specifications
  - Customizable inflatable pressure sealing solutions

  view more >>
•

  Feb 1, 2022

  S Bend Waveguide

  Huasen Microwave's S Bend Waveguides provide smooth steering of the microwave transmission path, overcoming installation challenges caused by space limitations.
  Advantages and Features:
  - Customizable waveguide dimensions, bending radius, and length
  - Flexible adjustment of interfaces and flange types according to requirements

  view more >>
•

  Jan 21, 2022

  Mitered Bend Waveguide

  Types: E-plane notch bend (WTEB) 、 H-plane notch bend (WTHB)
  Angle: Standard bend 90° (support customizable)
  Applicable scenarios: Narrow bandwidth, low power, large waveguide size requirements
  VSWR: ≤1.15 (for full-band) or ≤1.1 (for narrow-band)
  Flange types: FDP/FDM (low frequency), FBP/FBM (high frequency)
  Materials: Aluminum (oxidized coating) or copper (silver-plated coating)

  view more >>
•

  Jan 8, 2022

  Double Ridged Waveguide Bend

  Frequency range: 0.84-40GHz
  VSWR: ≤1.25; ≤1.3 (high frequency)
  Flange types: FP/FM (customizable)
  Materials: Aluminum (oxidized coating) or copper (silver-plated coating)
  Bend direction: E-plane (DRWEB) 、H-plane (DRWHB)

  view more >>
•

  Jan 1, 2022

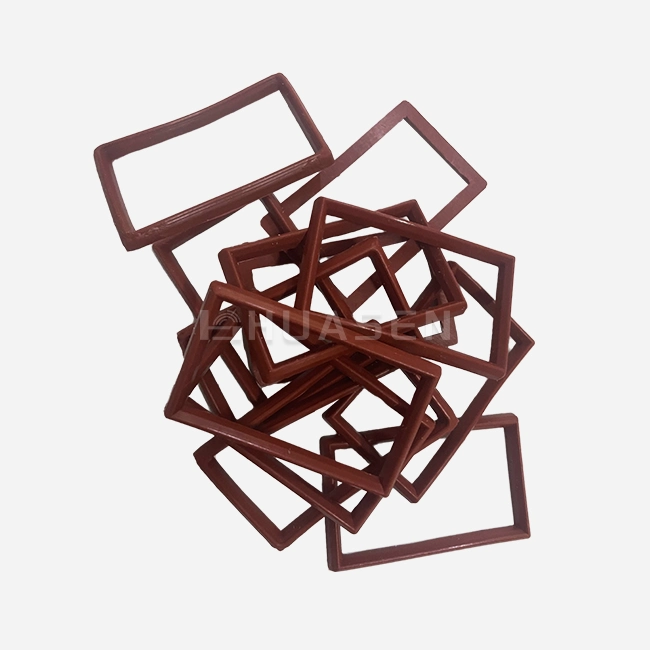

  Waveguide Flange Sealing Ring

  Huasen Microwave Waveguide Flange Sealing Rings Available in D-type (MFD) and O-type (MFO):
  - D-type: For FDM flanges (small/large), ensuring connection airtightness
  - O-type: For FBM/FBE flanges (standard/custom), supporting non-standard applications
  Advantages:
  - Meet international standard flange requirements
  - Full model range, covering all bands (low frequency to millimeter waves)
  - High-elasticity materials with oxidation/coating treatment for strong corrosion resistance
  - Quantitative design, easy to install and maintain

  view more >>
•

  Dec 10, 2021

  Tuning Screw

  Huasen Microwave Positioning Screws (DWS): Ensure precise alignment and stability for flange connections in BJ series waveguides (BJ14 to BJ900 frequency range).
  Function: Secure waveguide components.
  Features:
  - Strict diameter tolerances, precise length matching.
  - Durable metal materials with corrosion resistance.
  - Lightweight for easy installation and maintenance.
  - 12 models available for different size needs.

  view more >>
•

  Sep 3, 2021

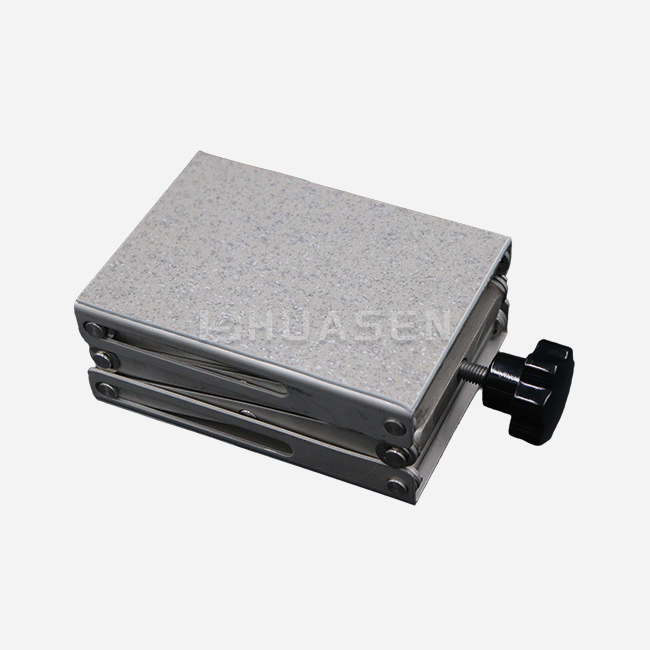

  Waveguide Elevating Platform

  Precision Adjustment: Elevation range 36mm- 260mm
  High Strength Load-bearing: 40-80kg
  Military-grade Stability: Full metal structure ensures secure equipment installation
  Typical Application Scenarios:
  - Antenna Testing: Used with rotating joints and other products
  - System Integration: Supports waveguide coaxial joint components
  - Millimeter-wave Experiments: Compatible with 26.5-40GHz frequency devices

  view more >>
•

  Jul 30, 2021

  Waveguide Flange Cover

  Function: Effectively prevents dust and foreign objects from entering the waveguide flange interface
  Dustproof Performance: Effectively protects the flange interface
  Easy Installation: Compatible with various standard flange types
  Appearance Design: Snap-on structure for quick assembly and disassembly
  In-stock Supply
  Customization Supported

  view more >>
